SMBJ5360A: Description25 V, 1.38 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-214AA; CategoryDiscrete semiconductor diode; File Size36KB，2 Pages; ManufacturerEIC [EIC discrete Semiconductors]; Environmental Compliance

Download Datasheet Parametric View All

SMBJ5360A Overview

25 V, 1.38 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE, DO-214AA

SMBJ5360A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	EIC [EIC discrete Semiconductors]
package instruction	R-PDSO-C2
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	HIGH RELIABILITY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	4 Ω
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	5 W
Nominal reference voltage	25 V
surface mount	YES
technology	ZENER
Terminal surface	Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	10%
Working test current	50 mA

Preview

Download Datasheet

View All

SMBJ53 Series

: 3.3 - 200 Volts

: 5 Watts

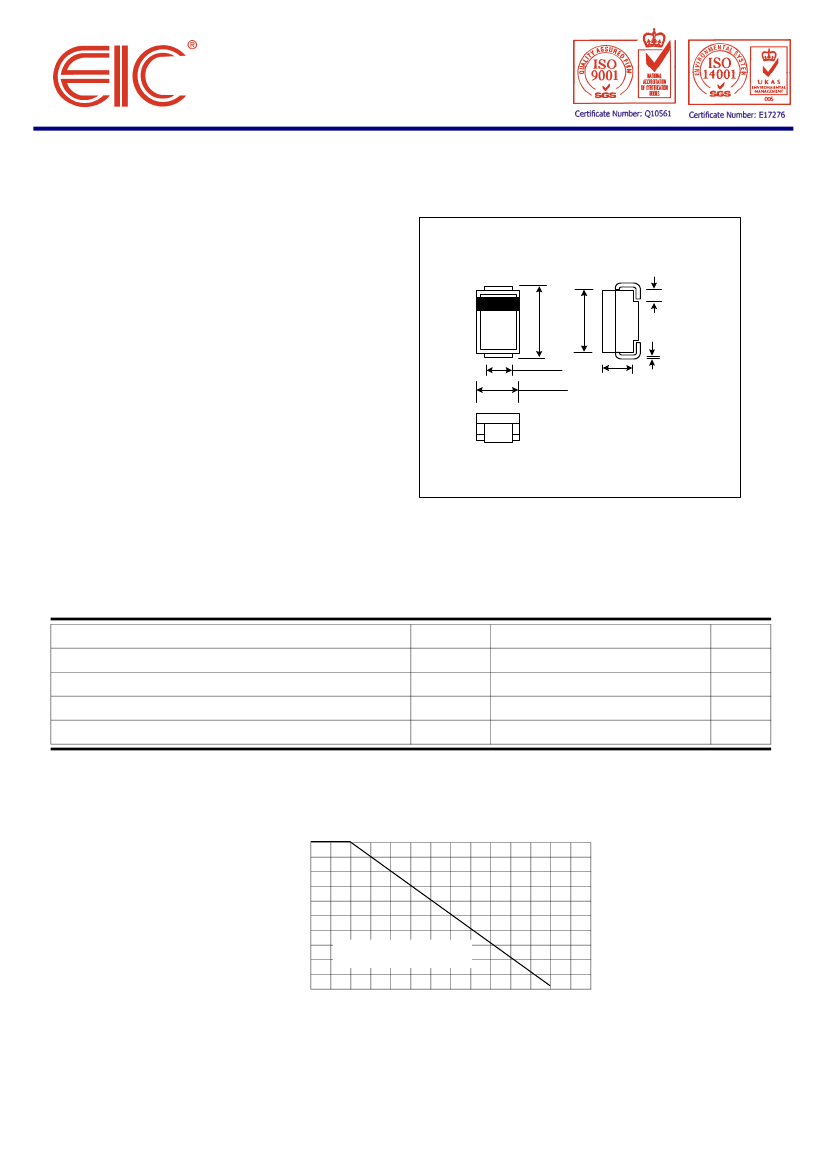

FEATURES :

* Complete Voltage Range 3.3 to 200 Volts

* High peak reverse power dissipation

* High reliability

* Low leakage current

* Pb / RoHS Free

SURFACE MOUNT SILICON

ZENER DIODES

SMB (DO-214AA)

1.1

0.3

5.4

0.15

4.8

0.15

2.0

0.1

3.6

0.15

2.3

0.2

0.22

0.07

MECHANICAL DATA

* Case : SMB (DO-214AA) Molded plastic

* Epoxy : UL94V-O rate flame retardant

* Lead : Lead formed for Surface mount

* Polarity : Color band denotes cathode end

* Mounting position : Any

* Weight : 0.093 gram

Dimensions in millimeter

MAXIMUM RATINGS

Rating at 25

C ambient temperature unless otherwise specified

Rating

DC Power Dissipation at T

= 75

°C

(Note1)

Maximum Forward Voltage at I

= 200 mA

Junction Temperature Range

Storage Temperature Range

Symbol

Value

5.0

1.2

- 55 to + 150

Unit

°C

Note :

(1) T

= Lead temperature at 5.0 mm ( 0.013 mm thick ) copper land areas

Fig. 1 POWER TEMPERATURE DERATING CURVE

, MAXIMUM DISSIPATION

(WATTS)

5.0

4.0

3.0

2.0

1.0

100

125

150

175

5.0 mm

( 0.013 mm thick )

copper land areas.

LEAD TEMPERATURE (

Page 1 of 2

Rev. 05 : November 29, 2005
