Monitored Ethernet Switches
16 port, Gigabit, SNMP, Modbus/TCP
Model SEG316-T
Features & Benefits
•
•
•
•
•
•
•
•
•
•
•
Communicates with HMI/SCADA software via Modbus/TCP
Integrated with iView
2
- SNMP Management Software (free download)
Energy Efficient Ethernet (EEE), IEEE 802.3az for low energy consumption
Wide temperature range -40 to 75°C
DIN rail or wall/panel mountable
Redundant dual 12 to 48VDC power inputs
EMS Level 3 Protection
Designed for hazardous locations: UL C1D2, ATEX Zone 2 (pending), IECEx (pending)
Port-based QoS feature for deterministic data transmission
Loop detection and event alarm
Power failure indicated by a relay and LED indicator
SEG316-T
Introduction
SE300 series is the industry’s first design for Ethernet Green
®
, IEEE802.3az - Energy
Ethernet switches that cut power usage by up to 60%, significantly saving energy
usage in the field and reducing total cost of ownership over 24/7.
Advantech B+B SmartWorx SE300 series monitored switches can be used as plug-
and-play unmanaged switches right out of the box. Installing the iView² Network
Management Software gives them basic monitoring and management capabilities
as well. They bridge the gap between unmanaged switches and significantly more
expensive, fully managed solutions.
When enabled with iView
2
, these switches provide IP address assignment,
allowing for a static IP address or an address that is discoverable via DHCP in the
network. Then, these switches have the ability to use Modbus/TCP to communicate
with HMI/SCADA software and SNMP to communicate with NMS (Networking
Management Software) at the same time. This gives full access control to both
control engineers and IT managers.
Specifications
COMMUNICATIONS
Standards
LAN
Transmission Distance
Transmission Speed
INTERFACE
Connectors
Ethernet
LED Indicators
16 x RJ45
6-pin removable screw terminal (power & relay)
Auto Sensing, 10/100/1000BaseTX, Duplex and MDIX
P1, P2, P-Fail, Loop Detection
10/100/1000T (X): Link/Activity, Speed
IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.1p, 802.3az
10/100/1000Base-T(X)
Up to 100 meters
100 Mbps
Basic Monitoring & Management Capabilities
iView
2
gives network managers the ability to monitor and manage eWorx SE300
series switches from a central location. It features an intuitive Graphical User
Interface (GUI) that provides a real-life representation of all installed eWorx
SE300 Series switches, displaying device functions, port settings, device status
information and traffic statistics via SNMP.
iView
2
can also configure eWorx SE300 series switches monitoring capabilities
for automation applications via the popular Modbus TCP/IP protocol. Control
engineers can use existing HMI/SCADA software to integrate the network status by
creating extra tags for real-time monitoring. iView
2
is a standalone software that
supports multiple platforms and operating systems.
iView
2
Features for eWorx SE300 series Switches
Monitoring:
• System information (IP/MAC address)
• Port status
• Port speed
• Flow control
• Link up counter
• TX packets counter, RX packets counter
• TX error packets counter, RX error packets counter
• Firmware version
• PoE status (PoE model/s only)
Management:
• Configure IP mode
• Set IP address
• Set TCP Modbus/TCP time-out
• Create Community Strings
• Configure Traps
www.advantech-bb.com
/
Enabling an Intelligent Planet
All product specifications are subject to change without notice.
SEG316-T_2016
Monitored Ethernet Switch
16 port, Gigabit, SNMP, Modbus/TCP
Model SEG316-T
Specifications - continued
SWITCH PROPERTIES
MAC Table Size
Packet Buffer Size
Switching Capacity
Jumbo Frame
POWER
Power Consumption
Power Input
Fault Output
Reverse Polarity Protection
Overload Current
PHYSICAL
Dimensions (WxHxD)
Enclosure
Mounting
SOFTWARE
Management
Configuration
Monitoring
Filter
Industrial Profiles
iView
2
, LLDP, SNMP v1/v2c, Modbus/TCP
Static IP address, DHCP Client
Port Statistics (Speed/Status), Link Up/Down counter, Error Packet counter, Loop detection
Flow control, IEEE 802.1p QoS(Strict mode), Broadcast storm protection
Modbus/TCP profiles included - Configuration and Diagnostic via automation software tools like e.g. Wonderware InTouch, STEP7, InduSoft Web Studio
74 x 120 x 84 mm
IP30, metal shell with solid mounting kits
DIN-Rail, Wall
Max. 8W
12~48 VDC (8.4~52.8 VDC) redundant dual inputs
1 Relay Output
Present
Present
8k
4.1M bit
32 Gbps
9126 bytes

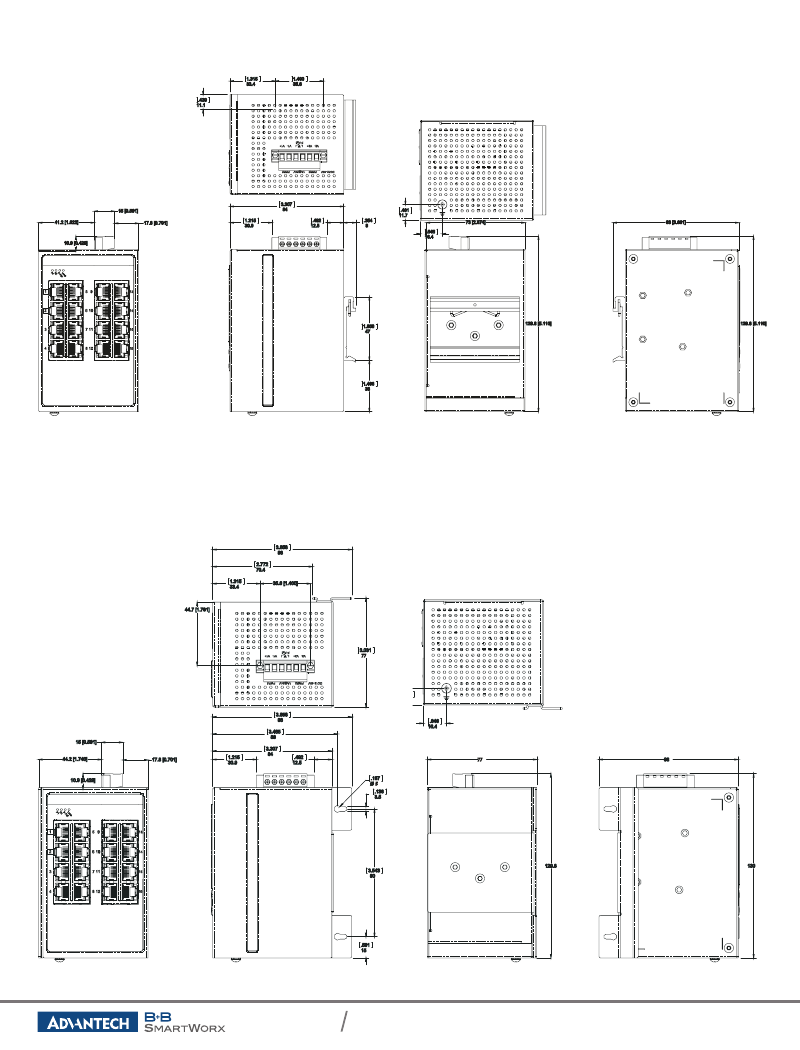

Specifications - continued
ENVIRONMENT
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
MTBF
CERTIFICATIONS
Safety
EMI
EMS
Shock
Freefall
Vibration
-40 ~ 75°C (-40 ~ 167°F)
-40 ~ 85°C (-40 ~ 185°F)
10 ~ 95% (non-condensing)
10 ~ 95% (non-condensing)
2,788,343 hours
Hazardous Environments UL Class 1 Division 2 Groups A,B,C,D; ATEX Zone 2 (pending); IECEx (pending)
UL508
FCC Part 15 Subpart B Class A, EN 55011/55022, Class A
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3)
EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3)
EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
IEC 60068-2-27
IEC 60068-2-32
IEC 60068-2-6
IVIEW
2
- NETWORK MANAGEMENT SOFTWARE - FREE DOWNLOAD
Version
OS Support
Operation Modes
Web Browser
Protocol
iView
2
Web-based Application
32-bit/64-bit Windows XP/Vista/7, Windows Server 2003/2008/2008 R2
Local Computer or Remote Server
Microsoft® IE, Chrome, Firefox
SNMPv1 and SNMPv2c
Product Ordering Information
MODEL #
SEG316-T
DESCRIPTION
16-port Gigabit Monitored Ethernet Switch
RJ45
OPERATING
TEMPERATURE 10/100 MBPS
-40~75°C
-
GIGABIT
16
100FX
-
100/1000BASE-SFP
-
COMBO PORT,
10/100/1000BASE-T(TX)
OR 100/1000BASE-SFP
-
FIBER
TYPE
-
CONNECTOR
-
Accessories - optional
MODEL #
MDR-40-24
C5UMB3FBG
C5UMB7FBG
DESCRIPTION
DIN Rail Power supply, 24VDC 40 Watt
3 ft. (1 M), Gray, Category 5e UTP Patch Cord
7 ft. (2 M), Gray, Category 5e UTP Patch Cord
Package Checklist
Warranty
Ethernet Switch, Quick Start Guide, DIN-Rail mount bracket (installed), Wall mount bracket
Limited lifetime warranty for Advantech B+B designed and/or manufactured products.
