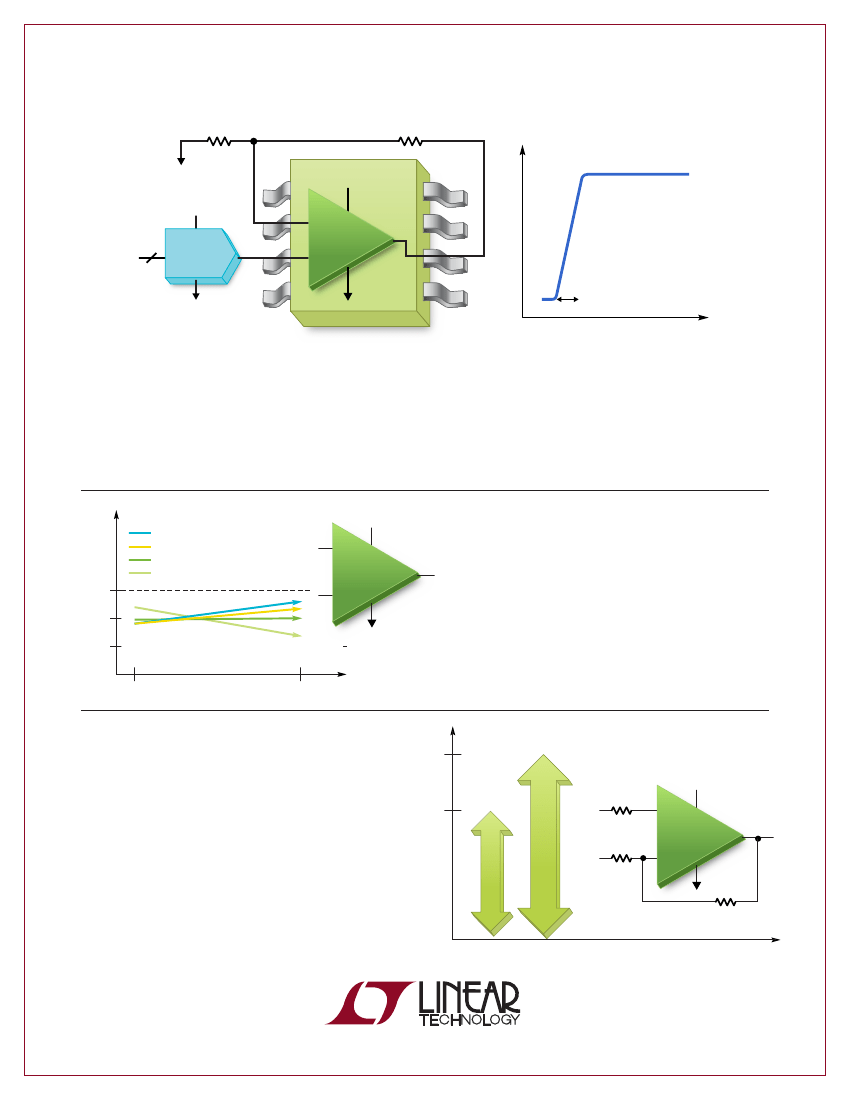

High Voltage Amplifiers
140V
3V
140V
L
LTC6090
L
8µs
LTC6090/LTC6091 Single/Dual Op Amp
High Voltage + Precision
n
n
n
n
n
Up to 140V Supply
Rail-to-Rail Output
3.5µV
P-P
0.1Hz to 10Hz Noise
1mV V
OS
Max
50pA Bias Current Max
V
OS
Temperature
Supply Voltage
Time
Input Common Mode Voltage
5V to 60V
+
–
LTC2057 Zero-Drift Op Amp
n
L
1µV
0
–1µV
MIN
MAX
LTC2057HV
Stable over time, temperature, input
common mode range and supply voltage
n
n
n
n
Up to 60V Supply
4.5µV V
OS
Max
0.015µV/°C TCV
OS
Max
210nV
P-P
0.1Hz to 10Hz Noise
Rail-to-Rail Output
Range
LT6015/LT6016/LT6017 Over-The-Top
®
Op Amps
Precision + Protection
n
n
76V
3V to 50V
n
n
n
76V Input Common Mode Range
Up to 50V Supply
Rail-to-Rail Input and Output
50µV V
OS
Max
Rugged Protection
Reverse Battery
Split Inputs
Negative Input Transient
Output Driven with No Supply
n
n
n
n
50V
V
CM
V
S
0V to 76V
+
–
L
LT6015
L,
LT, LTC, LTM, Linear Technology, the Linear logo and
Over-The-Top are registered trademarks of Linear Technology
Corporation. All other trademarks are the property of their
respective owners.
Good
Better
Best
Selected Operational Amplifiers V
S
> 30V
Rail-to-
Rail I/O
Out
Single Part Dual Part Quad Part V
OS
Max
TCV
OS
I
BIAS
GBW Typ Slew Rate e
n
Typ I
OUT
Typ I
S
Max V
S
Min V
S
Max
Number
Number Number
(µV)
Max (µV/C) Max (nA)
(MHz)
Typ (V/µs) (nV/rtHz)
(mA)
(mA)
(V)
(V)
LTC2057
4.5
0.015
0.2
1.5
0.45
12
30
1.35
4.75
60
LTC1150
LTC1151
10
0.05
0.1
2.5
3
12
1.5
4.75
32
LT1001
LT1002
25
0.6
2
0.8
0.25
9.6
25
2.5
6
44
LT1007
25
0.6
35
8
2.5
2.5
20.8
4
8
44
LT1012
25
0.6
0.1
1
0.2
14
13
0.5
2.4
40
LT1037
25
0.6
35
60
15
2.5
20.8
4.3
8
44
LT6010
LT6011
LT6012
35
0.8
0.11
0.33
0.09
14
5
0.15
2.7
40
LT6013
LT6014
35
0.8
0.25
1.4
0.2
9.5
14
0.165
2.7
40
LT1028
40
0.8
90
75
15
0.85
30
9.5
8
44
LT1077
LT1078
LT1079
40
1.6
9
0.23
0.08
27
25
0.06
2.3
44
LT1006
50
1.3
15
0.6
0.4
22
25
0.52
2.7
44
LT1097
50
1.2
0.25
0.7
0.2
14
14
0.56
2.4
40
LT1881
LT1882
50
0.8
0.2
1
0.35
14
10
0.9
2.7
40
LT1884
LT1885
50
0.8
0.4
2
0.9
9.5
10
0.9
2.7
40
LT6015
LT6016
LT6017
50
3
5
3.2
0.75
18
25
0.345
3
50
LT1112
LT1114
60
0.5
0.25
0.75
0.3
14
10
0.4
2
40
LT1677
LT1678
LT1679
60
1.5
20
7.2
2.5
3.2
35
3.5
2.7
44
LT1124
LT1125
70
1
20
12.5
4.5
2.7
22
2.75
8
44
LT1178
LT1179
70
0.6
5
0.085
0.04
49
30
0.017
2.2
44
LT1468
LT1469
75
2
40
90
22
5
22
5
9
36
LT1008
120
1.5
0.1
1
0.2
14
9
0.6
4
40
LT1013
LT1014
150
2
20
0.8
0.4
22
25
0.5
4
44
LT1211
LT1212
150
1.5
100
13
7
12
50
1.8
2.5
36
LT1213
LT1214
150
1.5
160
28
8.5
10
50
3.8
2.5
36
LT1880
150
1.2
0.9
1.1
0.55
13
10
1.9
2.7
40
LT1492
LT1493
180
3
100
4.5
3
16.5
60
0.55
2.5
36
LT1115
200
0.5 Typ
380
70
15
0.9
30
11.5
8
44
LT1215
LT1216
300
2.5
500
23
30
12
50
6.6
2.5
36
LT1222
300
5 Typ
300
500
200
3
26
10.5
5
36
LT1637
LT1638
LT1639
350
3
50
1
0.35
27
60
0.25
3
44
LT1494
LT1495
LT1496
375
2
1
0.0027
0.001
185
1.3
0.0015
2.2
36
LT1672
LT1673
LT1674
375
2
1
0.012
0.005
185
1.3
0.002
2.2
36
LT1057
LT1058
450
10
0.05
5
14
13
20
2.5
10
40
LT1366
LT1367
475
6
35
0.4
0.13
29
75
0.52
2
36
LT1368
LT1369
475
6
35
0.16
0.065
29
75
0.52
2
36
LT1498
LT1499
475
2.5
650
10.5
4.5
12
24
2.2
2.2
36
LT1636
LT1490A
LT1491A
500
4
8
0.18
0.06
50
25
0.055
2.5
44
LT1630
LT1631
525
5.5
1000
30
9.2
6
41
4.4
2.7
36
LT1122
600
18
0.075
14
80
14
20
10
10
40
LT1351
LT1352
LT1353
600
8
50
3
200
14
45
0.33
5
36
LT1357
LT1358
LT1359
600
8
500
25
600
8
30
2.5
5
36
LT1792
600
10
0.8
5.6
3.4
4.2
27
5.2
10
40
LT1055
700
12
0.05
4.5
12
15
30
4
10
40
LT1056
800
12
0.05
5.5
14
15
30
7
10
40
LT1354
LT1355
LT1356
800
8
300
12
400
10
42
1.25
5
36
LT1462
LT1463
800
20
0.002
0.175
0.13
76
17
0.045
10
40
LT1464
LT1465
800
20
0.002
1
0.9
24
0.2
10
40
LT1793
800
13
0.01
4.2
3.4
6
27
5.2
10
40
LT1113
1500
1.5
0.45
5.6
3.9
4.5
20
6.25
9
40
LTC6090
1000
19
0.05
10
19
14
50
3.9
9.5
140
LT1220
1000
20 Typ
300
45
250
17
26
10.5
5
36
LT1632
LT1633
1350
15
2200
45
27
12
40
5.2
2.7
36
LT1224
2000
25 Typ
8000
45
400
22
40
9
5
36
LT1360
LT1361
LT1362
1000
12
1000
50
800
9
34
4.8
5
36
LT1795
13000
5000
65
900
3.6
1000
34
10
36
LT1206
LT1207
10000
10 Typ
8000
66
900
3.6
500
30
10
36
LT1210
15000
10 Typ
5000
66
900
3
2000
50
10
36
LT1363
LT1364
LT1365
1500
13
2000
70
1000
9
60
7.5
5
36
LT1223
3000
3000
100
1000
33
60
10
5
36
LT1228
5000
10 Typ
1000
100
500
20
65
15
4
36
LT1229
LT1230
10000
10 Typ
3000
100
700
3.2
65
9.5
4
36
LT1227
10000
10 Typ
3000
140
1100
3.2
60
15
4
36
LT1225
1000
10 Typ
8000
150
400
7.5
40
9
5
36
LT1794
5000
10 Typ
4000
200
600
8
720
13.5
8
36
LT1226
1000
6 Typ
8000
1000
400
2.6
40
9
5
36
* Some parameters vary between single/dual/quad versions. For a complete list of products and full specifications visit
www.linear.com
OTT = Over-The-Top. This feature allows full functionality when the input voltage exceeds the supply voltage. See data sheet for details.
Highest Precision
Out
Out
Out
Out
Yes, OTT
Yes
Out
Yes, OTT
Yes, OTT
Yes, OTT
Yes
Yes
Yes
Yes, OTT
Yes
Out
Yes
www.linear.com/6015
n
1-800-4-LINEAR
0913
Fastest
RF/Wirelessly
