ROTARY CODED SWITCHES
SC-1000
/
2000

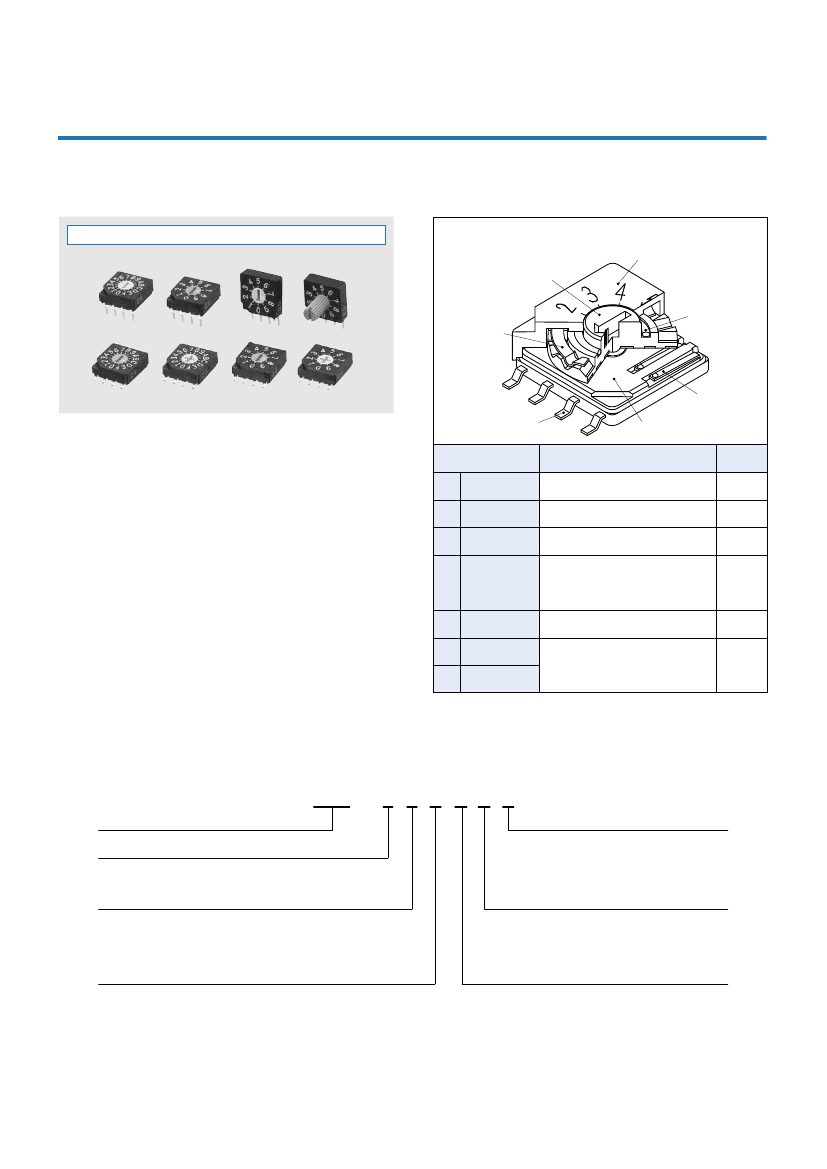

INTERNAL STRUCTURE
SC-1000 / 2000 series
RoHS compliant
1
4
2
3
6
7
5
Material
Polyphenylenesulphide
Stainless (
SUS 301)
Silicone rubber
Rotor : Polyamide
Pattern : Copper alloy, Gold-plated
Flammability
■
FEATURES
O
RoHS compliant
O
Fine click with metallic spring
O
Low profile of 3.9 mm makes perfect for high density
board mounting applications
O
Gold plated contact provides excellent reliability
O
Cross and minus slot are available
O
Terminal pin arrangement 4-1
Part name
①
②
③
④
⑤
⑥
⑦
Housing
Metallic spring
“O” ring
UL94V-0
—
UL94HB
Insert rotor
UL94V-0
Base
Contact
Polyphenylenesulphide
UL94V-0
Copper alloy, Gold-plated
Terminal pin
—
■
PART NUMBER DESIGNATION
S C - 1 0 1 0 T B
Series name
No. of positions
1
：
16 positions
2
：
10 positions
Shape of terminal
B
：
Gull wing (Top setting type only)
Blank : Through hole pin (Snap-in terminal pin)
Shape of rotor
0
：
Without knob (Minus slot)
1
：
With knob (with extended shaft)
2
：
Without knob (Cross slot)
Form of packaging
T
：
Taping (Gull wing type only)
W
：
Tray packaging
Blank
：
Bulk in plastic bag
Code format
1
：
Real code (Rotor color Yellow)
3
：
Complementary code (Rotor color Red)
Setting position
0
：
Top setting
1
：
Side setting
※
Please refer to the LIST OF PART NUMBERS when placing orders.
SC-1000
/
2000
ROTARY CODED SWITCHES
■
LIST OF PART NUMBERS
O
Binary coded decimal
Shape of rotor
Without knob (Minus slot)
Top setting
(Through hole
With knob
pin)
Without knob (Cross slot)
Without knob (Minus slot)
Side setting
(Through hole
With knob
pin)
Without knob (Cross slot)
Form of packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Real code (Rotor : Color Yellow)
Complementary code (Rotor : Color Red)
Pieces in
package
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
500 pcs./reel
25 pcs./pack
50 pcs./tray
500 pcs./reel
Without knob (Minus slot) Tray packaging
Top setting
(Gull wing)
Without knob (Cross slot)
Taping
Plastic bag
Tray packaging
Taping
SC-2010
SC-2010W
SC-2110
SC-2110W
SC-2210
SC-2210W
SC-2011
SC-2011W
SC-2111
SC-2111W
SC-2211
SC-2211W
SC-2010B
SC-2010WB
SC-2010TB
SC-2210B
SC-2210WB
SC-2210TB
SC-2030
SC-2030W
SC-2130
SC-2130W
SC-2230
SC-2230W
SC-2031
SC-2031W
SC-2131
SC-2131W
SC-2231
SC-2231W
SC-2030B
SC-2030WB
SC-2030TB
SC-2230B
SC-2230WB
SC-2230TB
O
Binary coded hexadecimal
Shape of rotor
Without knob (Minus slot)
Top setting
(Through hole
With knob
pin)
Without knob (Cross slot)
Without knob (Minus slot)
Side setting
(Through hole
With knob
pin)
Without knob (Cross slot)
Form of packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Tray packaging
Plastic bag
Real code (Rotor : Color Yellow)
Complementary code (Rotor : Color Red)
Pieces in
package
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
25 pcs./pack
50 pcs./tray
500 pcs./reel
25 pcs./pack
50 pcs./tray
500 pcs./reel
Without knob (Minus slot) Tray packaging
Top setting
(Gull wing)
Without knob (Cross slot)
Taping
Plastic bag
Tray packaging
Taping
SC-1010
SC-1010W
SC-1110
SC-1110W
SC-1210
SC-1210W
SC-1011
SC-1011W
SC-1111
SC-1111W
SC-1211
SC-1211W
SC-1010B
SC-1010WB
SC-1010TB
SC-1210B
SC-1210WB
SC-1210TB
SC-1030
SC-1030W
SC-1130
SC-1130W
SC-1230
SC-1230W
SC-1031
SC-1031W
SC-1131
SC-1131W
SC-1231
SC-1231W
SC-1030B
SC-1030WB
SC-1030TB
SC-1230B
SC-1230WB
SC-1230TB
※
Verify the above part numbers when placing orders.
※
Taping and tray version can be supplied only in reel or tray units.
SC-1000
/
2000
ROTARY CODED SWITCHES
■
STANDARD SPECIFICATIONS
Circuit type
Operating temperature range
Storage temperature range
Washable
※Please
refer to page 150,151
BCD (Real code, complementary code)
BCH (Real code, complementary code)
−
40 ~ 85 °C
■
ELECTRICAL CHARACTERISTICS
Contact rating
Non-switching
Switching
Minimum
Contact resistance
Insulation resistance
Dielectric strength
DC50 V 100 mA
DC5 V 100 mA
DC20 mV 1 μA
100 mΩ maximum
1000 MΩ (DC100 V) minimum
AC250 V, 60 s
Sealing
Net weight
Without knob Top setting 0.63 g
With knob Top setting 0.73 g
Without knob Side setting 0.76 g
With knob Side setting 0.86 g
■
ENVIRONMENTAL CHARACTERISTICS
Vibration
(Amplitude) 1.5 mm or
(Acceleration) 98 m/s
2
,
10-500-10 Hz, 3 directions for 2 h each
490 m/s
2
, 11 ms
6 directions for 3 times each
Resistance load DC50V 100mA
40 °C, Relative humidity 90 ~ 95 %, 240 h
20000 steps
DC5 V, 100 mA
85 °C, 96 h
−
40 °C, 96 h
−40
(0.5 h) ~ 85 °C ( 0.5 h ), 5 cycles
■
MECHANICAL CHARACTERISTICS
No. of positions
Adjustment torque
Stepping angle
Terminal strength (Through hole pin only)
Stop strength (With knob only)
Solderability
16 (SC-1000), 10 (SC-2000)
4 ~ 20 mN·m {41 ~ 204 gf·cm}
22.5° (SC-1000), 36° (SC-2000)
10 N {1.02 kgf} minimum
10 N {1.02 kgf}, 10 s
245
±
3 °C, 2 ~ 3 s
Reflow : Peak temperature 255 °C
(Please refer to the profile below.)
Manual soldering
：
350
±
10 °C, 3 ~ 4 s
Shock
Humidity
Load life
High temperature exposure
Low temperature exposure
Thermal shock
Solvent resistance
(Dipping)
Solvent : IPA (Isopropyl alchol)
Temperature : 23 ± 5 °C
Time : 5 ± 0.5 minutes
Gull wing
〈
Reflow profile for soldering heat evaluation
〉
Soldering
heat
Through
hole pin
Flow : 260
±
3 °C as the temperature in
a pot of molten solder, immersion
from head of terminal to backside
of board 5 ~ 6 s, two times
maximum
Manual soldering
：
380
±
10 °C, 3 ~ 4 s
(
℃
)
250
Temperature
200
150
100
50
+5
0
℃
Peak : 250
Over 230
℃
180
℃
150
℃
Pre Heating Zone
90
±
30 s
30
±
10 s
Heating time
Soldering Zone
Shear (Gull wing only)
Substrate bending (Gull wing only)
Pull-off strength (Gull wing only)
5 N {0.51 kgf}, 10 s
Width 90 mm, bend 3 mm, 5 s, 1 time
5 N {0.51 kgf}, 10 s
{ } : Reference only
Reflow : two times maximum
SC-1000
/
2000
ROTARY CODED SWITCHES
■

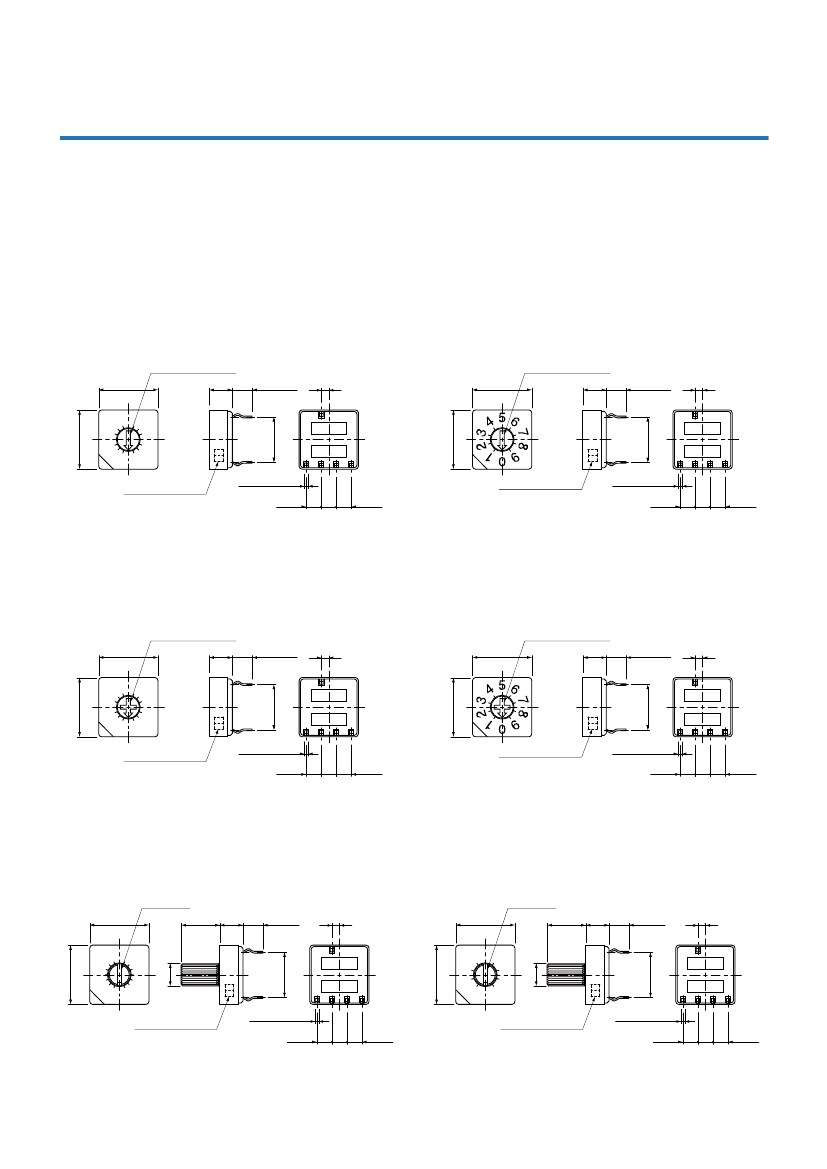

OUTLINE DIMENSIONS
Unless otherwise specified, tolerance:
±
0.3 (Unit: mm)
<Through hole pin, Top setting>
O
SC-1010 (Real code)
O
SC-1030 (Complementary code)
O
SC-2010 (Real code)
O
SC-2030 (Complementary code)
0.6 W
×
3.2 L
×
1.2 D
10
3.9
3.3±0.5
1.27
Ⓒ
0.6 W
×
3.2 L
×
1.2 D
10
3.9
3.3±0.5
1.27
Ⓒ
4
5
2
3
6
7
8
9
C
D
A
B
E
7.62
Production date code
5 – 0.6
±
0.1
t = 0.15
2.54
① ② ④ ⑧
7.62
10
10
O
SC-1210 (Real code)
O
SC-1230 (Complementary code)
4
5
2
3
6
7
8
9
7.62
Production date code
5 – 0.6
±
0.1
t = 0.15
2.54
① ② ④ ⑧
7.62
10
10
O
SC-1110 (Real code)
O
SC-1130 (Complementary code)
10
4
5
2
3
6
7
8
9
φ
3.9
φ
3.9
23
7.62
Production date code
5 – 0.6
±
0.1
t = 0.15
2.54
① ② ④ ⑧
7.62
10
10
2.54
2.54
9
0
1
F
0
1
10
Production date code
2.54
2.54
5 – 0.6
±
0.1
t = 0.15
2.54
① ② ④ ⑧
2.54
2.54
O
SC-2210 (Real code)
O
SC-2230 (Complementary code)
0.6 W
×
3.2 L
×
1.5 D
3.9
3.3±0.5
1.27
Ⓒ
0.6 W
×
3.2 L
×
1.5 D
10
3.9
3.3±0.5
1.27
Ⓒ
C
D
A
B
E
0.7 W
×
1 D
6.5
3.9
F
0
1
Production date code
2.54
2.54
5 – 0.6
±
0.1
t = 0.15
2.54
① ② ④ ⑧
2.54
2.54
O
SC-2110 (Real code)
O
SC-2130 (Complementary code)
0.7 W
×
1 D
3.3±0.5
1.27
Ⓒ
10
6.5
3.9
3.3±0.5
1.27
Ⓒ
4
5
6
C
D
A
B
E
78
F
0
1
Production date code
5 – 0.6
±
0.1
t = 0.15
2.54
① ② ④ ⑧
2.54
2.54
SC-1000
/
2000
ROTARY CODED SWITCHES
■

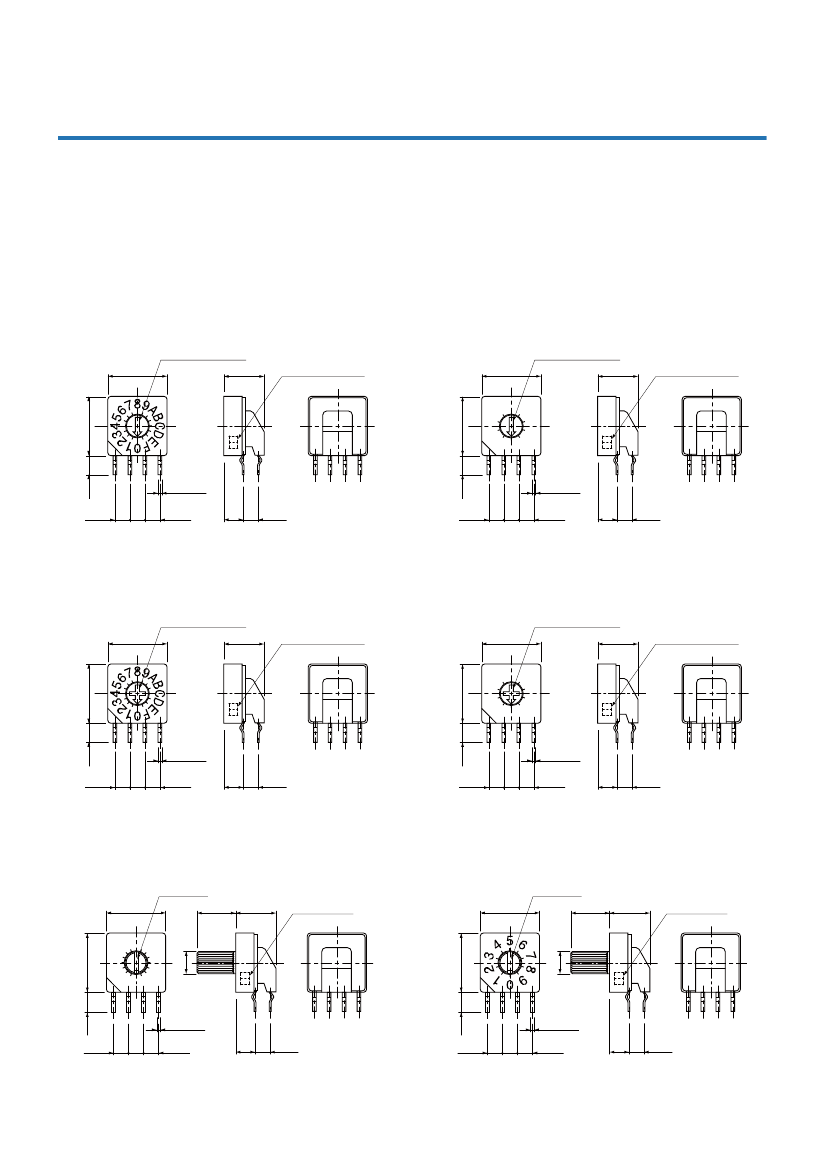

OUTLINE DIMENSIONS
O
SC-1011 (Real code)
O
SC-1031 (Complementary code)
0.6 W
×
3.2 L
×
1.2 D
6.8
Unless otherwise specified, tolerance:
±
0.3 (Unit: mm)
O
SC-2011 (Real code)
O
SC-2031 (Complementary code)
0.6 W
×
3.2 L
×
1.2 D
6.8
10
Production date code
10
Production date code
23
4
5
6
78
10
10
3.3
±
0.5
⑧ ④ ② ①
Ⓒ
3.3
±
0.5
⑧ ④ ② ①
0.6
±
0.1
t = 0.15
2.54
2.54
3.3
2.54
2.54
2.54
O
SC-1211 (Real code)
O
SC-1231 (Complementary code)
0.6 W
×
3.2 L
×
1.5 D
6.8
O
SC-2211 (Real code)
O
SC-2231 (Complementary code)
0.6 W
×
3.2 L
×
1.5 D
6.8
10
Production date code
23
10
10
3.3
±
0.5
⑧ ④ ② ①
Ⓒ
3.3
±
0.5
⑧ ④ ② ①
0.6
±
0.1
t = 0.15
2.54
2.54
3.3
2.54
2.54
2.54
O
SC-1111 (Real code)
O
SC-1131 (Complementary code)
0.7 W
×
1 D
10
6.5
6.8
Production date code
O
SC-2111 (Real code)
O
SC-2131 (Complementary code)
0.7 W
×
1 D
10
6.5
6.8
Production date code
4
5
2
3
6
7
8
9
φ
3.9
3.3
±
0.5
⑧ ④ ② ①
Ⓒ
3.3
±
0.5
φ
3.9
10
10
⑧ ④ ② ①
2.54
2.54
0.6
±
0.1
t = 0.15
2.54
3.3
2.54
2.54
9
0
1
2.54
10
Ⓒ
0.6
±
0.1
t = 0.15
2.54
3.3
2.54
Production date code
4
5
6
78
Ⓒ
9
0
1
2.54
2.54
0.6
±
0.1
t = 0.15
2.54
3.3
2.54
C
D
A
B
E
F
0
1
Ⓒ
0.6
±
0.1
t = 0.15
2.54
3.3
2.54
