Dimensions: [mm]
31,6
Dimensions: [mm]
32,8
Material:
Base Material
Plating
Version
3,3
Tin plate
Tin
One Piece
detail B
R
0,
05
21,8
6,0
3,8
0,2
31,6
6,0
0,4
R
0,2
3,8
21,8
2,6
3,4
2,3
3,3
1,0
32,0

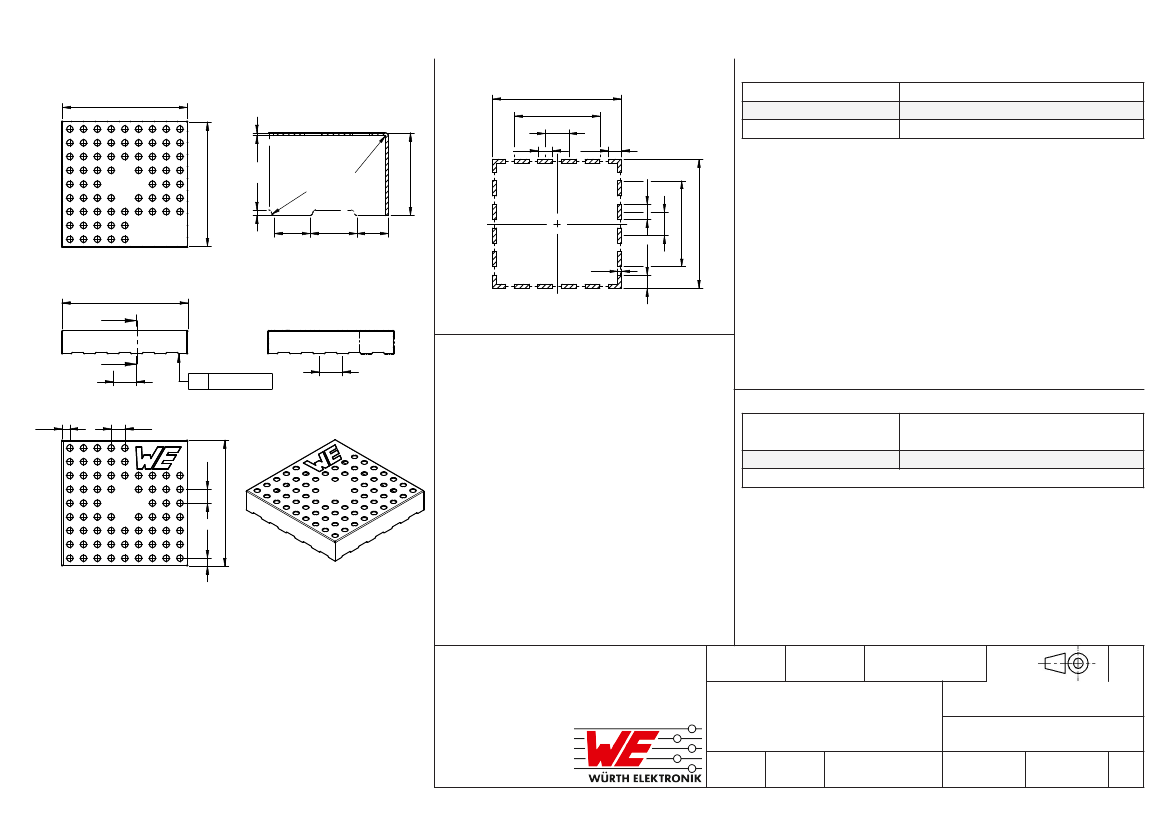

sectional drawing A-A
Scale - 1:1
A
A
6,0
6,0
r
0,12 circular
3,5
B
32,8
6,0
General Information:
2,0
Storage Temperature (in original
packaging)
3,5
-20 °C up to +60 °C
-40 °C up to +125 °C
Operating Temperature
32,0
Test conditions of Electrical Properties: +20°C, 33% RH if not specified differently
2,0
Scale - 1:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
JoV
DIN ISO 2768-1m
WE-SHC Shielding Cabinet
ORDER CODE
36906326S
REVISION
STATUS
DATE
BUSINESS UNIT
PAGE
001.000
Valid
2016-11-02
eiSos
1/2
