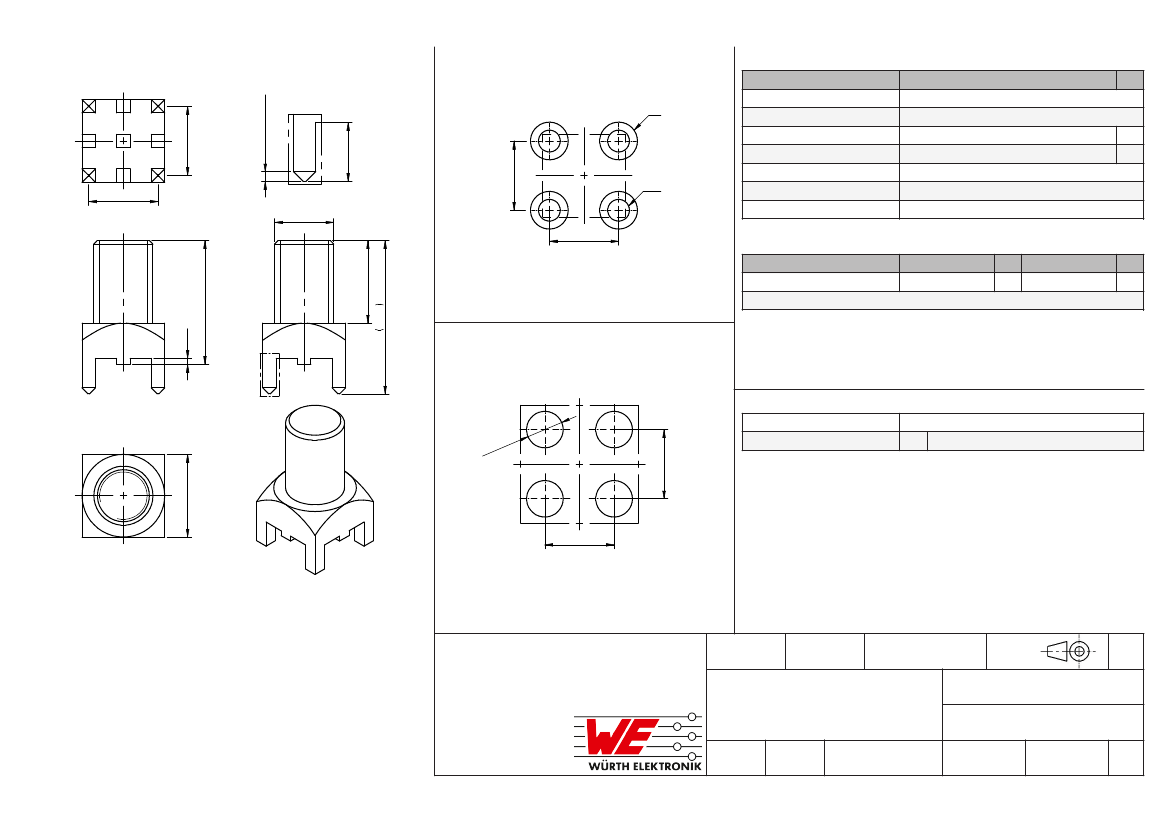

Operating current depends on PCB, cable lug and cross section of the cable
Stencil Suggestion:
0,5
B
5,87
,1
O
3
Packaging Properties:
Packaging
Packaging Unit
Qty.
Tape and Reel
300
q
7,0
5,87
Scale - 3:1
Scale - 3:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
DaSc
DESCRIPTION
WlW
DIN ISO 2768-1m
REDCUBE THR with external
thread WP-THRSH
REVISION
STATUS
ORDER CODE
74651175R
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.002
Valid
2018-03-23
eiCan
1/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

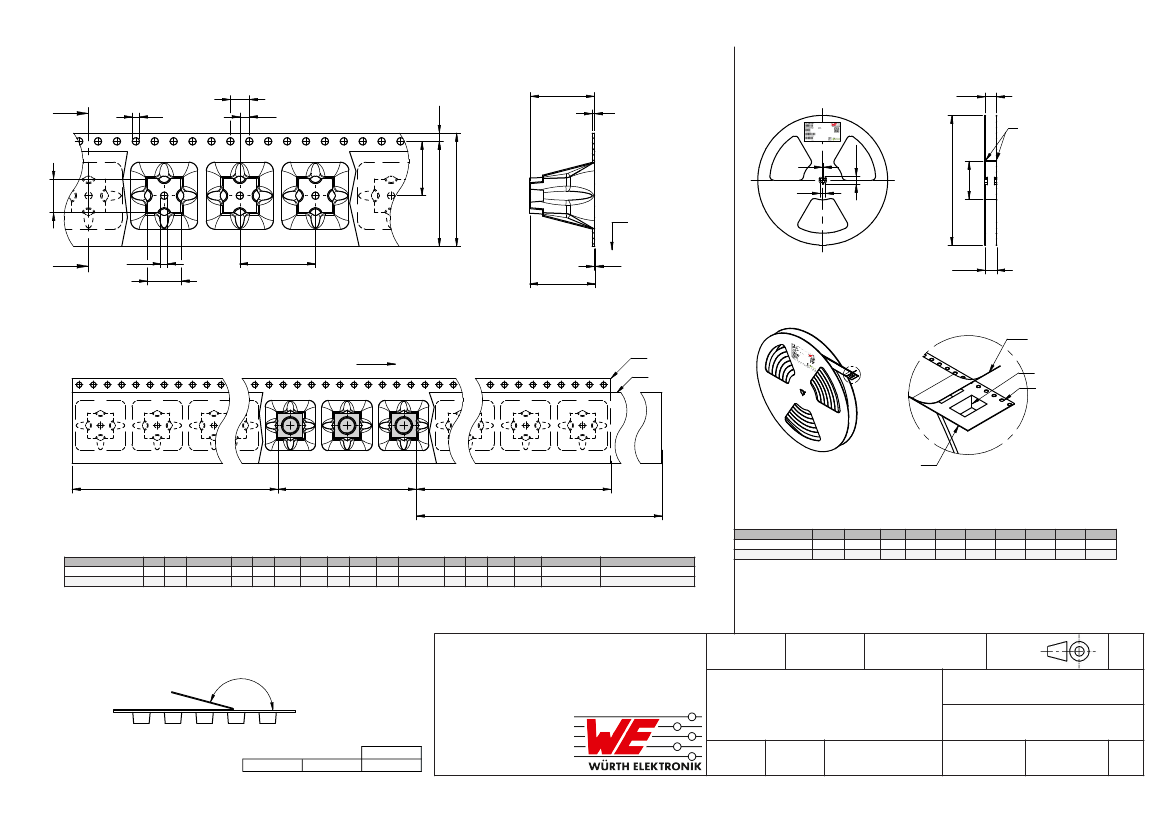

Packaging Specification - Tape and Reel: [mm]
P0
K0
E1
P2
T
W1
close to center
B
D
W3
A
D0
F
B0
E2
W
C
Top Cover
Tape
A
D1
A0
P1
T2
T1
W2
detail A
Cover Tape
End
Feeding direction
Start
Carrier Tape
Cover Tape
A
Chip Cavity
Sprocket Hole
Embossment
No Component
min. 160mm
Components
No Component
min. 100mm
Cover Tape
min. 400mm
tolerance
Tape width
24mm
A
± 2,0
330,00
B
min.
1,50
C
min.
12,80
D
min.
20,20
N
± 2,0
60,00
W1
+2
24,40
W2
max.
30,40
W3
min.
23,90
W3
max.
27,40
Packaging is reffered to the international standard
IEC 60286-3:2013
Tolerance
Value
A0
B0
W
typ. typ. +0,3/ -0,1
7,10 7,10 24,00
T
T1
T2
ref. max. typ.
0,50 0,10 13,80
K0
typ.
13,50
P0
P1
±0,1 ±0,1
4,00 16,00
P2
D0
±0,1 +0,1/ -0,0
2,00 1,50
D1 E1
E2
min. ±0,1 min.
1,50 1,75 22,25
F
±0,1
11,50
Tape Type 2a
Polystyrene
VPE / packaging unit
pcs.
300
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
CREATED
CHECKED
GENERAL TOLERANCE
N
PROJECTION
METHOD
DaSc
DESCRIPTION
WlW
DIN ISO 2768-1m
165° - 180°
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
REDCUBE THR with external
thread WP-THRSH
REVISION
STATUS
A
ORDER CODE
74651175R
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
Pull-of force
Tape width
24 mm
0,1 N - 1,3 N
001.002
Valid
2018-03-23
eiCan
2/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Classification Reflow Profile for SMT components:
Classification Reflow Soldering Profile:
Profile Feature
Preheat Temperature
Min
1)
Preheat Temperature Max
Value
T
s min
150 °C
T
s max
200 °C
t
s
T
L
t
L
T
p
t
p
60 - 120 seconds
3 °C/ second max.
217 °C
60 - 150 seconds
see table
20 - 30 seconds
6 °C/ second max.
8 minutes max.
T
p
Max. Ramp Up Rate
Max. Ramp Down Rate
T
L
T
s max
t
L
t
p
T
C
–5°C
Preheat Time t
s
from T
s min
to T
s max
Ramp-up Rate (T
L
to T
P
)
Liquidous Temperature
Time t
L
maintained above T
L
Peak package body temperature
Time within 5°C of actual peak temperaure
Ramp-down Rate (T
L
to T
P
)
Time 25°C to peak temperature
1)
refer
Temperature
Preheat Area
T
s min
t
S
to IPC/JEDEC J-STD-020D
refer to IPC/ JEDEC J-STD-020E
Package Classification Reflow Temperature:
Properties
Volume mm³
<350
260 °C
250 °C
Volume mm³
350-2000
260 °C
250 °C
245 °C
Volume mm³
>2000
260 °C
245 °C
245 °C
25
Time 25°C to Peak
PB-Free Assembly | Package Thickness < 1.6 mm
1)
PB-Free Assembly | Package Thickness 1.6 mm - 2.5 mm
260 °C
Time
PB-Free Assembly | Package Thickness ≥ 2.5 mm
1)
refer
to IPC/JEDEC J-STD-020D
refer to IPC/ JEDEC J-STD-020E
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
DaSc
DESCRIPTION
WlW
DIN ISO 2768-1m
REDCUBE THR with external
thread WP-THRSH
REVISION
STATUS
ORDER CODE
74651175R
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.002
Valid
2018-03-23
eiCan
3/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Classification Wave Soldering Profile:
t
p
T
p
Classification Wave Soldering Profile:
Profile Feature
Preheat Temperature
Min
1)
T
s min
T
s max
t
s
ΔT
T
p
t
p
Preheat Temperature Typical
Pb-Free Assembly
100 °C
130 °C
70 seconds
150 °C max.
250 °C - 260 °C
max. 10 seconds
max. 5 seconds each wave
~ 2 K/ second
~ 3.5 K/ second
~ 5 K/ second
4 minutes
T
s typical
120 °C
Sn-Pb Assembly
100 °C
120 °C
130 °C
70 seconds
150 °C max.
235 °C - 260 °C
max. 10 seconds
max. 5 seconds each wave
~ 2 K/ second
~ 3.5 K/ second
~ 5 K/ second
4 minutes
First Wave
Second Wave
Preheat Temperature Max
Preheat Time t
s
from T
s min
to T
s max
Ramp-up Rate
Peak temperature
Temperature
Time of actual peak temperature
T
s max
T
s typical
T
s min
Ramp-down Rate, Min
Ramp-down Rate, Typical
Ramp-down Rate, Max
Time 25°C to 25°C
1)
refer
to EN61760-1:2006
refer to EN61760-1:2006
Preheat area
Cool down area
Time
typical temperature procedure
min temperature procedure
max temperature procedure
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
DaSc
DESCRIPTION
WlW
DIN ISO 2768-1m
REDCUBE THR with external
thread WP-THRSH
REVISION
STATUS
ORDER CODE
74651175R
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.002
Valid
2018-03-23
eiCan
4/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Cautions and Warnings:
The following conditions apply to all goods within the product series of WP-THRSH of
Würth Elektronik eiSos GmbH & Co. KG:
General:
• This electronic component is designed and developed with the intention for use in general electronics equipment.
• Before incorporating the components into any equipment in the field such as aerospace, aviation, nuclear control, submarine,
transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information
network etc. where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body,
Würth Elektronik must be asked for a written approval.
• In addition, even electronic component in general electronic equipment, when used in electrical circuits that require high safety,
reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed by the user before usage.
• The electronic component is designed and manufactured to be used within the datasheet specified values.
• Do not use the electronic component outside the datasheet specifications.
• Prevent any damage or scratches on the electronic component.
• Direct mechanical impact to the electronic component shall be prevented.
• The responsibility for the applicability of the customer specific products and use in a particular customer design is always within the
authority of the customer. All technical specification for standard products do also apply to customer specific products.
We recommended a solution without organic acid (preserve the plating against corrosion) volatile, without residues and compatible with the
plastic.
We recommend to perform tests and to let a part in immersion in the solution 8 to 12 hours and see if there is a degradation.
Storage conditions:
REDCUBE WP-THRSH are considered MSL1 into closed original packaging and are not subject to storage time limits regarding the moisture
sensitivity but all products shall be used before the end of the period of 24 months based on the product date-code, if not a 100%
solderability can´t be warranted.
Handling:
Do not repeatedly operate the WP-THRSH with excessive force. It may damage or deforms the component, body, screw thread or pins which
results in malfunction. Violation of the technical product specifications such as exceeding the nominal rated current will result in loss of
warranty. The maximum permissible torques must be complied with to prevent mechanical destruction of the electronic component and
PCB.
In the case a product requires particular handling precautions, in addition to the general recommendations mentioned here before, these will
appear on the product datasheet.
Product specific:
Soldering:
The solder profile must comply with the WE technical soldering specification, otherwise this will void the warranty. The via has to be filled
completely with solder paste before reflow soldering. Hot-air reflow is recommended. Other soldering methods are not verified and have to
be validated by the customer at his own risk.
Cleaning and washing:
REDCUBE WP-THRSH parts are not constructed for washing, so washing can cause malfunction afterwards.
Cleaning agent that are used to clean the customer applications might damage or change the characteristics of the component, body, screw
thread and pins.
Please do not submerse our washable products into water or cleaning agents or put them in locations exposed to water completely.
When cleaning by hand (brushing), please do not use excessive force on the electronic component to avoid malfunction afterwards, because
customer could deform function relevant areas.
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
DaSc
DESCRIPTION
WlW
DIN ISO 2768-1m
REDCUBE THR with external
thread WP-THRSH
REVISION
STATUS
ORDER CODE
74651175R
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.002
Valid
2018-03-23
eiCan
5/6
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
For some pins, the datasheet specifically states how to connect them when they are not used. For most pins, there is no special description. If they are not used, it should be OK to just leave them fl...
[font=黑体][size=3]I posted this a week after receiving the IPAD. [/size][/font] [font=黑体][size=3]I should have posted it a long time ago, but I was really busy this week. I was overwhelmed by the debug...
Today I am going to make a second source for a crystal oscillator. After soldering the crystal oscillator, I found that it is generally low, and the requirement is 25M +/-20ppm, which means that the d...
This is a power supply circuit for the mainboard, powered by a battery, and the two ends of the motor are directly connected to the battery. The circuit design requirements are: anti-reverse connectio...
1. Recruitment: 2 hardware engineers 1. Proficient in the use of electronic design software such as Protel 99 SE / Protel DXP / Altium. 2. Master the basic knowledge of audio signals, and be familiar ...
On August 24th, Tesla CEO Elon
Musk
revealed information about the upcoming FSD V14, claiming it will outperform human drivers. Tesla FSD lead Ashok stated last year that FSD version 12.5, ...[Details]
As AI accelerates across industries, the demand for data center infrastructure is also growing rapidly.
Keysight Technologies, in collaboration with Heavy Reading, released the "Beyo...[Details]
Keysight Technologies is combining its electromagnetic simulator with Synopsys' AI-driven RF design migration flow to create an integrated design flow for migrating from TSMC's N6RF+ process techno...[Details]
1. Ease of Use: The HMI module should be designed to be simple and clear, allowing users to easily operate and configure the energy storage device.
2. Ease of Maintenance: The HMI module should...[Details]
On August 22, according to CNBC's report today, the National Highway Traffic Safety Administration (NHTSA) is launching an investigation into Tesla, and the latter is questioned whether it has fail...[Details]
Plessey Semiconductors has been acquired by Haylo Labs, which was established in March last year with a $100 million, five-year loan from Chinese technology company Goertek.
Haylo Labs w...[Details]
Renesas Electronics' new ultra-low-power RA4C1 MCU features advanced security and a dedicated peripheral set, making it ideal for metering and other applications.
The new product mee...[Details]
Introduction: In digital circuit calculations, there is no concept of decimal points. You know where the decimal is, but the circuit does not know where the decimal point is. Therefore, you need to...[Details]
I recently read an article in the Wall Street Journal titled "We need the right to repair our gadgets" (reference original article: ). The author was very angry about the phenomenon of "planned obs...[Details]
1. Introduction
In 2015, Apple's new MacBook and Apple Watch both featured force-sensing technology, which Apple calls Force Touch. Each time a user presses the touchpad, the device not only p...[Details]
With the prevalence of online conferencing, live streaming, and voice communication in gaming, high-quality audio input devices are becoming increasingly important. To this end, XMOS, an expert in ...[Details]
On August 20, Huawei Device announced that the all-new M7 is the first to feature an in-cabin laser vision solution. This solution offers enhanced active safety capabilities compared to primary vis...[Details]
Since the beginning of the 21st century, with the rapid development of my country's urban and rural economies and the improvement of people's living standards, more and more people have begun to ow...[Details]
The Waveshare ESP32-P4-ETH is a compact ESP32-P4 development board with Ethernet and PoE support. It looks very similar to the Olimex ESP32-P4-DevKit, minus the pUEXT connector. However, we've also...[Details]
The characteristics of electric vehicles place high demands on the motors they use. To increase top speed, the motor should have high instantaneous power and power density (W/kg); to increase drivi...[Details]
ARM Technology
京公网安备 11010802033920号
EEWORLD
