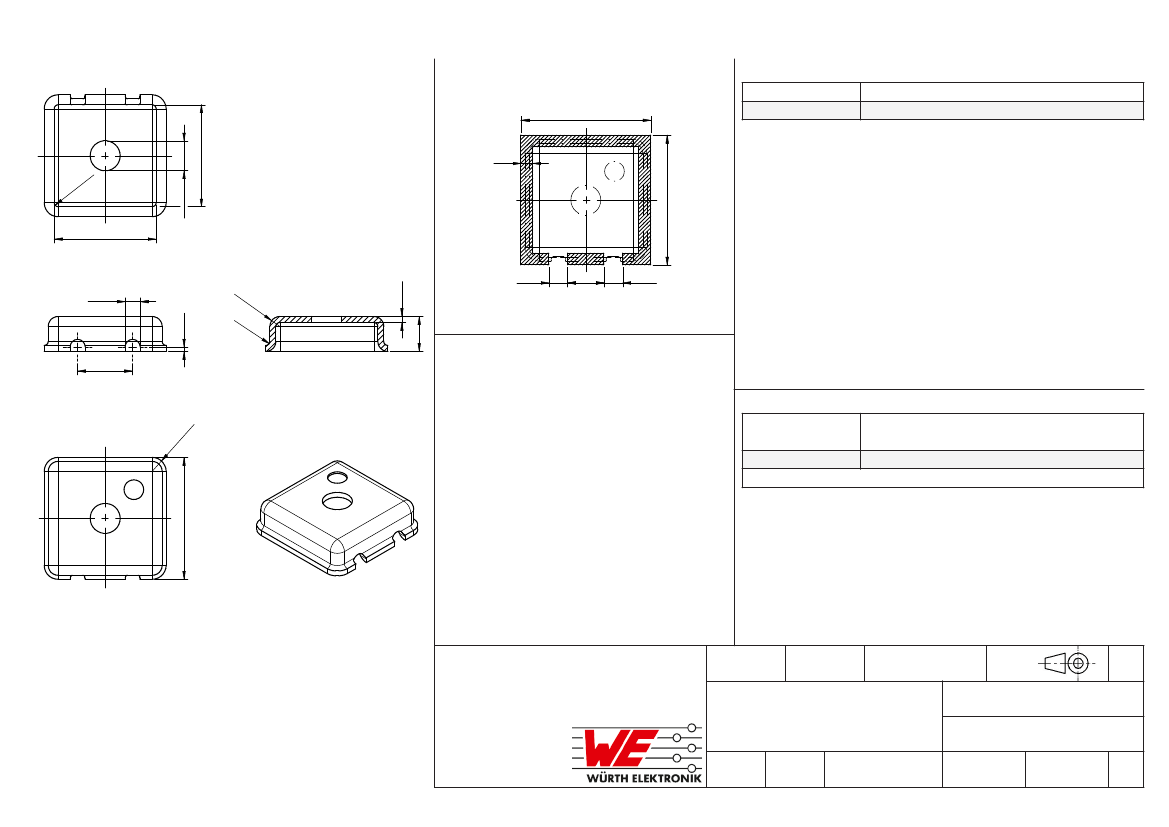

Dimensions: [mm]
Recommended Land Pattern: [mm]
3,3
Material:
Base Material
Cover Material
Brass
Nickel tin-plated surface
2,59
0,3
2,59
0,48
0,92
0,48
0,38
0,11
R
R
0,2
5
0,15
1,4
0,89
0,1
3,3
R
O
0,76
10
0,
Scale - 10:1
General Information:
R
Storage Temperature (in
original packaging)
Operating Temperature
6
0,
3
-20 °C up to +60 °C
-40 °C up to +125 °C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently
q
3,10
Scale - 10:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
JoV
DIN ISO 2768-1m
WE-SHC Shielding Cabinet
ORDER CODE
3690103022
REVISION
STATUS
DATE
BUSINESS UNIT
PAGE
001.000
Valid
2016-07-25
eiSos
1/2
