, an ultra-high lumen density COB product line, is designed for high intensity spotlights used in commercial
and retail settings. H series arrays offer industry leading color over angle uniformity, and replace ceramic metal halide
lamps by providing equal or greater center beam candle power at lower power and at greater lifetimes. Their tight beam
control and exceptional quality of light is well suited for demanding directional spot applications.
H Series LEDs are available in a variety of CCT and CRI combinations, including Décor Series Class A, a revolutionary
advancement in lighting designed to match how humans perceive and prefer light, and Décor Series Ultra. Décor Series
Ultra offers a high CRI of 97 and emphasizes reds and color tones to which the human eye is most receptive. Typical
applications for H Series LEDs include but are not limited to commercial and residential down lights, accent, spot & track
lights.
Features
Benefits
• Market-leading flux density
• Center beam candle power comparable to ceramic
metal halides
• Uniform, high-quality illumination
• Small point LED source
• Minimum 80, 90, 95 CRI and Class A options
• ENERGY STAR
®
/ANSI compliant color binning
structure with 2SDCM and 3SDCM options
• Enhanced optical control
• Clean, consistent white light without pixelation
• High quality, true color reproduction
• Significantly reduced thermal resistance and
increased operating conditions
• Lower operating costs
• Reduced maintenance costs
• Environmentally friendly, no disposal issues
H Series
H Series
Contents
Product Feature Map
Product Nomenclature
Product Selection Guide
Performance at Commonly Used Drive Currents
Electrical Characteristics
Absolute Maximum Ratings
Performance Curves
Typical Radiation Pattern
Typical Color Spectrum
Mechanical Dimensions
Color Binning Information
Packaging and Labeling
Design Resources
Precautions
Disclaimers
About Bridgelux
2
2
3
4
6
7
8
11
12
13
14
15
16
16
16
17
1
Product Feature Map

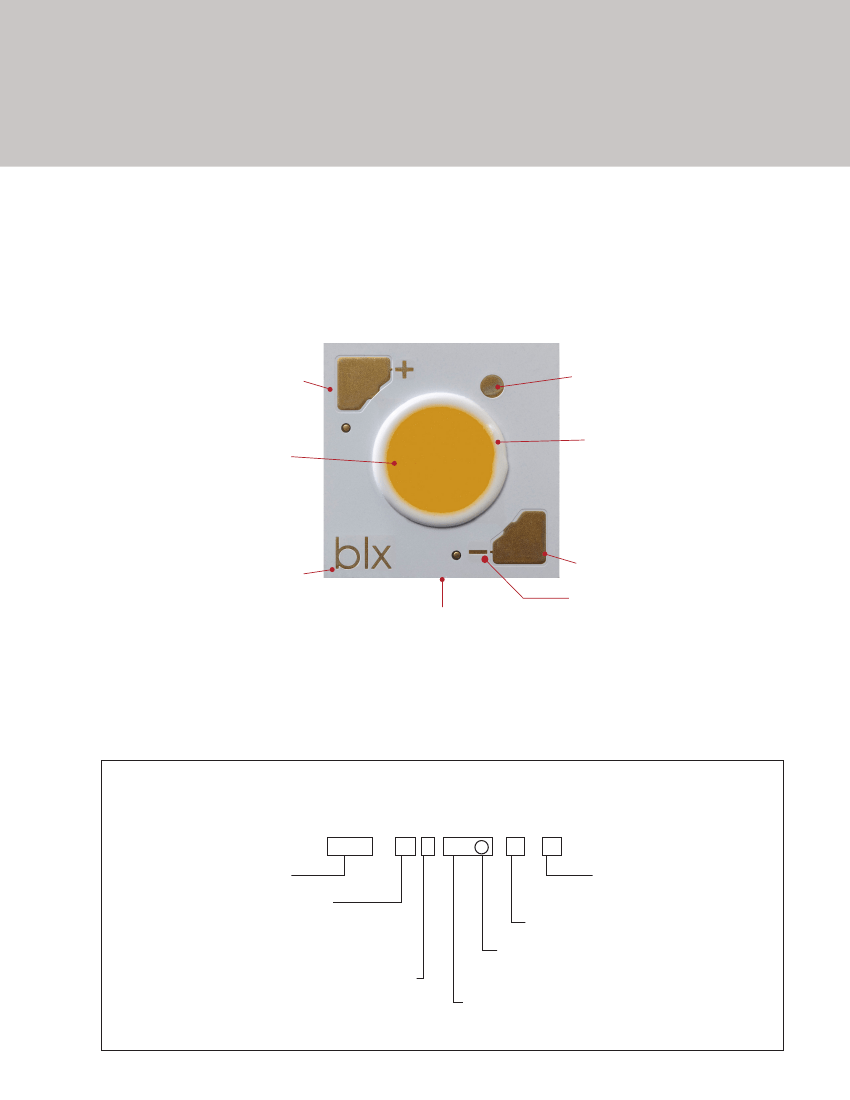

H Series arrays are engineered to provide superior thermal
and optical performance. The arrays, the most com-
pact chip-on-board devices across all Bridgelux LEDs,
incorporate several features to simplify design and assem-
bly, and to ensure superior reliability.
Fully engineered substrate
for consistent thermal, mechanical
and optical properties
Case Temperature (T
c
) Measurement
Point
Yellow phosphor Light
Emitting Surface (LES)
White ring around LES
Designed to comply with global
safety standards for creepage
and clearance distances
Solder Pad
Polarity symbol
Note: Part number and lot codes are scribed on back of array
Product Nomenclature
Part number designation for Bridgelux H Series arrays is explained as follows:
1 2 3 4
56
7
8 9 10 11
– 12
– 13 14
BXRH – 30 E
Product Family
Nominal CCT
27 = 2,700K
30 = 3,000K
35 = 3,500K
40 = 4,000K
Minimum CRI
E = 80 CRI
G = 90 CRI
H = Décor Series Ultra (97 CRI typical)
A = Décor Series Class A (93 CRI typical)
100 0 – C – 22
CCT Bin Options
22 = 2 SDCM
23 = 3 SDCM
Array Configuration
Color Targeting Designator
0 = Cold Targeted (2700K -4000K)
1 = Hot Targeted (3500K)
Flux Indicator
100x = 1000 lm
2
Product Selection Guide
The following product configurations are available:
Table 1:
Selection Guide, Pulsed Measurement Data (T
j
= T
c
= 25°C)
Part Number
Nominal
CCT (K)
2700
2700
2700
3000
3000
3000
3500
3500
4000
4000
1
CRI
2
Nominal Drive
Current
(mA)
750
750
750
750
750
750
750
750
750
750
Typical
Pulsed
Flux
3,4,5
T
c
= 25ºC (lm)
1304
1084
1043
1373
1153
1084
1153
1180
1455
1208
Minimum
Pulsed Flux
5,6
T
c
= 25ºC (lm)
1121
932
897
1180
991
932
991
1015
1251
1039
Typical V
f
(V)
18.3
18.3
18.3
18.3
18.3
18.3
18.3
18.3
18.3
18.3
Typical Power
(W)
13.7
13.7
13.7
13.7
13.7
13.7
13.7
13.7
13.7
13.7
Typical
Efficacy
(lm/W)
7
95
79
76
100
84
79
84
86
106
88
BXRH-27E1000-C-23
BXRH-27G1000-C-23
BXRH-27H1000-C-23
BXRH-30E1000-C-23
BXRH-30G1000-C-23
BXRH-30H1000-C-23
BXRH-35A1001-C-23
8
BXRH-35G1000-C-23
BXRH-40E1000-C-23
BXRH-40G1000-C-23
80
90
97
80
90
97
93
90
80
90
Table 2:
Selection Guide, Stabilized DC Performance (T
c
= 85°C)
9. 10
Part Number
BXRH-27E1000-C-23
BXRH-27G1000-C-23
BXRH-27H1000-C-23
BXRH-30E1000-C-23
BXRH-30G1000-C-23
BXRH-30H1000-C-23
BXRH-35A1001-C-23
8
BXRH-35G1000-C-23
BXRH-40E1000-C-23
BXRH-40G1000-C-23
Notes for Tables 1 & 2:
1. Nominal CCT as defined by ANSI C78.377-2011.
2. CRI values are typical for Décor Series Ultra and Class A color points and minimums for all other color points. Minimum R9 value for 80 CRI products is
0, minimum R9 value for 90 CRI products is 50.
3. Products tested under pulsed condition (10 ms pulse width) at nominal test current where T
j
(junction temperature)
=
T
c
(case temperature)
=
25° C.
4. Typical performance values are provided as reference only and are not a guarantee of performance.
5. Bridgelux maintains a ± 7% tolerance on flux measurements.
6. Minimum flux values at the nominal test current are guaranteed by 100% production testing.
7. Typical efficacy is a function of lumen output. See example in Figure. 1.
8. Class A products are a revolutionary advancement in lighting designed to match how humans perceive and prefer light. Nominal CCT is defined by the
Lighting Research Center’s Class A definition. The center of the Class A color bin is on the corresponding isothermal line.
9. Typical stabilized DC performance values are provided as reference only and are not a guarantee of performance.
10. Typical performance is estimated based on operation under DC (direct current) with LED array mounted onto a heat sink with thermal interface
material and the case temperature maintained at 85°C. Values may vary depending on the thermal design of the luminaire and/or the exposed environ-
ment to which the product is subjected.
11. Minimum flux values at elevated temperatures are provided for reference only and are not guaranteed by 100% production testing. Values may vary
depending on the thermal design of the luminaire and/or the exposed environment to which the product is subjected.
