AT C U LT R A - B R O A D B A N D R E S I S T I V E P R O D U C T S
ATC 504L Series UBR
TM
Ultra-Broadband Resistors
Features:
• Frequency Range: DC to 20 GHz
• EIA 0402 Case Size
• Power Rating: 125 mW
• Operating Temperature:
-40°C to +125°C
• 100% Laser Trimming for
Tight Tolerances
• RoHS Compliant

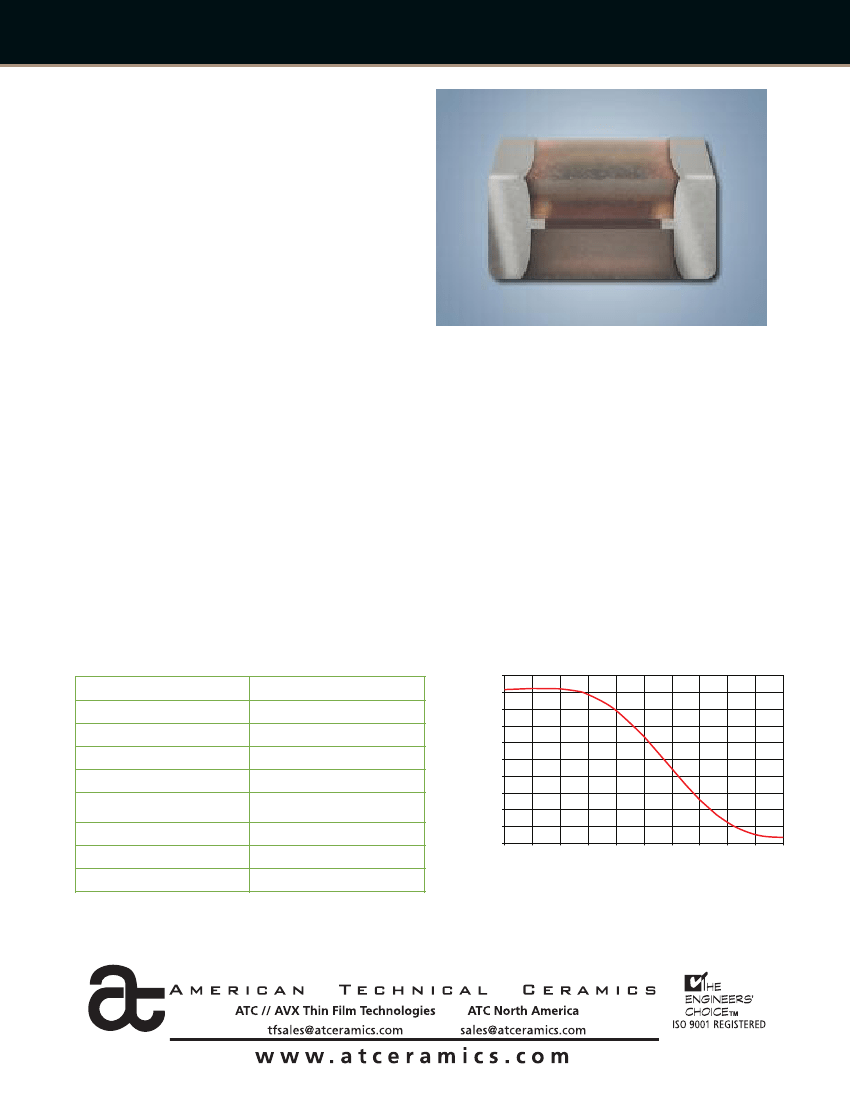

ATC // AVX Thin Film Technologies is pleased to introduce
the 504L Series next generation of surface mount Ultra-
Broadband Resistors. This product was designed with our
proprietary Glass Sandwich Flexiterm® Technology,
(GSFT). The Flexiterm® is a surface mountable automo-
tive qualified termination that adds an extra margin
against damage due to flexture during installation.
The 504L Series has been designed with high quality
selected materials that yield excellent performance.
This product is ideal for use in Optical Transceiver
Modules or any application requiring excellent ultra-
broadband performance.
Patent Pending
Applications:
• Optical Transceiver Modules
• Broadband Receiver
• TOSA / ROSA
• Wideband Test Equipment
• Low Noise Amplifier
• MMIC Amplifiers
• Mixers
• Directional Couplers
• Ultra-Broadband Splitters
and Combiners
Markets:
• Opto-electronics
• Automotive
• Telecom
• Broadband Jamming for EW
• Satellite Communication
Specifications
-5.9
ATC 504L Series Flatness vs. Frequency
Magnitude (dB) - Modeled
Resistor
Outline
Package
Standard Resistance Values (Ω)
Resistance Value Range
Termination
Power Rating
Operating Temperature Range
Tolerance
Detail
EIA 0402
Glass wafer sandwich
25Ω, 50Ω, 100Ω, 200Ω
From 25Ω to 400Ω
Flexiterm® (Ag/Epoxy),
NiSn plated
125 mW
-40°C to +125°C
1%
-6.01
-6.12
-6.23
-6.34
-6.45
-6.56
-6.67
-6.78
-6.89
-7
1
3.9
6.8
9.7
12.6 15.5 18.4 21.3 24.2 27.1
30
Frequency (GHz)
Modeled with HFSS using Rogers 3003 substrate, with a thickness of
10 mils
and a line width of 24 mils, representing data for 100 Ohms.
ATC # 001-1108
Rev C, 8/13
AT C U LT R A - B R O A D B A N D R E S I S T I V E P R O D U C T S
Resistor Material Properties
Resistor Material (TaN): Properties
Sheet Resistance
(Ohms per Square)
30 to 100
TCR ppm/°C
-50 to -150
COVER GLASS
FLEX TERMINATION (Ag EPOXY)
PLATED WITH Ni / Sn

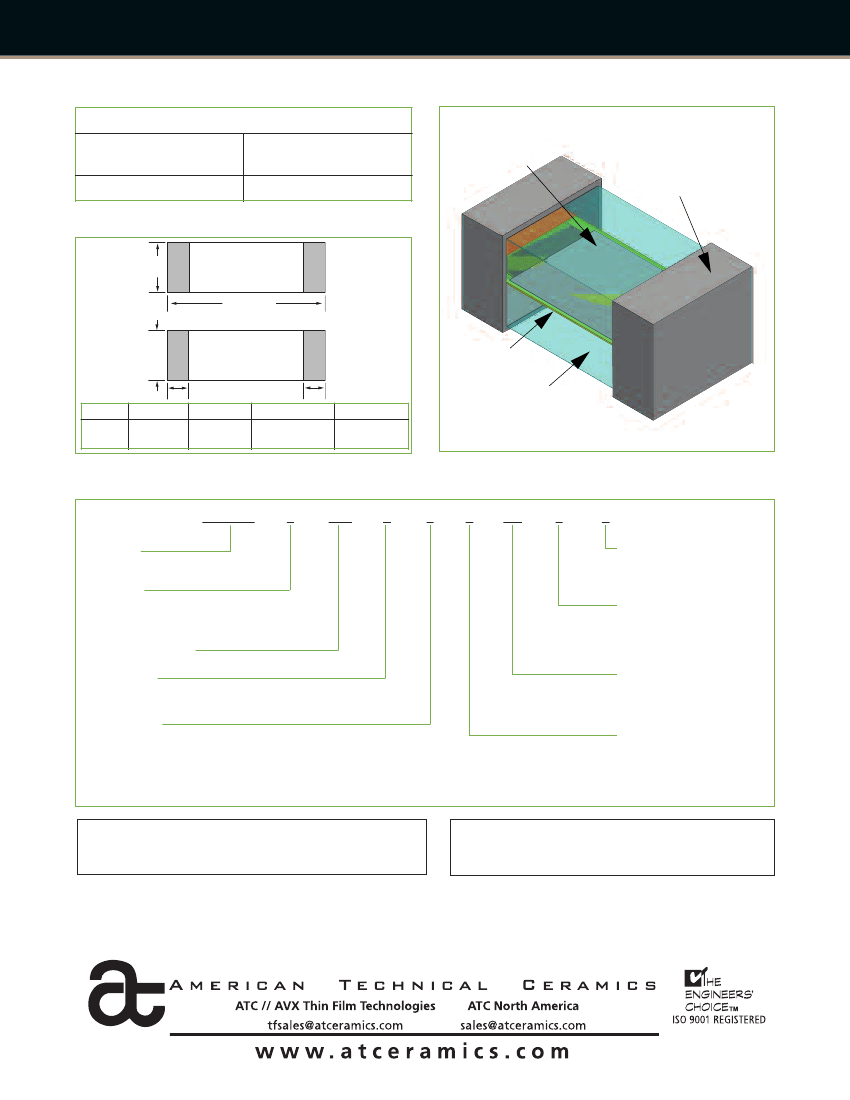

Mechanical Dimensions
W
L
T
EPOXY
t
t
GLASS SUBSTRATE
Size (EIA)
0402
Length (L)
Width (W)
.039 ±.004 .020 ±.004
(1.00 ±0.10) (0.50 ±0.10)
Thickness (T)
.020 ±.004
(0.50 ±0.10)
Terminal (t)
.010 ±.006
(0.25 ±0.15)
inches (mm)
ATC Part Number Code
ATC 504
Series
Case Size
Resistance Value (Ω)
3 significant digits
R= decimal point
Multiplyer
Tolerance
F= 1%
L
100
0
F
T
NC
F
T
Packaging: T = Tape & Reel
Temperature Coefficient of
Resistance
(-50 to -150 ppm/°C)
Compensation
NC = Non-Compensated
Termination
T = NiSn Plated
The above part number refers to a 504 Series (case size L), 100 Ohms, F tolerance (1%), NiSn Plated
Non-Compensated, with a TCR of -50 to -150 ppm/ºC, with Tape and Reel Packaging.
ATC accepts orders for our parts using designations
with
or
without
the “ATC” prefix. Both
methods of defining the part number are equivalent, i.e., part numbers referenced with the
“ATC” prefix are interchangeable to parts referenced without the “ATC” prefix. Customers are
free to use either in specifying or procuring parts from American Technical Ceramics.
For additional information and catalogs contact your ATC
representative or call direct at +1-631-622-4700.
Consult factory for additional performance data.
Sales of ATC products are subject to the terms and conditions contained in American Technical Ceramics Corp. Terms and Conditions of Sale (ATC document #001-992 Rev. A 10/03). Copies of these
terms and conditions will be provided upon request. They may also be viewed on ATC's website at www.atceramics.com/productfinder/default.asp. Click on the link for Terms and Conditions of Sale.
ATC has made every effort to have this information as accurate as possible. However, no responsibility is assumed by ATC for its use, nor for any infringements of rights of third parties which may
result from its use. ATC reserves the right to revise the content or modify its product line without prior notice.
© 2012 American Technical Ceramics Corp. All Rights Reserved.
ATC # 001-1108, Rev C, 8/13
