CFP2
■Features
■Terminal
Pins: Straight
■Actuator
Color: Gray
Washable
RoHS Compliant
Ultra-Miniature
Pushbutton Switches
■
:WLJPÄJH[PVUZ
Rating
Max.
Min.
0.4VA
（28VDC
max.）
1μA 20mVDC
（1.5mA
200μVAC）
250VAC 1 minute
500MΩ min.
（250VDC）
10,000 operations at max.rating,
30,000 operations at min.rating,

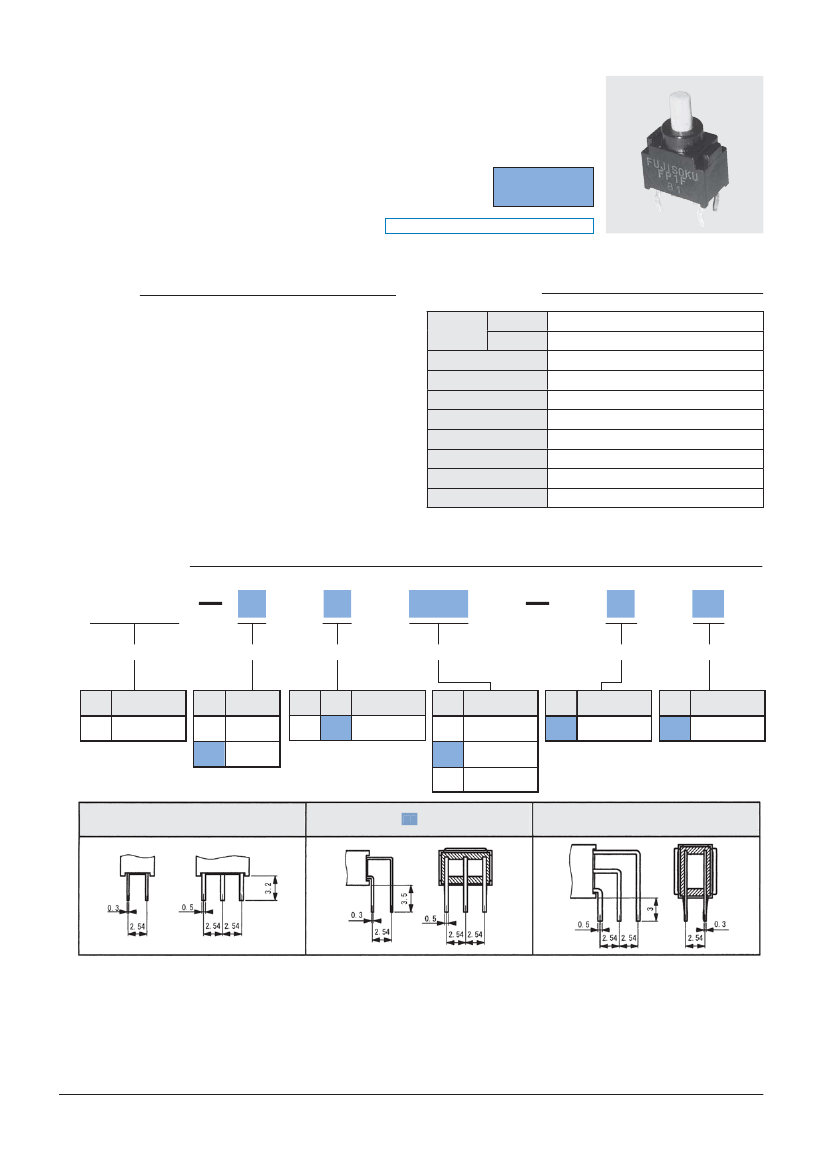

1. Ultra-miniature pushbutton switch for high density mounting.
2. Washable.
3. Terminal pin pitch: 2.54 mm.
4. Independent detent mechanism ensures light operational feel.
5. Clip contact mechanism for long-term contact reliability.
6. Gold-plated contacts.
Initial contact resistance 100m
Ω
max.
Dielectric strength
Insulation resistance
Electrical life
Mechanical life
Operating force
Operating
temperature range
Storage
temperature range
30,000 cycles
1.47±0.98N
−40∼＋85℃
−40∼＋85℃
■Part
Numbering
CFP2
Series Actuator
2
Number of poles
R
Switching function
C4
Terminal style
Fig.
A
Actuator shape
W
Packaging spec
Code
Type
Fig.
Number of poles
1 pole
2 poles
1 pole 2 poles Switching function
Terminal style
Code
Actuator shape
Code Packaging spec
P
Pushbutton
1
2
F
R
ON −
（ON）
C
C4
P/C
Right angle
A
Standard
W
Tray
C6
Vertical mounting
Terminal style of C (Style : PC Terminal)
Terminal style of C4 (Style : R/A Terminal)
Terminal style of C6 (Style : V/M Terminal)
（ON）
：Momentary.
CFP2
SPDT
PC
Part No.
Switching
function
CFP2-1FC-AW

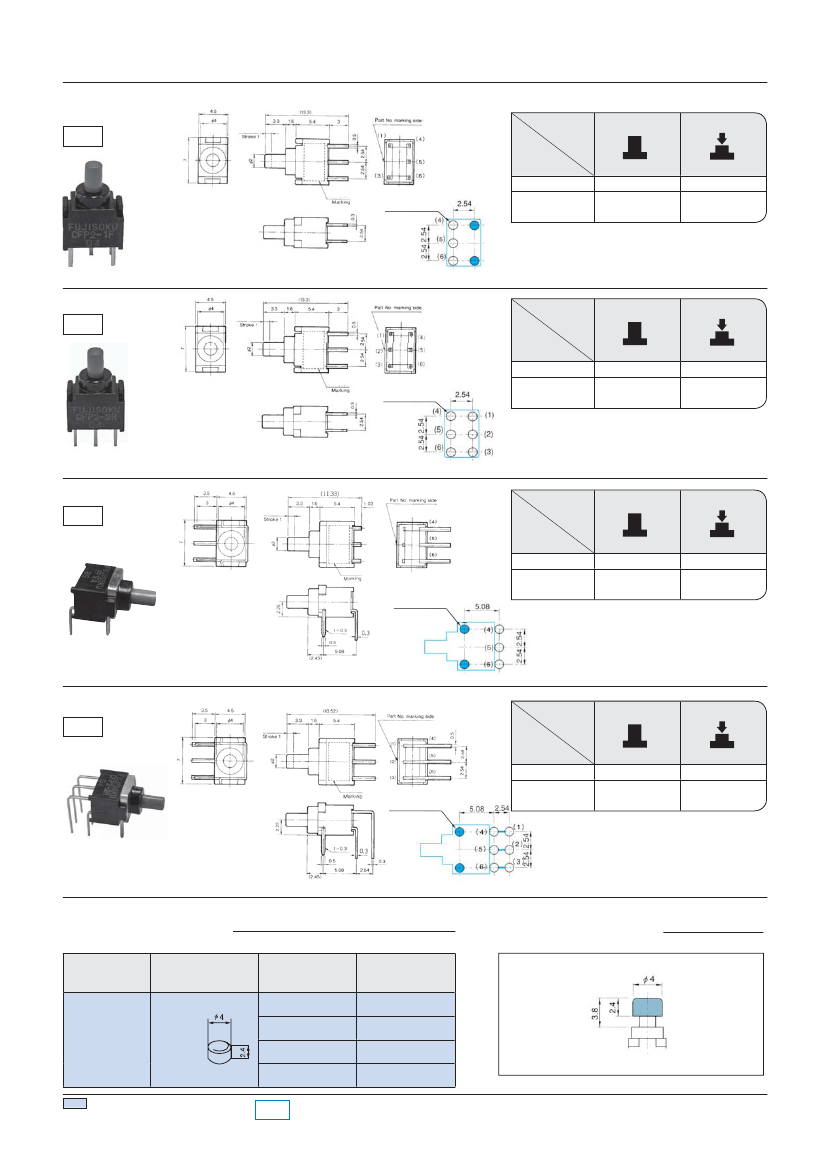

5-φ0.6∼0.8
ON
5−6
（ON）
5−4
Connecting terminals
Terminal numbers are not shown on the switch.

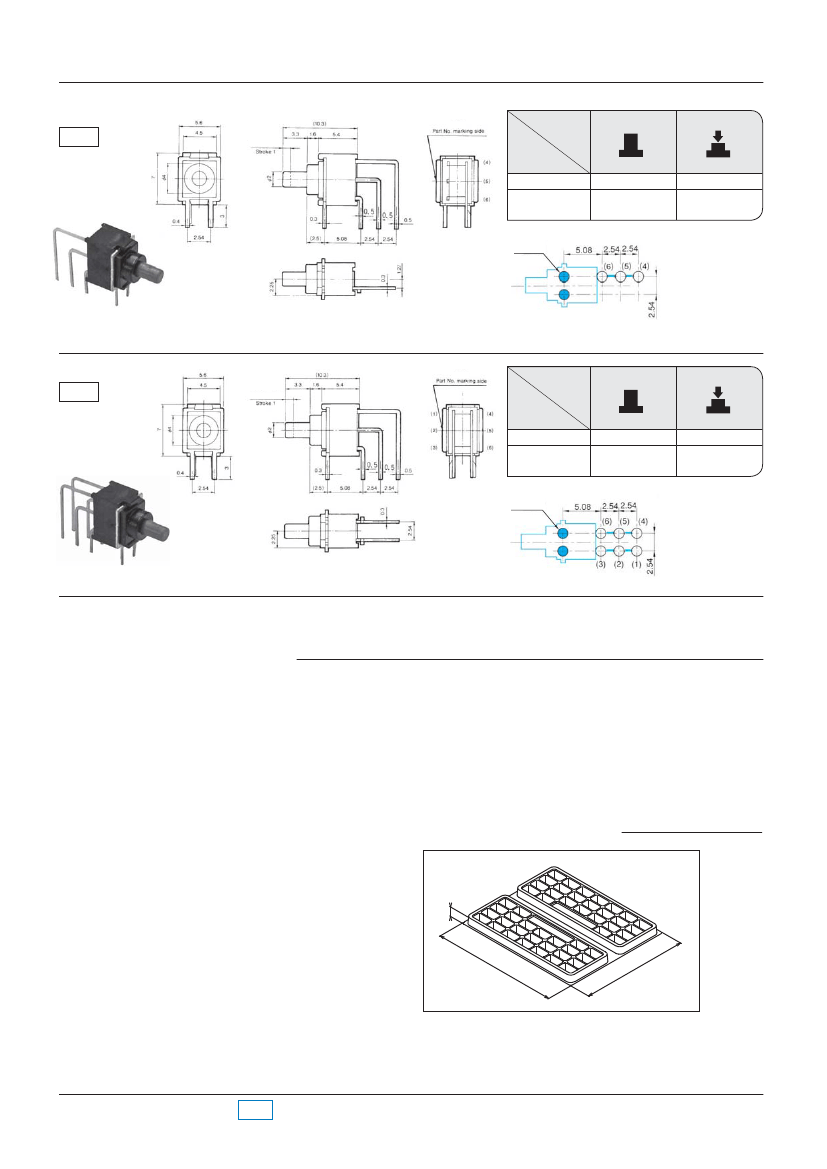

PC Hole Layouts（Top view）
DPDT
PC
Part No.
Switching
function
☆CFP2-2RC-AW
6-φ0.6∼0.8
Connecting terminals
ON
2−3
5−6
（ON）
2−1
5−4
Terminal numbers are not shown on the switch.
PC Hole Layouts（Top view）
SPDT
R/A
Part No.
Switching
function
CFP2-1FC4-AW
Connecting terminals
5-φ0.6∼0.8
ON
5−6
（ON）
5−4
Terminal numbers are not shown on the switch.
PC Hole Layouts（Top view）
DPDT
R/A
Part No.
Switching
function
☆CFP2-2RC4-AW
8-φ0.6∼0.8
Connecting terminals
ON
2−3
5−6
（ON）
2−1
5−4
Terminal numbers are not shown on the switch.
PC Hole Layouts（Top view）
※
The above PC Hole Layouts are top view drawings.
■Optional
Accessories
《Sold
separately》
■Color
Cap Mounting
Color
White
Red
Black
Part Number
140000481453
140000481452
140000481451
140000481450
（ON）
：Momentary.
☆：Semi-standard
products.
Part Name
Dimension
.SVZZ ÄUPZO
Color Cap
ABS resin
：
Optional Accessories.
Gray
The blue line shows the outline of the switch.
CFP2
SPDT
V/M
Part No.
Switching
function
CFP2-1FC6-AW
Connecting terminals
ON
5−6
（ON）
5−4
5-φ0.8
Terminal numbers are not shown on the switch.
PC Hole Layouts（Top view）
DPDT
V/M
Part No.
Switching
function
☆CFP2-2RC6-AW
Connecting terminals
ON
2−3
5−6
（ON）
2−1
5−4
8-φ0.8
Terminal numbers are not shown on the switch.
PC Hole Layouts（Top view）
※
The above pcb hole dimengion, it is a top view drawiing when we fix the switch.
■/HUKSPUN
:WLJPÄJH[PVUZ
（CFP2）
:VSKLYPUN :WLJPÄJH[PVUZ
⑴Manual
Soldering
Device
：
Soldering iron
350° Max.; 3 seconds, Max.
C,
⑵Auto
Soldering
Device
：
Jet wave type or dip type
260° Max.; 3-5 seconds, Max. (One time)
C,
Total dip time: Within 10 seconds
・Pre-heating
should be done at temperatures from
80° to 120° and within 120 seconds
C
C
⑶When
soldering two or more terminals to a common
land, use solder resist to separate them
2. Flux Cleaning
⑴Solvents
: Fluorine or Alcohol type
⑵Cleaning
after soldering should be done after the
PC board is exposed to room temperature (30℃
or below) for 1 to 2 hours.
⑶Do
not use ultrasonic cleaning.
■7HJRHNPUN
:WLJPÄJH[PVUZ
Plastic Pack
100 pcs/pack
The blue line shows the outline of the switch.
（ON）
：Momentary.
☆：Semi-standard
products.
