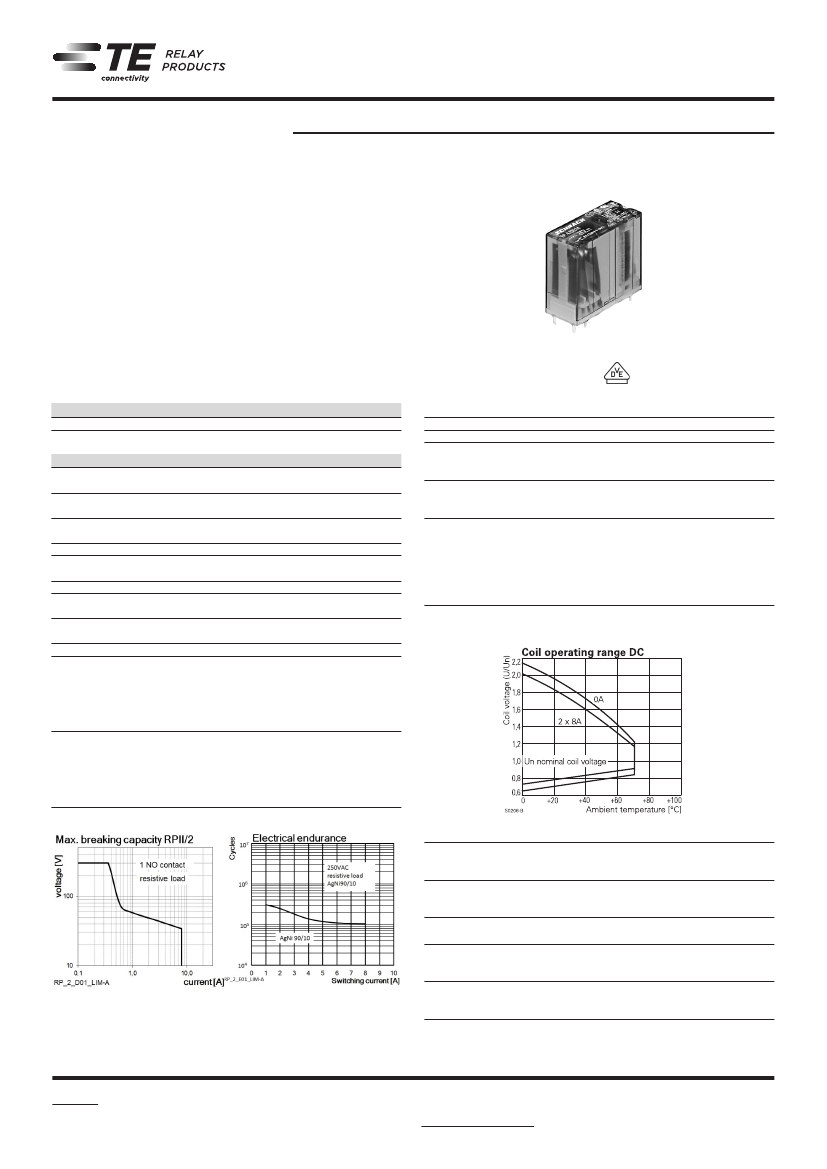

General Purpose Relays
PCB Relays
Power PCB Relay RPII/2
n
n
n
SCHRACK
2 pole 8 A, 2 form C (CO) or 2 form A (NO) contacts
4 kv/8 mm coil contact
Twin contacts available
Applications
Domestic appliances, UPS
Z
Approvals
VDE Cert. No. 40025448, UL E214024
Technical data of approved types on request
F0150-B
Coil Data
Coil voltage range
Operative range, IEC 61810
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
005
5
3.5
006
6
4.2
012
12
8.4
024
24
16.8
048
48
33.6
060
60
42.0
110
110
77.0
Other coil voltages on request.
5 to 110VDC
2
Contact Data
Contact configuration
2 form C (CO) or
2 form A (NO)
Rated voltage / max.switching voltage AC
250 VAC
Max. switching voltage
400 VAC
Rated current
8 A (UL: 10A)
Limiting making capacity, max 4 s, duty factor 10%
14 A
Breaking capacity max.
2000 VA
Contact material
AgNi 90/10
AgNi0.15 gold flashed
Frequency of operation with / without load
600 / 36000 h
-1
Operate/release time typ.
9/3 ms
Bounce time typ., form A/form B
2/3 ms
Contact ratings
Type
Contact
IEC61810
RP421
A (NO)
RP424 DC-coil A (NO)
RP424 DC-coil C (CO)
RP424 DC-coil A (NO)
RP424 REM
A (NO)
UL508
RP420
C (CO)
RP421
C (CO)
RP424
A (NO)
RP424
C (CO)
RP424
A (NO)
Load
8A, 250 VAC, resistive, 35°C
8A, 250 VAC, resistive, 35°C
5A, 250 VAC, resistive, 70°C
8A, 250 VAC, resistive, 70°C
8A, 250 VAC, resistive, 35°C
10A, 250 VAC, gen. purp, 70°C
8A, 250 VAC, gen. purp, 40°C
10A, 250 VAC, gen. purp, 65°C
8A, 250 VAC, gen. purp, 70°C
1/2 HP, 240 VAC, 70°C
Cycles
100x10
3
100x10
3
20x10
3
30x10
3
50x10
3
6x10
3
6x10
3
30x10
3
6x10
3
6x10
3
Release
voltage
VDC
0.5
0.6
1.2
2.4
4.8
6.0
11.0
Coil
resistance
Ω±10%
1)
54
68
270
1100
1)
4400
1)
6540
1)
23100
1)
Rated coil
power
mW
500
500
500
500
500
500
500
1) Coil resistance ±15%.
All figures are given for coil without pre-energization, at ambient temperature +20°C.
Coil versions, REM I (1 coil bistable/remanence)
Coil Rated Resistance Magnetisation range Demagnetisation range
code voltage Ω±15%
MIN./ Vdc MAX./Vdc MIN./ Vdc MAX./Vdc
VDC
A12
12
115
9
18
3
4.8
A24
24
460
18
36
6
9.6
A48
48
1748
36
72
12
19.2
Coil versions, REM II (2 coil bistable/remanence)
Coil Rated Resistance Magnetisation range Demagnetisation range
code voltage Ω±15%
MIN./ Vdc MAX./Vdc MIN./ Vdc MAX./Vdc
VDC
F05
5
20
3.7
7.5
3.7
6
F12
12
105
9
18
9
14.4
F24
24
460
18
36
18
28.8
All figures are given for coil without pre-energization, at ambient temperature +20°C.
Other coil voltages on request.
10-2018, Rev. 1018
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
PCB Relays
Power PCB Relay RPII/2
(Continued)
Insulation
PCB layout / terminal assignment
4000V
rms
1000V
rms
2500V
rms
≥8/8mm
IIIa
Bottom view on solder pins
Dimensions in mm
SCHRACK
Initial dielectric strength
coil-contact circuit
open contact circuit
adjacent contact circuits
Clearance/creepage
coil-contact circuit
Material group of insulation parts
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature
-40 to +70°C
Category of environmental
IEC 61810
RTII - flux proof, RTIII - wash tight
Vibration resistance (functional),
form A/form B, 30 to 150Hz
11/1.5g
Shock resistance (destructive)
100g
Terminal type
PCB-THT
Resistance to soldering heat THT, IEC 60068-2-20
flux-proof version
270°C / 10s
wash-tight version
260°C / 5s
Relay weight
18g
Packaging unit
tube/20 pcs., box/500 pcs.
Dimensions
Dimensions in mm
S0163-CO
2 form C (CO) contacts
S0163-BJ
2 form A (NO) contacts
S0163-BK
2 form C (CO) contacts (REM II version/ 2 coils)
a) Indicated contact
position while or after coil
energization with reset
voltage.
b) for 2 coil version only
S0273-AB
monostable and REM I (REM II version has 3 coil terminals)
Product code structure
Type
RP
Power PCB Relay RPII/2
Version
4
8A, flux proof
Contact arrangement
2
2 form C (2 CO)
Contact material
1
AgNi0.15 gold flashed
Coil
8
4
0
8A, wash tight
2 form A (2 NO)
AgCdO
2
Typical product code
RP
4
2
4
024
4
AgNi 90/10
Coil code: please refer to coil versions table
2) AgCdO contacts are discontinued and replaced with AgNi contacts (see PCN E-18-003947)
2
10-2018, Rev. 1018
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
General Purpose Relays
PCB Relays
Power PCB Relay RPII/2
(Continued)
Product Code
RP420006
RP420012
RP420024
RP420048
RP421012
RP421024
RP421110
RP820012
RP820024
RP821012
RP821024
RP424005
RP424006
RP424012
RP424024
RP424048
RP424060
RP424110
RP424A12
RP424A24
RP424A48
RP424F12
RP424F24
RP444012
RP444024
RP824006
RP824012
RP824024
RP824048
RP824060
RP844024
SCHRACK
Version
Flux proof
Contacts
2 form C (CO) contacts
Cont. Material
AgCdO
Coil Version
monostable
Coil
6VDC
12VDC
24VDC
48VDC
12VDC
24VDC
110VDC
12VDC
24VDC
12VDC
24VDC
5VDC
6VDC
12VDC
24VDC
48VDC
60VDC
110VDC
12VDC
24VDC
48VDC
12VDC
24VDC
12VDC
24VDC
6VDC
12VDC
24VDC
48VDC
60VDC
24VDC
Part Number
4-1393234-8
5-1393234-0
5-1393234-1
5-1393234-2
6-1393234-7
6-1393234-8
7-1393234-1
9-1393234-0
9-1393234-2
1393845-4
1393845-5
6-1415546-2
6-1415546-3
6-1415546-4
6-1415546-5
6-1415546-6
6-1415546-7
6-1415546-8
6-1415546-9
7-1415546-0
7-1415546-1
7-1415546-2
7-1415546-3
7-1415546-4
7-1415546-5
7-1415546-6
7-1415546-7
7-1415546-8
7-1415546-9
8-1415546-0
6-1415546-1
AgNi0.15
Wash tight
AgCdO
AgNi0.15
Flux proof
AgNi 90/10
REM I
REM II
2 form A (NO) contacts
Wash tight
2 form C (CO) contacts
monostable
2 form A (NO) contacts
Note. This list represents the most common types and does not show all variants covered by this datasheet. Other types on request.
