System LSIs for Blu-ray Drive
System Motor Driver IC
for Half Height Drive(Sensor less)
BD7763EFV
General Description
BD7763EFV are 9ch system motor driver ICs,
developed for the spindle motor, actuator coil,
stepping motor, SA stepping motor and the loading
motor drive of the Blu-ray drive. Since spindle
driver adopts sensor less drive system and the hall
sensor (3 pieces) of the motor position detection is
not needed, it is suitable for making of flexible
cable conserve wiring and the reductions of
external parts. The actuator, loading driver, the
spindle, stepping, and SA stepping use power
MOSFET to reduce power consumption.
Package(s)
HTSSOP-B54
18.5mm x 9.5mm x 1.0mm
Applications
For Blu-ray drive
Features
The hall sensor is not needed by 3-phase sensor less
drive system.
The spindle motor driver achieves stability high speed
start by ROHM's own energizing method.
Spindle, stepping and SA stepping achieve high
efficiency drive by PWM control driver. The actuator is
able to reduce power consumption by using PWM
drive system.
The loading adopts forward/reverse-rotation drive
system.
ON/OFF of loading and other channels, brake mode
of spindle driver, and stand-by mode are selectable by
the two control terminals.
Built-in thermal-shut down circuit.
Improved heat radiation efficiency utilizing lm-type
HTSSOP package with good thermal conductivity.

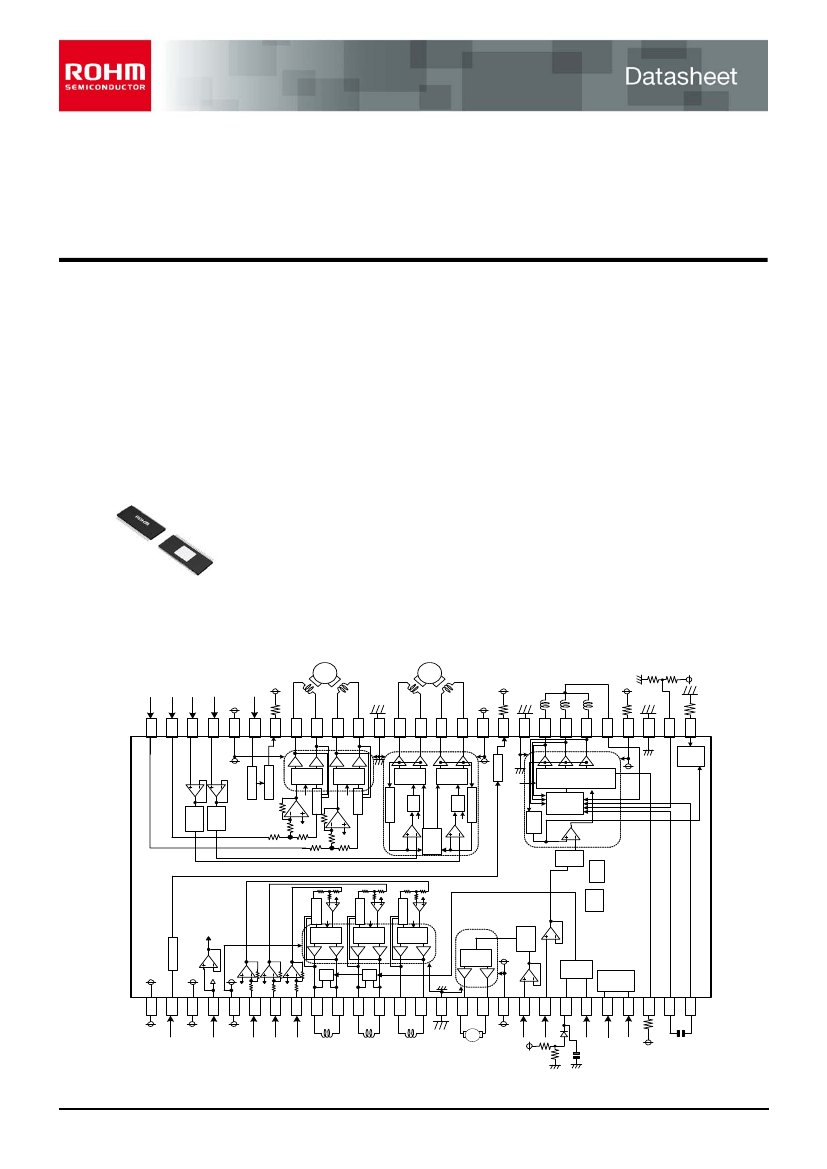

Typical Application Circuit(s)
STM
STM
R2
12V
10k
R1 DVCC
10k
SLDETOUT
COM
RDET
5V
SL/SAGND
12V
SADETOUT
SLDET
SLO1+
SLO1-
SLO2+
SLO2-
SPGND
SAO1+
SAO1-
SAO2+
SAO2-
MTR_R
C_COM
CUR R.
LIM IT
DETECTER
CURR.FEED
CURR.FEED
AMP
OSC
OSC
AMP
OSC
SW
PR E
Logic
PR E
Logic
PRE
Logic
PRE
Logic
SW
Logic
BEMF
DETECTER
CURR.
FEED
FF
OSC
FF
OSC
LEVEL
SHIFT
LEVEL
SHIFT
CURR.
LIMIT
NF AMP
NF AMP
NF AMP
OSC
OSC
DETECTER
PR E
Logic
FC1
CTL
FC2
CTL
LEVEL
SHIFT
PRE
Logic
PRE
Logic
PRE
Logic
OSC
PULL
T.S.D
PR TE T
O C
LEVEL
SHIFT
STBY
BRAKE
CONTROL
14
16
17
12
13
10
11
15
18
19
20
21
22
24
25
10k
FG
26
23
CTL2
AGND
LDO+
PULL_CTL
CTL1
27
SADET
FCO1+
FCO1-
FCO2-
FCO2+
○Product
structure：Silicon monolithic integrated circuit
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111・14・001
○This
product is not designed protection against radioactive rays.
1/15
M
5V
12V
5V
12V or 5V
PULL_BIAS
1000pF
3.3V
TSZ02201-0P1P0B800260-1-2
19.NOV.2012 Rev.001
C_OUT
AVM
DVCC
LDVM
TKO-
TKO+
VCC
VC
LDO-
FC2IN
FC1IN
SPIN
LDIN
TKIN
1
2
3
4
5
6
7
8
9
SPLIM
SAIN2
SAIN1
SAVM
SLIN2
SLIN1
SLVM
SPVM
GND
40
38
37
36
35
34
33
32
31
30
29
43
42
41
54
53
52
51
50
49
48
47
46
45
44
39
W
U
V
28
BD7763EFV
Pin Description(s)
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Symbol
DVcc
SADET
Vcc
VC
AVM
TKIN
FC2IN
FC1IN
FCO1+
FCO1-
FCO2-
FCO2+
TKO-
TKO+
AGND
LDO-
LDO+
LDVM
LDIN
SPIN
Description
PWM block control power supply
SA motor detection signal control input
Datasheet
No.
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
Symbol
SPLIM
MTR_R
GND
SPVM
COM
W
V
U
SPGND
Description
Adjustable resistor connection
for spindle driver current limit
motor start pattern adjustment terminal
Pre block power supply
Reference voltage input
Actuator driver block power supply
Tracking driver input
Focus 2 driver input
Focus 1 driver input
Focus 1 driver positive output
Focus 1 driver negative output
Focus 2 driver negative output
Focus 2 driver positive output
Tracking driver negative output
Tracking driver positive output
Actuator/Loading driver power ground
Loading driver negative output
Loading driver positive output
Loading driver block power supply
Loading driver input
Spindle driver input
Pre block ground
Spindle driver power supply
Motor coil center point input
Spindle driver output W
Spindle driver output V
Spindle driver output U
Spindle driver power ground
SADETOUT SA motor detection signal output
SLVM
SLO2-
SLO2+
SLO1-
SLO1+
SL/SAGND
SAO2-
SAO2+
SAO1-
SAO1+
Sled motor driver power supply
Sled driver 2 negative output
Sled driver 2 positive output
Sled driver 1 negative output
Sled driver 1 positive output
Sled/SA driver block
pre and power ground
SA driver 2 negative output
SA driver 2 positive output
SA driver 1 negative output
SA driver 1 positive output
PULL_BIAS Pick-up pull current control terminal
PULL_CTL Pick-up pull control terminal
CTL2
CTL1
FG
C_COM
C_OUT
Driver logic control 2 input
Driver logic control 1 input
Frequency generator output
Smooth capacitor connection terminal
(com side)
Smooth capacitor connection terminal
(output side)
SLDETOUT Sled motor detection signal output
SLDET
SAVM
SLIN1
SLIN2
SAIN1
SAIN2
Sled motor detection signal control input
SA driver power block power supply
Sled driver 1 input
Sled driver 2 input
SA driver 1 input
SA driver 2 input
*Positive/negative of the output terminals is determined in reference to those of the input terminals.
www.rohm.com
© 2015 ROHM Co., Ltd. All rights reserved.
TSZ22111・15・001
2/15
TSZ02201-0P1P0B800260-1-2
19.NOV.2012 Rev.001
BD7763EFV

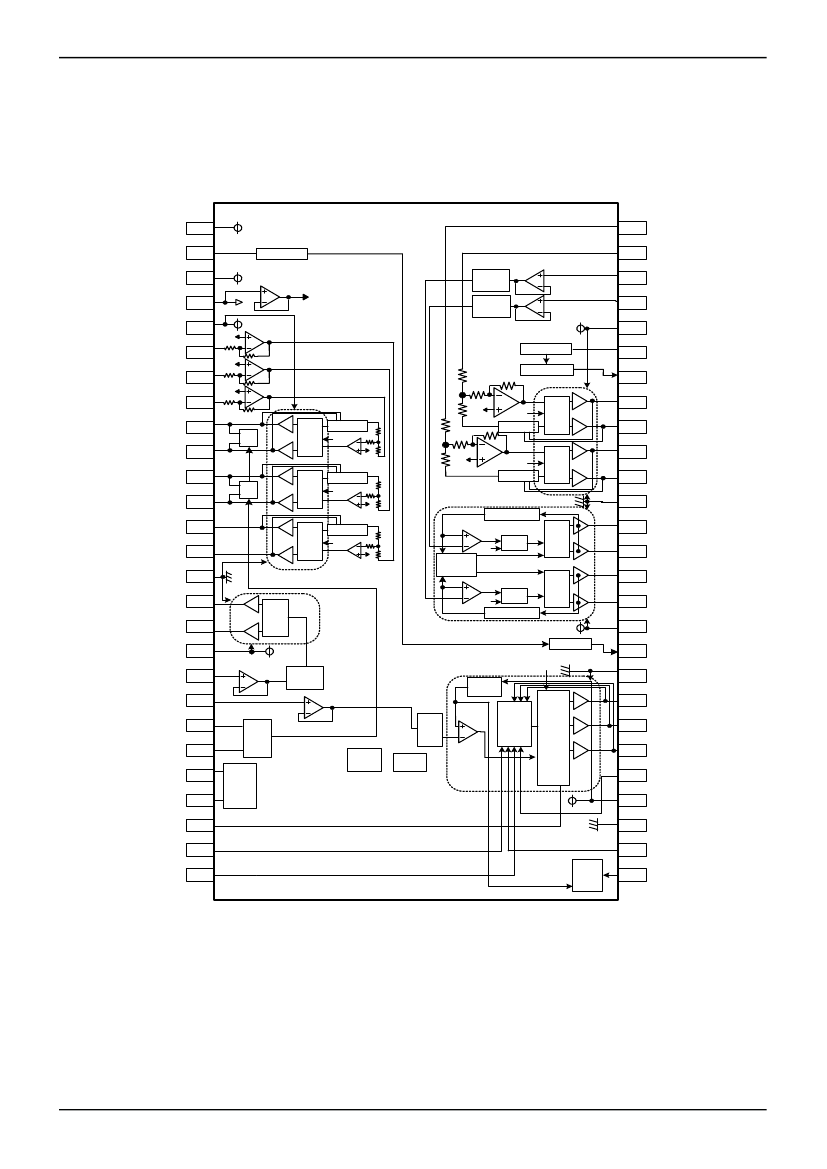

Block Diagram(s)
