LCS Series
Subminiature Sealed Snap-acting Switches
Features/Benefits
•
Compact design
•
Long life and high electrical capacity
•
Quick connect, solder terminals,
PC terminals, wire leads
UL61058-1
14
•
Wide variety of actuator styles
•
RoHS compatible, RoHS compliant
•
IP67
Materials
Typical Applications
•
Motorized equipment
•
Sump pump
•
Thermostatic controls
•
Computers
•
Air conditioners
Specifications
CONTACT RATING: from low level to 5 Amp
ELECTRICAL LIFE: 10,000 cycles
INSULATION RESISTANCE: 100 M ohm min.
DIELECTRIC STRENGTH: 1,000 VAC
OPERATING TEMPERATURE:
-40ºC to +120ºC (without wire)
-40ºC to +85ºC (with UL1007 wire)
-40ºC to +105ºC (with UL1015 wire)
-40ºC to +105ºC (with UL1430 wire)
-40ºC to +80ºC (with UL1061 wire)
-40ºC to +120ºC (with UL1330 wire)
OPERATING FORCE: (see ACTUATOR’S option sections).
MOUNTING: 2-56 screws, torque 2.3 in/lbs max.
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service center.
J
Snap-acting
SWITCH HOUSING: Thermoplastic polyester or high temperature
thermoplastic (PTS) (UL 94V-0).
ACTUATOR BUTTON: Thermoplastic polyester.
SPRING: Copper alloy.
PIVOT: Copper alloy.
MOVABLE CONTACTS: Option “01” Gold plating over silver alloy
Option “05” Silver alloy
STATIONARY CONTACTS: Option “01” Gold plating over silver alloy
Option “05” Silver alloy
TERMINALS: Copper alloy.
ACTUATOR LEVEL: Stainless steel.
Build-A-Switch
To order, simply select desired option from each category and place in the appropriate box. Available options are shown and
described on pages J-40 thru J-43. For additional options not shown in catalog, consult Customer Service Center.
L
C
S
Series
LCS
Electrical Rating
Option
Code
01
05
UL
61058-1
0.1 A 125/250 V AC
5
A 125/250 V AC
NA
6 A 250 V AC
14
Operating Force
2
203 grams

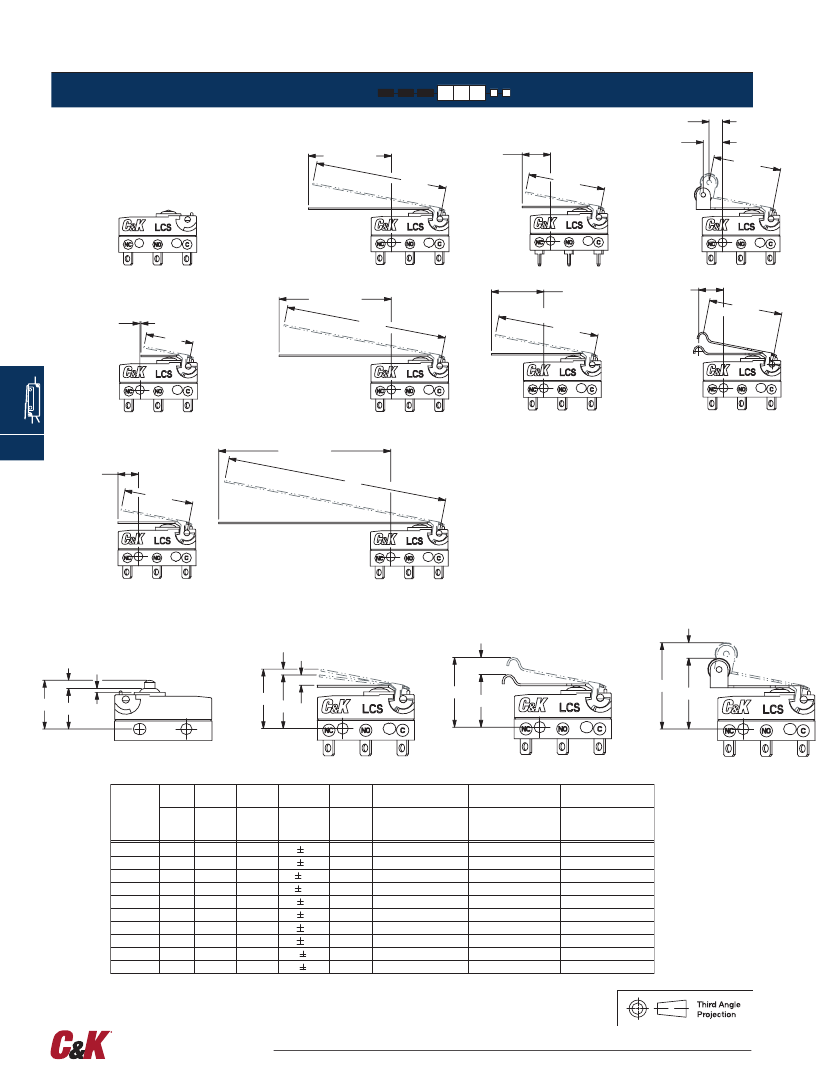

Actuator
P00
Pin plunger
T00
11.9 mm short lever
T05
17.4 mm short lever
T07
19.4 mm short lever
T13
25.5 mm lever
T19
33.3 mm lever
T28
40.7 mm lever
T43
55.9 mm lever
S26
18.6 mm simulated lever
A05
17.2 mm lever roller
Circuitry
C
SPDT
W
SPST N.C.
Y
SPST N.O.
Wire Type AWG
(when required)
20
20 AWG
22
22 AWG
24
24 AWG
26
26 AWG
Wire UL #
(when required)
A
UL1007
B
UL1015
C
UL1430
D
UL1061
Terminations
S
Solder
Q
0.110 Quick Connect
P
PC Thru Hole
W
Wire leads potted
Z
Wire leads non-potted
Wire Side (when required)
A
Wire out the bottom
B
Wire out the right side
C
Wire out the left side
D
None
Dimensions are shown: mm
Specifications and dimensions subject to change
J–40
www.ckswitches.com

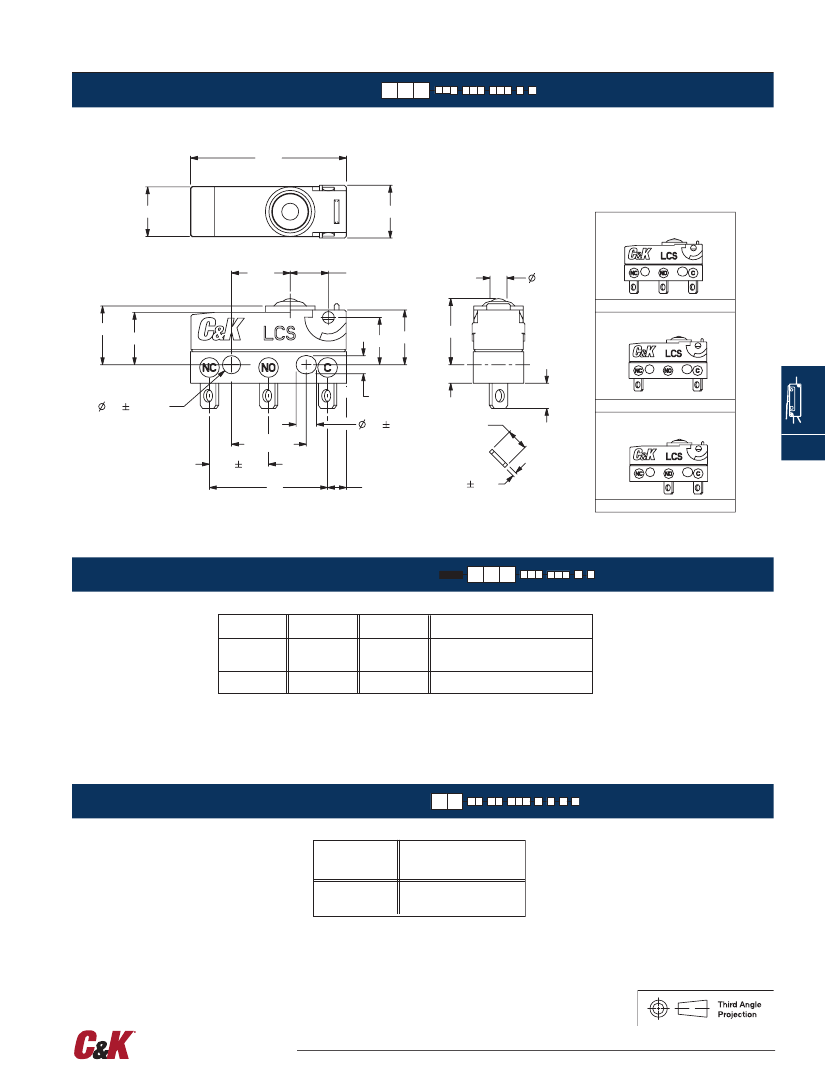

LCS Series
Subminiature Sealed Snap-acting Switches

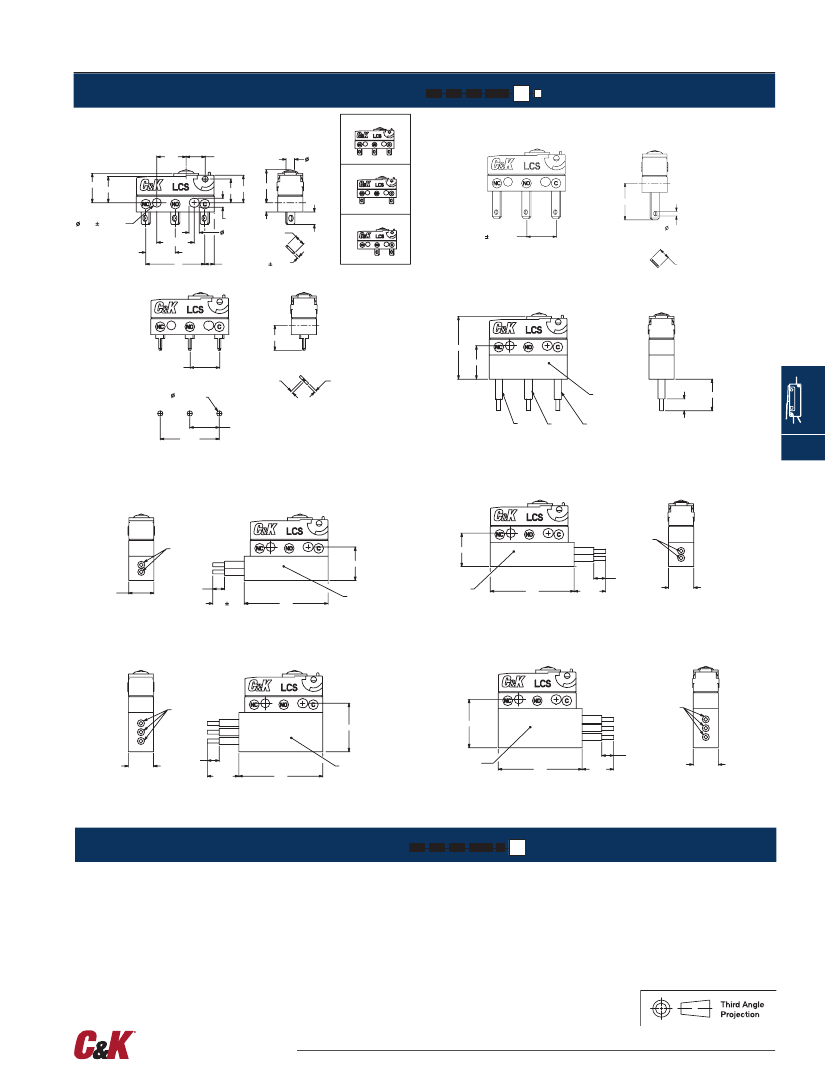

TERMINATIONS
S
SOLDER
7.45
4.85
2.2
"C" CIRCUITRY
Q
QUICK CONNECT 2.8mm / 0.110”
7.45
6.65
6 6.95 FP
2.35
2.3±0.1
9.5±0.15
7.5±0.2
TYP
15
2.6 ± 0.1 2.8 TYP
"Y" CIRCUITRY
3.2 TYP
"W" CIRCUITRY
7.5 0.1 TYP
9.3 TYP
1.2 TYP
2.3 0.1TYP
2X 2.4 0.5 0.05
TYP
2.8
P
PC THRU HOLE
6.4 TYP
7.5 ± 0.2 TYP
0.6 TYP
3X 1.35/1.5
0.5 ± 0.05 TYP
Z or W
“A” WIRE ORIENTATION
15.95
8.5
POTTING
"W' OPTION
SHOWN
C: GRAY NO: BLUE NC: BLACK
304.8 ± 6.4
3±1
15±0.1
7.5 ± 0.1 TYP
Z or W
“B” WIRE ORIENTATION
RECOMENDED
MOUNTING PATTERN
J
Z or W
“C” WIRE ORIENTATION
Snap-acting
“Y” OR “W” CIRCUITRY
“Y” OR “W” CIRCUITRY
BLACK COM
BLUE NO
(8.5)
(6.4)
3±1
12 0.1
21.3
BLACK COM
BLUE NO
(8.5)
3±1
POTTING
"W' OPTION
SHOWN
POTTING
"W' OPTION
SHOWN
21.3
12±0.1
(6.4)
Z or W
“B” WIRE ORIENTATION
“C” CIRCUITRY
Z or W
“C” WIRE ORIENTATION
“C” CIRCUITRY
BLACK COM
GRAY NC
BLUE NO
(12.3)
(12.3)
BLACK COM
BLUE NO
GRAY NC
(6.4)
3±1
21.3
12 ± 0.1
POTTING
"W' OPTION
SHOWN
POTTING
"W' OPTION
SHOWN
3±1
21.3
12 ± .1
(6.4)
CIRCUITRY
C
SPDT (Single Pole, Double Throw)
W
SPST N.C. (Single Pole, Single Throw, Normally Closed)
Y
SPST N.O. (Single Pole, Single Throw, Normally Open)
Dimensions are shown: mm
Specifications and dimensions subject to change
J–43
www.ckswitches.com
