SPQ0410HE5H-PB
Slim UltraMini SiSonic
TM
Microphone

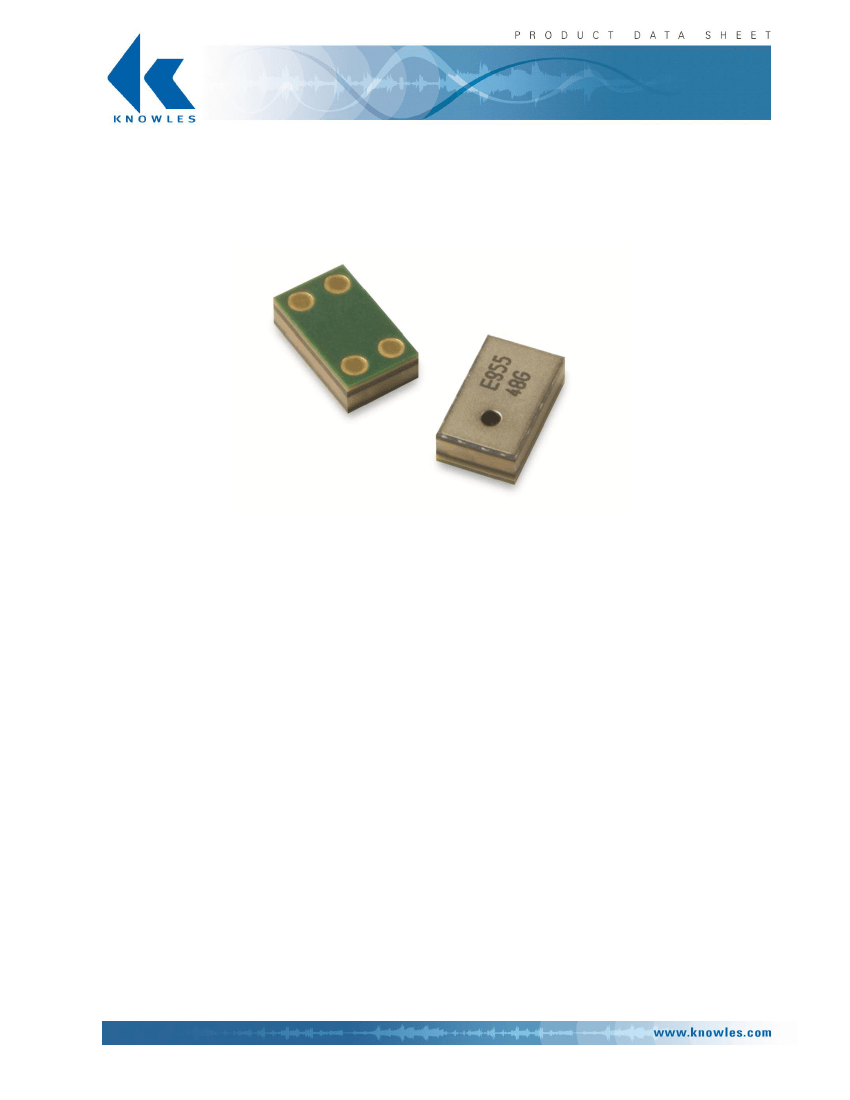

The SPQ0410HE5H-PB is a miniature, high-
performance, low power, top port silicon
microphone. Using Knowles’ proven high
performance SiSonic
TM
MEMS technology,
the SPQ0410HE5H-PB consists of an
acoustic sensor, a low noise input buffer,
and an output amplifier. These devices are
suitable for applications such as cellphones,
smart phones, laptop computers, sensors,
digital still cameras, portable music
recorders, and other portable electronic
devices where excellent wideband audio
performance and RF immunity are required.
Features:
Extremely narrow package
Low Current
Enhanced RF protection
Ultra-Stable Performance
Standard SMD Reflow
Omnidirectional
Revision: E
Sheet 1 of 11
4/04/2013
©2013 Knowles Electronics
SPQ0410HE5H-PB
1.
ABSOLUTE MAXIMUM RATINGS
Parameter
V
DD
to Ground
OUT to Ground
Input Current to Any Pin
Temperature Range
Absolute Maximum Rating
-0.5, +5.0
-0.3, V
DD
+ 0.3
±5
-40 to +100
Units
V
V
mA
°C
Stresses exceeding these “Absolute Maximum Ratings” may cause permanent damage to the device. These are
stress ratings only. Functional operation at these or any other conditions beyond those indicated under “Acoustic
& Electrical Specifications” is not implied. Exposure beyond those indicated under “Acoustic & Electrical
Specifications” for extended periods may affect device reliability.
2.
ACOUSTIC & ELECTRICAL SPECIFICATIONS
Parameter
Supply Voltage
1
Supply Current
1,2
Sensitivity
1
Symbol
V
DD
I
DD
S
SNR
THD
AOP
94 dB SPL @ 1 kHz
94 dB SPL @ 1 kHz, A-weighted
94 dB SPL @ 1 kHz,
S = Typ, R
load
> 3 k
10% THD @ 1 kHz,
S = Typ, V
DD
= 3.6V, R
load
> 3 k
V
DD
= 1.5V
Z
OUT
@ 1 kHz
Increasing sound pressure
Conditions
Min
1.5
-
-45
-
-
115
-
-
Typ
-
120
-42
59
-
-
0.73
-
Max
3.6
160
-39
-
1
-
-
400
Units
V
µA
dBV/Pa
dB(A)
%
dB SPL
V
TEST CONDITIONS: 23 ±2°C, 55±20% R.H., V
DD
(min) < V
DD
< V
DD
(max), no load, unless otherwise indicated
Signal to Noise Ratio
Total Harmonic
Distortion
Acoustic Overload
Point
DC Output
Output Impedance
Directivity
Polarity
1
2
Omnidirectional
Decreasing output voltage
100% tested.
Maximum specifications are measured at maximum V
DD
. Typical specifications are measured at V
DD
= 1.8V.
Revision: E
Sheet 2 of 11
4/04/2013
©2013 Knowles Electronics
SPQ0410HE5H-PB
3.

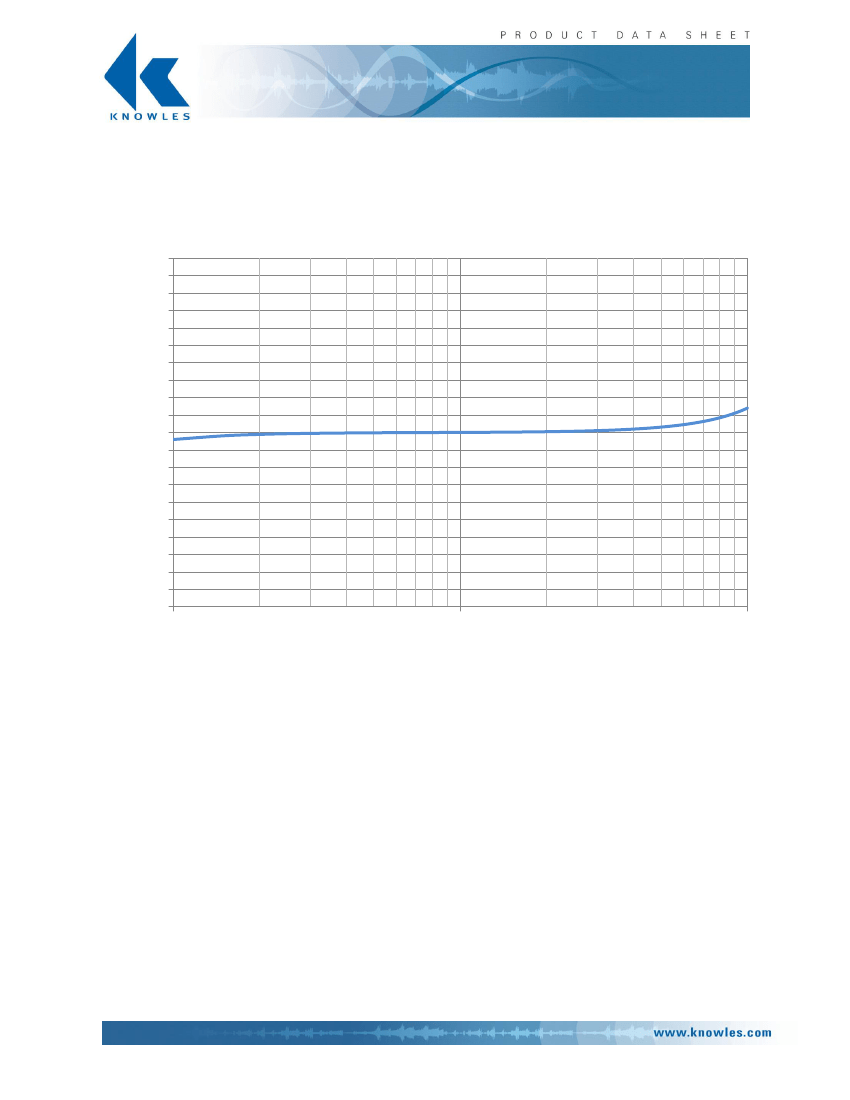

FREQUENCY RESPONSE CURVE
Typical Free Field Response
Normalized to 1kHz
20
18
16
14
12
10
8
6
4
2
0
-2
-4
-6
-8
-10
-12
-14
-16
-18
-20
100
1,000
10,000
Sensitivity (dB)
Frequency (Hz)
Revision: E
Sheet 3 of 11
4/04/2013
©2013 Knowles Electronics
SPQ0410HE5H-PB
4.

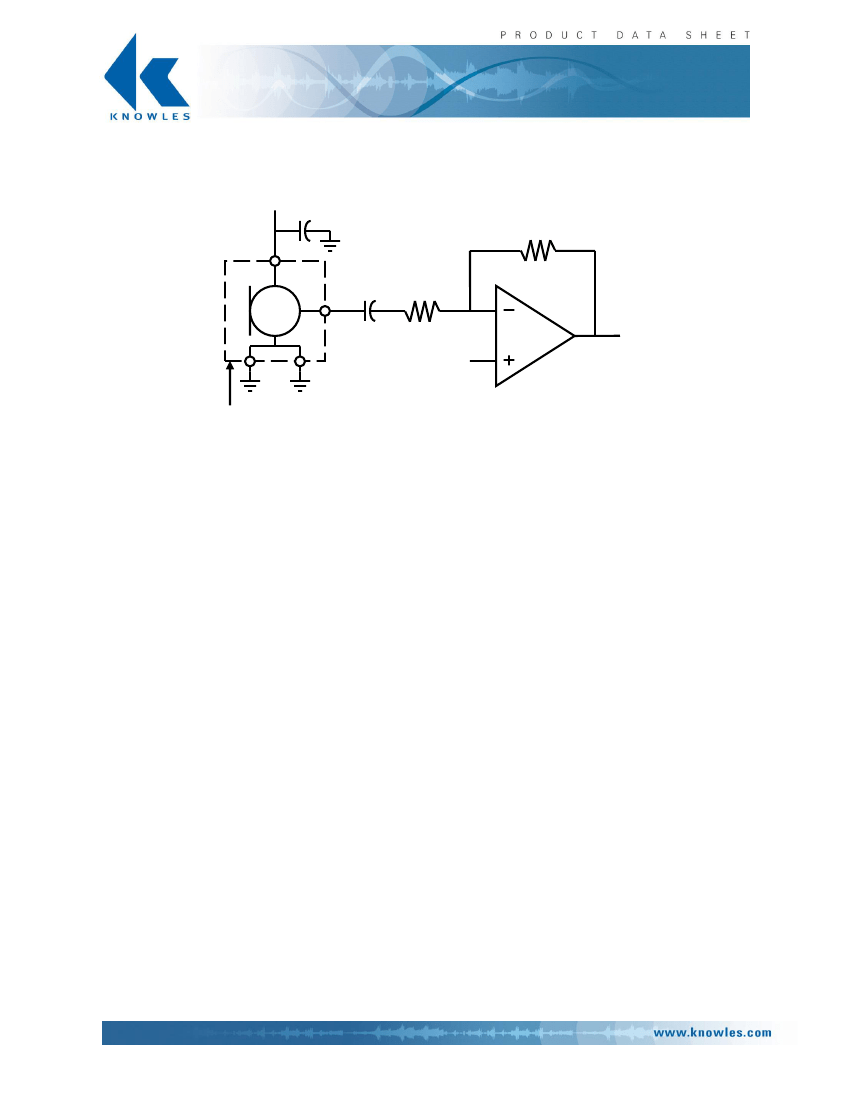

INTERFACE CIRCUIT
V
DD
V
DD
OUTPUT
R
S
.1f
R
F
GROUND
Dotted Section
Represents
SiSonic
TM
Microphone
V
REF
External Gain = -R
F
/R
S
(Set By User)
Note: All Ground pins must be connected to ground.
Capacitors near the microphone should not contain Class 2 dielectrics.
Detailed information on acoustic, mechanical, and system integration can be found in
the latest
SiSonic
TM
Design Guide
application note.
Revision: E
Sheet 4 of 11
4/04/2013
©2013 Knowles Electronics
SPQ0410HE5H-PB
5.

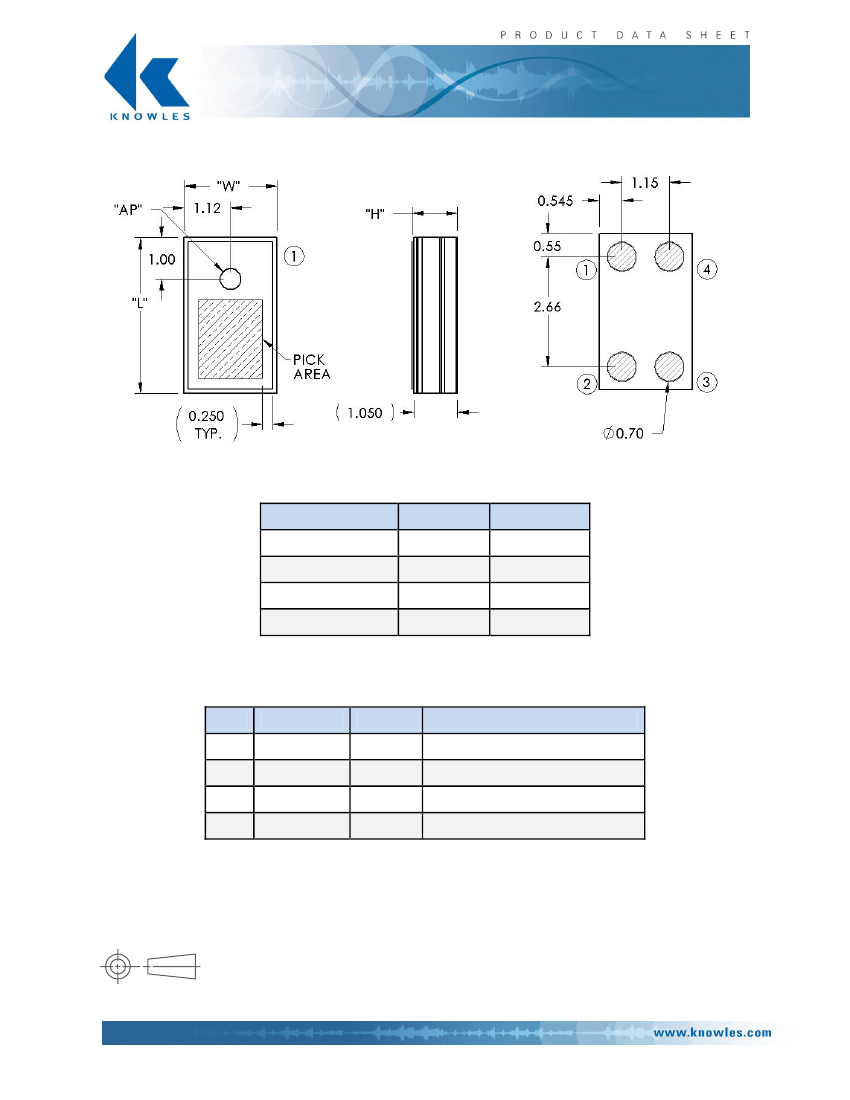

MECHANICAL SPECIFICATIONS
Item
Length (L)
Width (W)
Height (H)
Acoustic Port (AP)
Dimension
3.76
2.24
1.10
Ø0.50
Tolerance
±0.10
±0.10
±0.10
±0.08
Pin #
1
2
3
4
Pin Name
V
DD
GROUND
GROUND
OUTPUT
Type
Power
Power
Power
Signal
Description
Power Supply
Ground
Ground
Output Signal
Notes: Pick Area only extends to 0.25 mm of any edge or hole unless otherwise specified.
Dimensions are in millimeters unless otherwise specified.
Tolerance is ±0.15mm unless otherwise specified
Revision: E
Sheet 5 of 11
4/04/2013
©2013 Knowles Electronics
