F
ORMOSA
MS

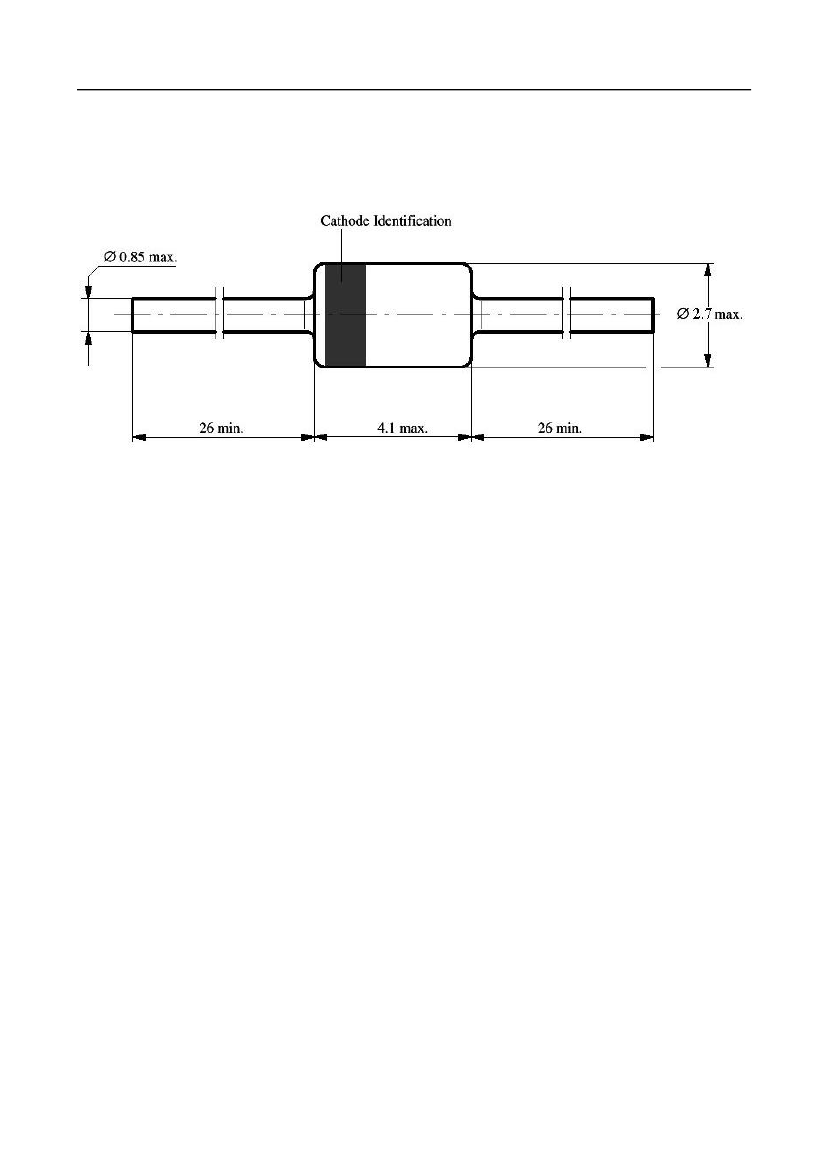

1N4728A~1N4761A

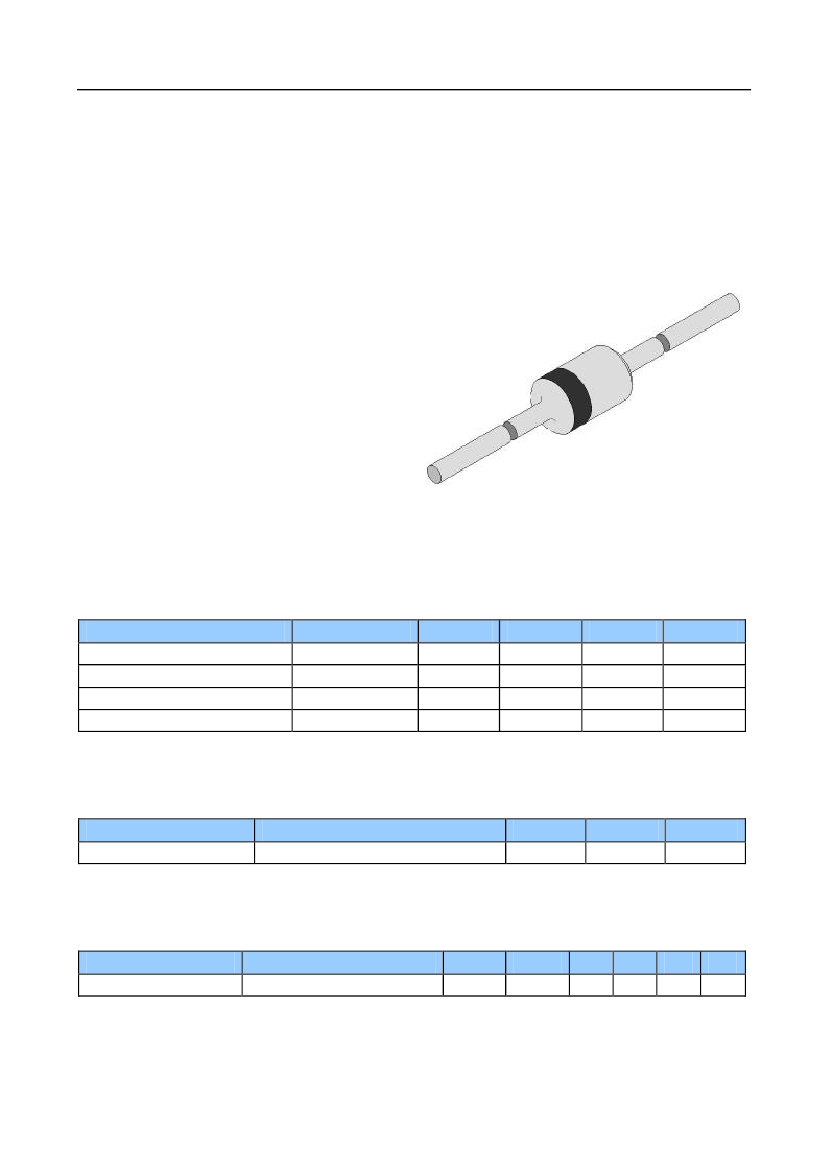

Zener diode
Features
1.
2.
3.
4.
High reliability
Very sharp reverse characteristic
Low reverse current level
V
Z
-tolerance± 5%
Applications
Voltage stabilization
Absolute Maximum Ratings
T
j
=25?
Parameter
Power dissipation
Z-current
Junction temperature
Storage temperature range
Test Conditions
T
amb
=
50?
Type
Symbol
P
V
I
Z
T
j
T
stg
Value
1
P
V
/V
Z
200
-65~+175
Unit
W
mA
?
?
Maximum Thermal Resistance
T
j
=25?
Parameter
Junction ambient
Test Conditions
I=9.5mm(3/8”) T
L
=constant
Symbol
R
thJA
Value
100
Unit
K/W
Electrical Characteristics
T
j
=25?
Parameter
Forward voltage
Test Conditions
I
F
=200mA
Type
Symbol
V
F
Min
Typ
Max
1.2
Unit
V
F
ORMOSA
MS
1
F
ORMOSA
MS
1N4728A~1N4761A
Type
1N4728A
1N4729A
1N4730A
1N4731A
1N4732A
1N4733A
1N4734A
1N4735A
1N4736A
1N4737A
1N4738A
1N4739A
1N4740A
1N4741A
1N4742A
1N4743A
1N4744A
1N4745A
1N4746A
1N4747A
1N4748A
1N4749A
1N4750A
1N4751A
1N4752A
1N4753A
1N4754A
1N4755A
1N4756A
1N4757A
1N4758A
1N4759A
1N4760A
1N4761A
V
Znom
V
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
12
13
15
16
18
20
22
24
27
30
33
36
39
43
47
51
56
62
68
75
1)
I
ZT
mA
76
69
64
58
53
49
45
41
37
34
31
28
25
23
21
19
17
15.5
14
12.5
11.5
10.5
9.5
8.5
7.5
7.0
6.5
6.0
5.5
5.0
4.5
4.0
3.7
3.3
for
r
zjT
O
<10
<10
<9
<9
<8
<7
<5
<2
<3.5
<4.0
<4.5
<5.0
<7
<8
<9
<10
<14
<16
<20
<22
<23
<25
<35
<40
<45
<50
<60
<70
<80
<95
<110
<125
<150
<175
r
zjK
at
O
<400
<400
<400
<400
<500
<550
<600
<700
<700
<700
<700
<700
<700
<700
<700
<700
<700
<700
<750
<750
<750
<750
<750
<1000
<1000
<1000
<1000
<1500
<1500
<1500
<2000
<2000
<2000
<2000
I
K
Z
mA
1
1
1
1
1
1
1
1
1
0. 5
0. 5
0. 5
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
I
R
µ
A
<100
<100
<50
<10
<10
<10
<10
<10
<10
<10
<10
<10
<10
<5
<5
<5
<5
<5
<5
<5
<5
<5
<5
<5
<5
<5
<5
<5
<5
<5
<5
<5
<5
<5
at
V
R
V
1
1
1
1
1
1
2
3
4
5
6
7
7.6
8.4
9.1
9.9
11.4
12.2
13.7
15.2
16.7
18.2
20.6
22.8
25.1
27.4
29.7
32.7
35.8
38.8
42.6
47.1
51.7
56
1) Based on DC-measurement at thermal equilibrium while maintaining the lead temperature(T
L
)at 30? ,
9.5mm(3/8”) from the diode body.
F
ORMOSA
MS
2
