Part Number

Search

0526102471

Description
CONN FFC VERT 24POS 1.00MM SMD
CategoryThe connector
File Size357KB,5 Pages
ManufacturerMolex Premise Network
Environmental Compliance
Download Datasheet Parametric View All

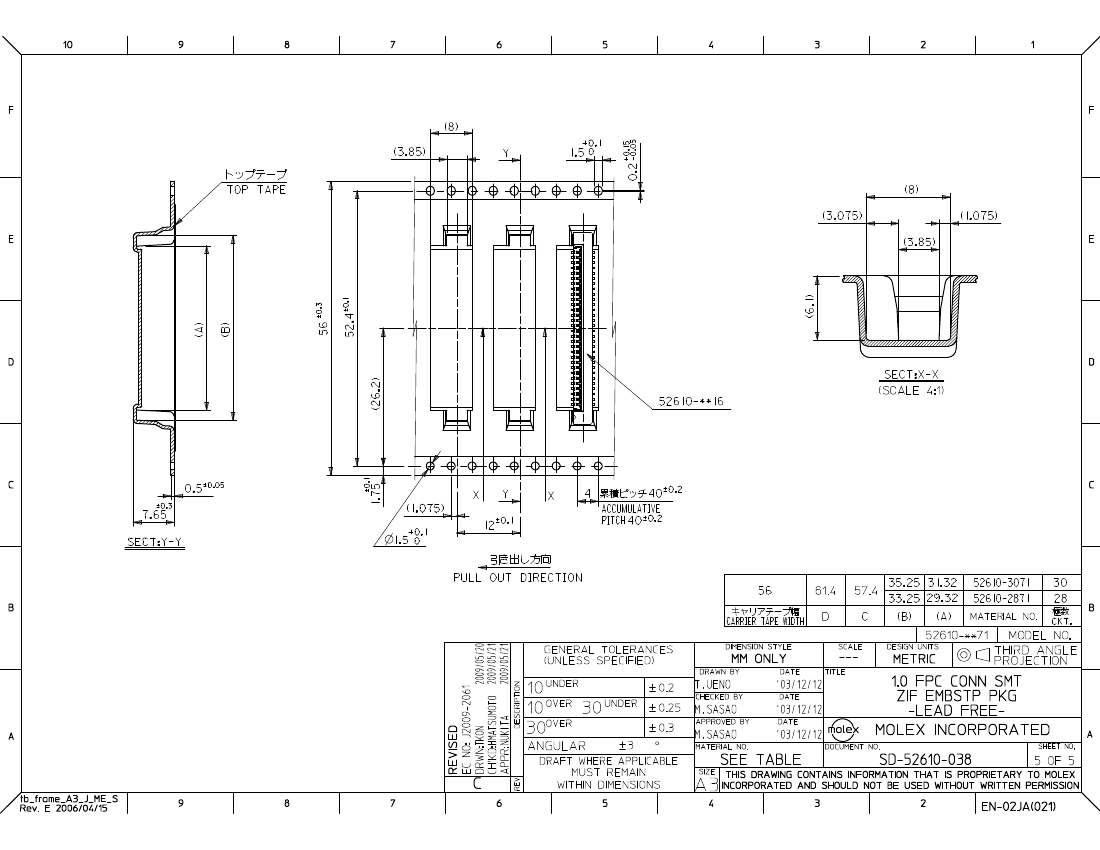

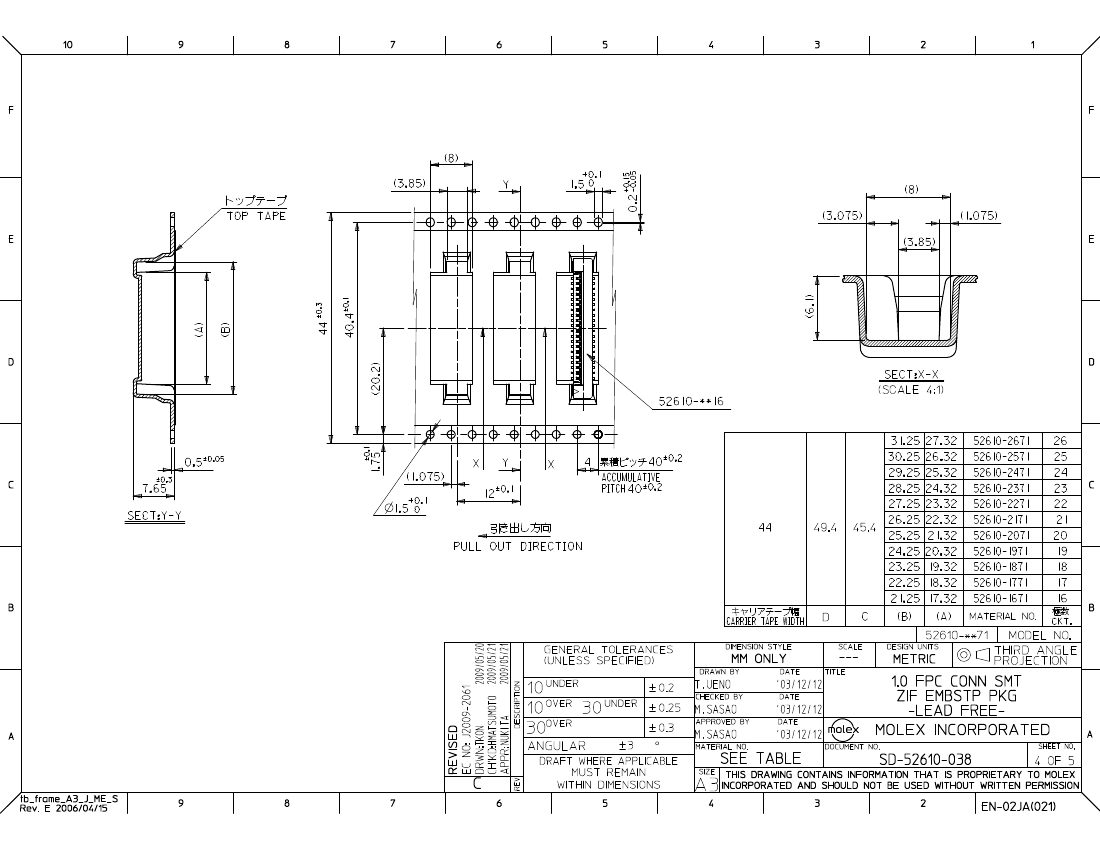

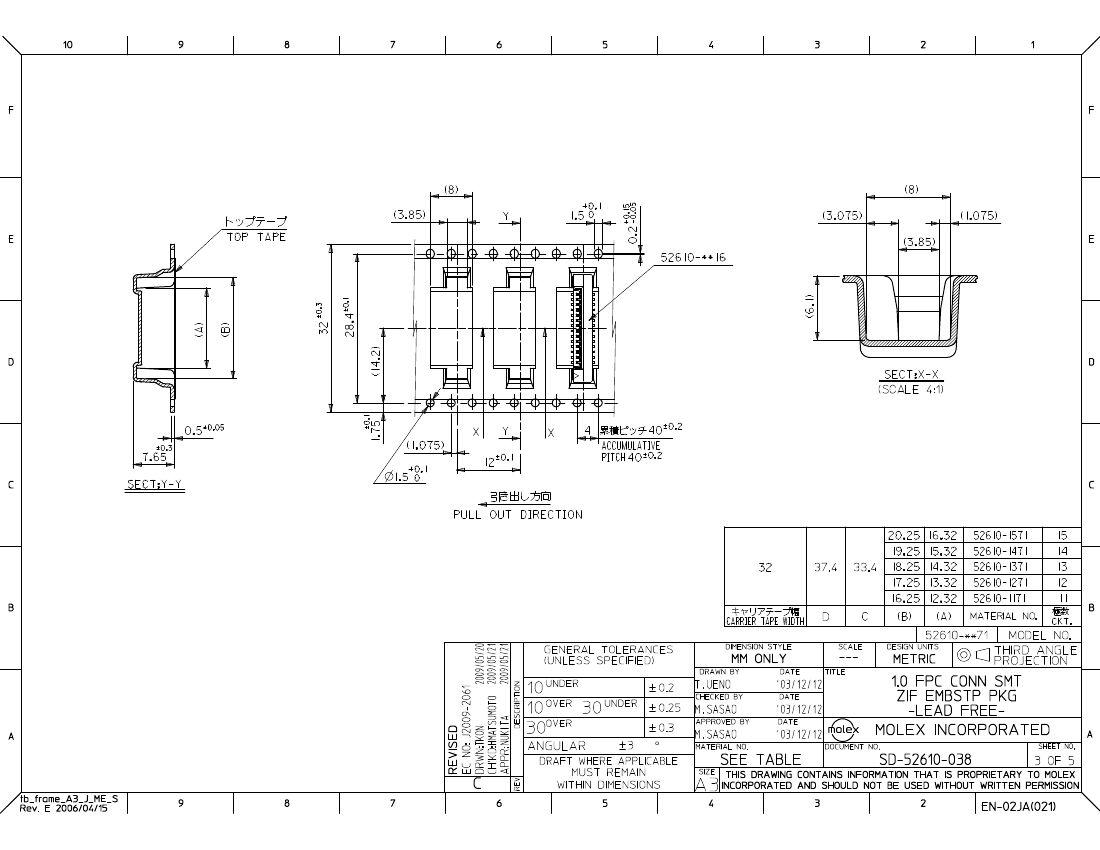

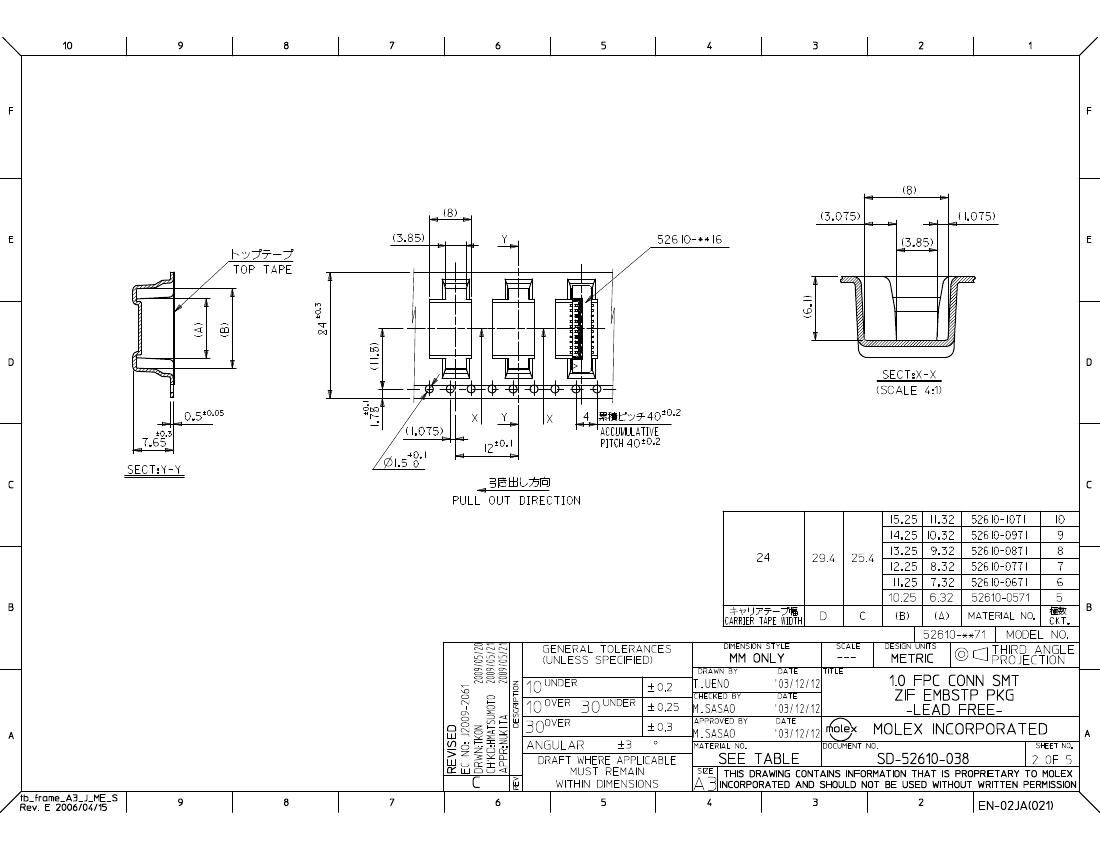

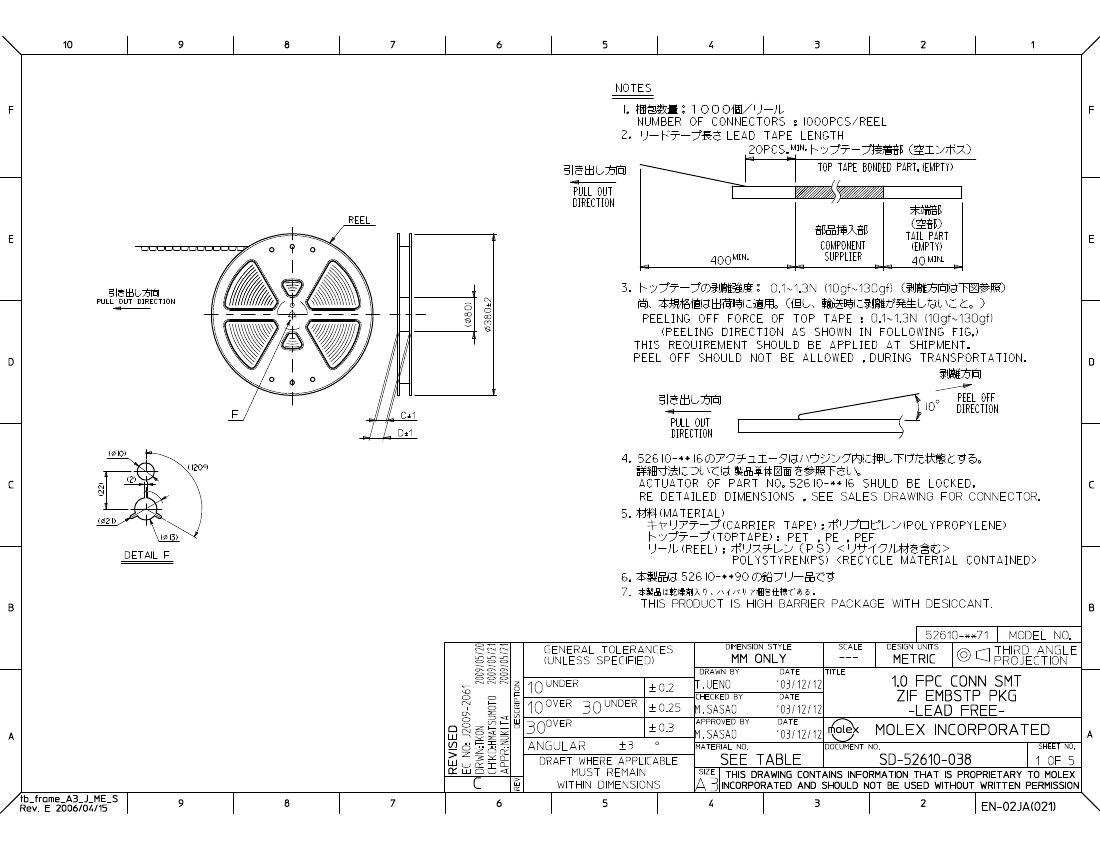

0526102471 Overview

CONN FFC VERT 24POS 1.00MM SMD

0526102471 Parametric

Parameter NameAttribute value
Flat flexible type-
Installation typesurface mount
Connector/contact typeContact, vertical, 1 side
Number of pins24
spacing0.039"(1.00mm)
Terminationwelding
FFC, FCB thickness0.30mm
board height0.226"(5.74mm)
Lock functionslide lock
Cable end typetapered
Contact materialPhosphor bronze
Contact platingtin bismuth
Shell materialPolyamide (PA46), Nylon 4/6
Actuator materialPolyphenylene sulfide (PPS)
characteristicZero insertion force (ZIF)
Rated voltage125V
Operating temperature-40°C ~ 85°C
Material flammability ratingUL94 V-0
Rated current1A
Contact plating thickness39.4µin(1.00µm)
Shell color-
Actuator color-
Number of patches30
