SAW Components
Data Sheet G 3963 M
SAW Components
IF Filter for Video Applications
Data Sheet
Standard
s
B/G
G 3963 M
38,90 MHz
Plastic package
SIP5K
Features
s
TV IF filter with Nyquist slope and sound
suppression
s
Constant group delay
s
Suitable for CENELEC EN 55020
Terminals
s
Tinned CuFe alloy
Dimensions in mm, approx. weight 1,0 g
Pin configuration
1
2
3
4
5
Input
Input - ground
Chip carrier - ground
Output
Output
Type
G 3963 M
Ordering code
B39389-G3963-M100
Marking and package
according to
C61157-A1-A15
Packing
according to
F61074-V8067-Z000
Maximum ratings
Operable temperature range
T
A
Storage temperature range
T
stg
V
DC
DC voltage
V
pp
AC voltage
–25/+65
–40/+85
5
10
˚C
˚C
V
V
between any terminals
between any terminals
2
Mar 31, 2006
SAW Components
IF Filter for Video Applications
Data Sheet
Characteristics
Reference temperature:
Terminating source impedance:
Terminating load impedance:
G 3963 M
38,90 MHz
T
A
= 25 ˚C
Z
S
= 50
Ω
Z
L
= 2 kΩ || 3 pF
min.
typ.
14,5
max.
16,0
dB
Insertion attenuation
Reference level for the
following data
Relative attenuation
Picture carrier
Color carrier
Sound carrier
Adjacent picture carrier
α
37,40 MHz
13,0
α
rel
38,90
34,47
33,40
32,40
UHF
30,90
VHF
31,90
40,15
VHF
40,40
UHF
41,40
25,00 ... 31,90
40,40 ... 45,00
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
4,6
1,7
42,0
46,0
46,0
46,0
38,0
45,0
44,0
42,0
38,0
5,6
2,7
56,0
56,0
58,0
57,0
45,0
55,0
51,0
47,0
43,0
6,6
3,7
—
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
Adjacent sound carrier
Lower sidelobe
Upper sidelobe
Reflected wave signal suppression
1,1
µs
... 6,0
µs
after main pulse
(test pulse 250 ns,
carrier frequency 37,40 MHz)
Feedthrough signal suppression
1,2
µs
... 1,05
µs
before main pulse
(test pulse 250 ns,
carrier frequency 37,40 MHz)
Group delay ripple
(p-p)
Impedance
at 37,40 MHz
Input:
Z
IN
=
R
IN
||
C
IN
Output:
Z
OUT
=
R
OUT
||
C
OUT
Temperature coefficient of frequency
∆τ
44,0
54,0
—
dB
50,0
56,0
—
dB
—
—
—
50
1,7 ||14,1
1,3 || 5,5
–72
—
—
—
—
ns
kΩ || pF
kΩ || pF
ppm/K
TC
f
—
3
Mar 31, 2006
SAW Components
IF Filter for Video Applications
Data Sheet

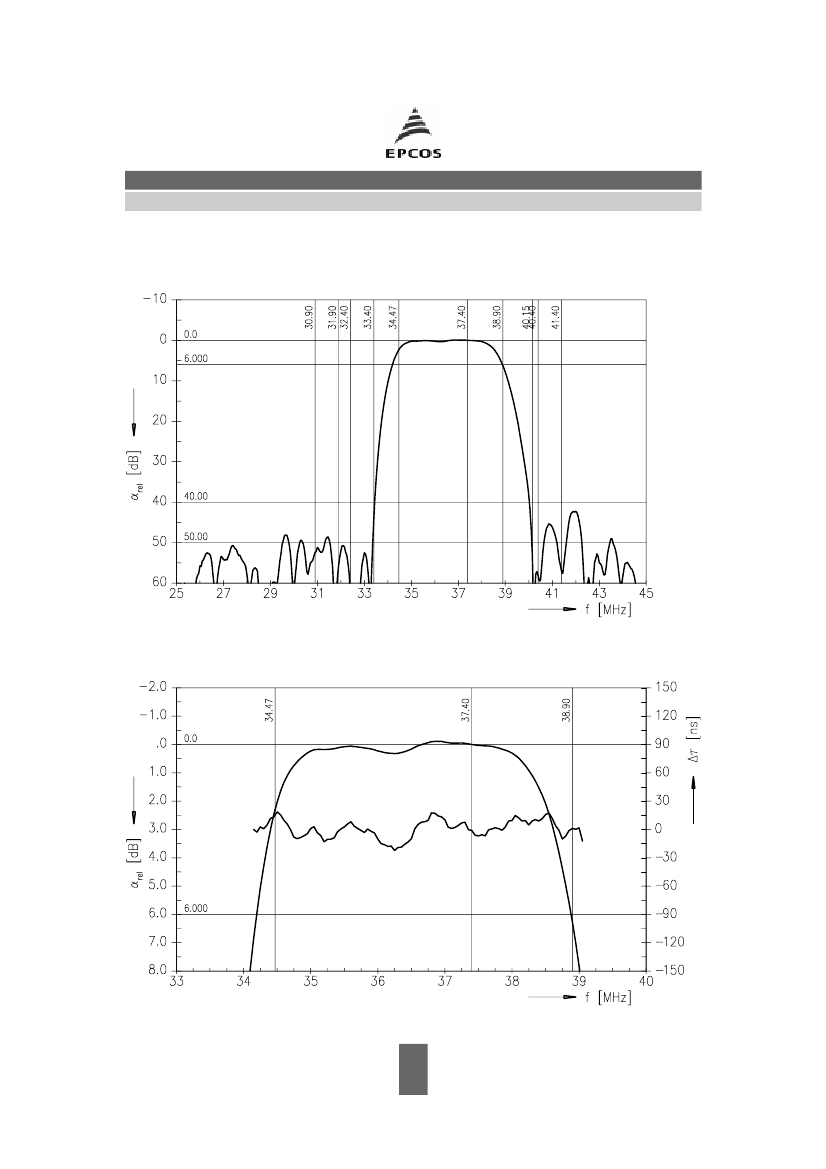

Frequency response
G 3963 M
38,90 MHz
4
Mar 31, 2006
SAW Components
IF Filter for Video Applications
Data Sheet
Frequency response
G 3963 M
38,90 MHz

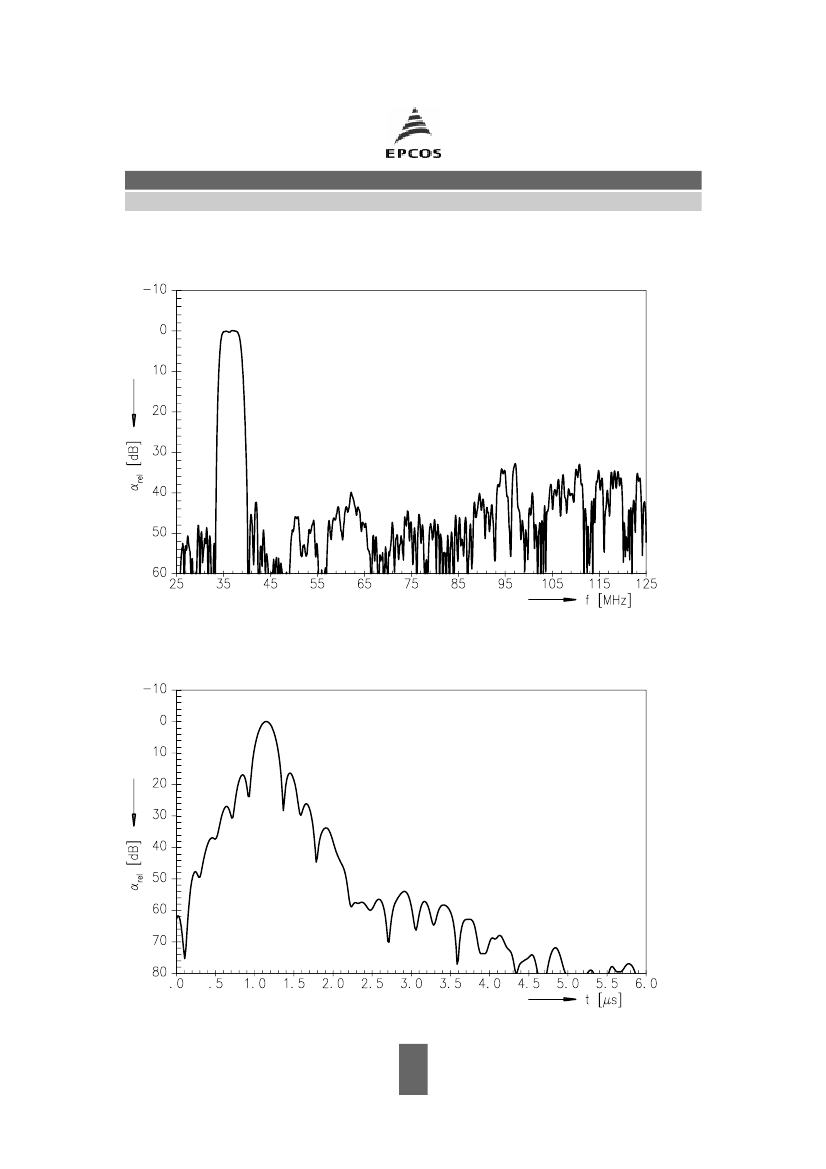

Time domain response
5
Mar 31, 2006
