Pomona
®
DIP CLIPS
8 through 40 pins and
8 through 40 pin DIP Removers
ITT Pomona DIP Clip® test clips are designed for
testing dual-in-line IC packages on PC boards. These
devices incorporate many built-in features that assure a
positive electrical connection as well as hands free
testing.
n
Contacts (.040" wide on lower end) are serrated for
the best electrical contact.
n
.025" X .028" serrated test points on upper end will
accept wire wraps or mini test clips.
n
Molded barriers between contacts allows live board
connections without accidental shorting of contacts.
n
Can also be used as an insertion tool for DIPs.
n
Contacts are spring tempered Nickel Silver or Gold Plated Beryllium Copper alloy. Oxide penetrating clips have a roughened stainless
steel surface treatment.
n
Open back option allows probing on the chip leads while clip is attached.
Pomona's DIP Clip® test clips are perfect for emulation, field service, failure analysis, and for use with logic analyzers.
Size Pins Clip Width
8
14
.43
.72

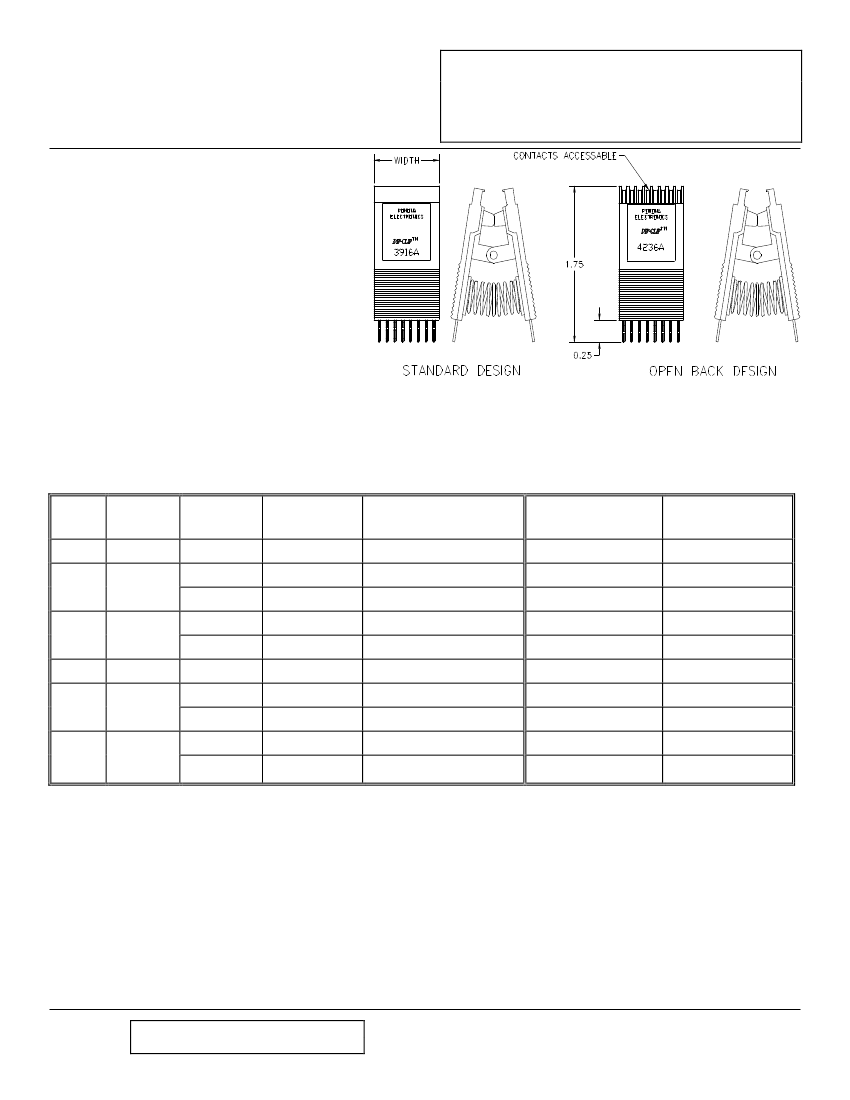

Standard Open Back DIP
DIP Clip®
Clip®
5108
5014
5214
16
.83
3916A
5116
20
24
1.03
1.22
5120
4124A
5124
40
2.02
4140A
5140
5208
5114
5314
4236A
5216
5220
4324A
5224
4340A
5240
Contact Material and
Plating
Be-Cu, Gold Plate
Nickel Silver
Be-Cu, Gold Plate
Nickel Silver
Be-Cu, Gold Plate
Be-Cu, Gold Plate
Nickel Silver
Be-Cu, Gold Plate
Nickel Silver
Be-Cu, Gold Plate
Oxide Penetrating
DIP Clip®
5649
5650
5650
5692
5692
5693
5694
5694
5695
5695
Static Control DIP
Remover
5016
5016
5016
5016
5016
5016
5024
5024
5040
5040
Made in USA
dips.doc
REV
A
Sales: 909-469-2900 Fax: 909-629-3317
Technical Assistance: 800-241-2060
PomonaACCESS
90220
(800) 444-6785 or (714) 253-3858
More drawings available at www.ittpomona.com
