5934-4 Overview

BANANA PLUG D-I-Y 4MM 10PC YEL

5934-4 Parametric

Parameter Name	Attribute value
type	banana plug
gender	male head
Plug/Mating Plug Diameter	Standard banana style
Installation type	free hanging
Termination	non-welding
insulation	Non-mate end insulation
characteristic	-
color	yellow
Wire gauge	18-22 AWG
Contact plating	nickel
Contact material	copper beryllium
Matrix material	Polyamide (PA), nylon
Operating temperature	-

Preview

Download Datasheet

View All

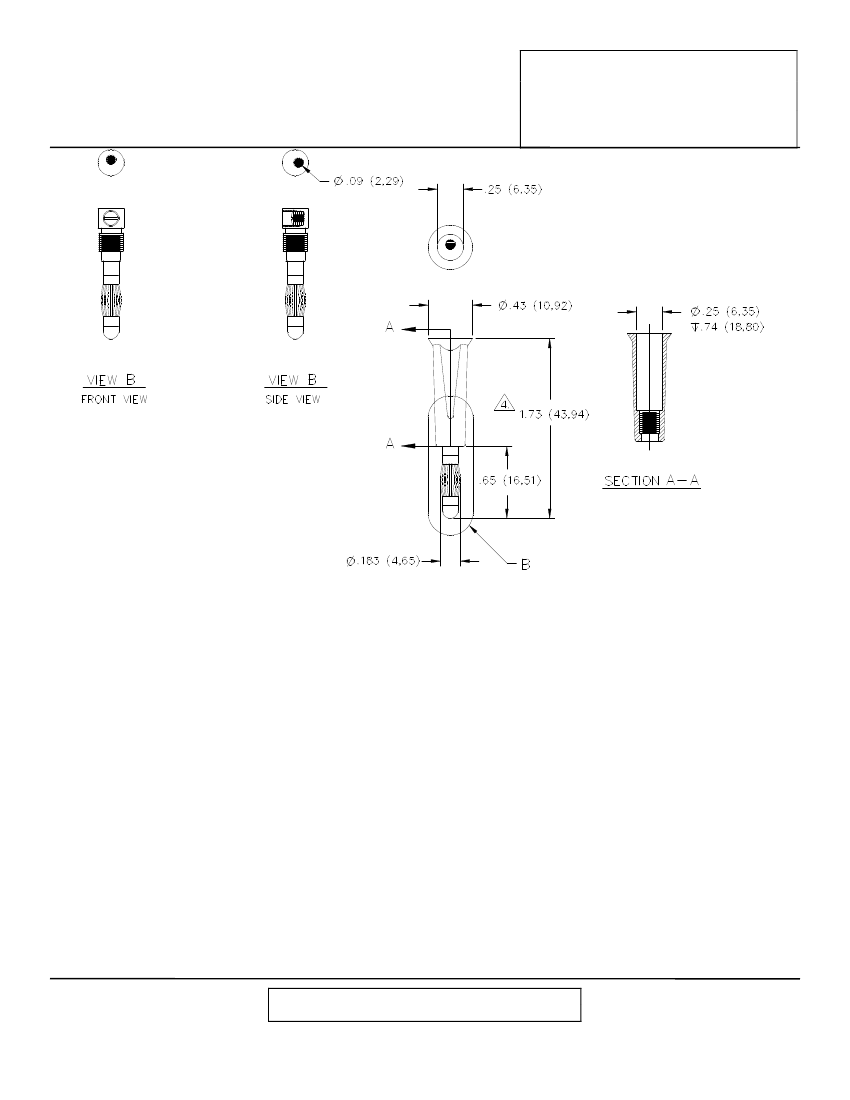

Pomona

®

Model 5934

Do-It-Yourself In-Line

4MM Banana Plug

FEATURES:

•

Easy to assemble threaded two piece construction enables solderless wire attachment by means of an

internal set screw

•

Compatible with 18 to 22 AWG wire

•

Banana plug spring is Beryllium Copper for long insertion life

•

Banana plug body and spring are nickel plated for tarnish resistance

MATERIALS:

Plug Body: Brass, Nickel Plated

Plug Spring: Beryllium Copper, Nickel Plated

Insulation: Nylon

Set Screw: Brass

RATINGS:

Operating Voltage: 750V AC/DC (Independent of Wire)

Current: 25 Amperes Max

ORDERING INFORMATION:

Model 5934-*

* = Color Code, Standard Colors: -0 Black, -2 Red

Sold in packages of 10 per color.

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm), .xxx = ± .005” (,127 mm).

All specifications are to the latest revisions. Specifications are subject to change without notice.

Registered trademarks are the property of their respective companies. Made in USA

10/1/07

D1094503

Rev. 101

Sales: 800-490-2361 Fax: 425-446-5844

Technical Support: technicalsupport@pomonatest.com

www.pomonaelectronics.com

Page 1 of 1
