LD-14304
LD-14304A
Apr. 10.2002
Apr. 22.2003
-
1
3
5
5
1.Application
Added the sentence, “ (This specification is only )”
4-1. TFT-LCD panel driving
Deleted Used connector:DF9MA-41P-1V(Hirose Electric Co., Ltd.)
6-1. TFT-LCD panel driving
Current dissipation
Vcc=3.3V Icc typ 310
→
240 mA
max 450
→
370 mA
Vcc=5.0V Icc typ 330
→
180 mA
max 470
→
330 mA
Input voltage (Low)：
Max 0.9→0.3Vcc V
Input voltage (High)： 2.1→0.7Vcc V
Min
A
Input current (low) I
OL2
Max 60→10
A
I
OL3
Added Max 800
A
Input current (High) I
OL2
Max 60→300
A
I
OL3
Added Max 800
Note1 Changed “Vcc-turm-on conditions”
0 T3 1s
→
0 T3 100ms
1s T4
→
0 T4 1s
→
T5 200ms
Vcc-dip conditions
2.7V Vcc 3.0V
→
2.5V Vcc
Vcc 2.7V
Vcc 2.5V
→
Remark changed
Note4
Note5
Note6
Note7
Note8
Note9
Remark changed
Note2
At the condition of I
L
=6.0mArms
7-1. Timing characteristics
Hsync-Vsync phase difference (TVh)
Corrected unit：
→
clock
ns
11 Handling Precautions
Changed “Handling precautions”
Changed
h) Protection film is attached
Changed
j)
Changed
m) When handling LCD modules
Added
o) Be sure not to apply
1)Lot No.Label
Changed the figure of module label
According with the change of driver IC,the letter “A” at
the end of the lot number was added.
Added the figure of packing box label
Deleted
5)Do not use
1
st
Issue
2
nd
Issue
LD-14304B
2004.1.9
6
12
Added
Note) Insulate the high
3
rd
Issue
12.Packing form
Product Country
Added
TAIWAN
13
14
Others
1)Label:
Added the figure of module label (Taiwan product)
Added the figure of packing box label(Taiwan product)
LD-14304C
6-2. Backlight driving
Added
Change
(It is usually required to measure
Lamp frequency (Min)
40kHz
35kHz
4
th
Issue
9. Optical Characteristics
Response Time Rise: 20ms→10ms, Decay: 40ms→25ms
14. Reliability test items
Add: ESD test
Add: EMI
-
6
Add: RoHS Compliance
It is applied from the delivery in April, 2005.
6-2. Backlight driving
Add:
It is usually required to measure under the
Note5 Above value is applicable when lamp
Note5 (Lamp lifetime may vary if lamp is
Note6
Be sure to use a back light power supply
Note6
Be sure to use the detect circuit
Note6
Recommended inverter is
10
9. Optical Characteristics
Change: Fig3. Photodetector BM-5A
→
BM-5A & SR-3
Field = 2
→
1
14 Packing box Label:
Add: RoHS Compliance
It is applied from the delivery in April, 2005.
14
1.
Application

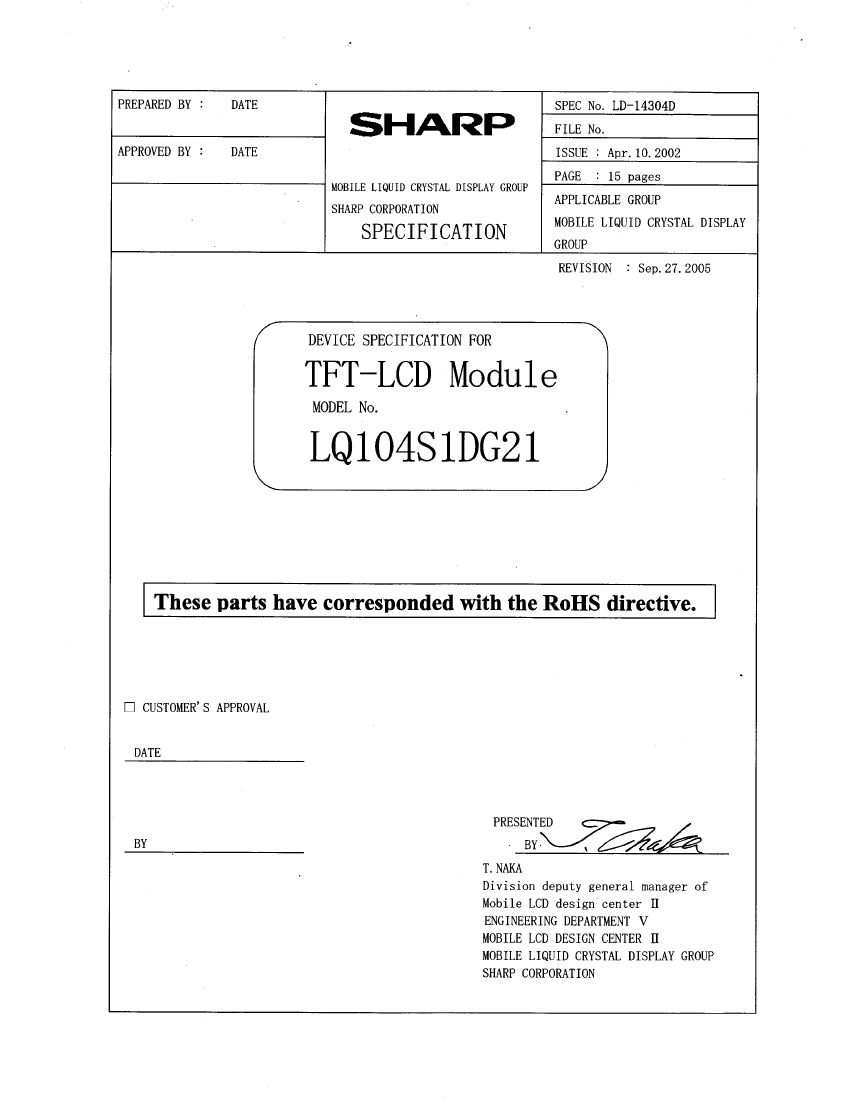

This specifications applies to color TFT-LCD module, LQ104S1DG21.
(This specification is only applied for the module which has letter "A" at the end of the lot number of the
module.)
These specifications sheets are the proprietary product of SHARP CORPORATION(”SHARP) and include
materials protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them
in any form or by any means, electronic or mechanical, for any purpose, in whole or in part, without the
express written permission of SHARP .
The device listed in these specifications sheets was designed and manufactured for use in general electronic
equipment.
In case of using the device for applications such as control and safety equipment for transportation(aircraft,
trains, automobiles, etc. ), rescue and security equipment and various safety related equipment which require
higher reliability and safety, take into consideration that appropriate measures such as fail-safe functions and
redundant system design should be taken .
Do not use the device for equipment that requires an extreme level of reliability, such as aerospace
applications, telecommunication equipment(trunk lines), nuclear power control equipment and medical or
other equipment for life support .
SHARP assumes no responsibility for any damage resulting from the use of the device which does not
comply with the instructions and the precautions specified in these specifications sheets .
Contact and consult with a SHARP sales representative for any questions about this device .
2.
Overview
This module is a color active matrix LCD module incorporating amorphous silicon TFT
(Thin Film Transistor).
displayed on a 800
3
It is composed of a color TFT-LCD panel, driver ICs, control
600 dots panel with 262,144 colors by supplying 18 bit data signal
circuit and power supply circuit and a backlight unit. Graphics and texts can be
(6bit/color), four timing signals, +3.3V or +5V DC supply voltage for TFT-LCD panel driving and
supply voltage for backlight.
The TFT-LCD panel used for this module is a low-reflection and higher-color-saturation
type. Therefore, this module is also suitable for the multimedia use.
Optimum viewing direction is 6 o'clock.
Backlight-driving DC/AC inverter is not built in this module.
