LQ084V1DG21
Features
s
21 cm [8.4"] VGA format
s
Low power consumption (5.42 W)
s
Built-in long life CCFT backlight (50 000 h)
Color TFT-LCD Module
(Measuring instruments/Banking terminals)
Specifications
Parameter
Display size
Dot format (H x V)
Dot pitch (H x V)
Active area (H x V)
Color
Input signal
Viewing direction
Backlight type
21 [8.4]
640 x RGB x 480
0.089 x 0.270
170.9 x 129.6
262 144
6-bit digital RGB
12:00
CCFT
Unit
cm [ "]
dot
mm
mm
color
-
-
-
Parameter
Brightness
300
Contrast ratio
250 : 1
Power consumption
5.42
1
Outline dimensions (W x H x D)* 216.0 (221.0)*
2
x 152.4 x 12.0
Weight
410
Operating temperature
0 to +55
Storage temperature
-25 to +70
Unit
cd/m
2
-
W
mm
g
°C
°C
*1...Without backlight and connector
*2...(
) value ... Including mounting tabs.

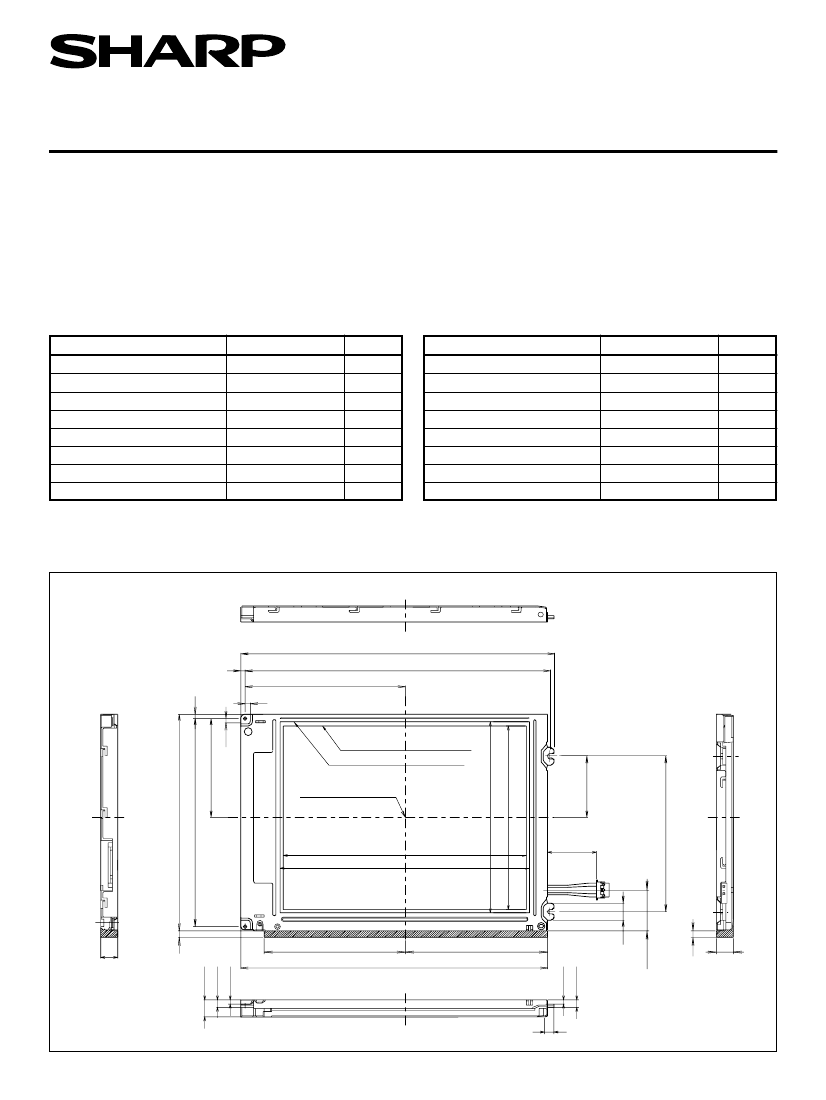

Outline Dimensions
unit : mm
3
112.7
4
3.5
3
221
215
69.9
134.6
129.6
Active Area(170.9 x 129.6)
Bezel Opening(175.9 x 134.6)
Active Area Center
43.2
152.4
146.4
170.9
175.9
(50)
CNB
1.HOT
3.GND
12
28.5
5
12
4.85
2.5
216
2.5
4.85
7
In the absence of confirmation by device specification sheets, SHARP takes no responsibility
for any defects that may occur in using any SHARP devices shown in catalogs, data books, etc.
Contact SHARP in order to obtain the latest device specification sheets before using any
SHARP device. Specifications are subject to change without notice for improvement.
5
100
12
109.3
12 3
100.3
12
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Suggested applications (if any) are for standard use; See Important Restrictions for limitations on special applications. See Limited Warranty
for SHARP’s product warranty. The Limited Warranty is in lieu, and exclusive of, all other warranties, express or implied. ALL EXPRESS
AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE AND FITNESS FOR A
PARTICULAR PURPOSE, ARE SPECIFICALLY EXCLUDED. In no event will SHARP be liable, or in any way responsible, for any incidental
or consequential economic or property damage.
