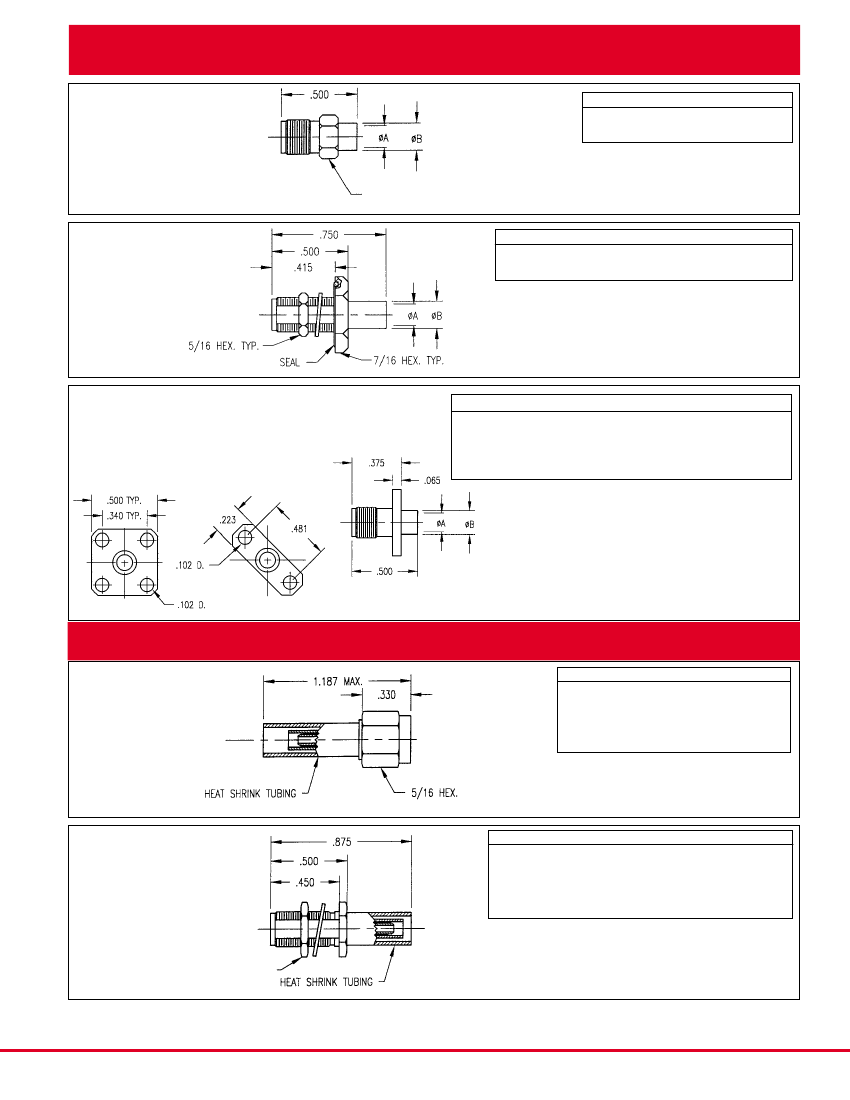

SMA STAINLESS STEEL:
Straight Jack
Solder, Semi-rigid Cable
Part Number
Cable
251-500-0850G .085 SR
251-500-1410G .141 SR
A
B
.089 .120
.144 .180
• See page 86 for cable assembly procedures: No. 5-02
• Part number shown is for gold plated.
1/4 HEX
Straight
Bulkhead Jack
Part Number
Cable
A B
251-575-0850G .085 SR .089 .120
251-575-1410G .141 SR .144 .180
Mounting Hole
No. 075
No. 075
• See page 83 for mounting hole layout.
• See page 86 for cable assembly procedures: No. 5-02
• Part number shown is for gold plated.
Straight Jack
Flange Mount
Figure 1
Figure 2
Part Number
251-565-0850G
251-565-1410G
251-566-0850G
251-566-1410G
Cable
.085 SR
.141 SR
.085 SR
.141 SR
A
.089
.144
.089
.144
B Mounting Hole Figure
.120
No. 065
1
.180
No. 065
1
.120
No. 066
2
.180
No. 066
2
• See page 83 for mounting hole layout.
• See page 86 for cable assembly procedures: No. 5-02
• Part number shown is for gold plated.
• For passivated version change suffix to “P”.
SMA STAINLESS STEEL:
Straight Plug
Non-Captive
Contact
Solder Flexible Cable
Part Number
250-500-0630G
250-500-0631G
250-500-1160G
250-500-1161G
Cable
RG-316
RG-316 double shielded
RG-303, 141
RG-142, 400
• See page 88 for cable assembly procedures: No. 5-04
• Part number shown is for gold plated.
• For passivated version change suffix to “P”.
Straight
Bulkhead
Jack
Non-
Captive
Contact
5/16 HEX TYP
Part Number
251-575-0630G
251-575-0631G
251-575-1160G
251-575-1161G
Cable
Mounting Hole
RG-316
No. 075
RG-316 double shielded
No. 075
RG-303, 141
No. 075
RG-142, 400
No. 075
• See page 83 for mounting hole layout.
• See page 88 for cable assembly procedures: No. 5-04
• Part number shown is for gold plated.
• For passivated version change suffix to “P”.
Note: Dimensions shown in inches.
Winchester/Retconn
400 Park Road • Watertown, Connecticut 06795-5000 • Phone: (860) 945-5000 • FAX: (860) 945-3950 • Internet: http://www.litton-wed.com
RF/5
