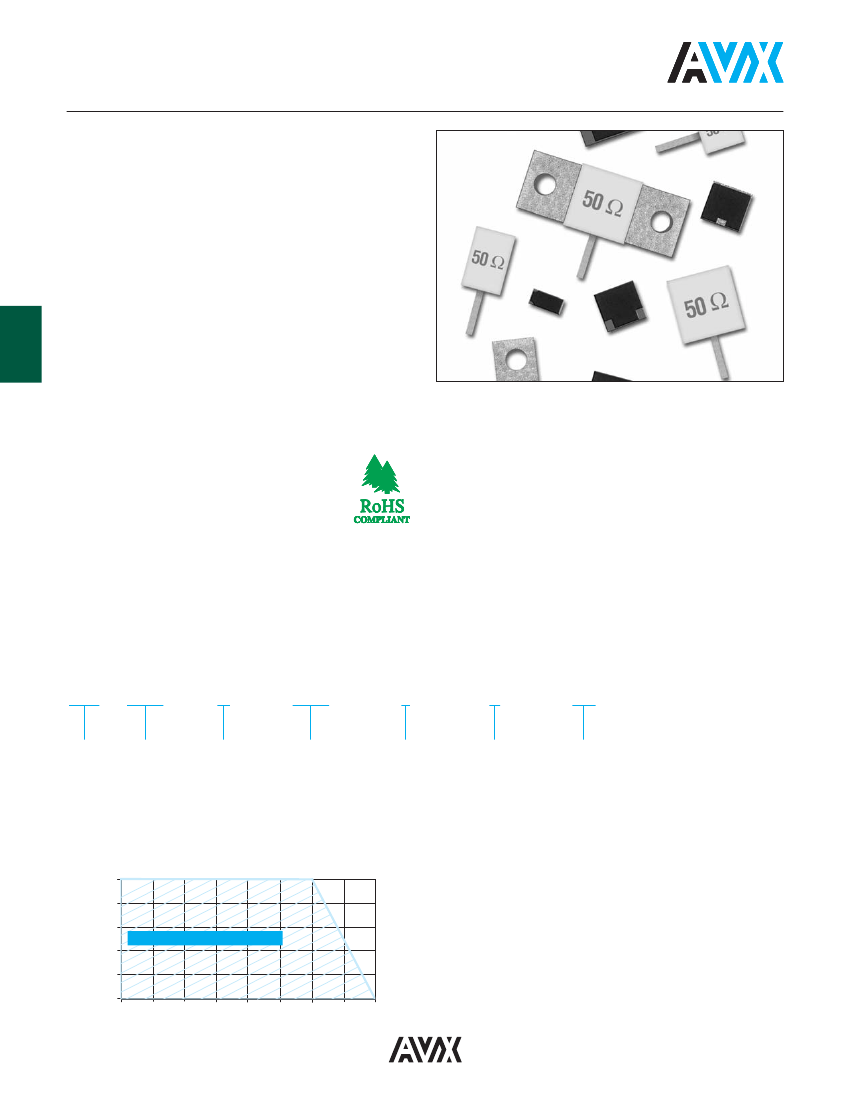

High Power Resistive Products
Terminations
AVX introduces its complete line of High Power Termination
Products. All Products are designed and manufactured at
our ISO 9001 Facilities.
ELECTRICAL SPECIFICATIONS
Resistance:
50 Ω standard (10 Ω - 200 Ω available)
Resistance Tolerance:
±5% standard (±2% available)
Power:
2 Watts through 225 Watts
Operating Temperature Range:
-55ºC to +150ºC
Temperature Coefficient:
< 150 ppm/ºC
Low VSWR
MECHANICAL SPECIFICATIONS
Package:
Surface Mount Chips, Chips, Leaded Chips,
Flange Mount
Substrate Material:
Aluminum Nitride
Process:
Thin Film
Resistive Material:
Tantalum
Terminals:
Silver
Cover:
Alumina
Mounting Flange:
100% Cu, Ni or Ag Plated
Mechanical Tolerance:
±0.13 (0.005)
RoHS Compliant
SMT and Chip products, supplied on Tape and Reel
FLANGE MOUNT TERMINATIONS
HOW TO ORDER
RPA
0300
T
0050
AVX
Series
Case Size
Type
T = Termination
Value
0050 = 50Ω
J
N
BK
Tolerance
J = ±5%
(G = ±2% available
Consult Factory)
Terminal
N = Silver
Packaging
BK = Plastic Carrier
Contact factory for custom ratings and sizes.
POWER DERATING
100%
Power Dissipation
80
60
Rated Safe Operating Range
40
20
0
-50˚C
-25˚C
0˚C
+25˚C
+50˚C
75˚C
100˚C
125˚C
150˚C
Heat Sink Temperature (°C)
14
High Power Resistive Products
Terminations

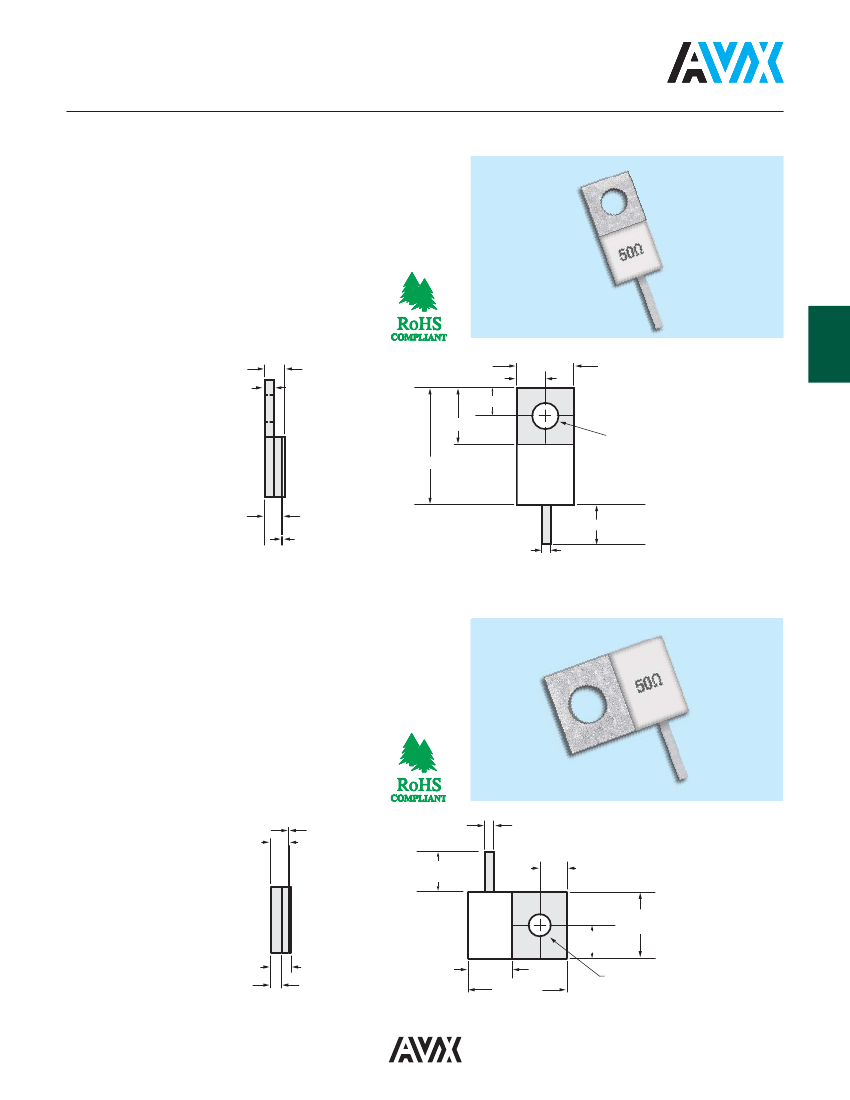

FLANGE MOUNT TERMINATION – P/N: RPA0302T0050JNBK
ELECTRICAL SPECIFICATIONS
Nominal Impedance:
50 Ω ±5% standard
(contact factory for custom values)
Power:
20 Watts
Frequency:
DC to 18 GHz
VSWR:
1.15:1 @ 15 GHz, 1.25:1 @ 18 GHz
Operating Temperature Range:
-55ºC to +150ºC
Temperature Coefficient:
<150 ppm/ºC
Tabs:
Silver
RoHS Compliant
3.30 MAX.
(0.130)
3.18 THRU
(0.125)
2.54 (0.100)
2.54 (0.100)
2.54 (0.100)
1.57 (0.062)
5.08 MIN.
(0.200)
7.62 (0.300)
6.35 (0.250) TYP.
2.59 (0.102)
5.08 (0.200)
0.10 (0.004)
1.02 TYP.
(0.040)
mm (inches)
FLANGE MOUNT TERMINATION – P/N: RPA0500T0050JNBK
ELECTRICAL SPECIFICATIONS
Nominal Impedance:
50 Ω ±5% standard
(contact factory for custom values)
Power:
25 Watts
Frequency:
DC to 6.0 GHz
VSWR:
1.15:1 @ 4 GHz, 1.25:1 @ 6 GHz
Operating Temperature Range:
-55ºC to +150ºC
Temperature Coefficient:
<150 ppm/ºC
Tabs:
Silver
RoHS Compliant
3.81 MAX.
(0.150)
1.57 (0.062)
12.7 (0.500)
5.08 MIN.
(0.200)
2.54 (0.100)
2.54 (0.100)
5.08 (0.200)
3.18 THRU
(0.125)
2.59 (0.102)
0.10 (0.004)
0.76 (0.030) TYP.
6.35 (0.250) TYP.
1.02 (0.040) TYP.
mm (inches)
For Part Number Code, see page 14.
15
High Power Resistive Products
Terminations

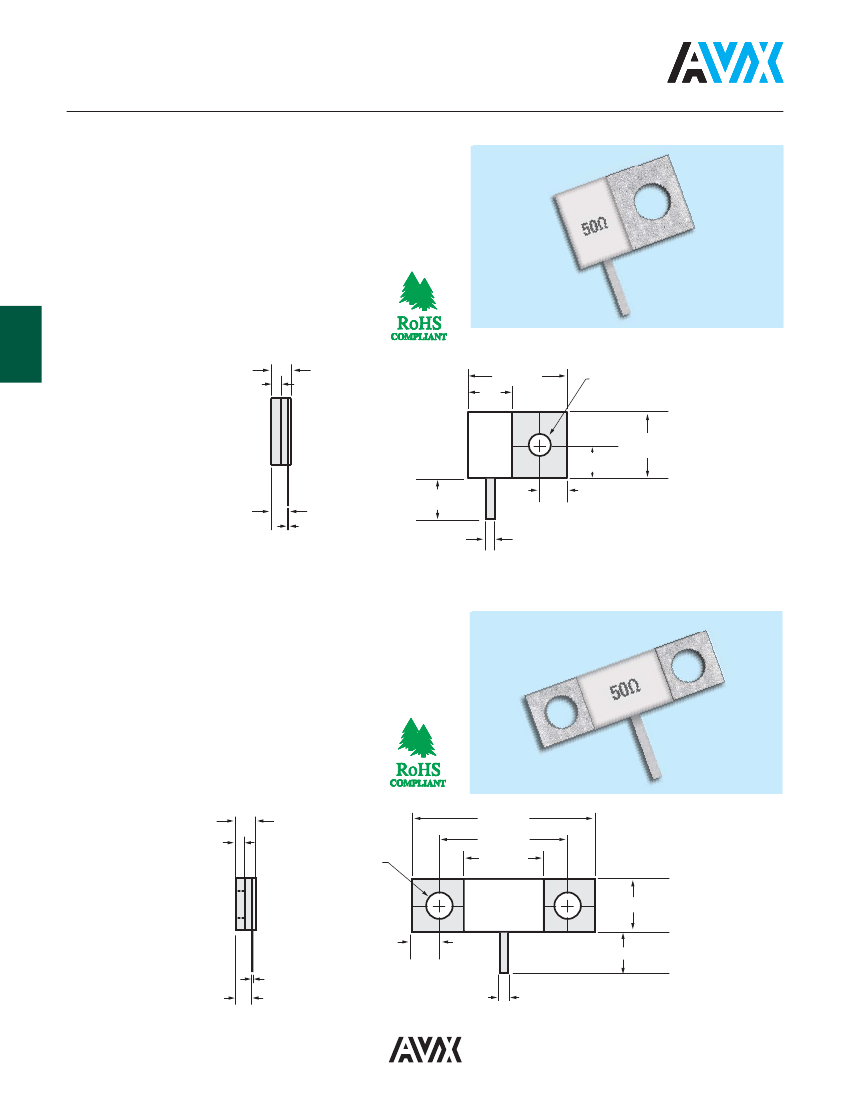

FLANGE MOUNT TERMINATION – P/N: RPA0515T0050JNBK
ELECTRICAL SPECIFICATIONS
Nominal Impedance:
50 Ω ±5% standard
(contact factory for custom values)
Power:
60 Watts
Frequency:
DC to 6.0 GHz
VSWR:
1.20:1 @ 4 GHz, 1.30:1 @ 6 GHz
Operating Temperature Range:
-55ºC to +150ºC
Temperature Coefficient:
<150 ppm/ºC
Tabs:
Silver
LRoHS Compliant
3.81 MAX.
(0.150)
3.18 (0.125)
3.18 (0.125)
6.35 (0.250)
13.1 (0.515)
6.73
(0.265)
1.57 (0.062)
3.18 THRU
(0.125)
2.59 (0.102)
0.10 (0.004)
1.02 TYP.
(0.040)
6.35 (0.250) TYP.
mm (inches)
FLANGE MOUNT TERMINATION – P/N: RPA0516T0050JNBK
ELECTRICAL SPECIFICATIONS
Nominal Impedance:
50 Ω ±5% standard
(contact factory for custom values)
Power:
60 Watts
Frequency:
DC to 6 GHz
VSWR:
1.20:1 @ 4 GHz, 1.30:1 @ 6 GHz
Operating Temperature Range:
-55ºC to +150ºC
Temperature Coefficient:
<150 ppm/ºC
Tabs:
Silver
RoHS Compliant
2.59 (0.102)
010 (0.004)
1.02 TYP.
(0.040)
6.35 TYP.
(0.250)
3.18 THRU
(0.125)
3.18 (0.125)
3.18
(0.125)
3.81 MAX.
(0.150)
6.73 (0.265)
13.1 (0.515)
6.35
(0.250)
1.57 (0.062)
mm (inches)
For Part Number Code, see page 14.
16
High Power Resistive Products
Terminations
FLANGE MOUNT TERMINATION – P/N: RPA0517T0050JNBK
ELECTRICAL SPECIFICATIONS
Nominal Impedance:
50 Ω ±5% standard
(contact factory for custom values)
Power:
60 Watts
Frequency:
DC to 6 GHz
VSWR:
1.20:1 @ 4 GHz, 1.30:1 @ 6 GHz
Operating Temperature Range:
-55ºC to +150ºC
Temperature Coefficient:
<150 ppm/ºC
Tabs:
Silver
RoHS Compliant
3.81 MAX.
(0.150)
6.35 (0.250)
3.18 (0.125)
3.18 (0.125)
6.73 (0.265)
3.18 THRU
(0.125)
13.1 (0.515)
1.57 (0.062)
2.59 (0.102)
0.10 (0.004)
6.35 (0.250) TYP.
1.02 TYP.
(0.040)
mm (inches)

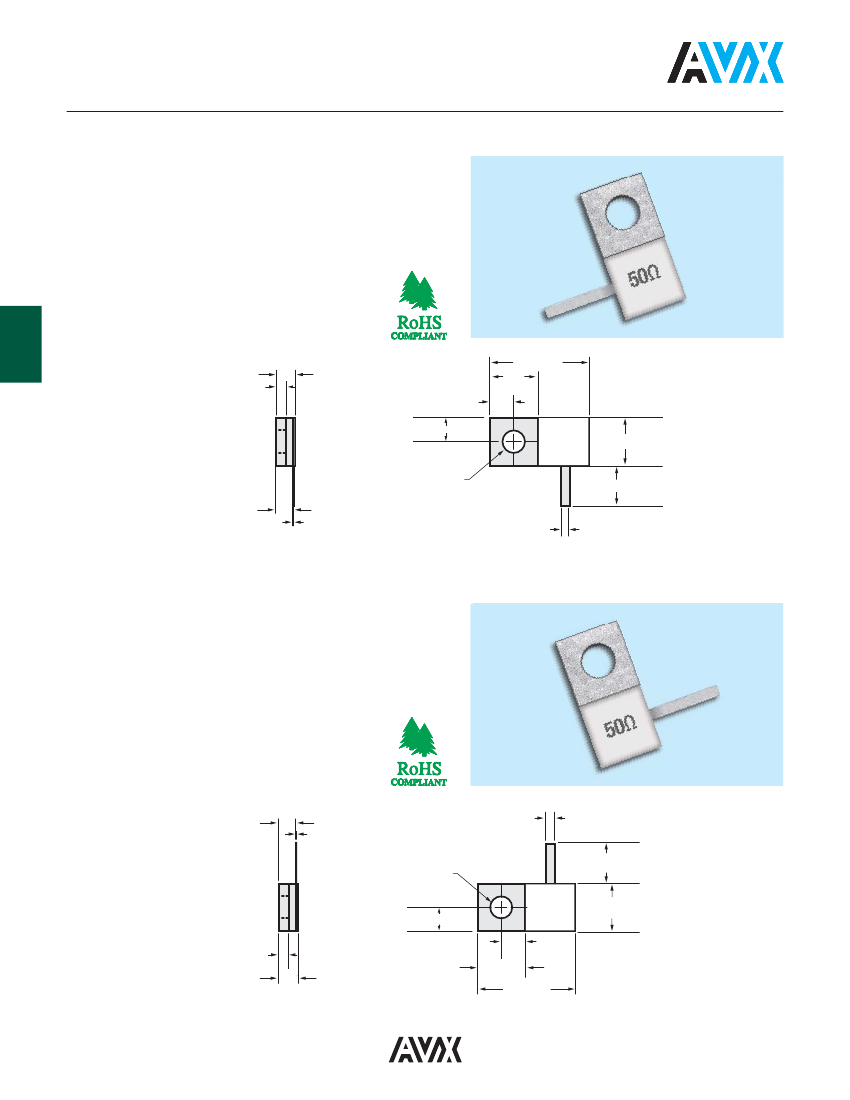

FLANGE MOUNT TERMINATION – P/N: RPA0560T0050JNBK
ELECTRICAL SPECIFICATIONS
Nominal Impedance:
50 Ω ±5% standard
(contact factory for custom values)
Power:
75 Watts
Frequency:
DC to 4 GHz
VSWR:
1.25:1
Typical Operating Temperature Range:
-55ºC to +150ºC
Temperature Coefficient:
<150 ppm/ºC
Tabs:
Silver
RoHS Compliant
0.10 (0.004)
2.59 (0.102)
1.02 TYP.
(0.040)
6.35 TYP.
(0.250)
3.93 TYP.
(0.155)
4.77 TYP.
(0.188)
3.81 MAX
(0.150)
6.35 (0.250)
14.2 (0.560)
9.53
(0.375)
1.57 (0.062)
3.96 THRU
(0.156)
mm (inches)
For Part Number Code, see page 14.
17
High Power Resistive Products
Terminations

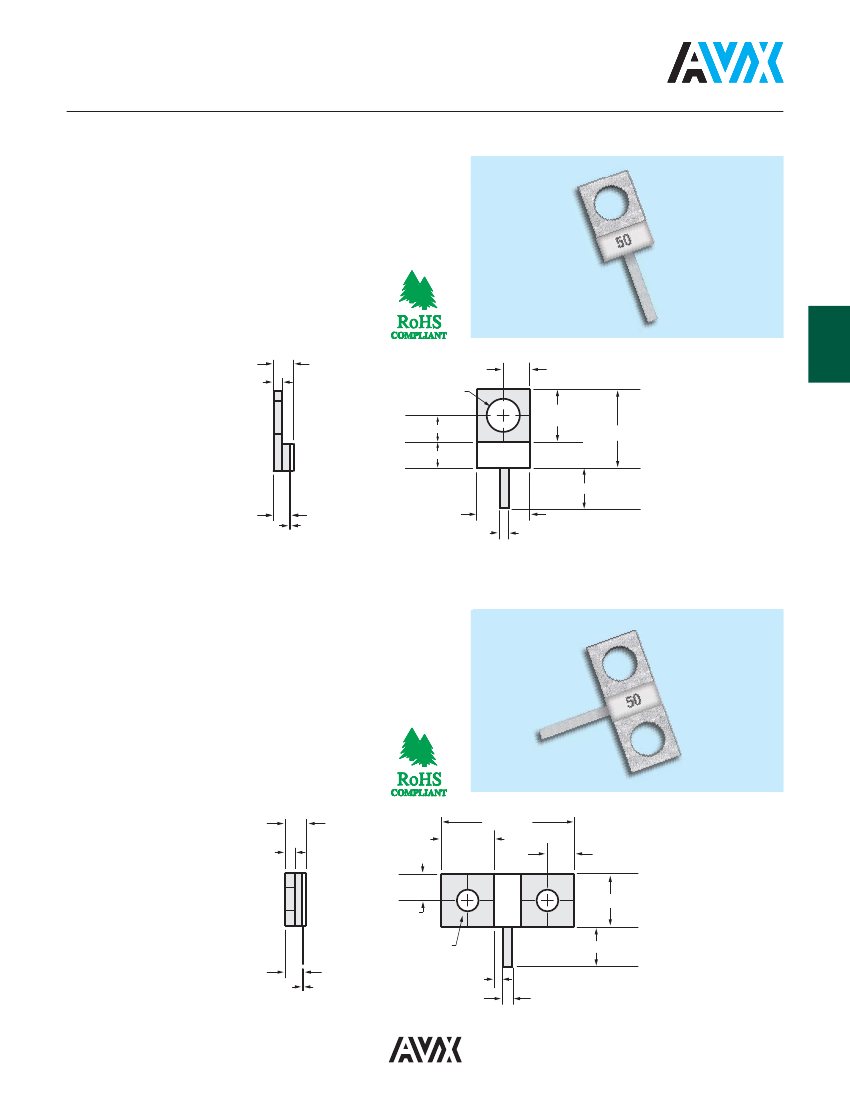

FLANGE MOUNT TERMINATION – P/N: RPA0561T0050JNBK
ELECTRICAL SPECIFICATIONS
Nominal Impedance:
50 Ω ±5% standard
(contact factory for custom values)
Power:
75 Watts
Frequency:
DC to 4.0 GHz
VSWR:
1.25:1
Typical Operating Temperature Range:
-55ºC to +150ºC
Temperature Coefficient:
<150 ppm/ºC
Tabs:
Silver
RoHS Compliant
3.81 MAX.
(0.150)
14.2 (0.560)
6.35
(0.250)
1.57 (0.062)
3.96 THRU
(0.156)
4.77 TYP.
(0.188)
6.35 TYP.
(0.250)
0.10 (0.004)
1.02 TYP.
(0.040)
9.53
(0.375)
3.93 (0.155) TYP.
2.59 (0.102)
mm (inches)
FLANGE MOUNT TERMINATION – P/N: RPA0800T0050JNBK
ELECTRICAL SPECIFICATIONS
Nominal Impedance:
50 Ω ±5% standard
(contact factory for custom values)
Power:
50 Watts
Frequency:
DC to 6 GHz
VSWR:
1.10:1 @ 4.5 GHz, 1.18:1 @ 6.0GHz
Operating Temperature Range:
-55ºC to +150ºC
Tabs:
Silver
RoHS Compliant
1.57 (0.062)
3.81 MAX.
(0.150)
3.30 THRU
(0.130)
20.3 (0.800)
14.2 (0.560)
8.89 (0.350)
5.84 (0.230)
2.92 (0.115)
6.35 (0.250) TYP.
0.10 (0.004)
2.59 (0.102)
1.02 TYP.
(0.040)
mm (inches)
For Part Number Code, see page 14.
18
