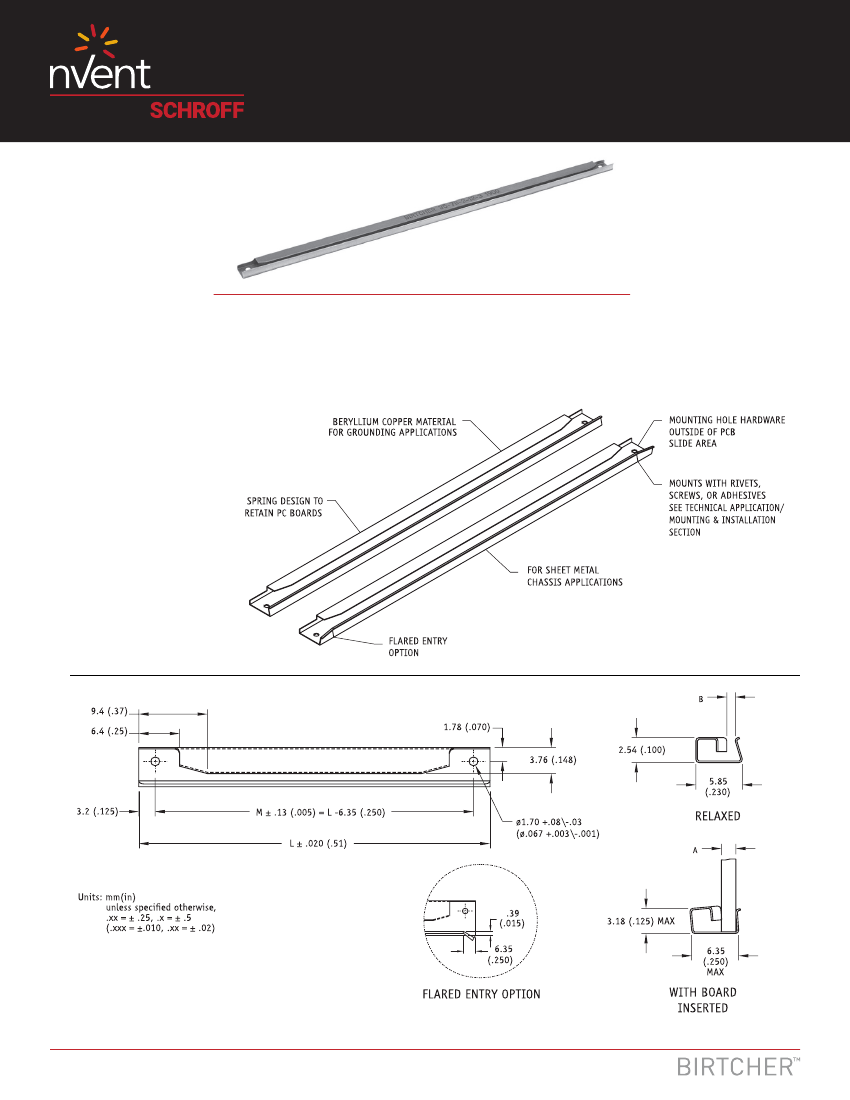

SERIES 35-7 PCB TAINER
B
BH
CR
BOARD THICKNESS TABLE
DASH #
-1
-2
-3
BOARD
THICKNESS
A
0.79 (.031)
1.60 (.063)
2.36 (.093)
B
0.64 (.025)
1.40 (.055)
2.16 (.085)
FINISH TABLE
DASH #
-1
-2
-3
-4
-5
-6
-7
-8
NONE

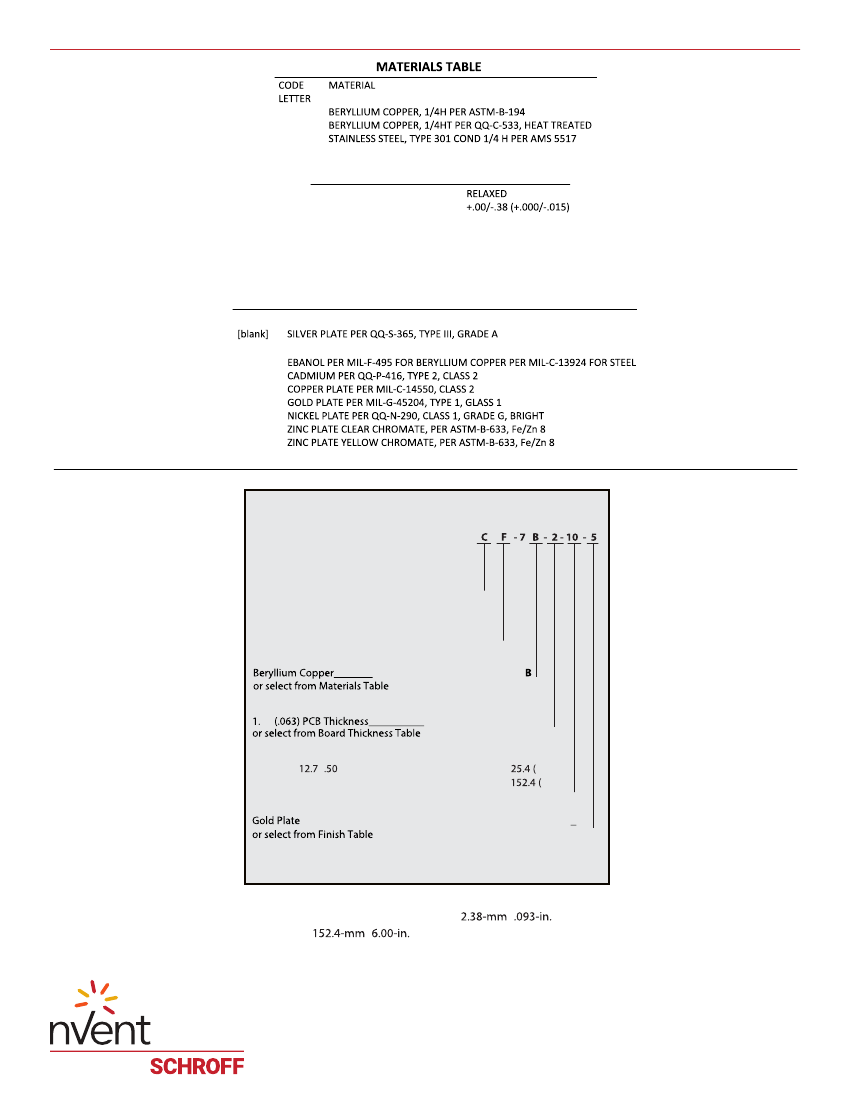

Part Number Code
Series 35-7 PCB-TAINER
35
Center Mounting Hole:
Center Mounting Hole: __________________
C
None:____________________________
[Blank]
Flared Entry
Flared Entry: _______________________________
F
None:________________________________
[Blank]
Material
___________________________
Board Thickness
59
_____________________
2
Length
Length in
( ) increments _________________ 2 [
_________________________________________ to 12 [
1.00)]
6.00)]
Finish
________________________________________________
5
No dash number required for CR material. Stainless steel parts are
passivated only.
Part Number Code example: 35-7B-3-12-6
35 Series PCB-TAINER, Beryllium Copper,
(
)
(
) long, Nickel Plate nish.
thick board,
nVent may modify standard parts without prior notice to or approval from customers. These modifications may change product appearance, but will not have a
detrimental effect on form, fit or function. ©2018 nVent. All nVent marks and logos are owned or licensed by nVent Services GmbH or its affiliates. All other trademarks
are the property of their respective owners. nVent reserves the right to change specifications without notice.
