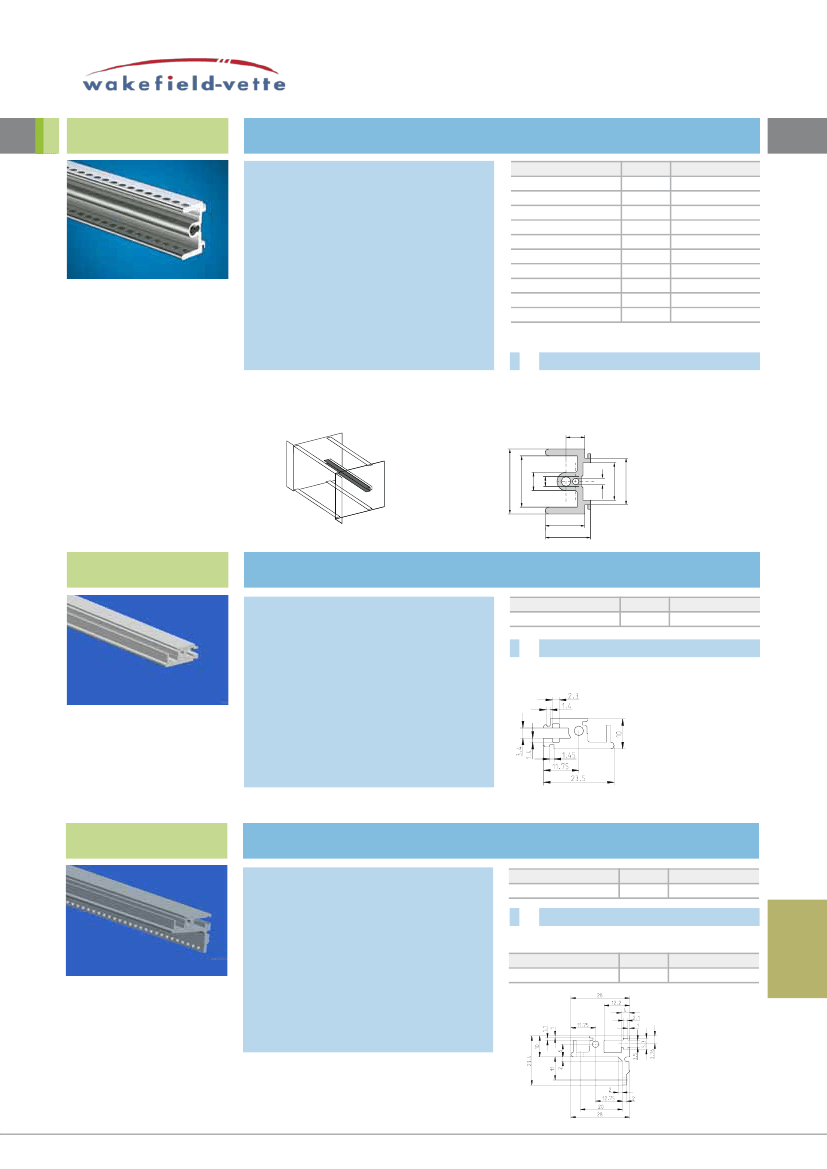

COMPONENTS / ACCESSORIES
Horizontal rails
rear horizontal rail, centre (e)
When subdividing 6 U into 2 x 3 U, the adaptor
rail accommodates the guide rails when fastened
to the centre horizontal rail.
•
HP pitch pattern of holes for the precise in-
stallation of guide rails
M4 and M2.5 thread on the end face
•
•
Straight-through core hole
•
Horizontal rail 192 HP without machining on
the end faces. Suitable for cutting to length
material:
Extruded aluminum section
surface finish:
Clear-chromated or anodized
Usable width (HP)
12
16
20
40
42
63
84
84
858.5 mm
192
2)
Anodized
1)
Including
Packs of
1
1
1
1
1
1
1
1
1
1
order no.
3684.587
3684.588
3684.589
3684.964
3684.590
3686.005
3684.591
3685.272
1)
3684.584
3688.004
2)
2 assembly screws
!
also required:
Assembly screws M4 x 12,
packs of 100, order no. 3654.300,
see page 164
6.15
21.3
16.8
12.3
13
14.9
rear horizontal rail, with channel
for ripac eco (c7)
To accommodate guide rails and for the attach-
ment of Z rails, insulating strips or conductive
strips.
•
HP pitch pattern of holes for the precise instal-
lation of guide rails
•
Channel for slide-in covers
•
For mounting backplanes/Z rails, threaded
inserts (3684.610) are additionally required
•
M4 thread on end face
•
Straight-through core hole
•
Not suitable for mounting under covers
material:
Extruded aluminum section
surface finish:
Clear-chromated
Usable width (HP)
84
Packs of
1
order no.
3688.104
!
also required:
Assembly screw M4 x 12
rear horizontal rail, with integral z rail
for ripac eco (c8)
To accommodate guide rails. Integral Z rail for
mounting connectors to DIN 41612.
•
HP pitch pattern of holes for the precise instal-
lation of guide rails
•
84 tapped holes M2.5 for connector mounting
•
M4 thread on end face
•
Straight-through core hole
material:
Extruded aluminum section
surface finish:
Clear-chromated
Usable width (HP)
84
Packs of
1
order no.
9901.991
!
also required:
Packs of
M4 x 12
100
order no.
3654.300
Assembly screws
2.15
15.2
3.2
6
113
