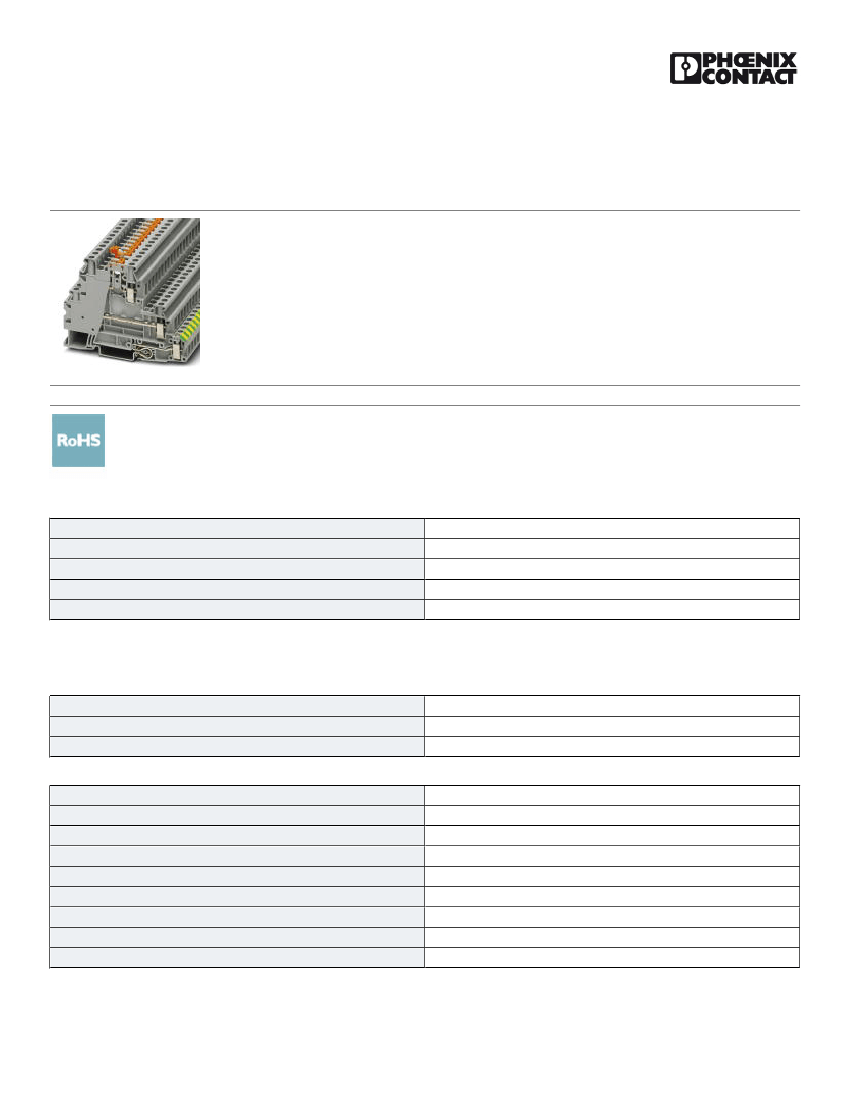

Ground modular terminal block - UT 4-PE/L/MT - 3214364
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ground modular terminal block, Connection type: Screw connection, Cross section: 0.14 mm² - 6 mm²,
AWG: 26 - 10, Nominal current: 28 A, Nominal voltage: 500 V, Length: 92.7 mm, Width: 6.2 mm, Color: gray,
Assembly: NS 35/7,5, NS 35/15
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 STK
50 STK
32.000 g
85369010
Poland
Technical data
Environmental Product Compliance
China RoHS
Hazardous substances above threshold values;
Environmentally Friendly Use Period = 50;
For details go to tab “Downloads”, Category “Manufacturer's declaration”
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
3
5
3
4 mm²
gray
PA
V0
6 kV
3
09/01/2016 Page 1 / 15
https://www.phoenixcontact.com/us/products/3214364
Ground modular terminal block - UT 4-PE/L/MT - 3214364
Technical data
General
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
III
I
36 A (with 6 mm² conductor cross section)
28 A
500 V
20 A (with 6 mm² conductor connection)
20 A (with 4 mm² conductor cross section)
500 V
No
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, body mounted
f
1
= 5 Hz to f
2
= 150 Hz
0.964 (m/s ) /Hz
0.58 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
-60 °C
2 2
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 130 °C
Dimensions
Width
Length
Height
Height NS 35/7,5
Height NS 35/15
6.2 mm
92.7 mm
60.1 mm
61.7 mm
69.2 mm
09/01/2016 Page 2 / 15
https://www.phoenixcontact.com/us/products/3214364
Ground modular terminal block - UT 4-PE/L/MT - 3214364
Technical data
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
Please observe the current carrying capacity of the DIN rails.
Screw connection
IEC 60947-7-1/IEC 60947-7-2
0.14 mm²
6 mm²
26
10
0.14 mm²
6 mm²
26
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1.5 mm²
sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.14 mm²
1.5 mm²
9 mm
A4
M3
0.6 Nm
0.8 Nm
Screw connection
IEC 60947-7-1
0.14 mm²
6 mm²
26
10
09/01/2016 Page 3 / 15
https://www.phoenixcontact.com/us/products/3214364
Ground modular terminal block - UT 4-PE/L/MT - 3214364
Technical data
Connection data
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
0.14 mm²
6 mm²
26
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1.5 mm²
sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
0.14 mm²
1.5 mm²
9 mm
M3
0.6 Nm
0.8 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1/IEC 60947-7-2
IEC 60947-7-1
V0
Drawings
Circuit diagram
Classifications
eCl@ss
eCl@ss 5.1
27141126
09/01/2016 Page 4 / 15
https://www.phoenixcontact.com/us/products/3214364
Ground modular terminal block - UT 4-PE/L/MT - 3214364
Classifications
eCl@ss
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27141120
27141141
27141141
ETIM
ETIM 4.0
ETIM 5.0
EC000901
EC000901
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
26-10
16 A
300 V
C
26-10
16 A
300 V
D
26-10
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
26-10
16 A
300 V
C
26-10
16 A
300 V
D
26-10
09/01/2016 Page 5 / 15
