3286: DescriptionCONN ADAPT UHF PLUG TO BNC JACK; CategoryThe connector; File Size59KB，1 Pages; ManufacturerPomona Electronics; Environmental Compliance

Download Datasheet Parametric View All

3286 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3286	-	-	View	Buy Now

3286 Overview

CONN ADAPT UHF PLUG TO BNC JACK

3286 Parametric

Parameter Name	Attribute value
Adapter type	plug to jack
conversion type	Across series
Adapter series	BNC to UHF
neutral	female to male
Convert from (adapter side)	UHF plug, male pins
Convert to (adapter side)	BNC jack, female jack
impedance	50 ohms
style	Straight
Installation type	free hanging
Installation features	-
Fastening type	Bolt lock, threaded
Intrusion protection	-
Center contact plating	gold
characteristic	-
include	-
Matrix material	brass
substrate surface	-
center contact material	brass
dielectric materials	Polytetrafluoroethylene (PTFE)
Number of patches	-
Insertion loss	-
Operating temperature	-55°C ~ 85°C

Preview

Download Datasheet

View All

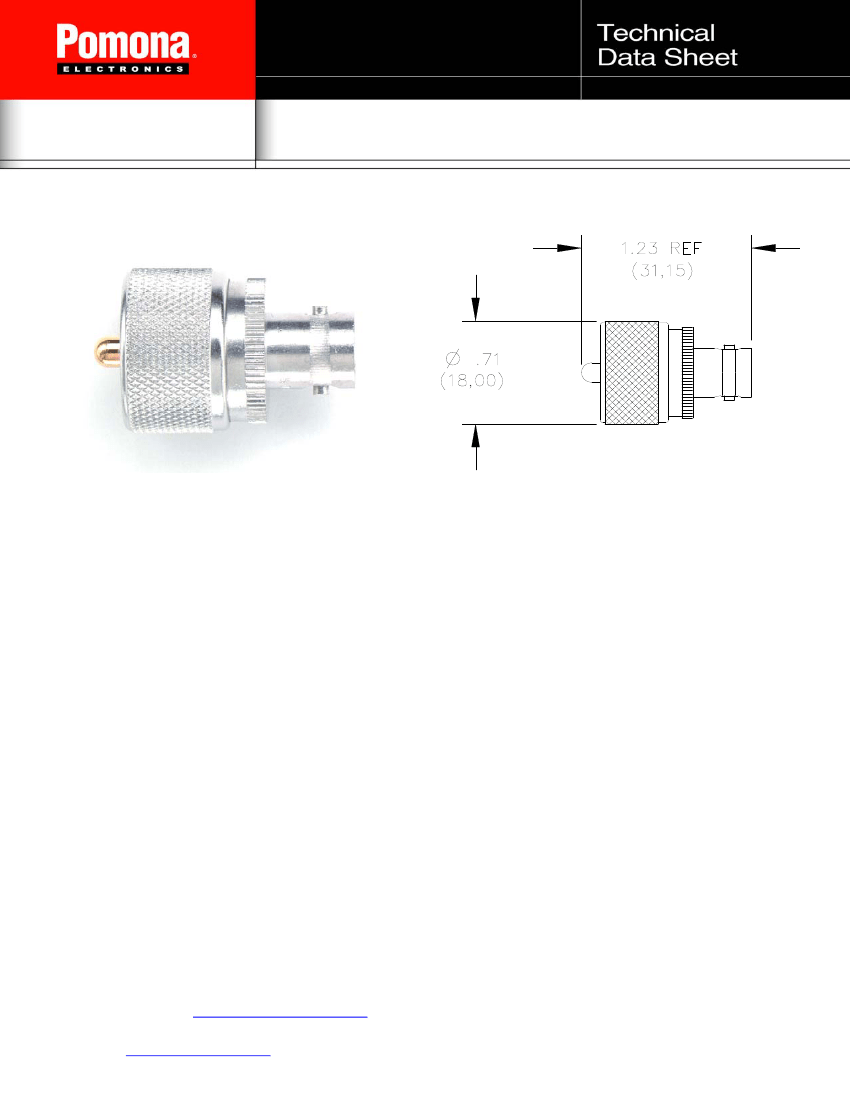

Model 3286

Adapter, BNC (Female) to UHF (Male)

Model 3286

Adapter, BNC (Female) to UHF (Male)

Materials

Body and Fittings – Brass, Tarnish Resistant Plating, Center Contact – Gold Plated Brass

Dielectric: PTFE

Ratings

Voltage:

For

CE Compliance

and for personal safety, do not hold in hand when voltages exceed 33 Vrms/70 Vdc.

Maximum voltage for

hands free use:

500 Vrms Max.

Operating Temperature: -55ºC (-67ºF) to +85ºC (185ºF)

Nominal Impedance: 50 Ohms

Ordering Information

Model: 3286

Sales: 800-490-2361

Technical Support:

technicalsupport@pomonatest.com

Fax: 425-446-5844

Europe:

31-(0) 40 2675 150

International:

425-446-5500

Where to Buy:

www.pomonaelectronics.com

USA:

All dimensions are in inches. Tolerances (except noted): .xx = ±.02” (,51 mm),

.xxx = ± .005” (,127 mm). All specifications are to the latest revisions.

Specifications are subject to change without notice. Registered trademarks are

the property of their respective companies.

D1094009 Rev. 100

Page 1 of 1
