Q8 series
Ø8 mm panel mount LED indicators
DISTINCTIVE FEATURES
5mm colored diffused epoxy lens or 5 mm water clear
super bright LEDs
Prominent, recessed and flush bezel styles
(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
wire terminations (2.0 x 0.5) solder lug/faston terminals on
tri-color versions
ENVIRONMENTAL SPECIFICATIONS
• IP67 sealing option (EN60529)
• Operating & Storage Temperature Range:
Rear plastic body:
-30 °C to +65 °C ( –22 °F to +149 °F)
Rear epoxy body:
-40 °C to +85 °C ( –40 °F to +185 °F)
GENERAL SPECIFICATIONS
• Max Reverse Voltage: 5 V
• Viewing Angle: 30–100° (dependant on model)
• Life Expectancy: 100,000 hours
• Torque: 20 to 25 cNm
• Maximum panel thickness 7 mm
MATERIALS
• Plated brass bezel finished in bright chrome, black or satin grey
and moulded polycarbonate rear body

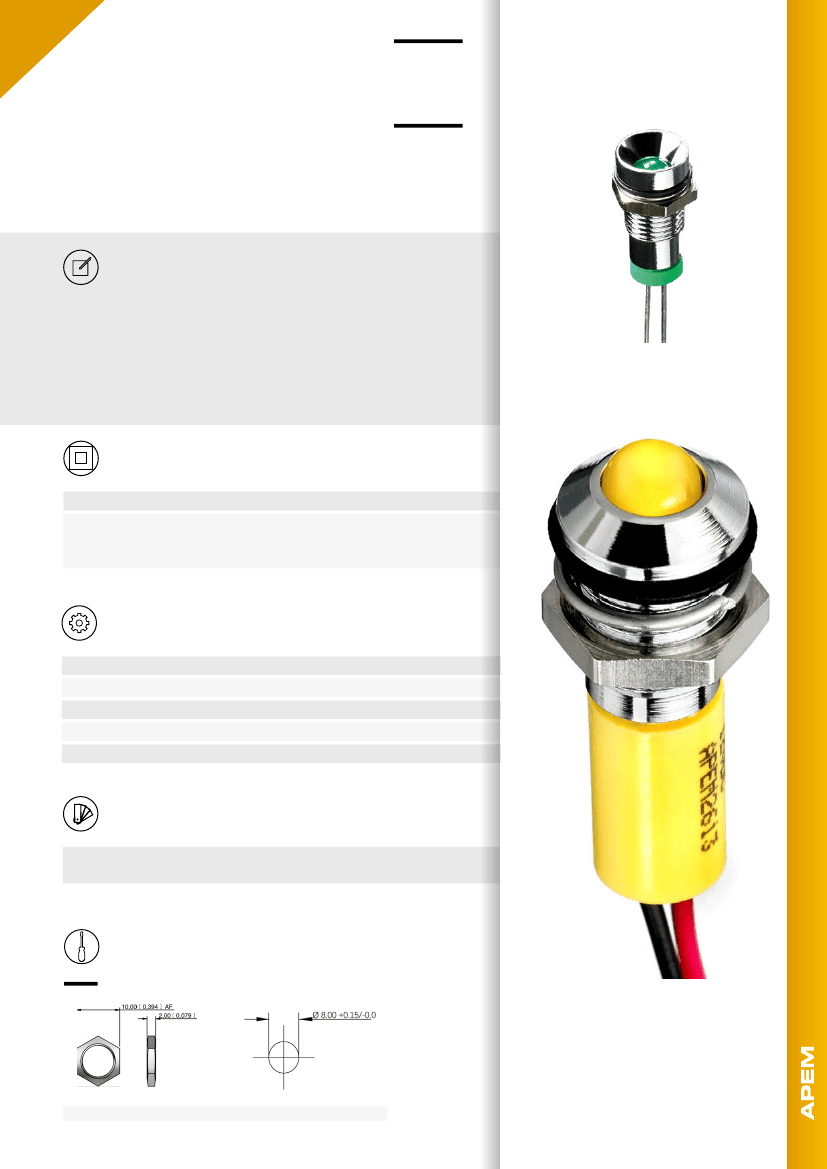

MOUNTING
The company reserves the right to change specifications without notice.
All LED characteristics are dependent upon environmental conditions. Therefore published data
should be considered nominal and subject to variations.
1
LED INDICATORS
0
18
8-
7
LED INDICATORS
Q8 series
Ø8 mm panel mount LED indicators
ELECTRICAL SPECIFICATIONS
STANDARD LED INTENSITY
LED COMPONENT SPECIFICATIONS
Prominent and
Recessed
HE Red
Green
Yellow
Blue
White
Orange
Bi-color (Typical)
(Red/Green)
Tri-color (Typical)
(Red/Green/Yellow)
80 mcd
60 mcd
50 mcd
1,600 mcd
1,600 mcd
60 mcd
14/30 mcd
60/15/13 mcd
Flush
8 mcd
6 mcd
6 mcd
50 mcd
500 mcd
110 mcd
15/10 mcd
15/10/6 mcd
Forward Voltage
2.0 V
2.2 V
2.1 V
3.3 V
3.3 V
2.2 V
2.0V/2.2 V
2.0 V/2.2 V/2.1 V
Voltage
Operating Voltage
(Min to Max)
Operating Current
(Typical All
Types)
20 mA max
20 mA
20 mA
20 mA
20 mA
6 mA
3 mA
02 (No Resistor)*
6 VDC
12 VDC
24 VDC
28 VDC
110 VAC
220 VAC
1.8 to 3.3 VDC
5.4 to 6.6 VDC
10.8 to 13.2 VDC
21.6 to 26.4 VDC
25.2 to 30.8 VDC
99 to 121 VAC
207 to 235 VAC
* Customer to supply resistor for desired operating
current.
Bi-color - The color is changed by reversing the polarity of the supply voltage.
Tri-color - The indicator has red and green LEDs, when both connected yellow is
produced.
SUPER BRIGHT LED INTENSITY
LED COMPONENT SPECIFICATIONS
Prominent and
Recessed
HE Red
Green
Yellow
Blue
White
Orange
5,000 mcd
10,000 mcd
4,000 mcd
2,200 mcd
2,500 mcd
4,000 mcd
Flush
1,300 mcd
1,200 mcd
350 mcd
280 mcd
950 mcd
500 mcd
Forward Voltage
2.2 V
3.3 V
2.0 V
3.3 V
3.3 V
2.2 V
HYPER BRIGHT LED INTENSITY
LED COMPONENT SPECIFICATIONS
Prominent and
Recessed
HE Red
Green
Yellow
Orange
6,000 mcd
1,900 mcd
1,600 mcd
2,400 mcd
Flush
980 mcd
300 mcd
250 mcd
110 mcd
Forward Voltage
2.2 V
3.3 V
2.0 V
2.2 V
• The operating voltage must not be exceeded by more that
10% as this will result in reduced life expectancy
• Luminous intensity is measured at 20 mA on a discrete led
unless otherwise stated.
• Luminous intensities and color shades of white LEDs may
vary within a batch.
• Luminous intensity will be reduced with lower operating
current.
2
Q8 series
Ø8 mm panel mount LED indicators
BUILD YOUR PART NUMBER
Q
SERIES
MOUNTING HOLE
BEZEL STYLE
TERMINALS
BEZEL FINISH
Rear epoxy Wires
Short body Pins
Short body Wires
Short body Lug/ Fastons
(2.8 x 0.8)
Extended short body
solder Lug/ Fastons
(2.8 x 0.5)
8
Ø8 mm
P
R
F
Prominent
Recessed
Flush
1
2
3
4
Solder Lug/ Fastons
(2.8 x 0.8)
Pins
Wires
Rear epoxy Pins
5
6
7
8
9
C
B
G
Bright Chrome
Black
Satin Grey
TYPE OF ILLUMINATION
LED COLOR
VOLTAGE
SEALING
XX
KK
YY
ZZ
Fixed Light
Flashing Light
(12V – 28VDC)
Bi-color
Tri-color
R
G
Y
B
W
O
HR
Red
Green
Yellow
Blue
White
Orange
Hyper Bright
Red
HG
HY
HO
SR
SG
SY
SB
Hyper Bright
Green
Hyper Bright
Yellow
Hyper Bright
Orange
Super Bright
Red
Super Bright
Green
Super Bright
Yellow
Super Bright
Blue
SW
SO
RG
RY
GY
RYG
Super Bright
White
Super Bright
Orange
Red/Green
Red/Yellow
Green/Yellow
Red/Yellow/
Green
02
06
12
12A
24
24A
28
28A
110
220
no resistor*
6 VDC
12 VDC
12 VAC/DC
24 VDC
24 VAC/DC
28 VDC
28 VAC/DC
110 VAC
220 VAC
(Blank)
E
Unsealed
IP67
ABOUT THIS SERIES
Notice:
please note that not all combinations of above numbers are available.
• Gold faston terminal denotes anode (+), silver terminal denotes
cathode (-)
• Standard wire length is 200 mm, 24 AWG UL1061, red wire
denotes anode (+), black wire denotes cathode (-) for other wire
lengths consult APEM
• 110 VAC and 220 VAC, only available with terminal options 1 & 3
• Bi-color leds, by connecting the gold faston (+) one color is
produced, by reversing the supply voltage another color is
produced – bi-colors are available up to 28 VDC [AC products not
available]
• Take care when soldering to the faston terminals (recommended
solder temperature 300 °C - 3 sec)
• Terminal options 2,6,7 & 9 are only available up to 28 V (DC only).
Tri-color not available with terminal 9
* please refer to the
forward voltage in
electrical specifications
• Terminal code 8 is only available without integral resistor, see
forward voltage values.
• We recommend using hyperbright or superbright leds for use at
110 VAC and 220 VAC
• Mains voltage product is not recommended for use on 3 phase
appliances
• The tri-color led has red and green leds when both are
connected yellow is produced
• Standard tri-color faston terminals are two anodes (+) and one
cathode (-)
• Tri-color wires are one red (+) and one green (+) anode and one
black (-) cathode
• Tri-color pins are center (–) cathode, shortest (+) anode pin
green, longest (+) anode pin red
3
LED INDICATORS
LED INDICATORS
Q8 series
Ø8 mm panel mount LED indicators
PROMINENT BEZEL
SOLDER LUG/FASTON
WIRES
PINS
REAR EPOXY WIRES
REAR EPOXY PINS
SHORT BODY WIRES
SHORT BODY PINS
4

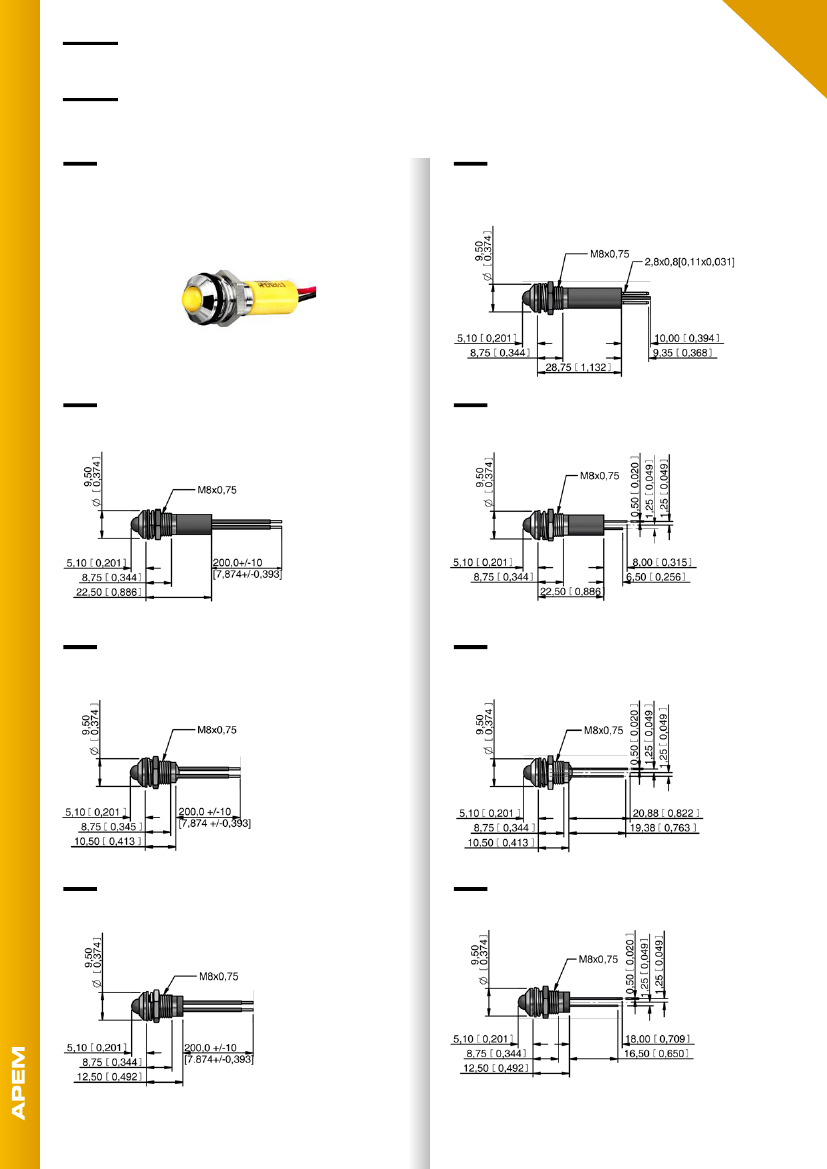

Q8 series
Ø8 mm panel mount LED indicators
PROMINENT BEZEL
(CONTINUED)
EXTENDED SHORT BODY SOLDER LUG/FASTONS
SHORT BODY SOLDER LUG/FASTONS

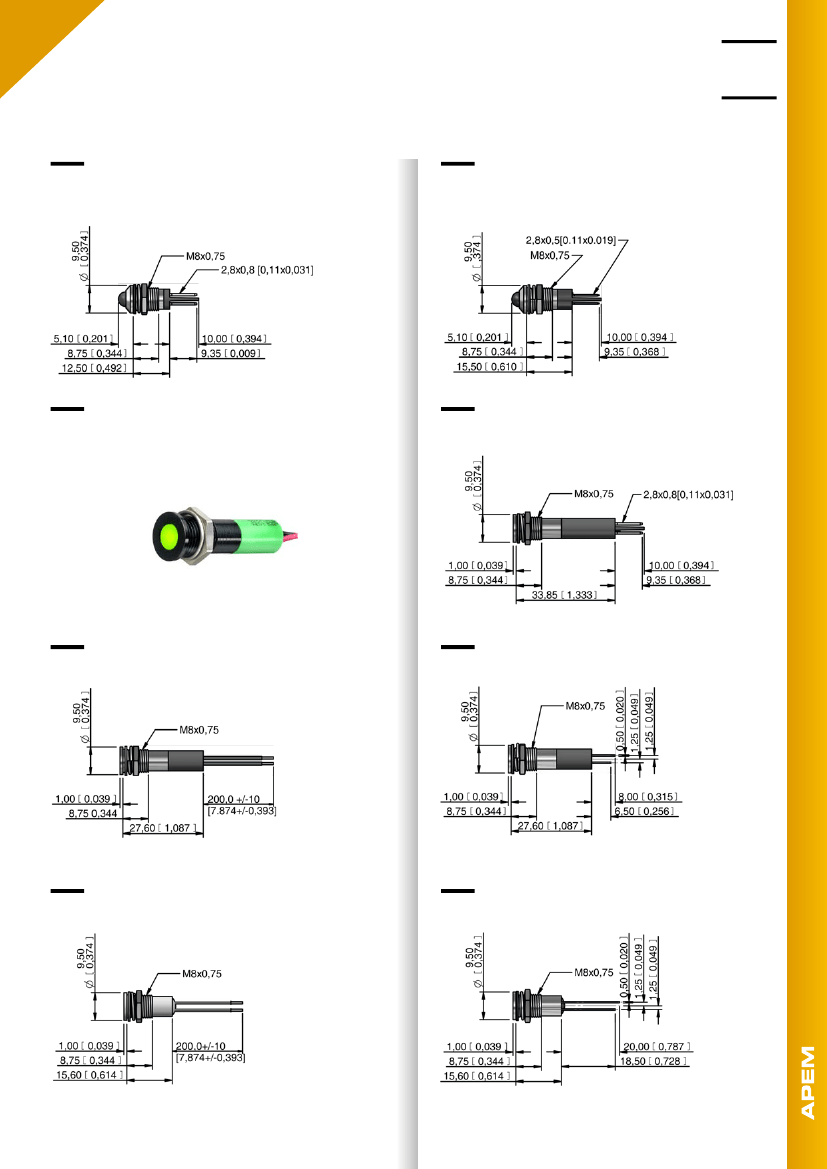

FLUSH BEZEL
SOLDER LUG/FASTON
WIRES
PINS
REAR EPOXY WIRES
REAR EPOXY PINS
5
LED INDICATORS
