HO 250-P

Description
SENSOR CURRENT HALL 250A AC/DC
CategoryThe sensor
File Size1MB,16 Pages
ManufacturerLEM
Websitehttp://www.lem.com
Environmental Compliance
Download Datasheet Parametric Compare View All

HO 250-P Overview

SENSOR CURRENT HALL 250A AC/DC

HO 250-P Parametric

Parameter NameAttribute value
for measurementAC/DC
sensor typeHall effect, open loop
Current Detection250A
Number of channels1
outputRatio meter, voltage (optional)
Sensitivity-
frequencyDC ~ 100kHz
linearity±0.5%
Accuracy±1%
Voltage - Power5V
Response time3.5µs
Current - Power (maximum)25mA
Operating temperature-40°C ~ 105°C
polarizationTwo-way
Installation typeThrough hole
Package/casingModule, single pass

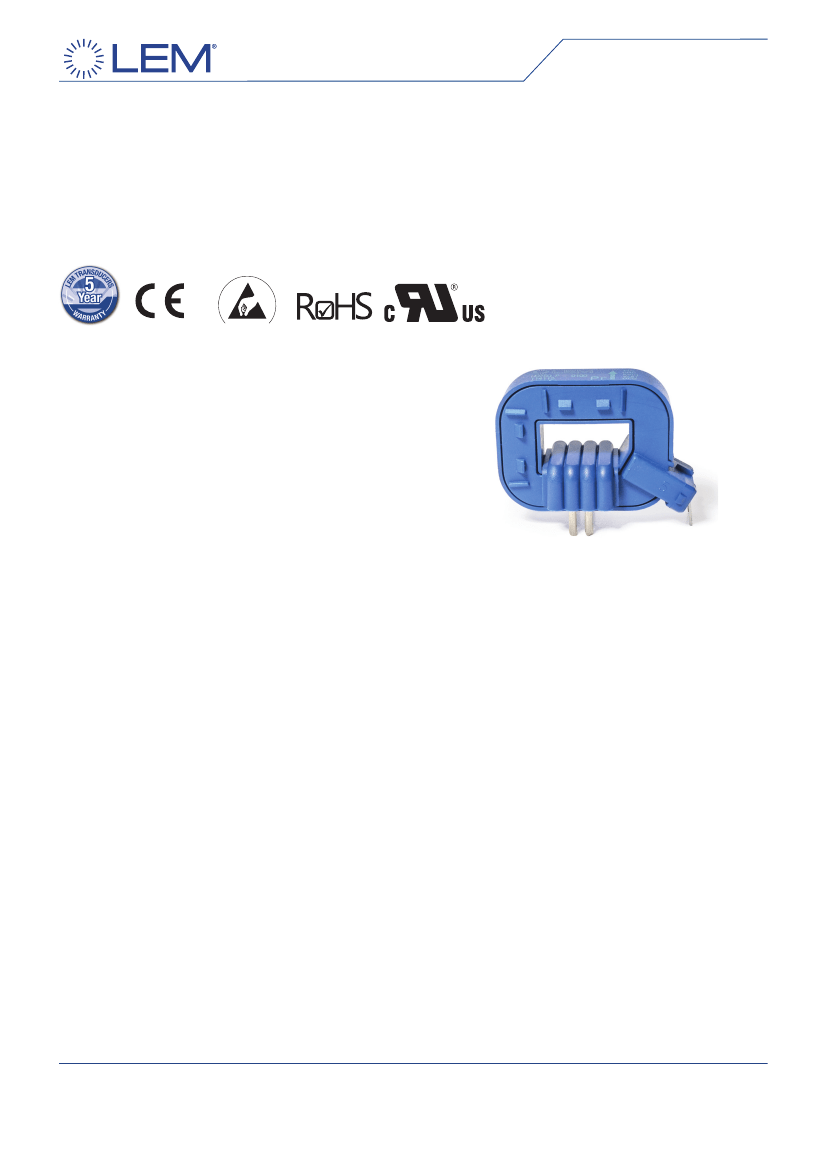

Current Transducer HO-P series
I
P N
= 60, 100, 120, 150, 180, 240, 250 A
Ref: HO 60-P, HO 100-P, HO 120-P, HO 150-P, HO 180-P, HO 240-P, HO 250-P
For the electronic measurement of current: DC, AC, pulsed..., with galvanic separation
between the primary and the secondary circuit.
Features
Open loop multi-range current transducer
Voltage output
Single power supply +5 V
Overcurrent detect 2.93 ×
I
P N
(peak value)
EEPROM Control
Galvanic separation between primary and secondary circuit
Low power consumption
Compact design for THT PCB mounting
Aperture: 15 × 8 mm
Factory calibrated
Dedicated parameter settings available on request
(see page 12).
Applications
AC variable speed and servo motor drives
Static converters for DC motor drives
Battery supplied applications
Uninterruptible Power Supplies (UPS)
Switched Mode Power Supplies (SMPS)
Power supplies for welding applications
Combiner box
MPPT.
Standards
IEC 61800-1: 1997
IEC 61800-2: 2015
IEC 61800-3: 2004
IEC 61800-5-1: 2007
IEC 62109-1: 2010
UL 508: 2013.
Advantages
Low offset drift
Over-drivable
V
ref
8 mm creepage/clearance
Fast response.
Application Domain
● Industrial.
N°97.K4.27.000.0; N°97.K4.34.000.0; N°97.K4.36.000.0; N°97.K4.39.000.0; N°97.K4.42.000.0; N°97.K4.D4.000.0; N°97.K4.45.000
.0
Page 1/16
10July2017/Version 7
LEM reserves the right to carry out modifications on its transducers, in order to improve them, without prior notice
www.lem.com

HO 250-P Related Products

HO 250-P HO 120-P HO 240-P HO 100-P HO 180-P HO 60-P
Description SENSOR CURRENT HALL 250A AC/DC SENSOR CURRENT HALL 120A AC/DC SENSOR CURRENT HALL 240A AC/DC SENSOR CURRENT HALL 100A AC/DC SENSOR CURRENT HALL 180A AC/DC SENSOR CURRENT HALL 60A AC/DC
for measurement AC/DC AC/DC AC/DC AC/DC AC/DC AC/DC
sensor type Hall effect, open loop Hall effect, open loop Hall effect, open loop Hall effect, open loop Hall effect, open loop Hall effect, open loop
Current Detection 250A 120A 240A 100A 180A 60A
Number of channels 1 1 1 1 1 1
output Ratio meter, voltage (optional) Ratio meter, voltage (optional) Ratio meter, voltage (optional) Ratio meter, voltage (optional) Ratio meter, voltage (optional) Ratio meter, voltage (optional)
frequency DC ~ 100kHz DC ~ 100kHz DC ~ 100kHz DC ~ 100kHz DC ~ 100kHz DC ~ 100kHz
linearity ±0.5% ±0.5% ±5% ±0.5% ±0.5% ±0.75%
Accuracy ±1% ±1% ±1% ±1% ±1% ±1.25%
Voltage - Power 5V 5V 5V 5V 5V 5V
Response time 3.5µs 3.5µs 3.5µs 3.5µs 3.5µs 3.5µs
Current - Power (maximum) 25mA 25mA 25mA 25mA 25mA 25mA
Operating temperature -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C -40°C ~ 105°C
polarization Two-way Two-way Two-way Two-way Two-way Two-way
Installation type Through hole Through hole Through hole Through hole Through hole Through hole
Package/casing Module, single pass Module, single pass Module, single pass Module, single pass Module, single pass Module, single pass
