Overview

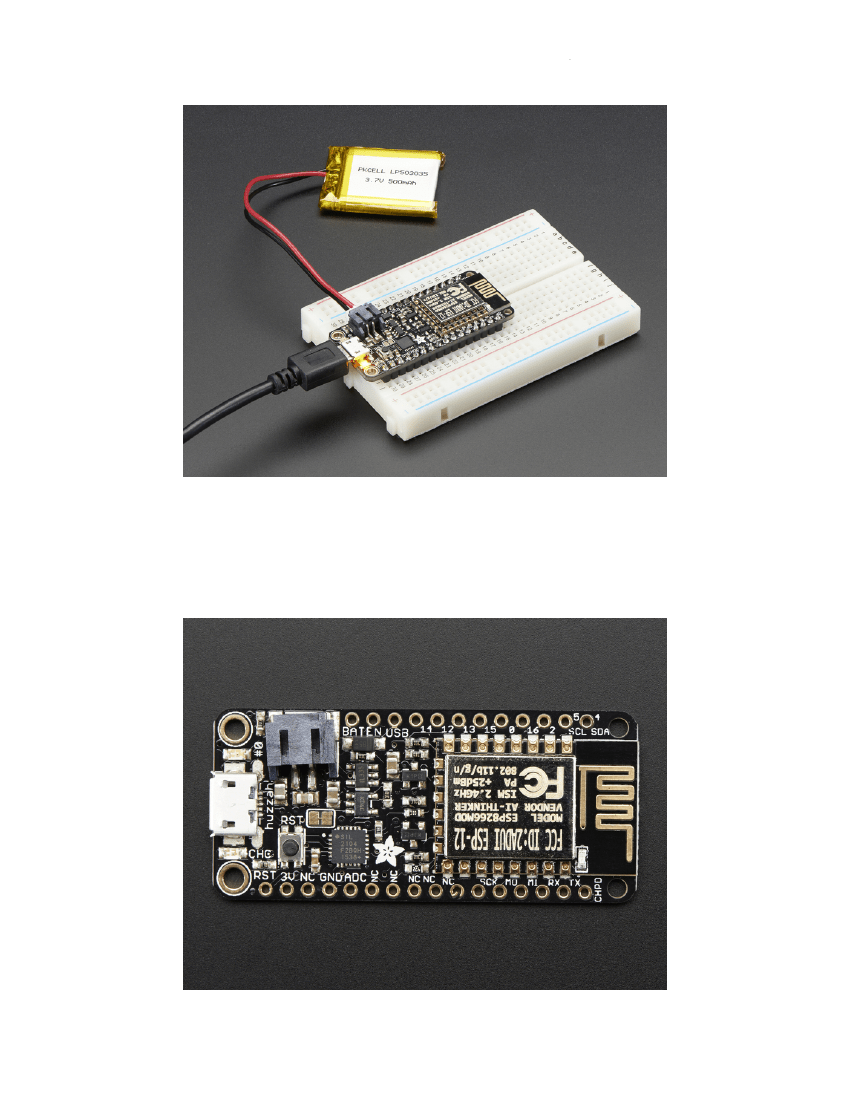

Feather is the new development board from Adafruit, and like it's namesake it is thin, light, and lets you fly! We
designed Feather to be a new standard for portable microcontroller cores.
This is the Adafruit Feather HUZZAH ESP8266 - our take on an 'all-in-one' ESP8226 WiFi development board with built
in USB and battery charging. Its an ESP8266 WiFi module with all the extras you need, ready to rock!
We have other
boards in the Feather family, check'em out here
(https://adafru.it/jAQ).
© Adafruit Industries
https://learn.adafruit.com/adafruit-feather-huzzah-esp8266
Page 4 of 43
At the Feather HUZZAH's heart is an ESP8266 WiFi microcontroller clocked at 80 MHz and at 3.3V logic. This
microcontroller contains a Tensilica chip core as well as a full WiFi stack. You can progam the microcontroller using the
Arduino IDE for an easy-to-run Internet of Things core. We wired up a USB-Serial chip that can upload code at a
blistering 921600 baud for fast development time. It also has auto-reset so no noodling with pins and reset button
pressings.
To make it easy to use for portable projects, we added a connector for any of our 3.7V Lithium polymer batteries and
built in battery charging. You don't need a battery, it will run just fine straight from the micro USB connector. But, if you
do have a battery, you can take it on the go, then plug in the USB to recharge. The Feather will automatically switch
over to USB power when its available.
