Overview

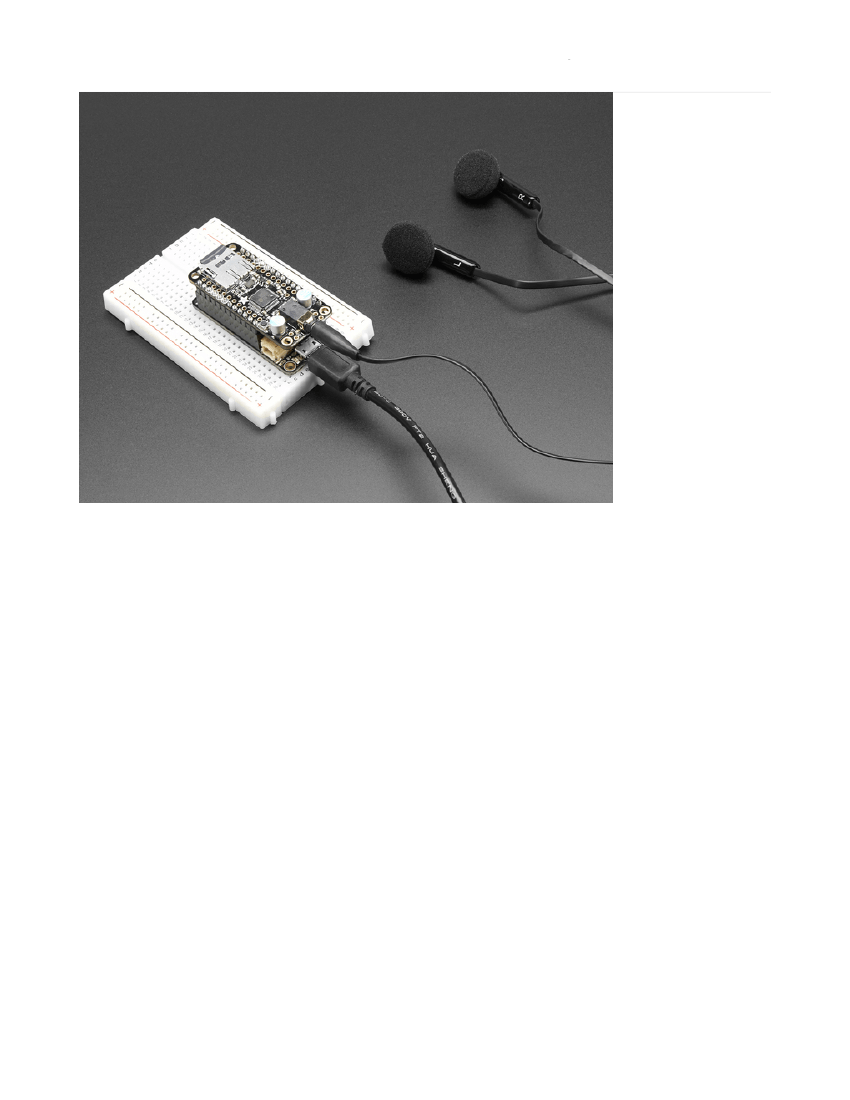

Bend all audio files to your will with the Adafruit Music Maker FeatherWing! It's a fun-size version of our
Music
Maker shield for Arduino
(https://adafru.it/tbM)!
This powerful shield features the VS1053, an encoding/decoding
(codec) chip that can decode a wide variety of audio formats such as MP3, AAC, Ogg Vorbis, WMA, MIDI, FLAC, WAV
(PCM and ADPCM). You can do all sorts of stuff with the audio as well such as adjusting bass, treble, and volume
digitally.
© Adafruit Industries
https://learn.adafruit.com/adafruit-music-maker-featherwing
Page 3 of 26
All this functionality is implemented in a light-weight SPI interface so that any Feather Board can play audio from an SD
card. There's also a special MIDI mode that you can boot the chip into that will read 'classic' 31250Kbaud MIDI data
from the UART TX pin and act like a synth/drum machine - there are dozens of built-in drum and sample effects!
What a great musical add-on to your Feather! That's why we spun up this super FeatherWing, perfect for use with any
© Adafruit Industries
https://learn.adafruit.com/adafruit-music-maker-featherwing
Page 4 of 26
of our Feather Boards! Music (MP3) playback testing working with all Feathers. MIDI playback works with all Feathers
but you may need to remove the 'Wing during programming and also for USB-Serial Feathers like the ESP8266 and
nRF52 you'll end up re-using the main Serial console for MIDI which can be confusing.

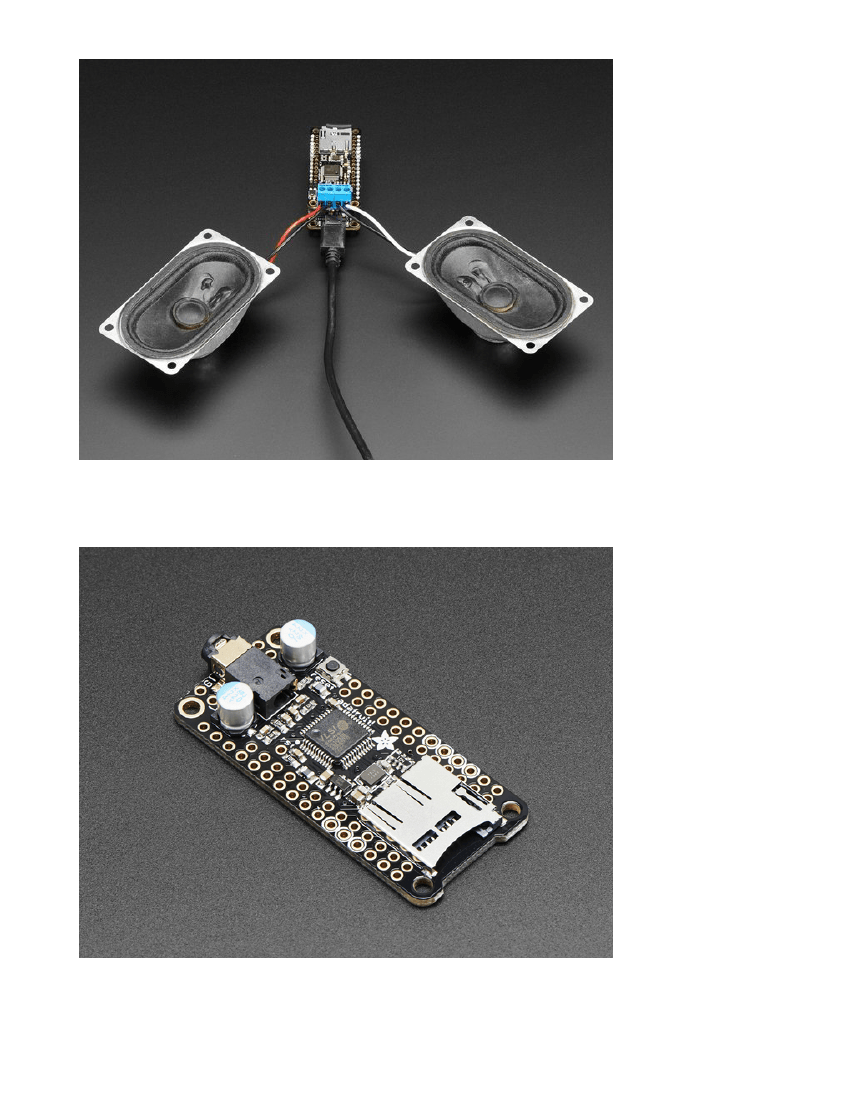

We even made two versions. One version has headphone jack output, so you can listen directly or connect to an audio
amp. The other version has a built in stereo amplifier that can driver 4-8 ohm speakers, up to 3W per channel!

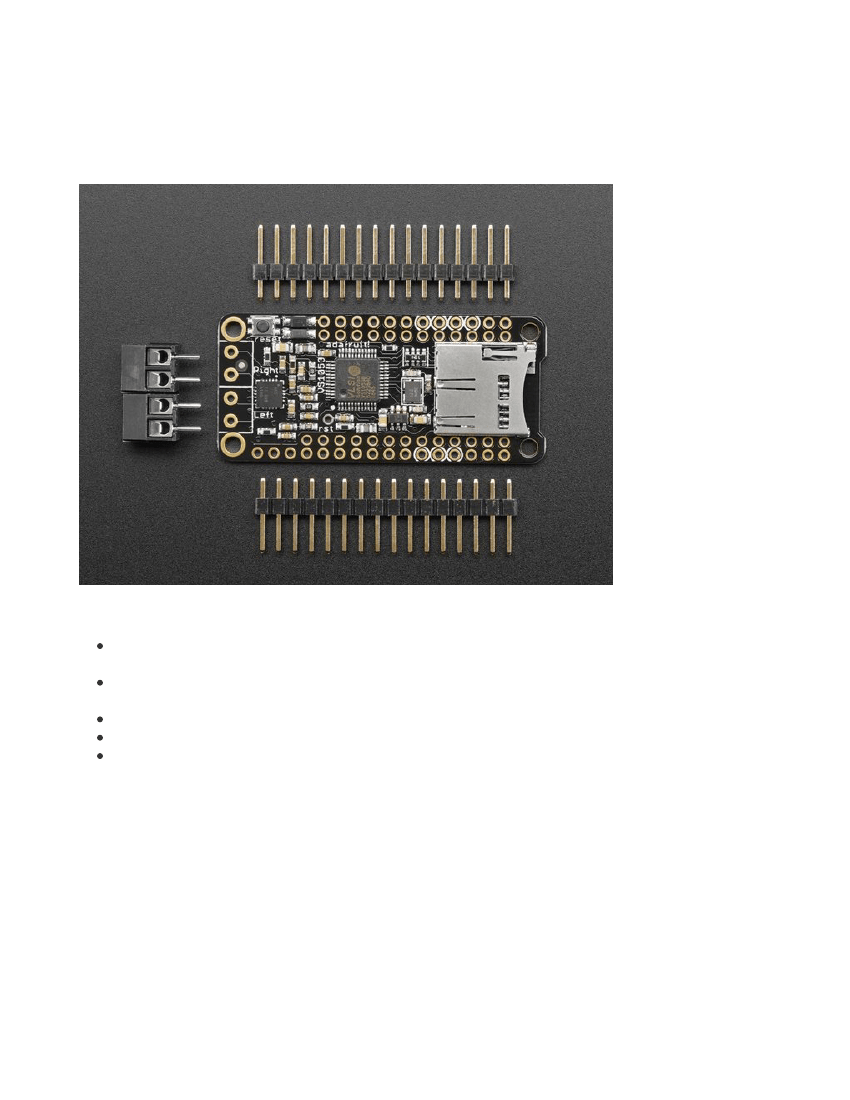

Here are some specs:
Features the VS1053B codec chip - decodes Ogg Vorbis, MP3/MP2/MP1, MP4, AAC, WMA, FLAC, WAV/PCM,
MIDI.
Stereo audio out with proper audio filter caps and ground reference so it can be safely connected directly to
headphones, a stereo system or other powered speakers
MicroSD card socket, for any FAT16/FAT32 formatted SD card from 64MB or greater
Built in MIDI synth/drum machine with dozens of instruments
Headphone 3.5mm stereo line level or stereo audio out to any 4ohm speakers (3W max) or 8 ohm speakers (1W
max), class D output
