342943

Description
COPPER HEATSINK 50X50X14MM
CategoryThermal management products
File Size432KB，5 Pages
ManufacturerAavid Thermalloy
Environmental Compliance
Download Datasheet Parametric Compare View All

342943 Overview

COPPER HEATSINK 50X50X14MM

342943 Parametric

Parameter NameAttribute value
typetop installation
cooling packageBGA
Joining methodPush your feet
shapesquare, fins
length1.969"（50.00mm）
width1.969"（50.00mm）
diameter-
Height from base (fin height)0.551"（14.00mm）
Power dissipation at different temperature rises-
Thermal resistance at different forced airflows2.10°C/W @ 200 LFM
Thermal resistance under natural conditions8.90°C/W
Materialcopper
Material platingAavSHIELD 3C

Preview

Download Datasheet

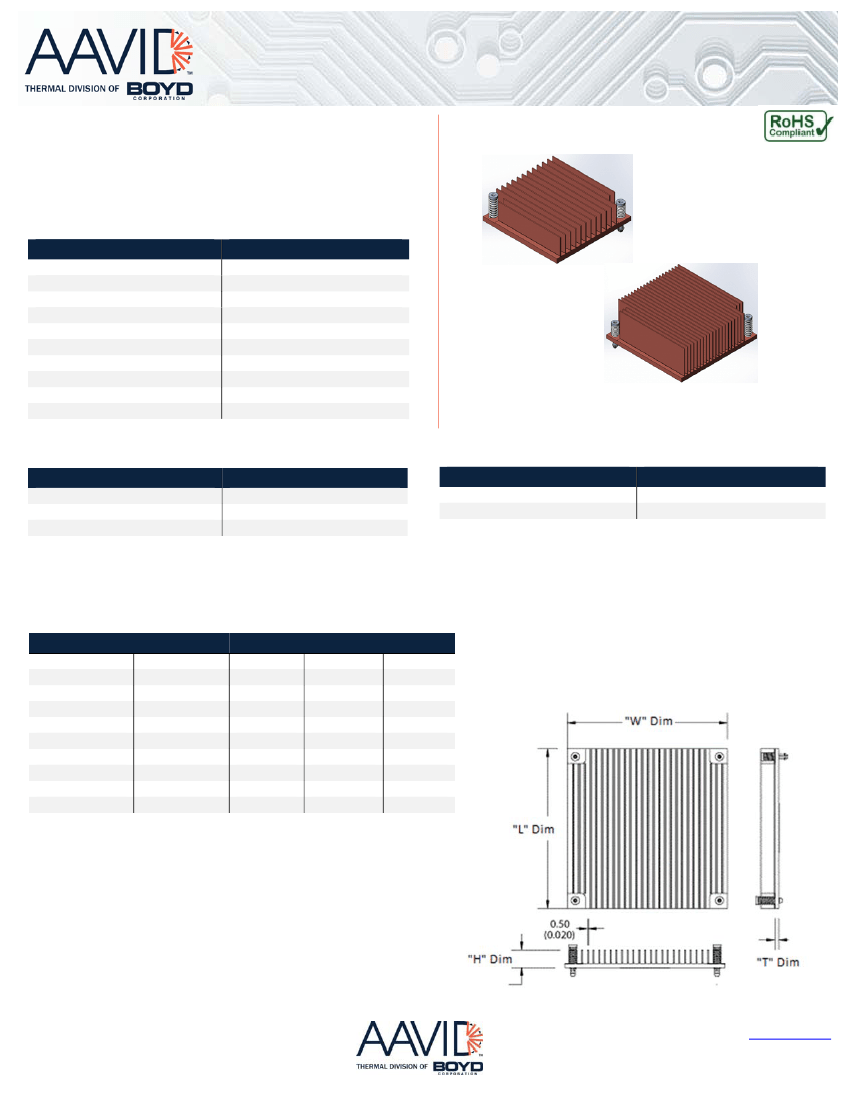

DATASHEET


Board Level Cooling – Square Skived Fin




Device Type
BGA, FPGA
BGA, FPGA
BGA, FPGA
BGA, FPGA
BGA, FPGA
BGA, FPGA
BGA, FPGA
BGA, FPGA
BGA, FPGA
BGA, FPGA
BOARD LEVEL COOLING – Square Skived Fin
Square skived fin is a series of square skived fin board level heat sinks
designed to cool BGA and FPGA devices. Representative image only.
ORDERING INFORMATION

Part Number
342940
342941
342942
342943
342945
342946
342947
342948
342949
342950







HEAT SINK DETAILS
Property
 Material
Finish
Device Attachment Options
Details
Copper
AavSHIELD 3C
Push Pin
Property
Thermal Interface Material
Heat Sink Mounting Direction
Details
Laird TPCM 585
Horizontal

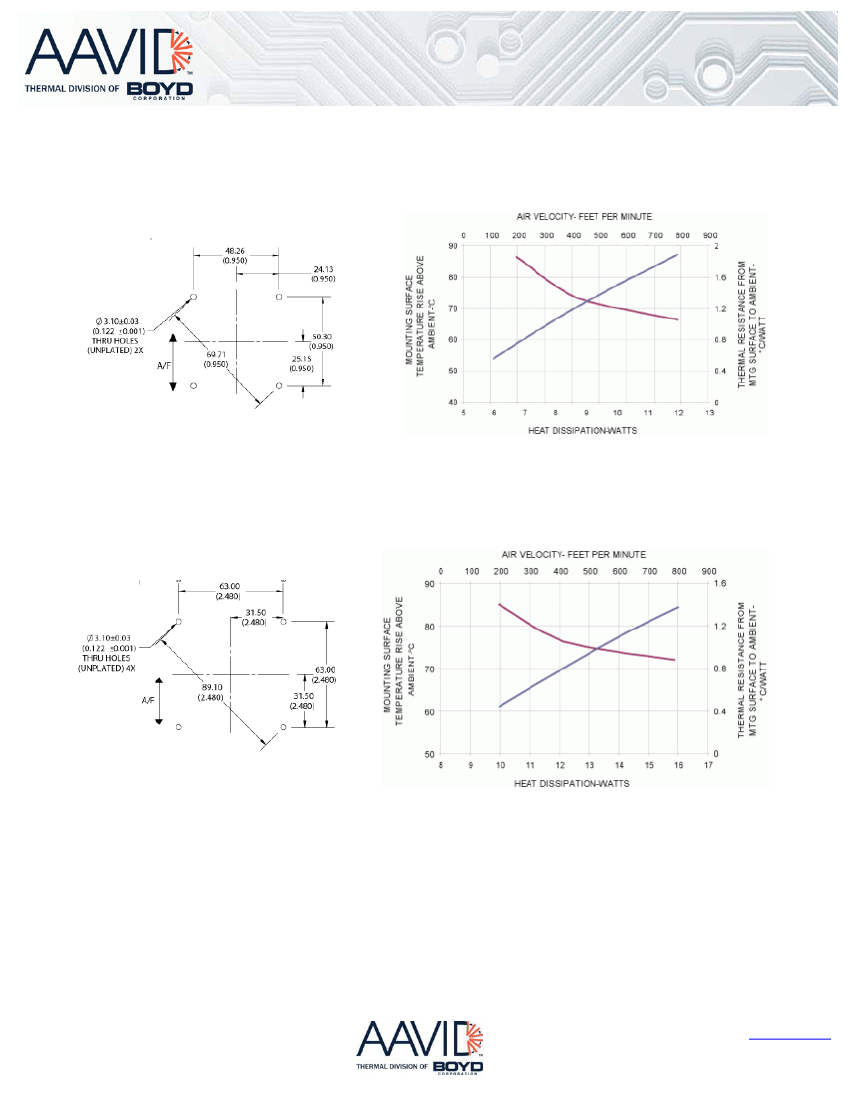

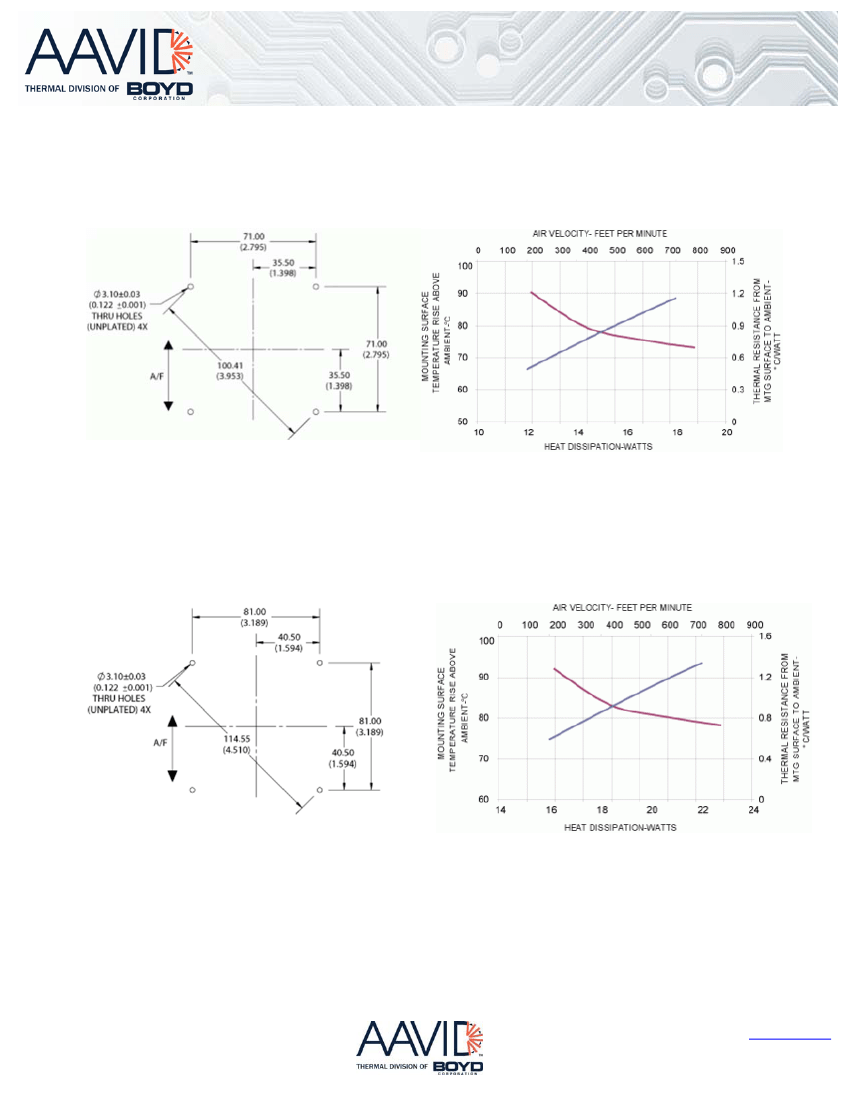

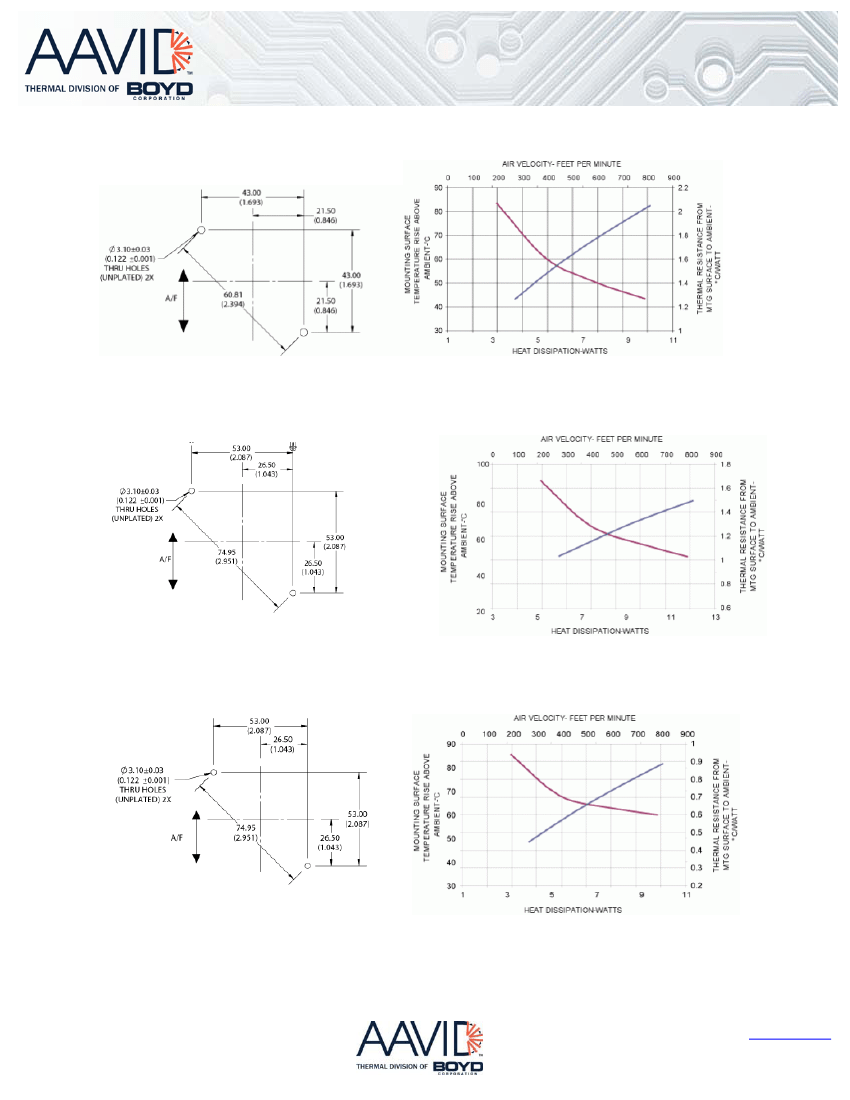

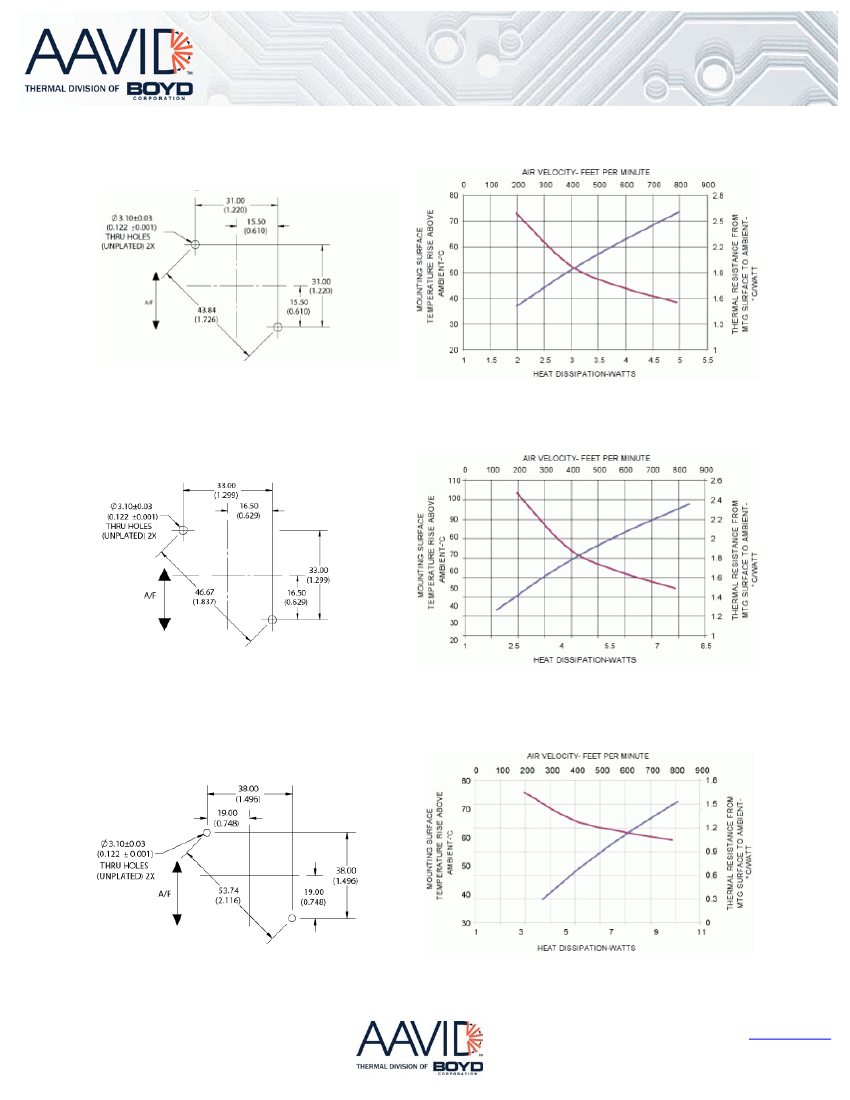

MECHANICAL & PERFORMANCE
Drawing dimensions are shown in mm, (in)


“W” Dim
38.50
40.00
45.00
50.00
60.00
60.00
57.90
70.00
80.00
90.00
Part Number
342940
342941
342942
342943
342945
342946
342947
342948
342949
342950
“T” Dim
2.80 (0.110)
2.80 (0.110)
2.80 (0.110)
2.80 (0.110)
2.80 (0.110)
2.80 (0.110)
2.80 (0.110)
2.80 (0.110)
2.30 (0.091)
2.30 (0.091)
“H” Dim
14.00
13.50
22.50
14.00
14.00
22.00
11.00
14.00
12.00
10.00
“L” Dim
37.58
40.50
44.00
50.00
60.00
60.00
59.00
69.00
80.00
90.00







USA: 1.855.322.2843
EUROPE: 39.051.764002
ASIA: 86.21.6115.2000 x8122










    Board Level Cooling
    www.aavid.com


342943 Related Products

342943 342945 342940 342946 342948 342949 342950 342942 342941 342947
Description COPPER HEATSINK 50X50X14MM COPPER HEATSINK 60X60X14MM COPPER HEATSINK 38.5X37.6X14MM COPPER HEATSINK 60X60X22MM COPPER HEATSINK 70X69X14MM COPPER HEATSINK 80X80X12MM COPPER HEATSINK 90X90X10MM COPPER HEATSINK 45X44X22.5MM COPPER HEATSINK 40X40.5X13.5MM COPPER HEATSINK 57.9X59X11MM
type top installation top installation top installation top installation top installation top installation top installation top installation top installation top installation
cooling package BGA BGA BGA BGA BGA BGA BGA BGA BGA BGA
Joining method Push your feet Push your feet Push your feet Push your feet Push your feet Push your feet Push your feet Push your feet Push your feet Push your feet
shape square, fins square, fins rectangular, fins square, fins square, fins square, fins square, fins square, fins square, fins rectangular, fins
length 1.969"（50.00mm） 2.362"（60.00mm） 1.480"（37.59mm） 2.362"（60.00mm） 2.717"（69.00mm） 3.150"（80.00mm） 3.543"（90.00mm） 1.732"（44.00mm） 1.594"（40.50mm） 2.323"（59.00mm）
width 1.969"（50.00mm） 2.362"（60.00mm） 1.516"（38.50mm） 2.362"（60.00mm） 2.756"（70.00mm） 3.150"（80.00mm） 3.543"（90.00mm） 1.772"（45.00mm） 1.575"（40.00mm） 2.280"（57.91mm）
Height from base (fin height) 0.551"（14.00mm） 0.551"（14.00mm） 0.551"（14.00mm） 0.866"（22.00mm） 0.551"（14.00mm） 0.472"（12.00mm） 0.394"（10.00mm） 0.886"（22.50mm） 0.531"（13.49mm） 0.433"（11.00mm）
Thermal resistance at different forced airflows 2.10°C/W @ 200 LFM 1.70°C/W @ 200 LFM 2.60°C/W @ 200 LFM 0.80°C/W @ 300 LFM 1.40°C/W @ 200 LFM 1.20°C/W @ 200 LFM 1.30°C/W @ 200 LFM 1.65°C/W @ 200 LFM 2.50°C/W @ 200 LFM 1.90°C/W @ 200 LFM
Thermal resistance under natural conditions 8.90°C/W 7.00°C/W 15.90°C/W 7.20°C/W 5.60°C/W 5.10°C/W 4.50°C/W 8.00°C/W 13.30°C/W 7.70°C/W
Material copper copper copper copper copper copper copper copper copper copper
Material plating AavSHIELD 3C AavSHIELD 3C AavSHIELD 3C AavSHIELD 3C AavSHIELD 3C AavSHIELD 3C AavSHIELD 3C AavSHIELD 3C AavSHIELD 3C AavSHIELD 3C
