Overview

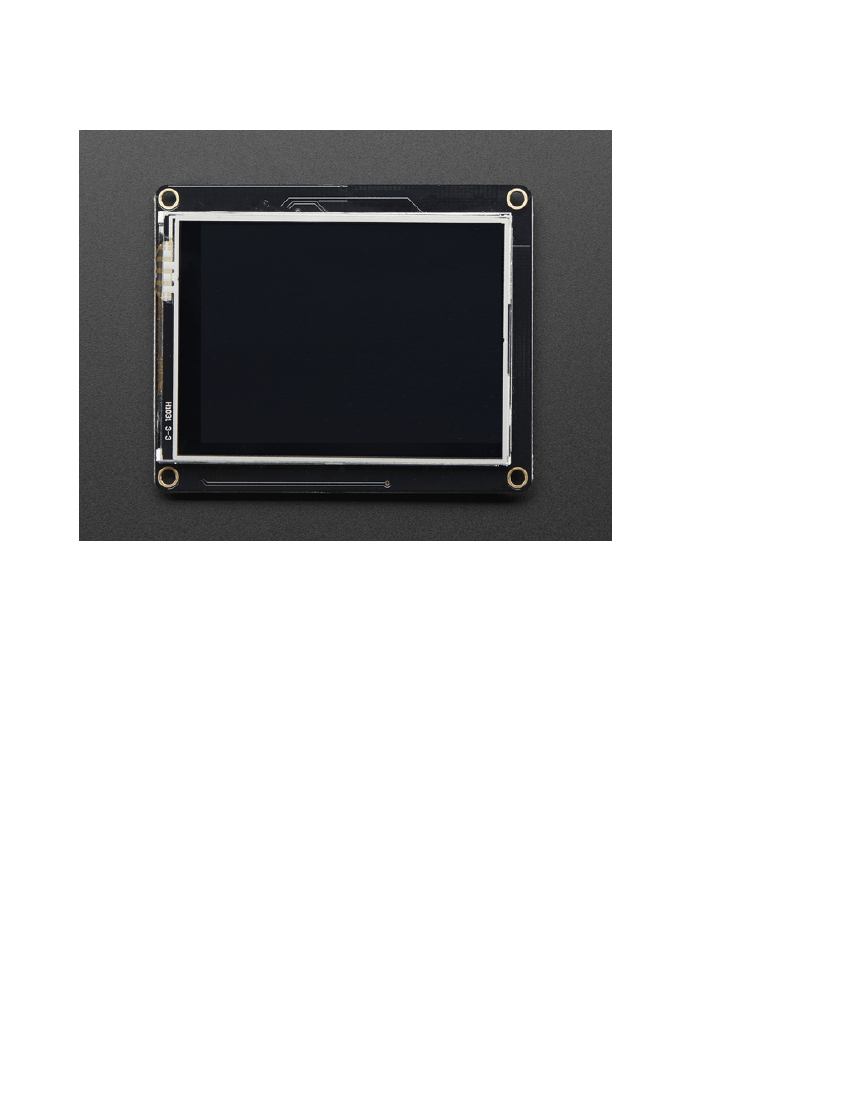

A Feather board without ambition is a Feather board without FeatherWings! Spice up your Feather project with a
beautiful 2.4" touchscreen display shield with built in microSD card socket. This TFT display is 2.4" diagonal with a
bright 4 white-LED backlight. You get 240x320 pixels with individual 16-bit color pixel control. It has way more
resolution than a black and white 128x64 display. As a bonus, this display comes with a resistive touchscreen attached
to it already, so you can detect finger presses anywhere on the screen.
© Adafruit Industries
https://learn.adafruit.com/adafruit-2-4-tft-touch-screen-featherwing
Page 3 of 24

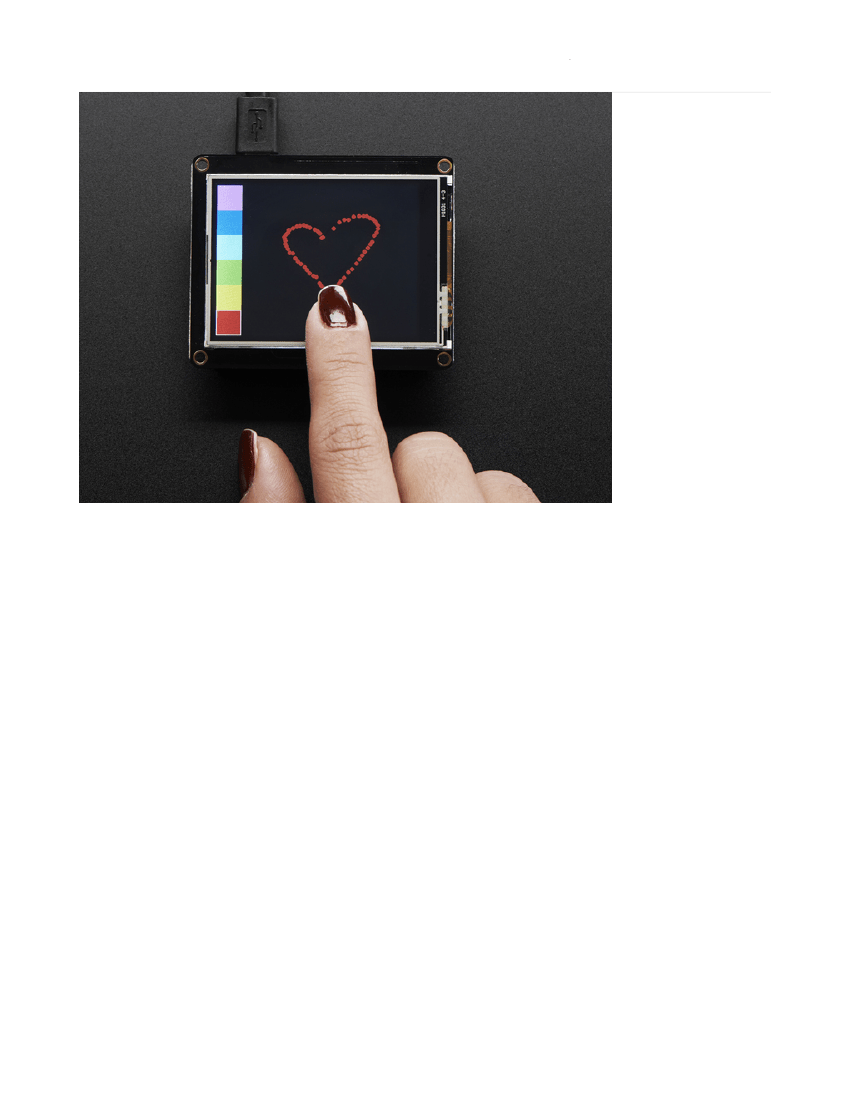

This FeatherWing uses a SPI display, touchscreen and SD card socket so it works nice and fast on all our Feathers
(including nRF52, ESP8266, 32u4, 328p, M0, M4, WICED
and
Teensy 3.x) We also include an SPI resistive
touchscreen controller so you only need one additional pin to add a high quality touchscreen controller. One more pin
is used for an optional SD card that can be used for storing images for display.
© Adafruit Industries
https://learn.adafruit.com/adafruit-2-4-tft-touch-screen-featherwing
Page 4 of 24

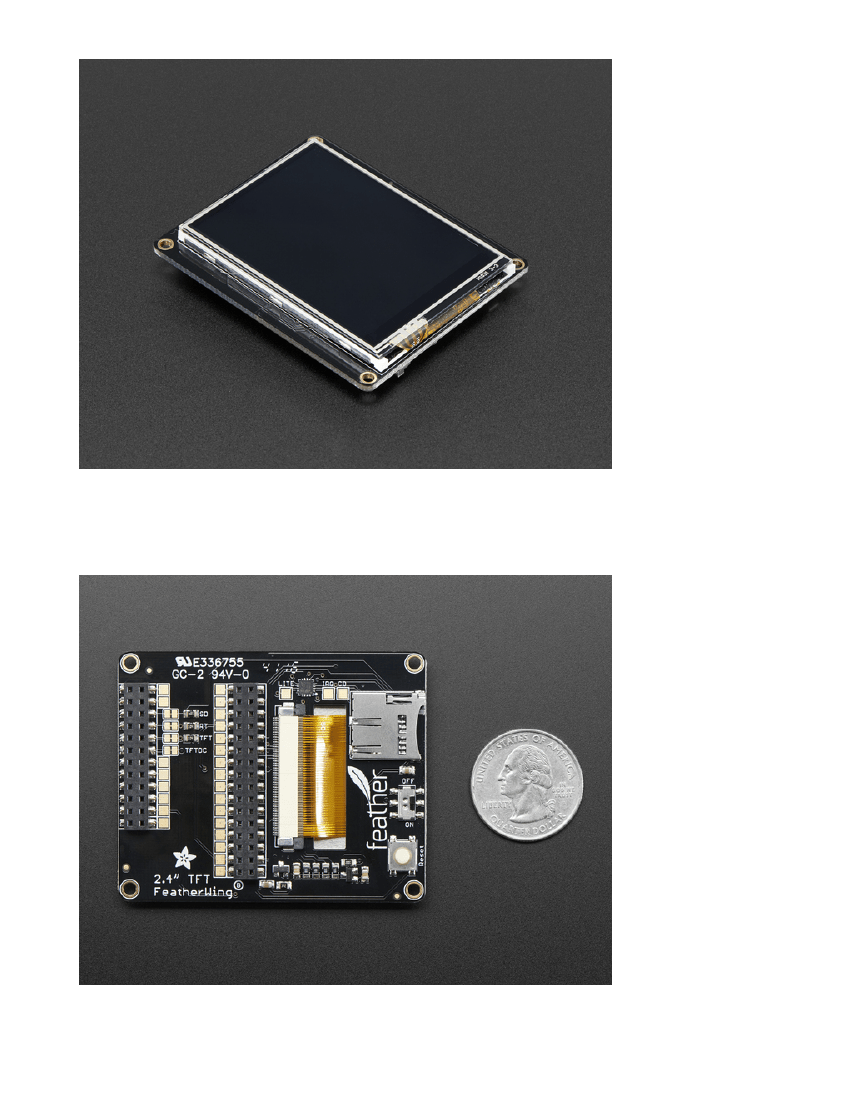

This Wing comes fully assembled with dual sockets for your Feather to plug into. You get two sockets per pin so you
can plug in wires if you want to connect to Feather pins. Alternatively, each pin has a large square pad on the PCB for
direct soldering.
Four mounting holes make it easy to attach this Wing anywhere. We also include a big reset button and an on/off
switch connected to the Feather Enable pin (note that the Teensy 3.x Feather does not use the Enable pin so the
switch will not do anything with that type).
© Adafruit Industries
https://learn.adafruit.com/adafruit-2-4-tft-touch-screen-featherwing
Page 5 of 24
