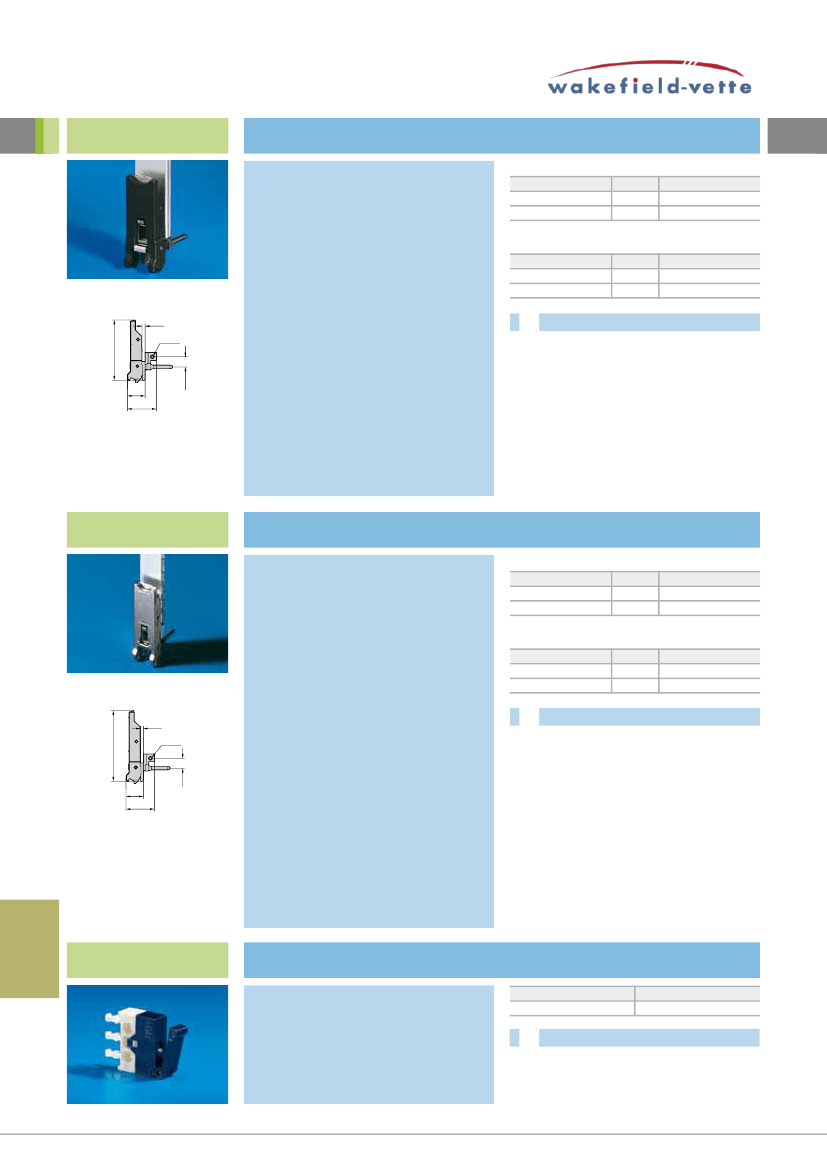

COMPONENTS / ACCESSORIES
Front panels, HanDles
injector/extractor handle type vii
plastic (telecom)
For inserting and removing connectors with a
large number of pins. This handle was specifically
designed for use in telecom applications.
•
Insertion/removal function
•
Optionally with ½ HP offset PCB attachment,
e. g. for component mounting on both sides
•
Minimum front space requirements, due to
foldup handle
Keyable
•
•
Optional integral micro-switch for “live insertion”
applications
•
ESD pin to dissipate static charges prior to
making contact with the connectors and for
precise positioning of the board type plug-in unit
•
Large labelling area on the front
material:
Plastic
supply includes:
Assembly parts.
note:
Insertion only when used with front horizontal
rails, with 10 mm extension (B, B1, B2),
see page 109-110
Handles without offset
Installation
top
bottom
Handles with ½ Hp offset
Installation
top
bottom
Packs of
1
1
order no.
3688.780
3688.781
Packs of
1
1
order no.
3688.784
3688.785
2.6
M2.5
+
accessories:
15
24.5
Keys,
see page 124
Keyable guide rails,
see page 120
Keyable guide rails with ½ HP offset,
see page 121
Micro-switches,
see page 141
Connector pin for baying,
see page 139
51
8.55
injector/extractor handle type vii
metal (telecom)
For inserting and removing PCBs with a high
connector pin-count (up to 815 N). This handle
was specifically designed for use in telecom
applications.
•
Insertion/removal function
•
Optionally with ½ HP offset PCB attachment,
e. g. for component mounting on both sides
•
Minimum front space requirements due to
foldup handle
•
Keyable
•
Optional integral micro-switch for “live insertion”
applications
•
ESD pin to dissipate static charges prior to
making contact with the connectors and for
precise positioning of the board type plug-in unit
•
Metal design for use in aggressive atmospheres
material:
Die-cast zinc
supply includes:
Assembly parts.
note:
Insertion only when used with front horizontal
rails, with 10 mm extension (B, B1, B2),
see page 109-110
Handles without offset
Installation
top
bottom
Handles with ½ Hp offset
Installation
top
bottom
Packs of
1
1
order no.
3688.786
3688.787
Packs of
1
1
order no.
3688.790
3688.791
2.6
61.3
M2.5
+
accessories:
15
24.5
Keys,
see page 124
Keyable guide rails,
see page 120
Keyable guide rails with ½ HP offset,
see page 121
Micro-switches,
see page 141
Connector pin for baying,
see page 139
8.5
micro-switch
For “live insertion” applications.
Installation in injector/extractor handles, types IV,
IVs and VII. May also be retrofitted.
technical specifications:
Switching load: 50 mA 30 V DC
Service life:
At nominal load: 30.000
mechanical: 50.000
Packs of
10
order no.
3684.410
+
also required:
Micro-switch mounting clip,
see page 141
140
