Part Number

Search

59-600-1M

Description
CBL ASSY BNC PLUG-PLUG RG59 50'
CategoryWire/cable
File Size64KB,2 Pages
ManufacturerCornell
Environmental Compliance
Download Datasheet Parametric View All

59-600-1M Overview

CBL ASSY BNC PLUG-PLUG RG59 50'

59-600-1M Parametric

Parameter NameAttribute value
gendermale to male
styleBNC to BNC
first connectorBNC male plug
Second connectorBNC male plug
length600.0"(15.2m) 50.0'
Cable typeRG-59
impedance75 Ohms
colorblack
characteristicshield
Operating temperature80°C

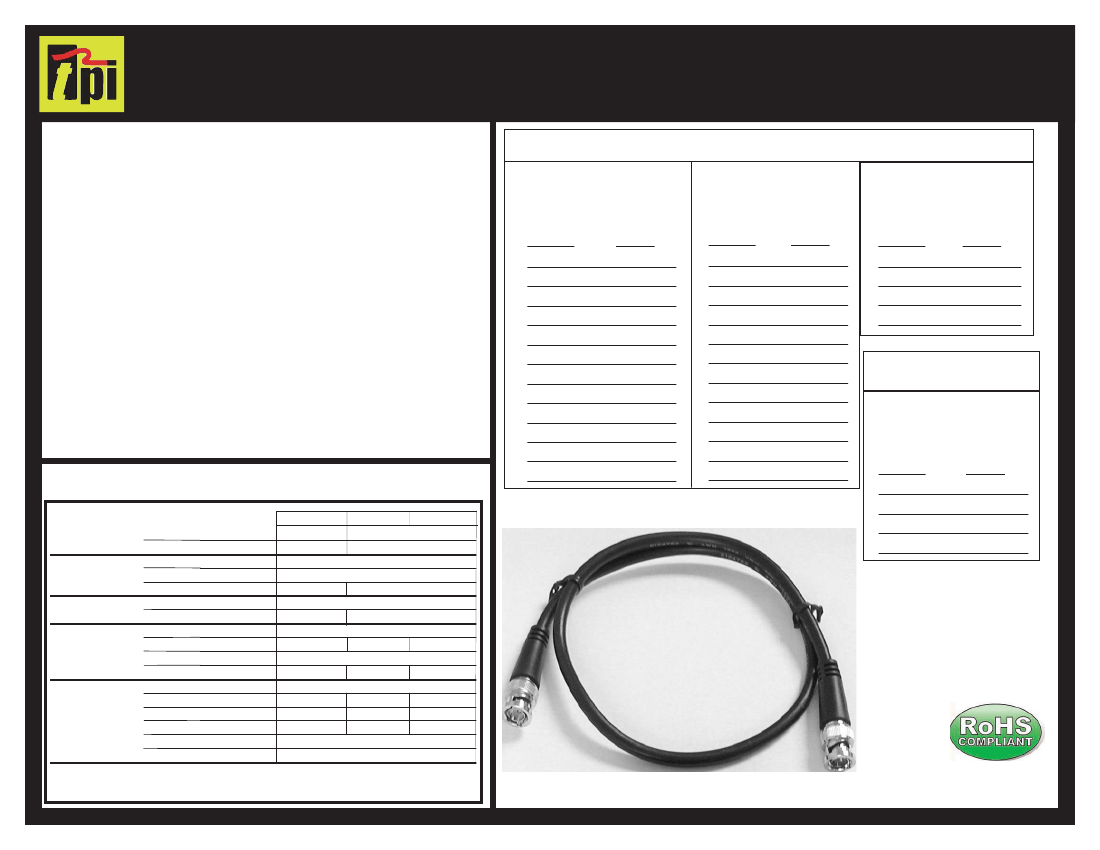

BNC to BNC COAX CABLE ASSEMBLIES
50 Ohm, 75 Ohm, 93 Ohm
Features
• UL Listed Cable: Ensures quality and consistency in the cable construction.
• Boot is molded to cable connector for added strength: Limits the amount of
bending the cable is exposed to at the connector to prevent cable breakage.
• Gold center pins: Ensures that there is a high quality connection maintaining
the best return loss in high definition applications.
• Machined Brass Connectors: Unlike die-cast connectors, machined brass
connectors have more precise tolerances, strength and positive mating mean-
ing low signal loss for precise video and data applications.
• 95% Shielding: Keeps unwanted RF interference from infiltrating your signal
giving you nice, clean output.
• 80º temperature rating: Applicable to any application found indoors.
• Lengths Available up to 100 ft.: Easily route cables into other rooms or
floors.
• Individually bagged
Molded BNC to BNC Cable Assemblies
RG58/U, BNC Male to Male
Instrumentation & Data
RG59/U, BNC Male to
MaleVideo & General
RG62/U, BNC Male to
MaleComputer & Lab
50 Ohm
Part No.
58-012-1M
58-024-1M
58-036-1M
58-048-1M
58-060-1M
58-072-1M
58-120-1M
58-180-1M
58-300-1M
58-600-1M
58-900-1M
58-1200-1M
Length
12 inch
24 inch
36 inch
48 inch
60 inch
72 inch
10 feet
15 feet
25 feet
50 feet
75 feet
100 feet
75 Ohm
Part No.
59-012-1M
59-024-1M
59-036-1M
59-048-1M
59-060-1M
59-072-1M
59-120-1M
59-180-1M
59-300-1M
59-600-1M
59-900-1M
59-1200-1M
Length
12 inch
24 inch
36 inch
48 inch
60 inch
72 inch
10 feet
15 feet
25 feet
50 feet
75 feet
100 feet
93 Ohm
Part No.
62-024-1M
62-036-1M
62-048-1M
62-060-1M
Length
24 inch
36 inch
48 inch
60 inch
Assembled BNC to
BNC Cable Assemblies
RG58/U, BNC Male to Male
Instrumentation & Data
50 Ohm
Part No.
58-024-1A
58-036-1A
58-048-1A
58-060-1A
Length
24 inch
36 inch
48 inch
60 inch
Specifications
Conductor
Insulation
RG58
RG59
RG62
Material
Bare Copper
Copper Clad Steel
No./mm
1/0.813
1/0.643
Material
Low Density Polyethylene
Color
Natural
Diameter (mm)
2.95
3.71
Material
Bare Copper
No./mm
16/7/0.12
16/7/0.12
Material
Polyvinyl Chloride (PVC)
Thickness (mm)
0.72
0.9
1
Color
Black
Outer Diameter (mm)
4.95 ±0.15
6.0 ±0.15
6.15 ±0.15
Tensile Strength
1,500 psi
Nominal Impedance (Ohm)
53.5
73
93
Nominal Capacitance (pF/m)
93.5
68.9
44.3
Attenuation 100MHz (db/km)
138
125
102
Voltage Rating
30V
UL Standard
1354
12 to 36 inch cables = +/- 1 inch
Cables above 36 inches = +/- 1.5 inches
Braided Shielding
Jacket
General
Cable Length Tolerance:
Copyright © 2010 Test Products International, Inc.
