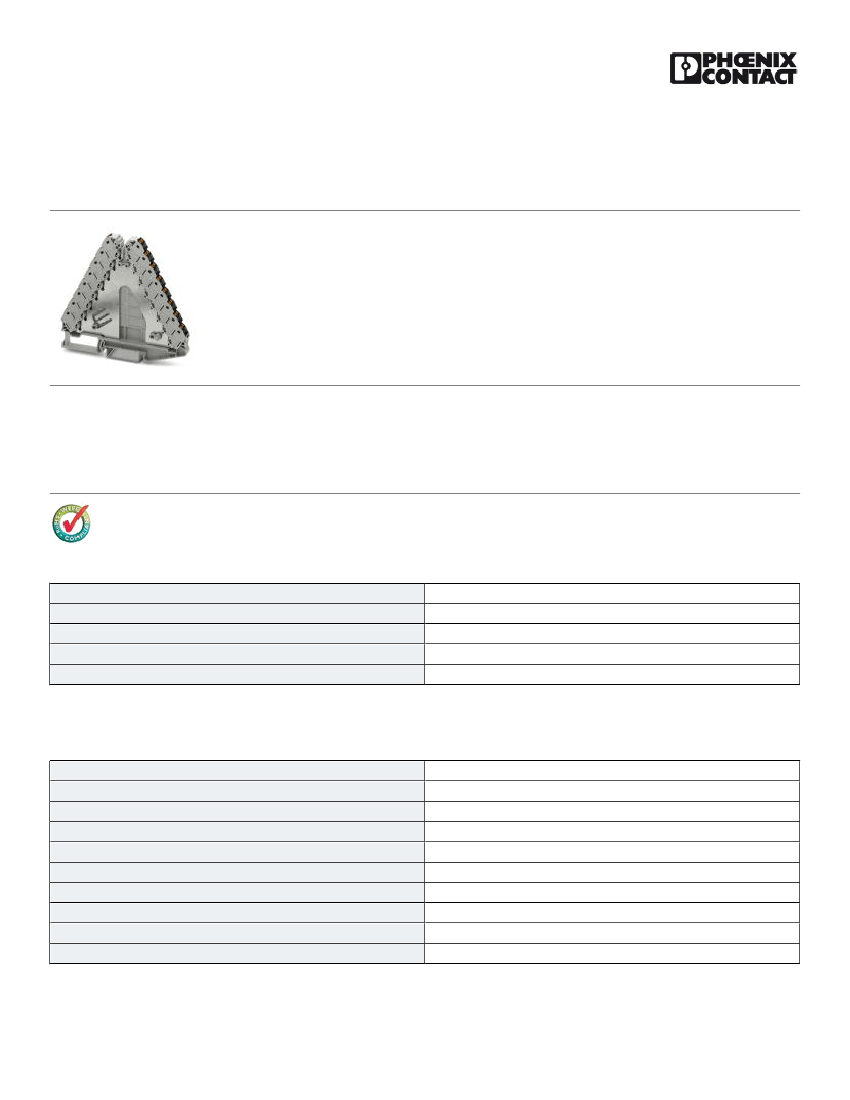

Potential distributors - PTRVB 8-PV - 3270159
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Potential distributors, Nom. voltage: 250 V, Nominal current: 17.5 A, Cross section: 0.14 mm² - 2.5 mm²,
AWG: 14 - 26, Connection type: Push-in connection, Width: 8.3 mm, Length: 100 mm, Color: gray, Assembly: NS
35/7,5, NS 35/15
Product Features
■
■
■
Bridgeable potential distributor
High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.
Tool-free wiring in a confined space thanks to compact size
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
10 pc
56.0 g
85369010
Poland
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Overvoltage category
Insulating material group
Connection in acc. with standard
8
32
1.5 mm²
gray
PA
V0
4 kV
III
I
IEC 60947-7-1
03/11/2016 Page 1 / 4
https://www.phoenixcontact.com/us/products/3270159
Potential distributors - PTRVB 8-PV - 3270159
Technical data
General
Maximum load current
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x conductor
connection)
Result of bending test
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
32 A (The total current of the terminal block must not exceed 32 A)
17.5 A (with 1.5 mm² conductor cross section)
250 V
Yes
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
guaranteed
Test passed
4.8 kV
Test passed
1.5 kV
Test passed
Test passed
10 rpm
135
0.14 mm² / 0.2 kg
1.5 mm² / 0.4 kg
2.5 mm² / 0.7 kg
Tensile test result
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Conductor cross section short circuit testing
Short-time current
Test passed
0.14 mm²
10 N
1.5 mm²
40 N
2.5 mm²
50 N
Test passed
NS 35
1N
Test passed
≤ 6,4 mV
Test passed
Test passed
1.5 mm²
0.18 kA
2.5 mm²
0.3 kA
03/11/2016 Page 2 / 4
https://www.phoenixcontact.com/us/products/3270159
Potential distributors - PTRVB 8-PV - 3270159
Technical data
General
Result of aging test
Ageing test for screwless modular terminal block temperature cycles
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Relative insulation material temperature index (Elec., UL 746 B)
Static insulating material application in cold
Test passed
192
Test passed
30 s
130 °C
-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) 125 °C
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
8.3 mm
100 mm
87.5 mm
95 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Stripping length
Push-in connection
IEC 60947-7-1
0.14 mm²
2.5 mm²
26
14
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
8 mm ... 10 mm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
IEC 60947-7-1
V0
Classifications
eCl@ss
eCl@ss 5.1
27141120
03/11/2016 Page 3 / 4
https://www.phoenixcontact.com/us/products/3270159
Potential distributors - PTRVB 8-PV - 3270159
Classifications
eCl@ss
eCl@ss 6.0
eCl@ss 8.0
eCl@ss 9.0
27141120
27141120
27141120
ETIM
ETIM 4.0
ETIM 5.0
EC000897
EC000897
Drawings
Circuit diagram
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
03/11/2016 Page 4 / 4
