HS45 Incremental Optical Encoder
Mechanical Specifications
Shaft Bore:
1.750” max
Allowable Misalignment:
Axial: ±0.030 (with R2),
±0.050 (with R1), Radial: 0.005 T.I.R.
Bore Runout:
0.002” T.I.R.
Running Torque at 25° C:
Dual seals (SS) = 30 in-oz (max); Single
seal (BS) = 18 in-oz (max)
Bearings:
52100 dual preloaded bearings
Shaft Material:
Stainless Steel
Bearing Housing:
Die cast aluminum with protective finish
Cover:
Die cast aluminum with protective finish
Bearing Life:
5 X 10
12
revs
Maximum RPM:
5,000 RPM (see Frequency Response, below)
Moment of Inertia:
0.063 oz-in-sec
2
max
Weight:
Approximately 2.3 lbs single output, 2.6 lbs dual output
Electrical Specifications
The HS45 is a large bore, heavy duty, rugged
encoder designed to operate in very demanding
environments. It is available in both single and dual
output versions as shown. These encoders use a
preloaded bearing set for mechanical stability and a
long service life.
The dual output version has redundant electronics
internal to the encoder simplifying signal distribution
to multiple controllers.

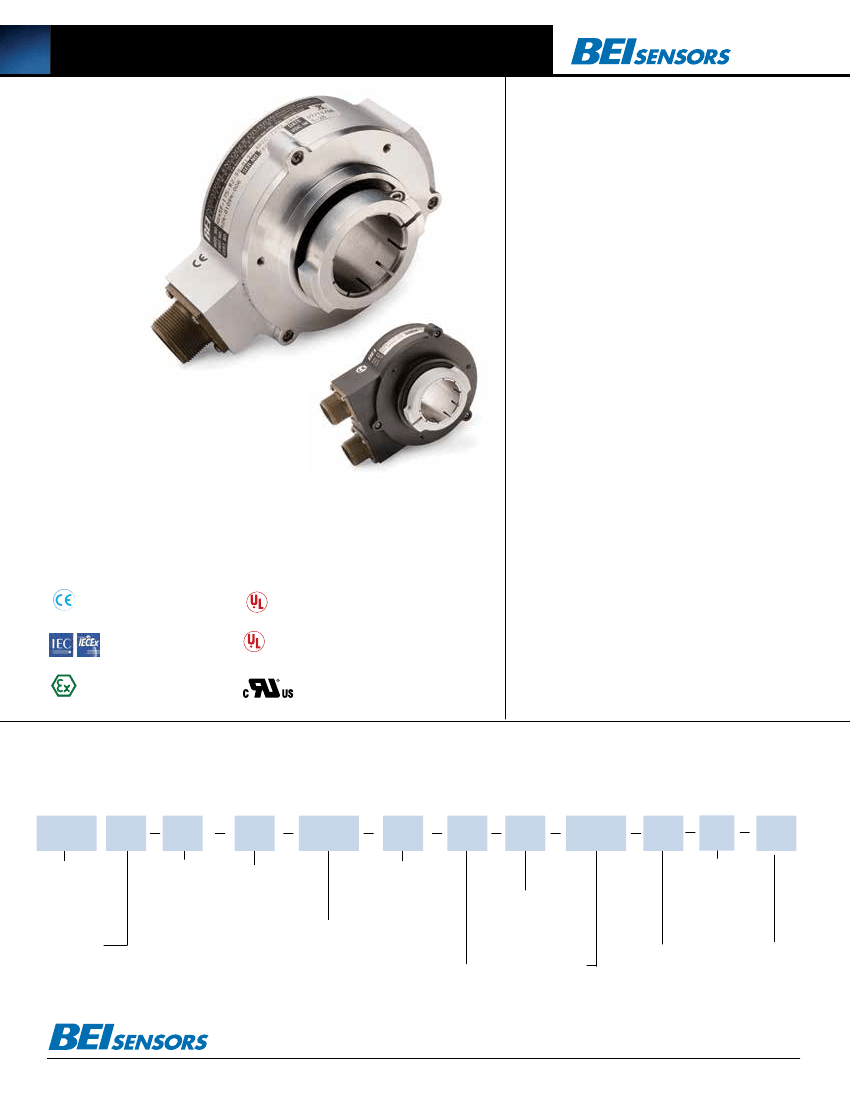

The HS45 Dual Output Encoder
Special Models of the HS45 Incremental Encoder are available with one or more of the
following certifications. Consult factory for details.
EN 55011
and EN 61000-6-2
UL 12.0035X
UL 13.0071X
CENELEC
II 1 G Ex ia IIB/IIC T4 Ga
II 3 G Ex nA IIB T3 Gc
C
Code:
Incremental
Output Format:
Incremental output format, 2 channels with comple-
ments, in quadrature, 1/2 cycle index gated with negative B channel
Cycles per Shaft Turn:
Up to 8192
Supply Voltage:
5–28 VDC ( ± 5%)
Current Requirements:
100 mA (typical) per side
+ output load, 250 mA (max)
Voltage/Output:
(see note 5)
28V/V: Line Driver, 5–28 VDC in,Vout = Vin
28V/5: Line Driver, 5–28 VDC in, Vout = 5 VDC
28V/OC: Open Collector, 5–28 VDC in, OCout
Protection Level:
Reverse, overvoltage and output short circuit (see note 5)
Frequency Response:
150kHz
Output Terminations:
see Table 1
Environmental Specifications
U.S. Standards Class I, Group A,B,C & D;
Class II Group E, F & G
Canadian Standards
Class I, Zone 0, Group IIC
Class I, Div 2, Group A,B,C & D;
Class II, Div 2, Group F & G
Enclosure Rating:
IP65 (NEMA 4 & 13)
Temperature:
Operating 0º to 70ºC standard, -40º to 85º C optional,
storage -40 to 90° C
Shock:
50 g’s for 11 msec
Vibration:
10–2000 Hz @ 20 g’s
Humidity:
98% RH non-condensing
NOTES & TABLES:
All notes and tables referred to in the text can be
found on the back page.
HS45 Incremental Ordering Options
HS45
TYPE:
Hollow Shaft
45 = 4.5”
Encoder
Diameter
HOuSING
CONFIG:
F = Standard
FoR ASSiSTANCe CAll
800-350-2727
Use this diagram, working from left to right to construct your model number (example:
HS45F-175-R2-SS-8192-ABZC-28V/V-SM18).
All notes and tables referred to can be found on the back of this page.
CYCLES PER TuRN:
BORE SIzE:
TETHER:
60, 500, 720, 1000,
30mm = 1.18” Blank = None
1024, 2000, 2048,
175 = 1.750”
R1 = Tether Block
VOLTAGE/OuTPuT:
2500, 4096, 8192
162 = 1.625”
and Pin
28V/V = 5–28Vin/out
125 = 1.250”
R2 = Tether Arm
SHAFT SEAL
28V/5 = 5–28Vin/5Vout
150 = 1.50”
28V/OC = 5–28Vin/OCout
CONFIGuRATION:
Bores <1.750”
SS =Through Shaft Rubber Seals
are insulated
BS = Blind Shaft Rubber Seal
TERMINATION:
Consult factory for
CHANNELS:
FS = Through Shaft Felt Seals
S = Single Termination
more bore sizes
ABZC
BFS = Blind Shaft Felt Seal
D = Dual Termination
See Note 2
Tel: 805-968-0782 /800-350-2727 | Fax: 805-968-3154 / 800-960-2726
7230 Hollister Ave., Goleta, CA 93117-2807 |
www.beisensors.com
HAzARDOuS
AREA RATINGS:
Blank = None
EX = Intrinsically Safe
NI = Non-Incendive
Contact factory for
voltage options
SPECIAL
CONNECTOR:
FEATuRES:
M18 = 10 PIN connector
S = Special
features specified
on purchase order
(consult factory)
See note 6
Specification No. 02095-001 Rev.12-13
These commodities, technology or software if exported from the United States must be in accordance with the Bureau of Industry, and Security, Export Administration regulations. Diversion contrary to U.S law is prohibited.
HS45 Incremental Optical Encoder
0. [ 4]
84 21.
M S3102R 18-
1P
C O N N EC TO R
0. [ 9]
98 24.
( #10-
3)
32U N F-
2Bx0. [ 6]
25 9.
M I .TH R EAD D EPTH
N
O N Ø 4. B. .
00 C

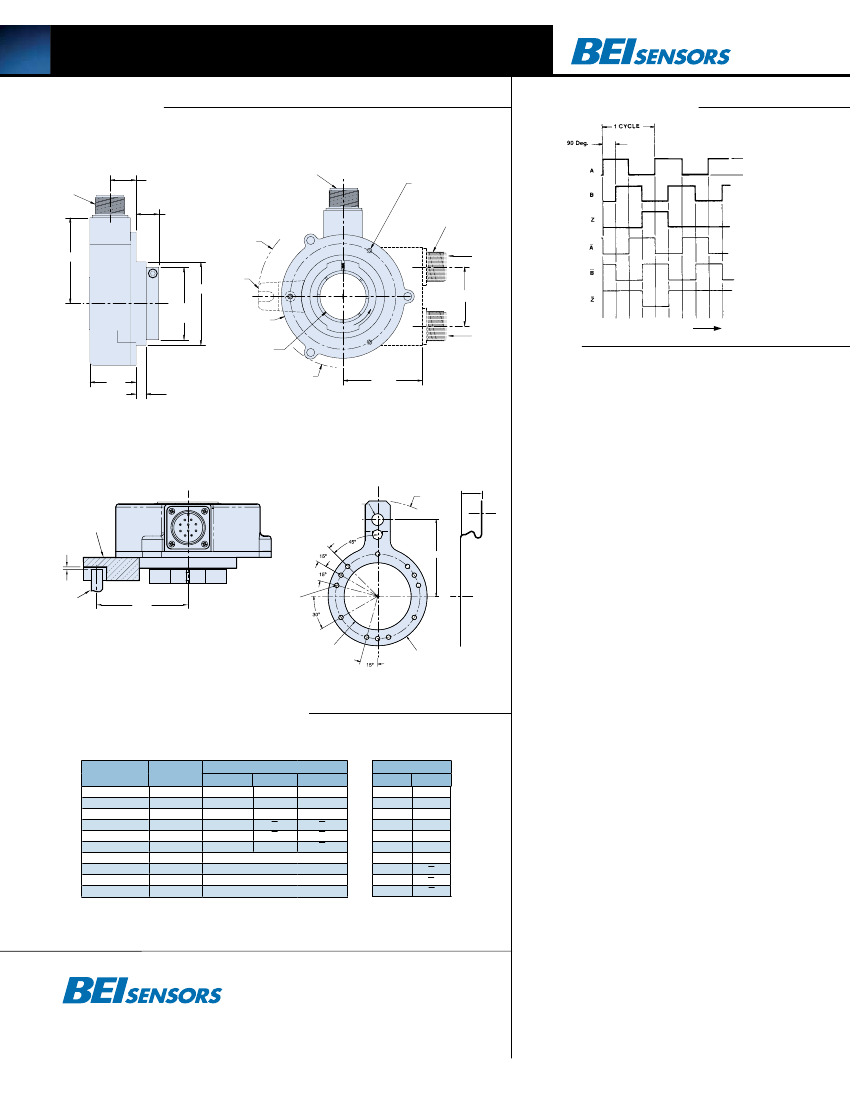

Dimensions
