Semiconductor
SM1316-D
Chip LED
Features
•
•
•
•
1.6mm(L)×0.8mm(W) small size surface mount type
Thin package of 0.55mm(H) thickness
Transparent clear lens optic
Low power consumption type chip led
Applications
•
•
•
•
LCD backlighting
Keypad backlighting
Symbol backlighting
Front panel indicator lamp

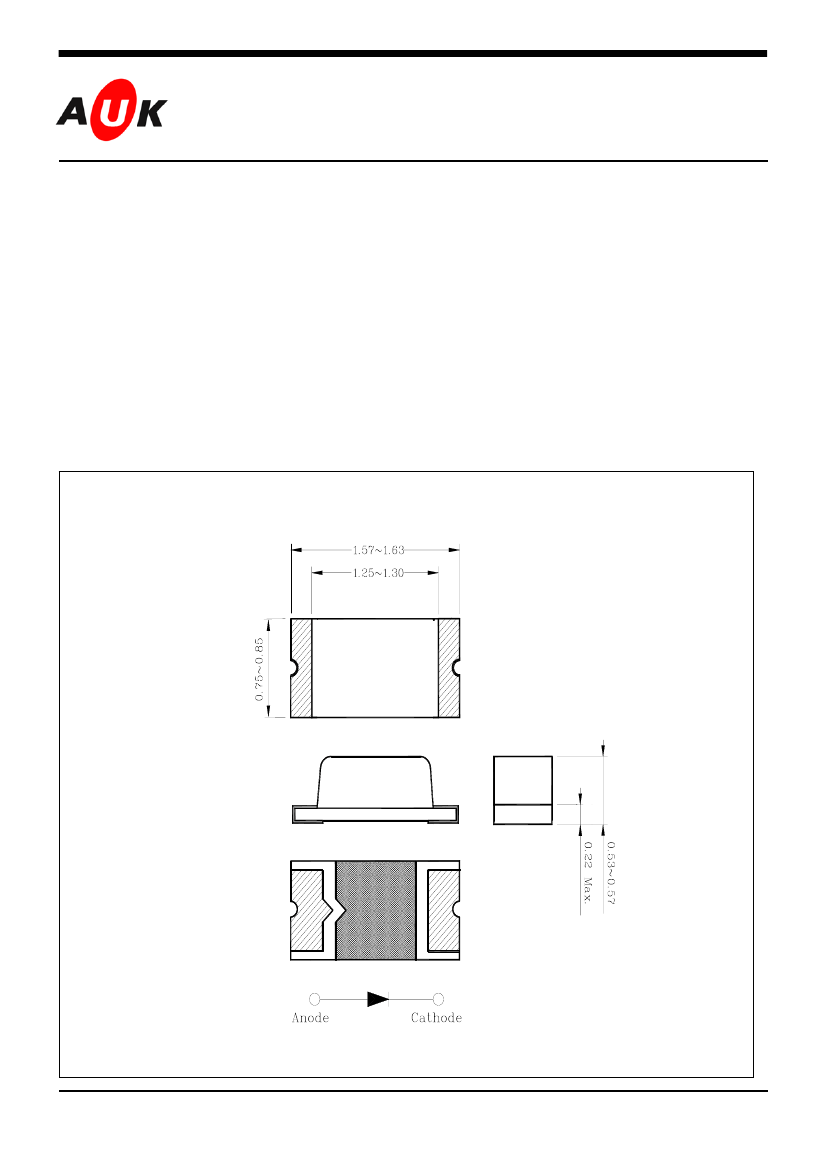

Outline Dimensions
unit :
mm
KSD-O8G022-001
1
SM1316-D
Absolute Maximum Ratings
Characteristic
Power dissipation
Forward current
*
1
Peak forward current
Reverse voltage
Operating temperature range
Storage temperature range
(Ta=25
o
C)
Symbol
P
D
I
F
I
FP
V
R
T
opr
T
stg
Rating
58
25
50
4
-25
∼
80
-30
∼
100
Unit
mW
mA
mA
V
℃
℃
*
2
Soldering temperature
T
sol
240
℃
for 10 seconds
*1.Duty ratio = 1/16, Pulse width = 0.1ms
*2. Recommended reflow soldering temperature profile
- Preheating 150℃ to 185℃ within 120 seconds soldering 240℃ within 10 seconds
Gradual cooling (Avoid quenching)
Temp (℃)
240
Peak Temp max. 240℃
Preheating area
150~185℃, 90±30sec
185
150
max. 3℃/sec
max. 4℃/sec
Time from 25℃ to Peak Temperature max. 6min
0
60
150
180
240
Time (sec)
max. -6℃/sec
max. 10sec
Solder area
220℃, max. 60sec
25
Electrical / Optical Characteristics
Characteristic
Forward voltage
*
3
Luminous intensity
Peak wavelength
Spectrum bandwidth
Reverse current
*
4
Half angle
θ1/2
(Ta=25
o
C)
Symbol
V
F
I
V
Test Condition
I
F
= 10mA
I
F
= 10mA
I
F
= 10mA
I
F
= 10mA
V
R
=4V
Min
1.8
6
569
-
-
-
-
Typ
-
-
573
30
-
±65
±70
Max
2.3
27
578
-
10
-
-
Unit
V
mcd
nm
nm
uA
deg
λ
P
∆
λ
I
R
X
Y
I
F
= 10mA
KSD-O8G022-001
2
SM1316-D
*3. Luminous intensity maximum tolerance for each grade classification limit is
±18%
(The test result of I
F
=10mA is only for reference)
*4.
θ
1/2
is the off-axis angle where the luminous intensity is
1/2
the peak intensity
V
F
/ I
V
/
λ
P
Grade Classification (Ta=25℃)
Test Condition @ I
F
=10mA
Forward Voltage [V]
Luminous Intensity [mcd]
F : 6~10
G : 10~17
2 : 2.0~2.3
H : 17~27
Peak Wavelength [nm]
a : 569~572
b : 572~575
c : 575~578
1 : 1.8~2.0
(Do not use to combine grade classification. It must be used separately grade classification)
KSD-O8G022-001
3
SM1316-D

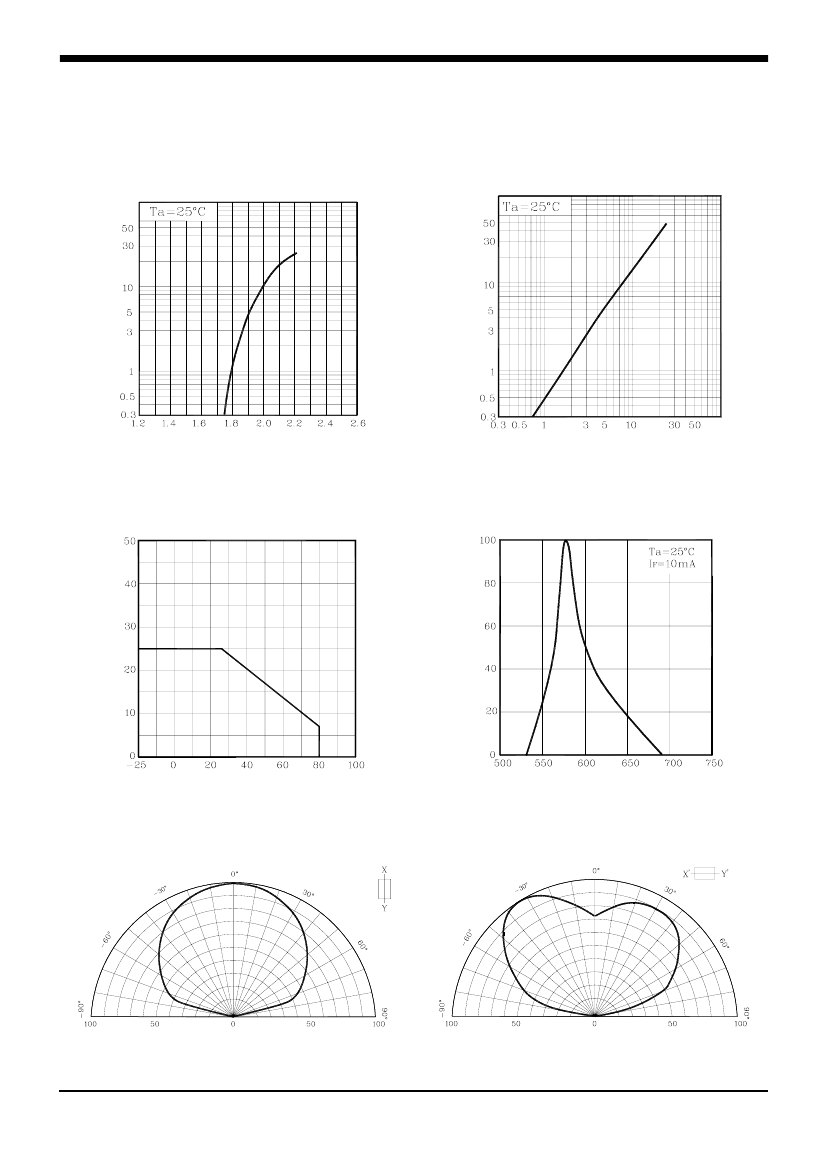

Characteristic Diagrams
Fig. 1 I
F
- V
F
Fig. 2 I
V
- I
F
Luminous Intensity I
v
[mcd]
Forward Current I
F
[mA]
Forward Voltage V
F
[V]
Forward Current I
F
[mA]
Fig. 3 I
F
– Ta
Fig.4 Spectrum Distribution
Current I
F
[mA]
Forward
Ambient Temperature Ta [
℃
]
Relative Intensity [%]
Wavelength
λ
[nm]
Fig. 5-1 Radiation Diagram(X)
Fig. 5-2 Radiation Diagram(Y)
Relative Luminous Intensity Iv [%]
Relative Luminous Intensity Iv [%]
KSD-O8G022-001
4
SM1316-D
The AUK Corp. products are intended for the use as components in general electronic
equipment (Office and communication equipment, measuring equipment, home
appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products
in equipments which require high quality and / or reliability, and in equipments which
could have major impact to the welfare of human life(atomic energy control, airplane,
spaceship, transportation, combustion control, all types of safety device, etc.). AUK
Corp. cannot accept liability to any damage which may occur in case these AUK Corp.
products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-O8G022-001
5
