Technical Data Sheet
7-16
Mismatch
Jack
60K150-075D3
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG

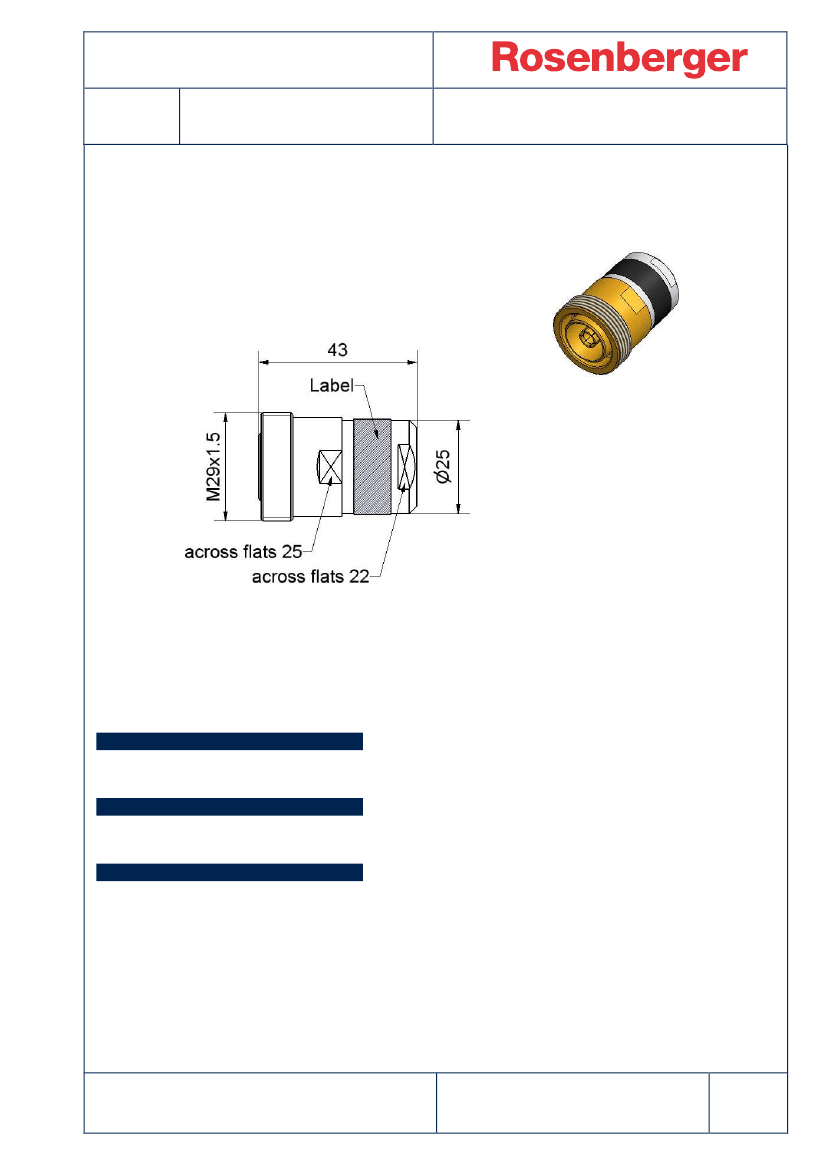

All dimensions are in mm; tolerances according to ISO 2768 m-H
Interface
According to
IEC 61169-4, EN 122190, DIN 47223
Documents
Application note
AN001 “Calibration Services”
Material and plating
Connector parts
Center contact
Outer contact
Body
Dielectric
Substrate
Material
Plating
Beryllium copper Gold, min. 1.27 µm, over nickel
Brass
Gold, min. 1.27 µm, over nickel
Brass
Flash white bronze over silver(e.g. Optargen®)
PPE
Al
2
O
3
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
1/2
Technical Data Sheet
7-16
Mismatch
Jack
60K150-075D3
Electrical data
Frequency
Return loss
DC Resistance
Dieses Dokument ist urheberrechtlich geschützt
●
This document is protected by copyright
●
Rosenberger Hochfrequenztechnik GmbH & Co. KG
DC to 8 GHz
≥
1.5 ± 0.04, DC to 4 GHz
≥
1.5 ± 0.06, 4 GHz to 8 GHz
75
Ω ±
0.375
Ω
≤
1.0 W, derated linearity by 0.01 W/K
Power handling
(at 25 °C, sea level)
Mechanical data
Mating cycles
Maximum torque
Recommended torque
Gauge
≥
500
35 Nm
2.26 Nm
1.78 mm to 1.82 mm
Environmental data
Operating temperature range
1
Rated temperature range of use
2
Storage temperature range
RoHS
1
Temperature
2
This
+ 20 °C to +26 °C
0 °C to +50 °C
- 40 °C to +85 °C
compliant
range over which these specification are valid.
range is underneath and above the operating temperature range, within the mismatch is fully functional
and could be used without damage.
Declaration of calibration options
Factory Calibration
Standard delivery for this calibration standard includes a Factory Calibration. The Calibration Certificate
issued reports individual calibration results, traceable to national / international standards.
Accredited Calibration
Optional this calibration standard can be delivered with an Accredited Calibration (DAkkS) having the highest
confidence in the traceability. The DAkkS Calibration Certificate issued reports individual calibration results
in a complex format, traceable to national / international standards. The uncertainties are smaller than in a
Factory Calibration.
For further, more detailed information see application note AN001 on the Rosenberger homepage.
Calibration interval
Recommendation
12 months
Packing
Standard
Weight
1 pce in bag
150 g/pce
While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on our
part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our products,
we reserve the right to make changes judged to be necessary.
Draft
Marcel Panicke
Date
21.03.11
Approved
Markus Müller
Date
20.07.18
Rev.
d00
Engineering change number
18-1027
Name
Marion Striegler
Date
20.07.18
RF_35/09.14/6.2
Rosenberger Hochfrequenztechnik GmbH & Co. KG
P.O.Box 1260
D-84526 Tittmoning
Germany
www.rosenberger.de
Tel. : +49 8684 18-0
Email : info@rosenberger.de
Page
2/2
