CDMPIH60D48/T125NP-6R2PC datasheet, PDF

Datasheet> All Categories > inductor> Fixed inductance> CDMPIH60D48/T125NP-6R2PC

CDMPIH60D48/T125NP-6R2PC: Description1 ELEMENT, 6.2uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT; Categoryinductor Fixed inductance; File Size175KB，3 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDMPIH60D48/T125NP-6R2PC Overview

1 ELEMENT, 6.2uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT

CDMPIH60D48/T125NP-6R2PC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknown
Is Samacsys	N
DC Resistance	0.041 Ω
Nominal inductance(L)	6.2 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDMPIH60D48/T125
Number of functions	1
Number of terminals	2
Maximum rated current	3.2 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	25%
Base Number Matches	1

Preview

Download Datasheet

View All

SMD Power Inductor

CDMPIH60D48/T125

Description

• Ferrite core construction.

• Magnetically shielded.

• Lower flux leakage.

• L W H: 6.6 6.2 x5.0 mm Max.

• Product weight: 0.68g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

• Halogen Free available.

Environmental Data

• Operating temperature range: -40 ~+125

(including coil’s self temperature rise)

• Storage temperature range: -40

+105

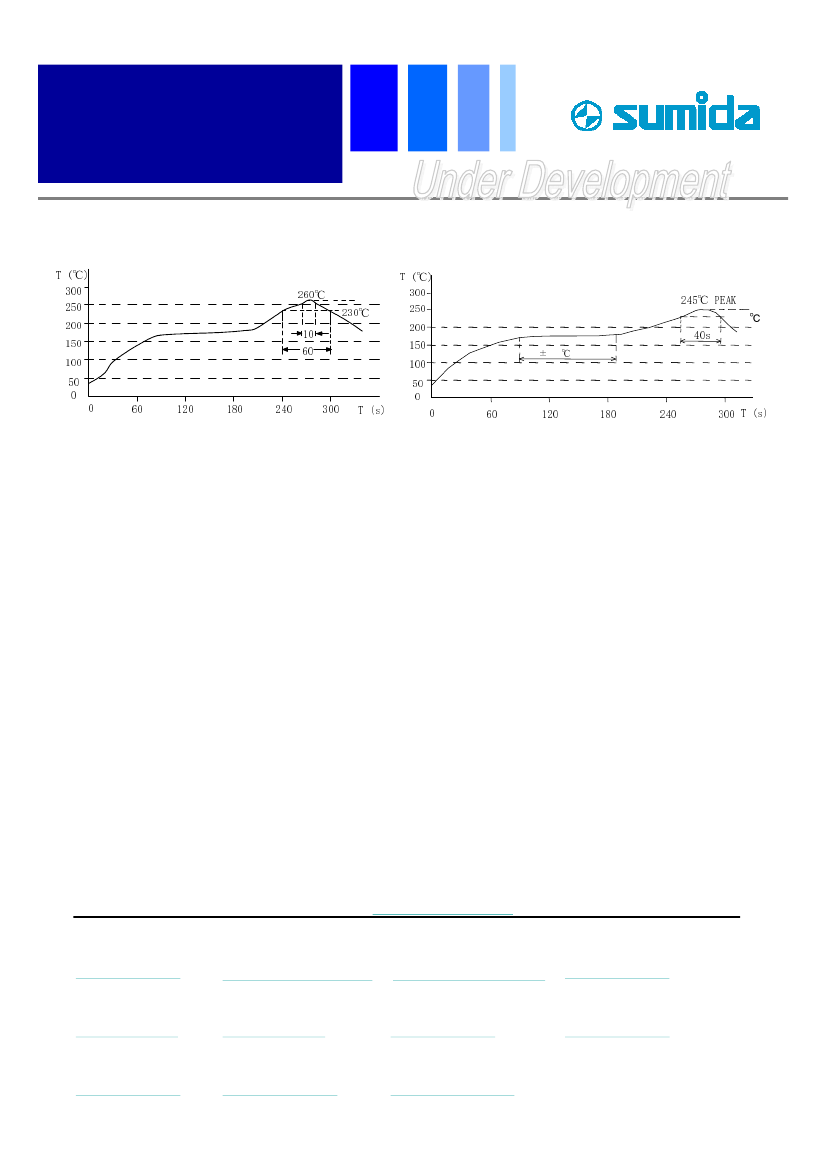

• Solder reflow temperature: 260

peak.

Packaging

• Carrier tape and reel packaging

Land pattern - [mm]

1.8

RoHS

Halogen

Free

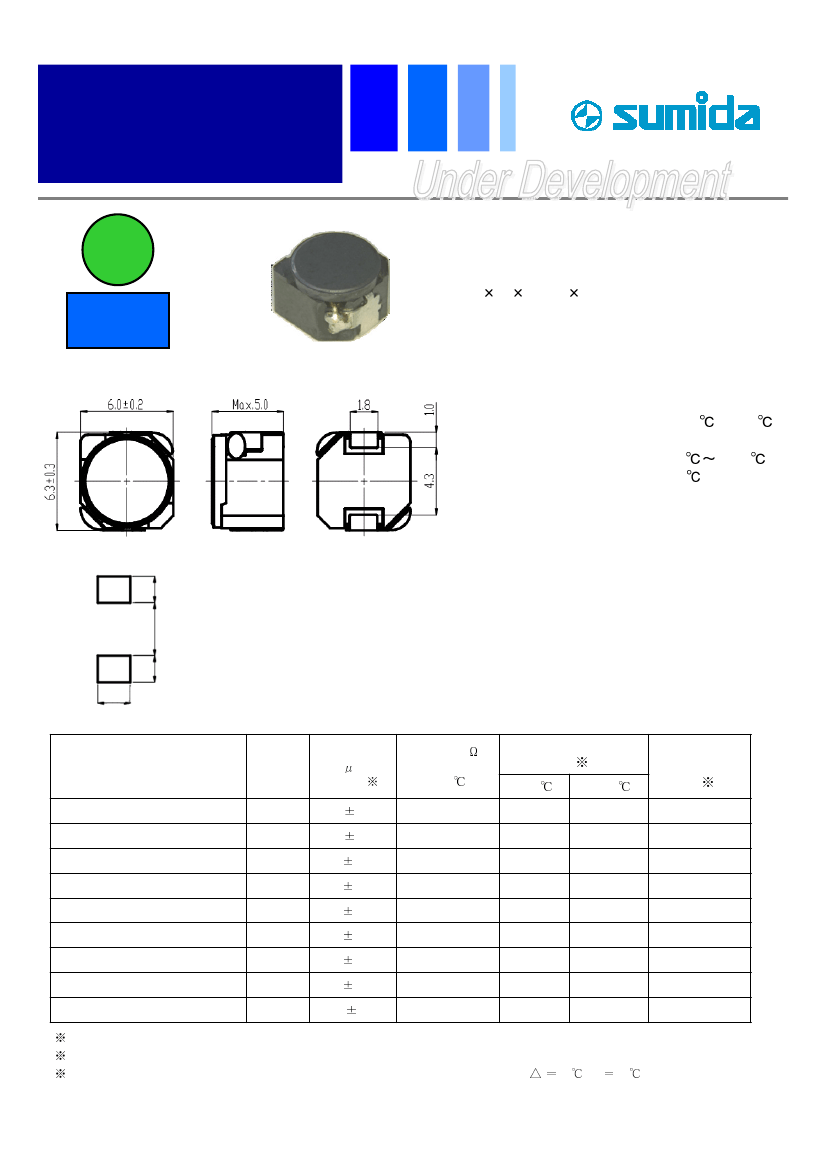

Dimension - [mm]

Applications

• Ideally used in Car navigation, automobile’s

MPV equipment and D-Amp etc.

2.2

Electrical Characteristics

1.8

3.6

CDMPIH60D48T125NP-6R2PC

CDMPIH60D48T125NP-100MC

CDMPIH60D48T125NP-150MC

CDMPIH60D48T125NP-220MC

CDMPIH60D48T125NP-330MC

CDMPIH60D48T125NP-470MC

CDMPIH60D48T125NP-680MC

CDMPIH60D48T125NP-101MC

6R2

100

150

220

330

470

680

101

6.2

100

1.Inductance m

easuring condition :at 100kHz

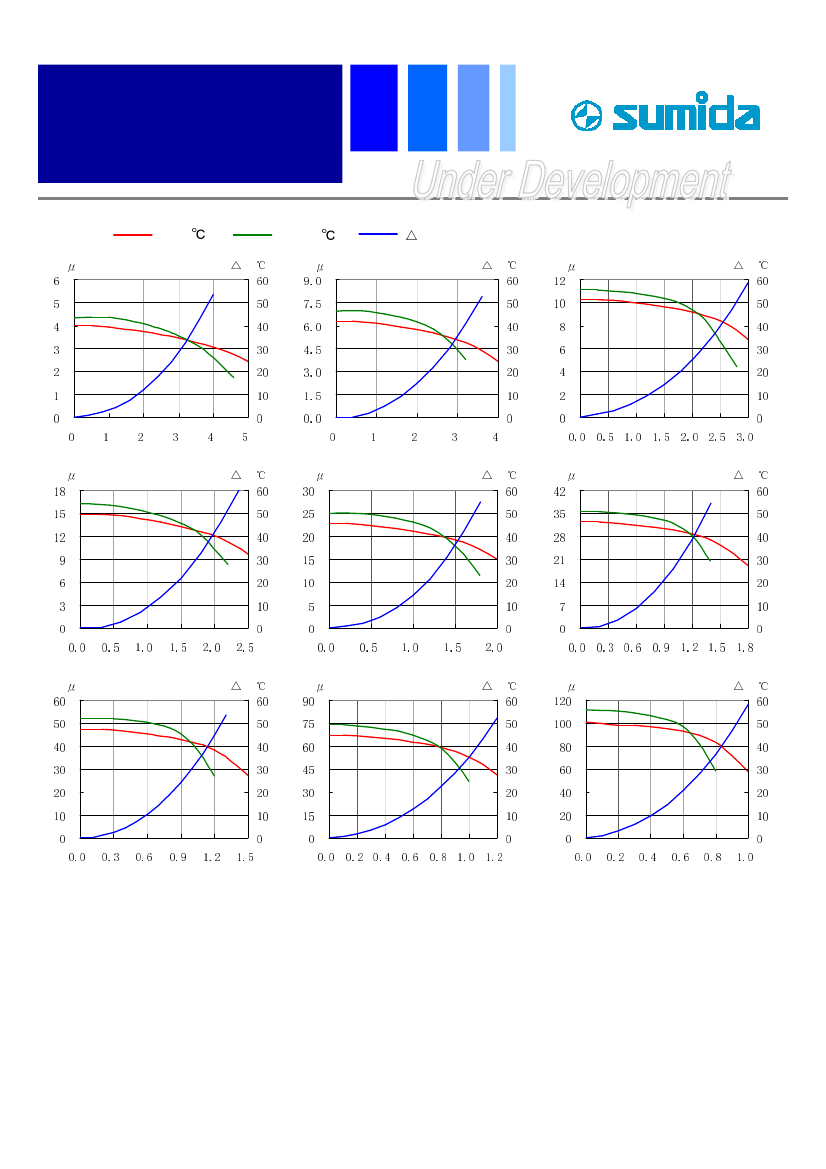

2. Saturation current: The value of D.C. current when the inductance decreases to 65% of it’s nominal value.

3. Temperature rise current: The value of D.C. current when the temperature rise is t 40 (Ta 20 ).

Page 1 of 3

℃ ＝ ℃ ＝△

CDMPIH60D48T125NP-3R9PC

3R9

3.9

25%

33( 27)

41( 33)

58( 46)

89( 71)

140(112)

208(166)

255(204)

302(242)

460(368)

4.1

3.2

2.5

2.1

1.7

1.4

3.4

2.6

2.1

1.7

1.4

1.1

20%

25%

1.20

0.95

0.80

0.95

0.80

0.65

Revised: 19-Dec-13

℃

(at20

)

(at125

)

3.5

3.2

2.5

1.9

1.5

1.2

1.15

1.05

0.85

※

℃

※

Part No.

Stamp

※

Inductance

( H)

[Within] 1

D.C.R. (m )

[Max] (Typ.)

(at20 )

Saturation Current

(A)

Temperature

Rise Current

(A)

℃

½℃

℃

× ×

※

CDMPIH60D48/T125NP-6R2PC Related Products

	CDMPIH60D48/T125NP-6R2PC	CDMPIH60D48/T125NP-3R9PC	CDMPIH60D48/T125NP-680MC	CDMPIH60D48/T125NP-470MC	CDMPIH60D48/T125NP-330MC	CDMPIH60D48/T125NP-220MC	CDMPIH60D48/T125NP-150MC	CDMPIH60D48/T125NP-101MC	CDMPIH60D48/T125NP-100MC
Description	1 ELEMENT, 6.2uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 3.9uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 68uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 47uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 33uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 22uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 15uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 100uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT	1 ELEMENT, 10uH, GENERAL PURPOSE INDUCTOR, SMD, HALOGEN FREE AND ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
DC Resistance	0.041 Ω	0.033 Ω	0.302 Ω	0.255 Ω	0.208 Ω	0.14 Ω	0.089 Ω	0.46 Ω	0.058 Ω
Nominal inductance(L)	6.2 µH	3.9 µH	68 µH	47 µH	33 µH	22 µH	15 µH	100 µH	10 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDMPIH60D48/T125	CDMPIH60D48/T125	CDMPIH60D48/T125	CDMPIH60D48/T125	CDMPIH60D48/T125	CDMPIH60D48/T125	CDMPIH60D48/T125	CDMPIH60D48/T125	CDMPIH60D48/T125
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Maximum rated current	3.2 A	3.5 A	1.05 A	1.15 A	1.2 A	1.5 A	1.9 A	0.85 A	2.5 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES	YES
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	25%	25%	20%	20%	20%	20%	20%	20%	20%
