CDC4D20NP102KC

Description
1 ELEMENT, 1000uH, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT
Categoryinductor    Fixed inductance
File Size243KB,5 Pages
ManufacturerSUMIDA
Websitehttp://www.sumida.com/
Environmental Compliance
Download Datasheet Parametric View All

CDC4D20NP102KC Overview

1 ELEMENT, 1000uH, GENERAL PURPOSE INDUCTOR, SMD, ROHS COMPLIANT

CDC4D20NP102KC Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSUMIDA
Reach Compliance Codeunknown
Is SamacsysN
DC Resistance16.2 Ω
Nominal inductance(L)1000 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberCDC4D20
Number of functions1
Number of terminals2
Maximum rated current0.07 A
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance10%
Base Number Matches1

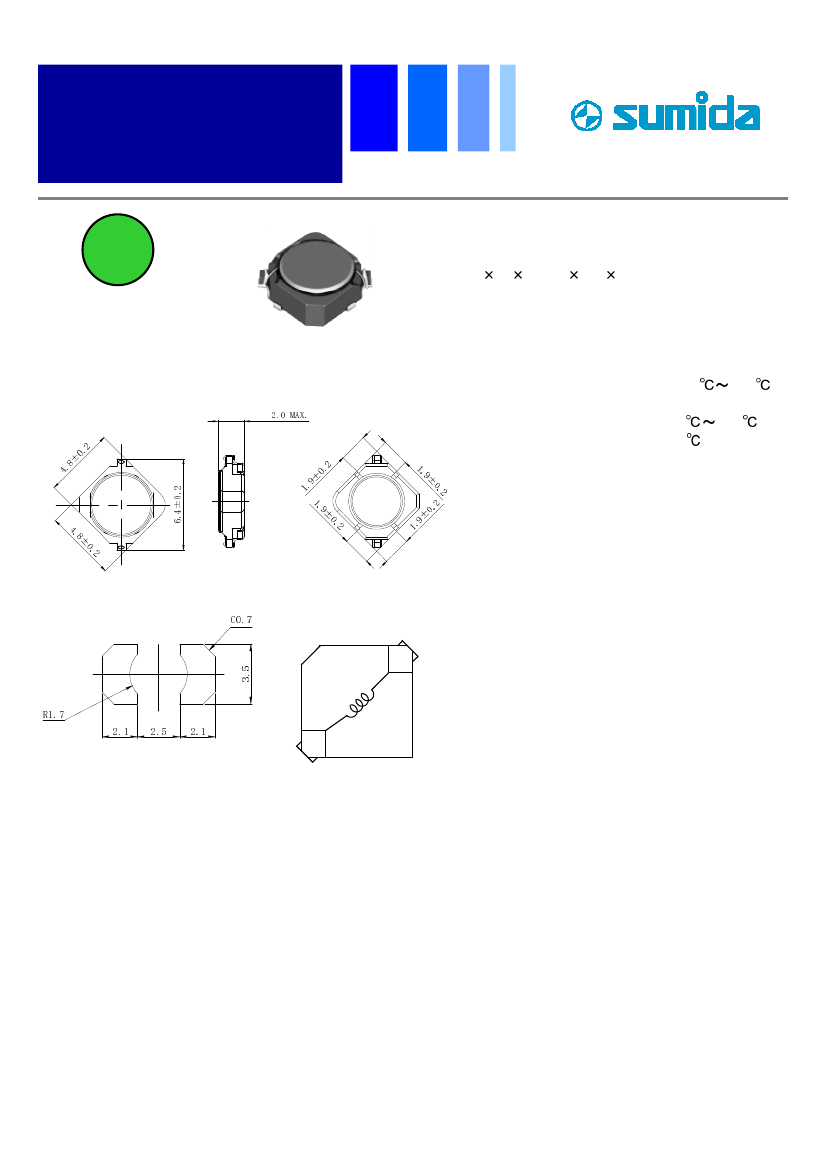

SMD Power Inductor
CDC4D20
Description
• Ferrite drum core construction.
• Magnetically unshielded.
• L W H: 5.0 5.0 2.0 mm Max.
• Product weight: 106mg(Ref.)
• Moisture Sensitivity Level: 1
• RoHS compliance.
Environmental Data
• Operating temperature range: -40
+85
(including coil’s self temperature rise)
• Storage temperature range: -40
+85
• Solder reflow temperature: 260
peak.
.1
±9
0
2.
2.
0
±9
.1
RoHS
Dimension - [mm]
.XAM 0.2
Packaging
• Carrier tape and reel packaging
• 7.0”diameter reel
• 1000pcs per reel
Land pattern and Schematics - [mm]
7.0C
Applications
• Ideally used in EL drive as EL lamp inverter
inductors.
Page 1 of 5
Revised: 10-Dec-13
℃ ½℃
℃ ½℃
× ×
× ×
2.
0
±9
.
1
.1
±9
0
2.
3
.
5
1.2
6
.
4
±
0
.
2
5.2
1.2
2.
0
±8
.4
.4
±8
0
2.
7.1R
