SLR-56YC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SLR-56YC

SLR-56YC: Descriptionphi5.0(T-1 3/4) Circular Type Standard Type; CategoryLED optoelectronic/LED photoelectric; File Size137KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SLR-56YC Overview

phi5.0(T-1 3/4) Circular Type Standard Type

SLR-56YC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Reach Compliance Code	compli
Other features	HIGH RELIABILITY
color	YELLOW
color@wavelength	Yellow
Configuration	SINGLE
Maximum forward current	0.02 A
Maximum forward voltage	2.1 V
JESD-609 code	e1
Lens type	CLEAR
Nominal luminous intensity	25 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	9.7 mm
method of packing	BULK
peak wavelength	585 nm
shape	ROUND
size	5 mm
surface mount	NO
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal pitch	2.5 mm
perspective	35 deg

Preview

Download Datasheet

View All

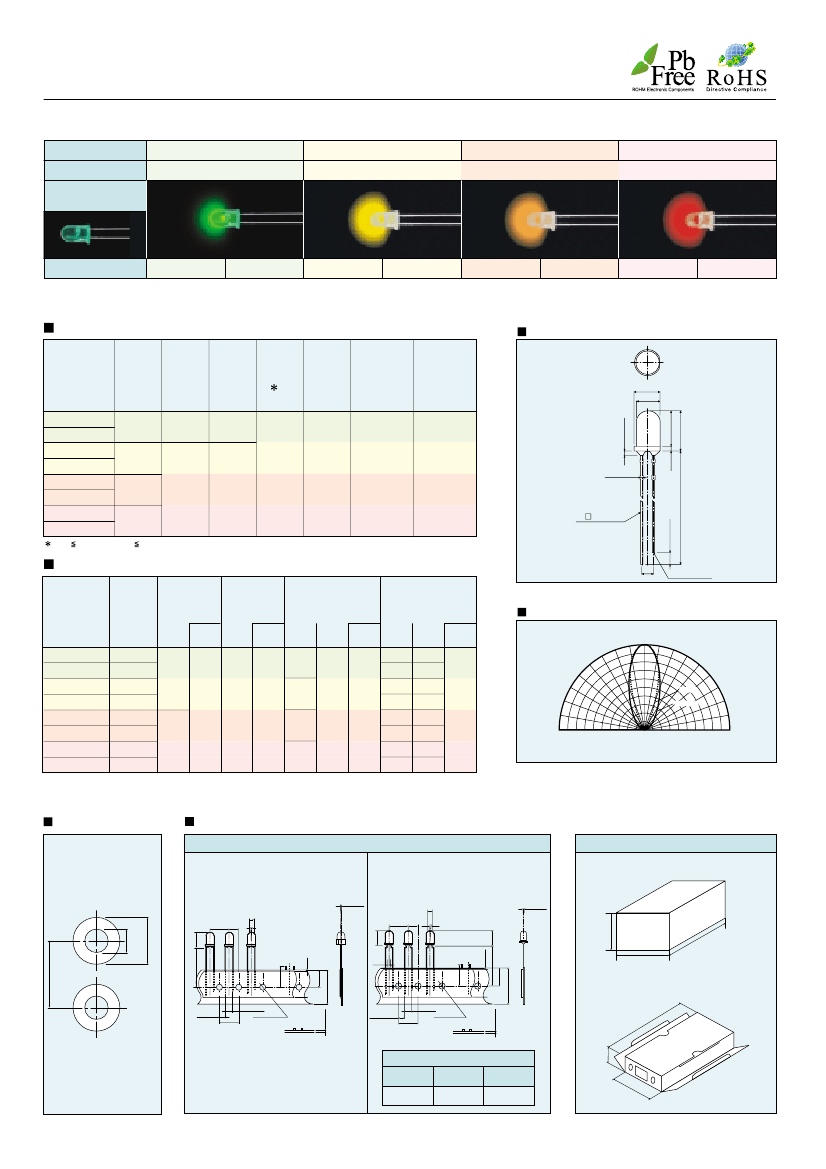

5.0(T-1 3/4) Circular Type

Standard Type <Viewing Angle 2θ1/2 : 40°>

SLR-56 Series

Emitting Color

Material

Emitting Surface

Dimension(mm)

Green(Yellowish Green)

GaP

Yellow

Orange

GaAsP on GaP

Red

5.0

Part No.

SLR-56MC

SLR-56MG

SLR-56YC

SLR-56YY

SLR-56DC

SLR-56DU

SLR-56VC

SLR-56VR

Absolute Maximum Ratings (Ta=25∞C)

Peak

Storage

Power Forward

Reverse Operating

forward

Emitting

dissipation current

voltage temperature temperature

current

color

opr

stg

(mW)

(mA)

(V)

(°C)

(mA)

Dimensions (Unit:mm)

Part No.

5.5

0.3

5.0

1.0Max.

(7.7)

8.7

0.3

1.0

(2.5)

2.5

1.0

CATHODE

0°

30°

SLR-56MC

SLR-56MG

SLR-56YC

SLR-56YY

SLR-56DC

SLR-56DU

SLR-56VC

SLR-56VR

Green

(Yellowish Green)

Yellow

-25 to +85

-30 to +100

−

0.6

−

0.2

0.1

Red

−

0.5

0.1

:Duty 1/ 5, pulse width 1ms.

Electrical Optical Characteristics (Ta=25∞C)

Forward

voltage

Typ.

(V)

SLR-56MC

SLR-56MG

SLR-56YC

SLR-56YY

SLR-56DC

SLR-56DU

SLR-56VC

SLR-56VR

Transparent

Colored

Diffused

Colored

Transparent

Colored

Diffused

Colored

Transparent

Colored

Diffused

Colored

Transparent

Colored

Diffused

Colored

Tolerance:

0.2

Part No.

Resin Color

Reverse

current

Max.

(µA)

(V)

Light wavelength

Peak Half-wave

λp

∆λ

Typ.

(nm)

563

Typ.

(nm)

(mA)

Brightness

Directivity (Typ.)

Min.

(

mcd

)

(mA)

Typ.

(mcd) (mA)

90°

100

60°

Angular Displacement (deg)

2.1

585

2.0

650

610

5.6

9.0

5.6

9.0

3.6

9.0

3.6

24.0Min.

Orange

60°

clear

diffused

90°

100

RELATIVE LUMINOUS INTENSITY (%)

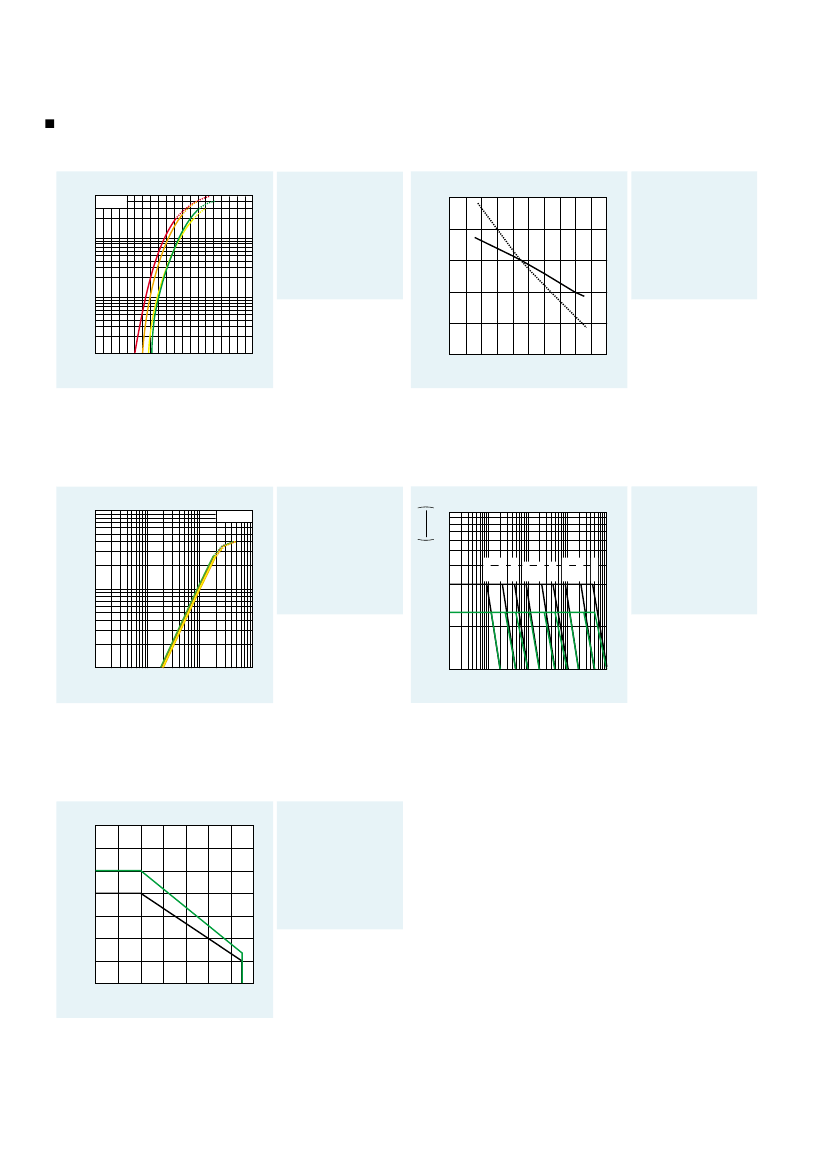

Recommended Pad Layout

Packaging Specifications (Unit:mm)

Tape Specifications

Straight Type:T32

Formed Lead Type

Packaging

Bulk(3F):1000pcs/Box

2.0

5.0

0.2

12.7

1.0

6.35

0.4

1.0

5.0

0.2

12.7

1.0 6.35

0.4

8.7

0.3

1.0

3.0Max.

16.0

0.5

0.8

2.0

1.0

0.1

2.0

21.5

1.0 8.7

0.3

170

100

11.0Max.

3.0Max.

(2.5)

9.0

0.5

18.0

+1.0

−0.5

2.5 or 5.0

9.0

0.5

18.0

+1.0

−0.5

11.0Max.

Tape:2000pcs/Box

340

5.1

0.8

12.7

0.3

3.85

0.8

12.7

0.3

0.7

0.2

0.7

0.2

2.5

0.8

4.0

0.2

5.0

0.8

4.0

0.2

Forming H1 Dimensions(mm)

TB7

12.4

(Unit:mm)

TE7

15.4

TF7

240

16.4

Rev.C

Appendix

Notes

No technical content pages of this document may be reproduced in any form or transmitted by any

means without prior permission of ROHM CO.,LTD.

The contents described herein are subject to change without notice. The specifications for the

product described in this document are for reference only. Upon actual use, therefore, please request

that specifications to be separately delivered.

Application circuit diagrams and circuit constants contained herein are shown as examples of standard

use and operation. Please pay careful attention to the peripheral conditions when designing circuits

and deciding upon circuit constants in the set.

Any data, including, but not limited to application circuit diagrams information, described herein

are intended only as illustrations of such devices and not as the specifications for such devices. ROHM

CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any

third party's intellectual property rights or other proprietary rights, and further, assumes no liability of

whatsoever nature in the event of any such infringement, or arising from or connected with or related

to the use of such devices.

Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or

otherwise dispose of the same, no express or implied right or license to practice or commercially

exploit any intellectual property rights or other proprietary rights owned or controlled by

ROHM CO., LTD. is granted to any such buyer.

Products listed in this document are no antiradiation design.

The products listed in this document are designed to be used with ordinary electronic equipment or devices

(such as audio visual equipment, office-automation equipment, communications devices, electrical

appliances and electronic toys).

Should you intend to use these products with equipment or devices which require an extremely high level of

reliability and the malfunction of with would directly endanger human life (such as medical instruments,

transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other

safety devices), please be sure to consult with our sales representative in advance.

About Export Control Order in Japan

Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control

Order in Japan.

In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause)

on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction.

Appendix1-Rev1.1

SLR-56YC Related Products

	SLR-56YC	SLR-56MC	SLR-56	SLR-56MG	SLR-56YY	SLR-56VR	SLR-56DU	SLR-56DC	SLR-56VC
Description	phi5.0(T-1 3/4) Circular Type Standard Type	phi5.0(T-1 3/4) Circular Type Standard Type	phi5.0(T-1 3/4) Circular Type Standard Type	phi5.0(T-1 3/4) Circular Type Standard Type	phi5.0(T-1 3/4) Circular Type Standard Type	phi5.0(T-1 3/4) Circular Type Standard Type	phi5.0(T-1 3/4) Circular Type Standard Type	phi5.0(T-1 3/4) Circular Type Standard Type	phi5.0(T-1 3/4) Circular Type Standard Type
Is it lead-free?	Lead free	Lead free	-	-	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	-	conform to	conform to	conform to	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Reach Compliance Code	compli	compli	-	compli	compli	compli	compli	compli	compli
Other features	HIGH RELIABILITY	HIGH RELIABILITY	-	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
color	YELLOW	GREEN	-	GREEN	YELLOW	RED	ORANGE	ORANGE	RED
color@wavelength	Yellow	Gree	-	Gree	Yellow	Red	Ambe	Ambe	Red
Configuration	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.025 A	-	0.025 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Maximum forward voltage	2.1 V	2.1 V	-	2.1 V	2.1 V	2 V	2 V	2 V	2 V
JESD-609 code	e1	e1	-	e1	e1	e1	e1	e1	e1
Lens type	CLEAR	CLEAR	-	DIFFUSED	DIFFUSED	DIFFUSED	DIFFUSED	CLEAR	CLEAR
Nominal luminous intensity	25 mcd	40 mcd	-	16 mcd	10 mcd	10 mcd	10 mcd	25 mcd	25 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	-	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	-	1	1	1	1	1	1
Number of terminals	2	2	-	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	9.7 mm	9.7 mm	-	9.7 mm	9.7 mm	9.7 mm	9.7 mm	9.7 mm	9.7 mm
method of packing	BULK	BULK	-	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	585 nm	563 nm	-	563 nm	585 nm	650 nm	610 nm	610 nm	650 nm
shape	ROUND	ROUND	-	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	-	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	-	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	-	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal pitch	2.5 mm	2.5 mm	-	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
perspective	35 deg	35 deg	-	40 deg	40 deg	40 deg	40 deg	35 deg	35 deg
