SLR-342MG datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> SLR-342MG

SLR-342MG: Description3.1(T-1) Circular Type Standard Type; CategoryLED optoelectronic/LED photoelectric; File Size104KB，3 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

SLR-342MG Overview

3.1(T-1) Circular Type Standard Type

SLR-342MG Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ROHM Semiconductor
Reach Compliance Code	compli
Samacsys Descripti	Circular LED lamp: ROHM\'s lamp LED lineup covers various types including high-brightness/high-reliability LED lamps suitable outdoor displays.
color	YELLOW/GREEN
Configuration	SINGLE
Maximum forward current	0.025 A
JESD-609 code	e1
Lens type	DIFFUSED
Nominal luminous intensity	16.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5.2 mm
method of packing	BULK
peak wavelength	563 nm
shape	ROUND
size	3.1 mm
surface mount	NO
T code	T-1
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal pitch	2.5 mm
perspective	40 deg

Preview

Download Datasheet

View All

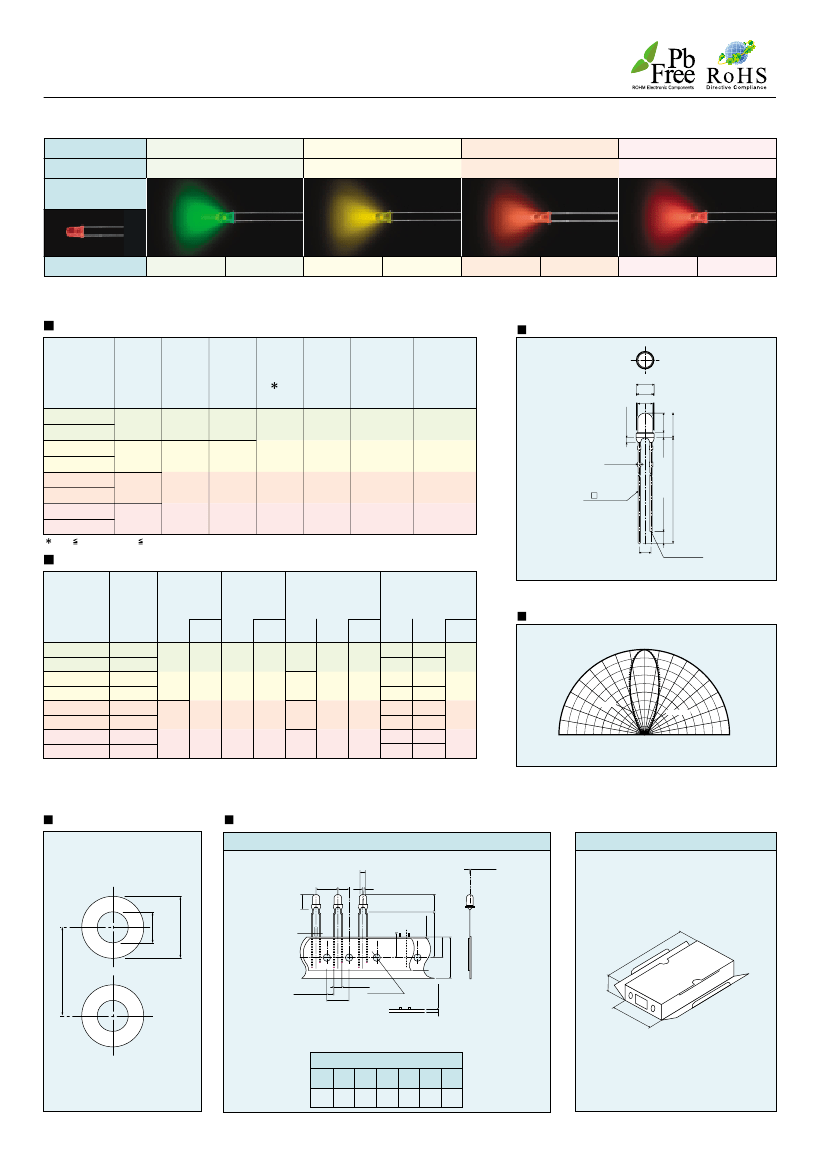

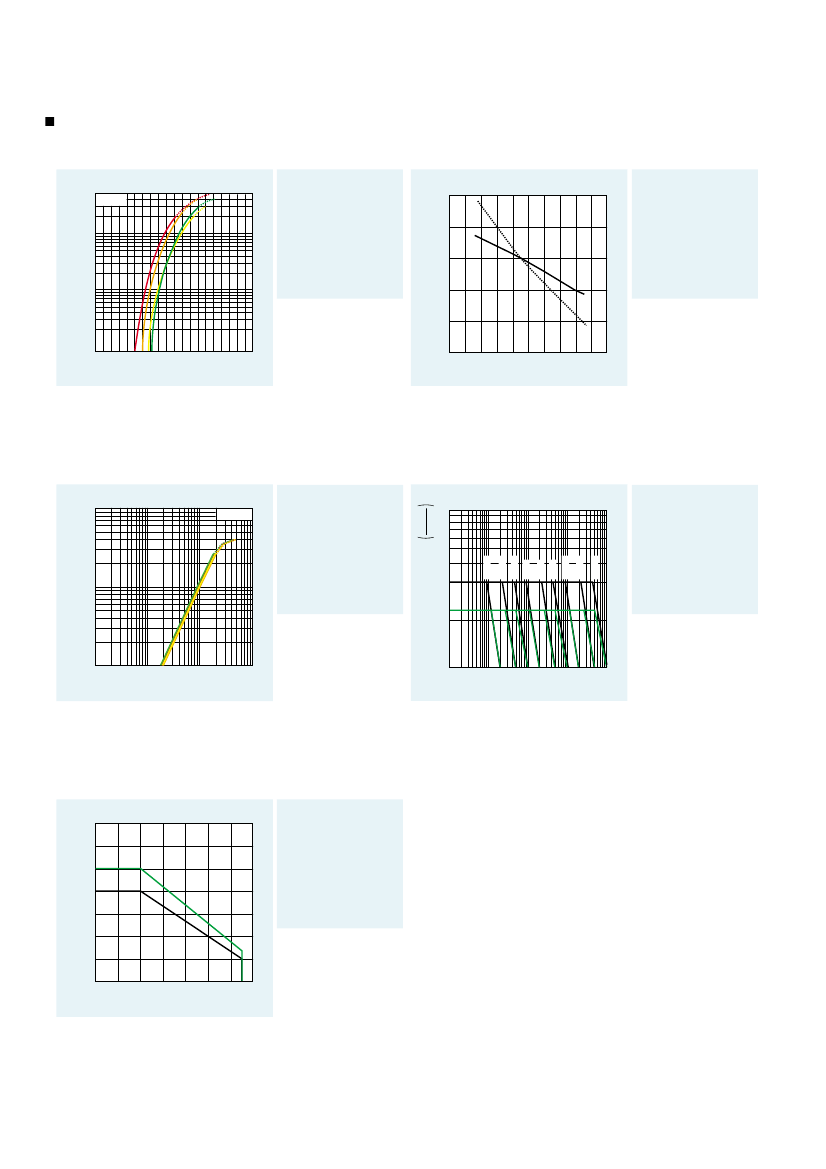

3.1(T-1) Circular Type Standard Type

<Viewing Angle 2

1/2 : 40

SLR-342 Series

Emitting Color

Material

Emitting Surface

Dimension(mm)

Green(Yellowish Green)

GaP

Yellow

Orange

GaAsP on GaP

Red

3.1

Part No.

SLR-342MC

SLR-342MG

SLR-342YC

SLR-342YY

SLR-342DC

SLR-342DU

SLR-342VC

SLR-342VR

Absolute Maximum Ratings (Ta=25∞C)

Peak

Reverse Operating

Storage

Power Forward

forward

Emitting

dissipation current

voltage temperature temperature

current

color

opr

stg

(mW)

(mA)

(V)

(°C)

(mA)

Dimensions (Unit:mm)

Part No.

3.8

0.3

3.5

3.1

1.0Max.

(4.1)

5.2

0.3

(1.1)

(2.5)

2.5

1.0

CATHODE

0°

30°

SLR-342MC

SLR-342MG

SLR-342YC

SLR-342YY

SLR-342DC

SLR-342DU

SLR-342VC

SLR-342VR

:Duty

Green

(Yellowish Green)

Yellow

-25 to +85

-30 to +100

4-0.5

+0.2

-0.1

Orange

Red

1ms.

0.4

0.1

1/ 5, pulse width

Electrical Optical Characteristics (Ta=25∞C)

Tolerance:

0.2

Part No.

Resin Color

Forward

voltage

Typ.

(V)

(mA)

Reverse

current

Max.

(µA)

(V)

Light wavelength

Peak Half-wave

λp

∆λ

Typ.

(nm)

Typ.

(nm)

(mA)

Brightness

Min. Typ.

(

mcd

)

(mcd) (mA)

9.0

Directivity (Typ.)

Angular Displacement (deg)

SLR-342MC

Transparent

Colored

563

Diffused

SLR-342MG

Colored

5.6

2.1

SLR-342YC

Transparent

Colored

585

Diffused

3.6

SLR-342YY

Colored

9.0

SLR-342DC

Transparent

Colored

610

Diffused

5.6

SLR-342DU

Colored

2.0

Transparent

9.0

SLR-342VC

Colored

650

Diffused

5.6

SLR-342VR

Colored

Note) SLR-342 series are available with forming taping style. For the bulk and straight taping style, we would recommend our

SLR-343(LEDs with Pressure Release Structure)

24.0Min.

60°

clear

diffused

60°

90°

100

90°

100

RELATIVE LUMINOUS INTENSITY (%)

Recommended Pad Layout

Packaging Specifications (Unit:mm)

Formed Lead Type

3.1

0.2

Packaging

2.0

Tape:2000pcs/Box

12.7

1.0 6.35

0.4

5.2

0.3

1.0

3.0Max.

16.0

0.5

9.0

0.5

0.8

5.0(Formed Lead Type)

1.0

0.1

2.0

(2.5)

11.0Max.

3.85

0.8

12.7

0.3

0.7

0.2

5.0

0.8

4.0

0.2

18.0

+1.0

−0.5

340

158

Forming H1 Dimensions(mm)

TB7 TC7 TE7 TF7 TG7 TH7 TJ7

(Unit:mm)

8.9 9.9 11.9 12.9 13.9 14.9 15.9

Rev.C

Appendix

Notes

No technical content pages of this document may be reproduced in any form or transmitted by any

means without prior permission of ROHM CO.,LTD.

The contents described herein are subject to change without notice. The specifications for the

product described in this document are for reference only. Upon actual use, therefore, please request

that specifications to be separately delivered.

Application circuit diagrams and circuit constants contained herein are shown as examples of standard

use and operation. Please pay careful attention to the peripheral conditions when designing circuits

and deciding upon circuit constants in the set.

Any data, including, but not limited to application circuit diagrams information, described herein

are intended only as illustrations of such devices and not as the specifications for such devices. ROHM

CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any

third party's intellectual property rights or other proprietary rights, and further, assumes no liability of

whatsoever nature in the event of any such infringement, or arising from or connected with or related

to the use of such devices.

Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or

otherwise dispose of the same, no express or implied right or license to practice or commercially

exploit any intellectual property rights or other proprietary rights owned or controlled by

ROHM CO., LTD. is granted to any such buyer.

Products listed in this document are no antiradiation design.

The products listed in this document are designed to be used with ordinary electronic equipment or devices

(such as audio visual equipment, office-automation equipment, communications devices, electrical

appliances and electronic toys).

Should you intend to use these products with equipment or devices which require an extremely high level of

reliability and the malfunction of with would directly endanger human life (such as medical instruments,

transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other

safety devices), please be sure to consult with our sales representative in advance.

About Export Control Order in Japan

Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control

Order in Japan.

In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause)

on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction.

Appendix1-Rev1.1

SLR-342MG Related Products

	SLR-342MG	SLR-342DU	SLR-342VC	SLR-342VR	SLR-342	SLR-342DC	SLR-342YC	SLR-342MC	SLR-342YY
Description	3.1(T-1) Circular Type Standard Type	3.1(T-1) Circular Type Standard Type	3.1(T-1) Circular Type Standard Type	3.1(T-1) Circular Type Standard Type	3.1(T-1) Circular Type Standard Type	3.1(T-1) Circular Type Standard Type	3.1(T-1) Circular Type Standard Type	3.1(T-1) Circular Type Standard Type	3.1(T-1) Circular Type Standard Type
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	-	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	-	-	conform to	conform to	conform to
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor	-	-	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Reach Compliance Code	compli	compli	compli	compli	-	-	compli	compli	compli
Samacsys Descripti	Circular LED lamp: ROHM\'s lamp LED lineup covers various types including high-brightness/high-reliability LED lamps suitable outdoor displays.	Circular LED lamp: ROHM\'s lamp LED lineup covers various types including high-brightness/high-reliability LED lamps suitable outdoor displays.	Circular LED lamp: ROHM\'s lamp LED lineup covers various types including high-brightness/high-reliability LED lamps suitable outdoor displays.	Circular LED lamp: ROHM\'s lamp LED lineup covers various types including high-brightness/high-reliability LED lamps suitable outdoor displays.	-	-	Circular LED lamp: ROHM\'s lamp LED lineup covers various types including high-brightness/high-reliability LED lamps suitable outdoor displays.	Circular LED lamp: ROHM\'s lamp LED lineup covers various types including high-brightness/high-reliability LED lamps suitable outdoor displays.	Circular LED lamp: ROHM\'s lamp LED lineup covers various types including high-brightness/high-reliability LED lamps suitable outdoor displays.
color	YELLOW/GREEN	ORANGE	RED	RED	-	-	YELLOW	YELLOW/GREEN	YELLOW
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	-	-	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.02 A	0.02 A	0.02 A	-	-	0.02 A	0.025 A	0.02 A
JESD-609 code	e1	e1	e1	e1	-	-	e1	e1	e1
Lens type	DIFFUSED	DIFFUSED	CLEAR	DIFFUSED	-	-	CLEAR	CLEAR	DIFFUSED
Nominal luminous intensity	16.0 mcd	16.0 mcd	25.0 mcd	16.0 mcd	-	-	16.0 mcd	25.0 mcd	10.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	-	-	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	-	-	1	1	1
Number of terminals	2	2	2	2	-	-	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-	-	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-	-	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	-	-	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	5.2 mm	5.2 mm	5.2 mm	5.2 mm	-	-	5.2 mm	5.2 mm	5.2 mm
method of packing	BULK	BULK	BULK	BULK	-	-	BULK	BULK	BULK
peak wavelength	563 nm	610 nm	650 nm	650 nm	-	-	585 nm	665 nm	585 nm
shape	ROUND	ROUND	ROUND	ROUND	-	-	ROUND	ROUND	ROUND
size	3.1 mm	3.1 mm	3.1 mm	3.1 mm	-	-	3.1 mm	3.1 mm	3.1 mm
surface mount	NO	NO	NO	NO	-	-	NO	NO	NO
T code	T-1	T-1	T-1	T-1	-	-	T-1	T-1	T-1
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	-	-	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	-	-	2.5 mm	2.5 mm	2.5 mm
perspective	40 deg	40 deg	40 deg	40 deg	-	-	40 deg	40 deg	40 deg
color@wavelength	-	Ambe	Red	Red	-	-	Yellow	Gree	Yellow
Maximum forward voltage	-	3 V	3 V	3 V	-	-	3 V	3 V	3 V
Maximum reverse voltage	-	3 V	3 V	3 V	-	-	3 V	3 V	3 V
