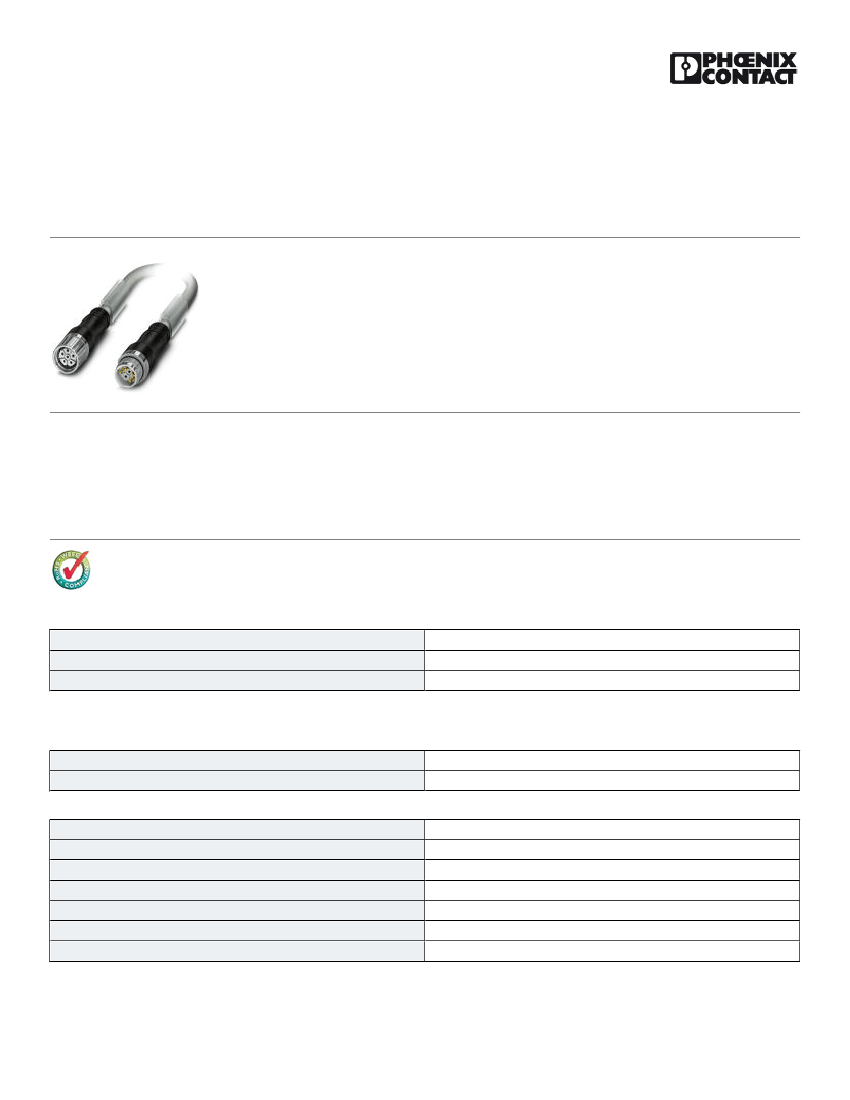

Connector in molded plastic on both sides - K-3E-M23 M9/5,0-A00/M23
F8 - 1619606
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Connector in molded plastic on both sides, Length: 5 m, Color of outer sheath: gray RAL 7001
Product Features
■
■
■
■
Our standard: robust halogen-free PUR cable
Simple and safe: 100% electrically tested and assembled ready for use
Designs with pre-assembled cables on one or both sides
High flexibility: customer-specific assemblies and cable lengths can be supplied
Key Commercial Data
Packing unit
Custom tariff number
Country of origin
1 pc
85444290
Germany
Technical data
Conductor length
Nominal current
5m
34 A
Connector specifications
Type
Thread type
Locking type
Degree of protection
Number of positions
Direction of rotation
Type of contact
straight plastic-sheathed
M23
Screw locking
IP67, when in locked state
3+PE
Standard
Socket
03/28/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/1619606
Connector in molded plastic on both sides - K-3E-M23 M9/5,0-A00/M23
F8 - 1619606
Technical data
Connector specifications
Insertion/withdrawal cycles
Contact resistance
Max. current
Voltage
Overvoltage category
Degree of pollution
Rated surge voltage
Ambient temperature (operation)
50
< 0.3 mΩ
30 A
630 V
III
3
6 kV
-40 °C ... 105 °C
Cable specifications
Type of cable
Shielded
Cable structure
Cable structure (AWG)
External cable diameter
Outer sheath, material
Material wire insulation
External sheath, color
Nominal voltage, cable
Test voltage
Rated current
Ambient temperature for fixed installation
Ölflex Control TM
yes
4G4
Ölflex Control TM CY 4G4
12.3 mm
PVC
PVC
gray RAL 7001
600 V
2 kV
34 A
-40 °C ... 90 °C
Connector specifications (second page)
Type
Housing material
Thread type
Degree of protection
Number of positions
Direction of rotation
Type of contact
Insertion/withdrawal cycles
Contact resistance
Max. current
Voltage
Overvoltage category
Degree of pollution
straight plastic-sheathed
Zinc die-cast
M23
IP67, when in locked state
3+PE
Standard
Male connector
50
< 0.3 mΩ
30 A
630 V
III
3
03/28/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/1619606
Connector in molded plastic on both sides - K-3E-M23 M9/5,0-A00/M23
F8 - 1619606
Technical data
Connector specifications (second page)
Rated surge voltage
Ambient temperature (operation)
6 kV
-40 °C ... 105 °C
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
272607xx
27260701
27260701
27143423
27143423
27449001
27062011
27062011
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC001121
EC001578
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
43172015
43201404
43172015
43201404
43201404
Approvals
Approvals
Approvals
UL Listed / cUL Listed / EAC / cULus Listed
Ex Approvals
03/28/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/1619606
Connector in molded plastic on both sides - K-3E-M23 M9/5,0-A00/M23
F8 - 1619606
Approvals
Approvals submitted
Approval details
UL Listed
Nominal current IN
Nominal voltage UN
25 A
600 V
cUL Listed
Nominal current IN
Nominal voltage UN
25 A
600 V
EAC
cULus Listed
Drawings
Schematic diagram
Schematic diagram
2
4
6
5
1
1
2
6
5
4
Do not use pin 1 and 6
Do not use pin 1 and 6
03/28/2016 Page 4 / 5
https://www.phoenixcontact.com/us/products/1619606
Connector in molded plastic on both sides - K-3E-M23 M9/5,0-A00/M23
F8 - 1619606
Dimensional drawing
Dimensional drawing
103,3
98,3
M23x1
On the female side
Pin side
Circuit diagram
1
2
PE
4
5
6
1
4mm
4mm
4mm
4mm
2
2
2
2
BK3
GN/YE
BK1
BK2
M23x1
Ø28,3
Ø28
2
PE
4
5
6
Contact assignment of M23 plugs/sockets
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
03/28/2016 Page 5 / 5
