M3
Packing Options
M3
Packing options include:
•
•
•
•
•
Bulk Pack
Reel Pack (RP)
Ammo Pack (AP)
Tube Pack (TP)
Embossed Carrier (RP)
Sample Instructions for Choosing a
Packing Option
(1) If selecting an “L401E6” (sensitive gate, 400 V, 1 A triac in a
TO-92 package), choose one of the options available for that
device:
• Bulk packed in 2,000 quantity
• Tape and Reel with 2,000 parts per reel
• Tape and Ammo with 2,000 parts per box
(2) Add the designated code as a suffix to the device number,
such as “L401E6 RP” if selecting Tape and Reel or “L401E6
AP” if selecting Tape and Ammo. (Bulk packing requires no
suffix.)
See “Package Type and Packing Options” on page M3-2.
2004 Littelfuse, Inc.
Thyristor Product Catalog
M3 - 1
http://www.littelfuse.com
+1 972-580-7777
Packing Options
Data Sheets
Package Type and Packing Options
Reel Pack
(RP)
2,000
Packing Options
Ammo Pack
Tube Pack
(AP)
(TP)
2,000
Contact factory
for availability
Embossed Carrier
(RP)
Only
Type 73
Package Type
TO-92
Package Code
E
Bulk Pack
2,000
TO-220
L, R
500
n/a
n/a
50
Only
Type 67 and 68
TO-202
F
500
700 (Type 2)
n/a
50
Only
Type 43
TO-218
K, J, M, W
250
n/a
n/a
Contact factory
for availability
n/a
Fastpak
P
160
n/a
n/a
n/a
n/a
TO-251 V-Pak
V
1,000
Contact factory
for availability
n/a
75
n/a
TO-252 D-Pak
D
n/a
n/a
n/a
75
2500
TO-263 D
2
Pak
N
n/a
n/a
n/a
50
500
DO-214
S
1,000
n/a
n/a
n/a
2500
Compak
C
1,000
n/a
n/a
n/a
2500
DO-35
Y
10,000
Minimum order
of 5,000
available
5,000
n/a
n/a
n/a
DO-15X
G
1,000
5,000
n/a
n/a
n/a
http://www.littelfuse.com
+1 972-580-7777
M3 - 2
2004 Littelfuse, Inc.
Thyristor Product Catalog
Data Sheets
Packing Options

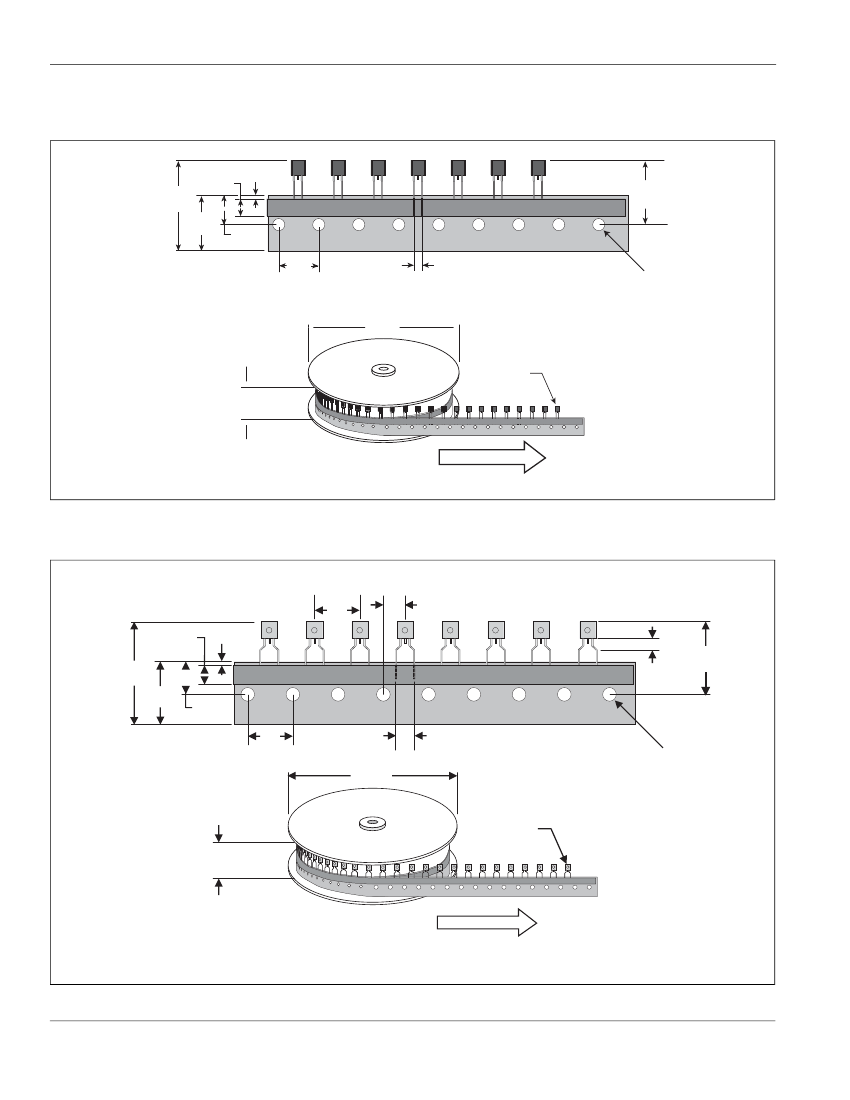

TO-92 (3-lead) Reel Pack (RP) Radial Leaded
Meets all EIA-468-B 1994 Standards
1.6
(41.0)
0.236
(6.0)
0.02 (0.5)
0.098 (2.5) MAX
1.26
(32.0)
0.708
(18.0)
0.354
(9.0)
0.5
(12.7)
0.1 (2.54)
14.17(360.0)
MT1 / Cathode
0.2 (5.08)
Gate
MT2 / Anode
0.157 DIA
(4.0)
Flat up
1.97
(50.0)
Dimensions
are in inches
(and millimeters).
Direction of Feed

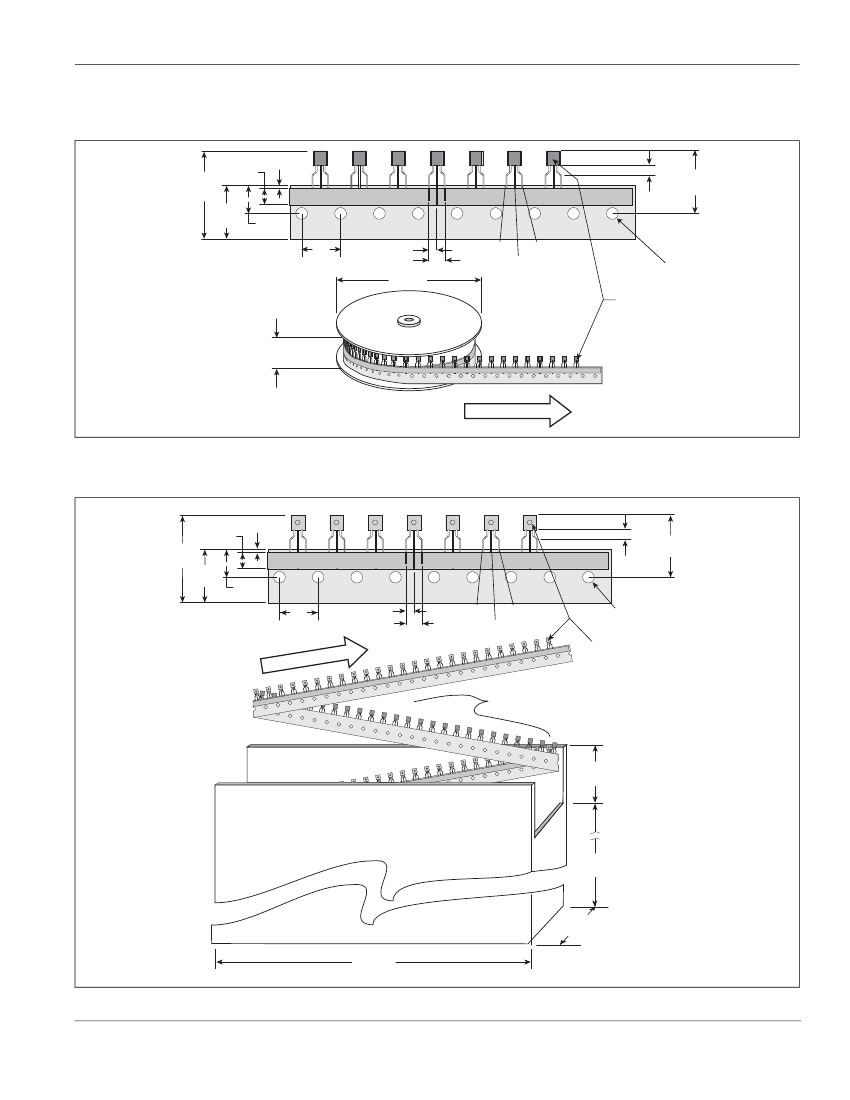

TO-92 (3-lead) Ammo Pack (AP) Radial Leaded
Meets all EIA-468-B 1994 Standards
0.236
(6.0)
1.62
(41.2)
0.708
(18.0)
0.02 (0.5)
0.098 (2.5) MAX
1.27
(32.2)
0.354
(9.0)
0.5
(12.7)
0.1 (2.54)
MT2 / Anode
0.2 (5.08)
MT1 / Cathode
0.157
(4.0) DIA
Gate
Flat down
Direc
eed
tion of F
25 Devices per fold
1.85
(47.0)
12.2
(310.0)
Dimensions
are in inches
(and millimeters).
1.85
(47.0)
13.3
(338.0)
2004 Littelfuse, Inc.
Thyristor Product Catalog
M3 - 3
http://www.littelfuse.com
+1 972-580-7777
Packing Options
Data Sheets
TO-92 Type 70 Reel Pack (RP3) Optional
Meets all EIA-468-B 1994 Standards
1.3
(33.1)
0.236
(6.0)
0.02 (0.5)
0.95
(24.1)
0.708
(18.0)
0.354
(9.0)
0.5
(12.7)
0.1 (2.54)
0.157
DIA
(4.0)
14.17
(360.0)
Dimensions
are in inches
(and millimeters).
Flat Up
1.97
(50.0)
Direction of Feed
TO-92 Type 70 Reel Pack (RP2) Standard
Meets all EIA-468-B 1994 Standards
0.50
(12.7)
0.236
(6.0)
1.62
(41.2)
0.708
(18.0)
0.354
(9.0)
0.50
(12.7)
14.17
(360.0)
0.02
(0.5)
0.25
(6.35)
0.125 (3.2) MAX
1.27
(32.2)
0.20
(5.08)
0.157
DIA
(4.0)
Flat Down
1.97
(50.0)
Dimensions
are in inches
(and millimeters).
Direction of Feed
http://www.littelfuse.com
+1 972-580-7777
M3 - 4
2004 Littelfuse, Inc.
Thyristor Product Catalog
Data Sheets
Packing Options

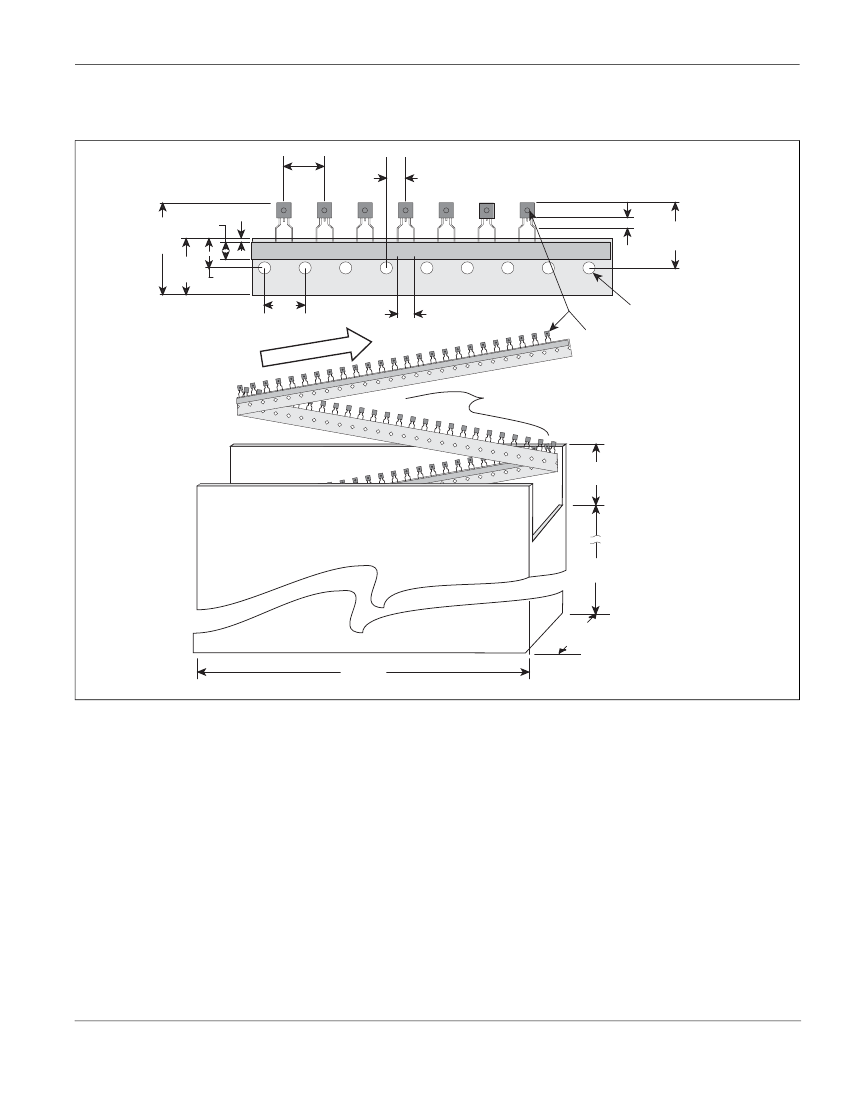

TO-92 Type 70 Ammo Pack (AP) Radial Leaded
Meets all EIA-468-B 1994 Standards
0.50
(12.7)
0.02 (0.5)
0.25
(6.35)
1.62
(41.2)
MAX
0.236
(6.0)
0.125 (3.2) MAX
1.27
(32.2)
0.708
(18.0)
0.354
(9.0)
0.50
(12.7)
0.20 (5.08)
0.157
(4.0) DIA
n of Fee
Directio
d
Flat down
25 Devices per fold
1.85
(47.0)
12.2
(310.0)
Dimensions
are in inches
(and millimeters).
1.85
(47.0)
13.3
(338.0)
2004 Littelfuse, Inc.
Thyristor Product Catalog
M3 - 5
http://www.littelfuse.com
+1 972-580-7777
