T-1 (3mm) SOLID STATE LAMP
L-7104ID-12V
HIGH EFFICIENCY RED
Features
zLOW
POWER CONSUMPTION.
zGENERAL
PURPOSE LEADS.
zRELIABLE
AND RUGGED.
Description
The High Efficiency Red source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide Orange
Light Emitting Diode.
zPOPULAR
T-1 DIAMETER PACKAGE.
zLONG
LIFE - SOLID STATE RELIABILITY.
zAVAILABLE
ON TAPE AND REEL.
z12V
INTERNAL RESISTOR.
zRoHS
COMPLIANT.

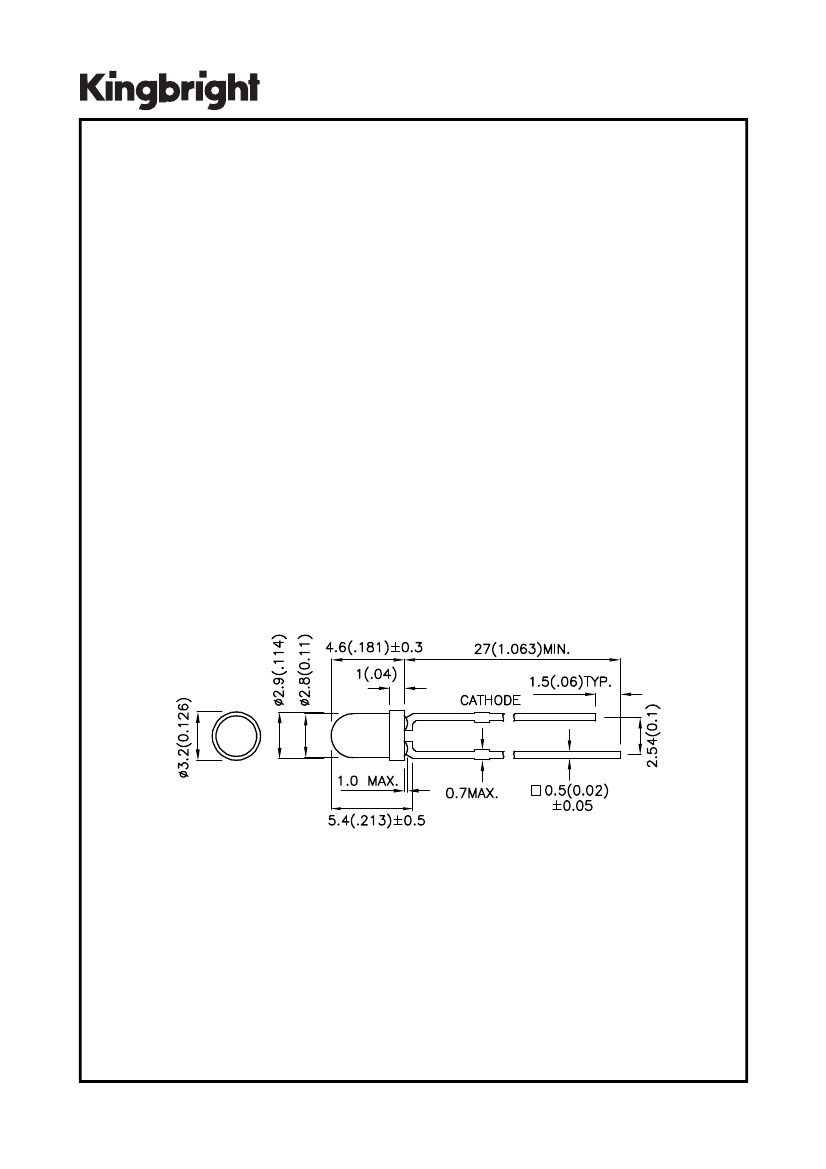

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO: DSAC2576
APPROVED: J. Lu
REV NO: V.3
CHECKED: Allen Liu
DATE:MAR/25/2005
DRAWN:H.Q.YUAN
PAGE: 1 OF 3
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
V= 12V
Min.
L-7104ID-12V
HIGH EFFICIENCY RED (GaAsP/GaP)
RED DIFFUSED
8
Typ.
20
Viewing
Angle
2θ1/2
40
°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
I
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Forward Current
Reverse Current
Device
High Efficiency Red
High Efficiency Red
High Efficiency Red
High Efficiency Red
High Efficiency Red
Typ.
627
625
45
8.5
11.5
10
Max.
Units
nm
nm
nm
mA
uA
Test Conditions
V
F
=12V
V
F
=12V
V
F
=12V
V
F
=12V
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
Forward Voltage
Reverse Voltage
Operating Temperature
Storage Temperature
Lead Solder Temperature[1]
Lead Solder Temperature[2]
Notes:
1. 2mm below package base.
2. 5mm below package base.
High Efficiency Red
120
14
5
-40°C To +70°C
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
V
V
SPEC NO: DSAC2576
APPROVED: J. Lu
REV NO: V.3
CHECKED: Allen Liu
DATE:MAR/25/2005
DRAWN:H.Q.YUAN
PAGE: 2 OF 3

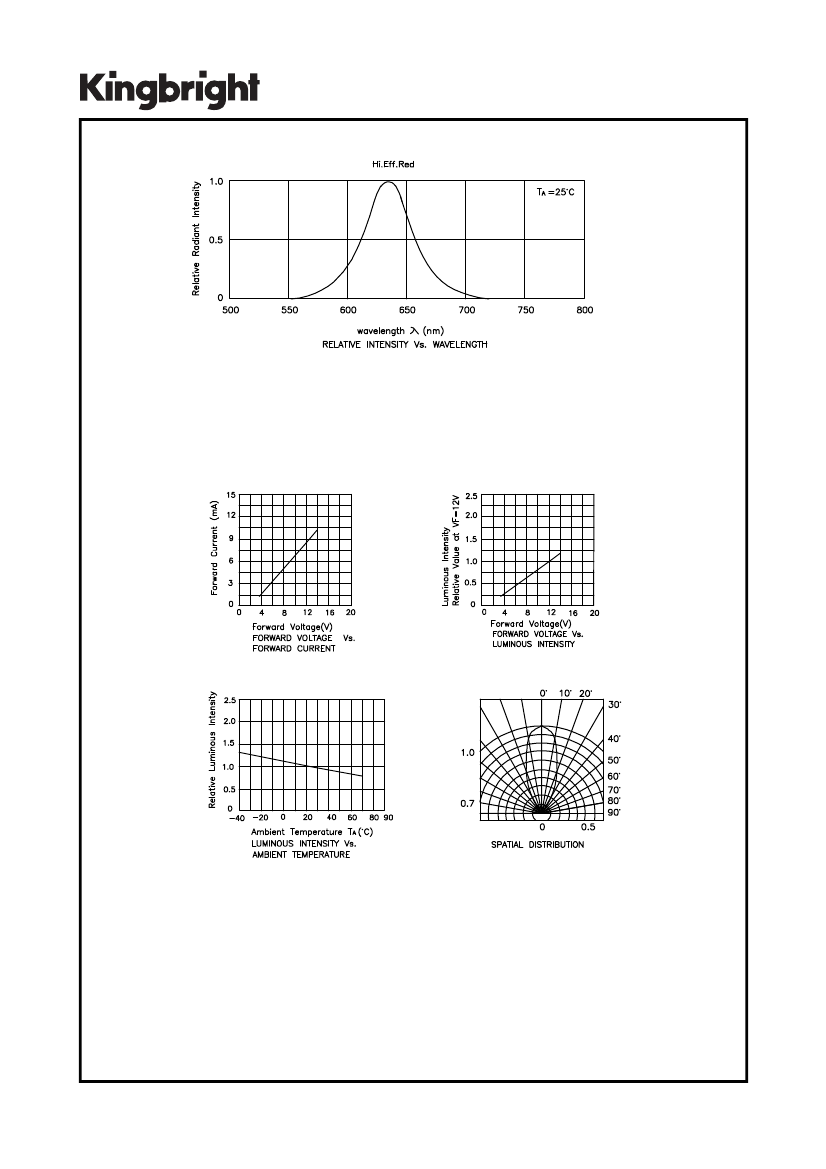

High Efficiency Red
L-7104ID-12V
Remarks:
If special sorting is required (e.g. binning based on luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
Note: Accuracy may depend on the sorting parameters.
SPEC NO: DSAC2576
APPROVED: J. Lu
REV NO: V.3
CHECKED: Allen Liu
DATE:MAR/25/2005
DRAWN:H.Q.YUAN
PAGE: 3 OF 3
