Ratings
Voltage: 300 V
Temperature: -10 to 105 °C
Flammability: VW-1
Conductor
Conductor count: 2
Gauge: 26 AWG 0.14 mm2
Material: tinned copper strands
Strand size: Ø 0.16 mm x 7
Outer jacket
Material: PVC/38P
Color: white
Diameter: 2.7 ±0.20 mm (1.35 ±0.1 x 2)
Nominal thickness: 0.40 mm
Electrical requirements
Voltage test: 300 V
Spark test: 3.0 kV
Conductor maximum resistance at 20 °C: 150 ohms/km
Jacket resistance at 20 °C: 10 Mohms/km
Dielectric test: 2000 Vac for 1 minute with no breakdown
Mechanical requirements
Jacket tensile strength: 1.05 kgf/mm2
After aging at 136±2 °C for 7 days:
Minimum tensile strength 70% of original
Minimum elongation 65% of original
Environmental requirements
Heat shock: 136±1 °C/1 hour, no observed degradation
Deformation: 136±1 °C/1 hour,
≤50%
Cold bend: -10±2 °C/1 hour, no observed cracking

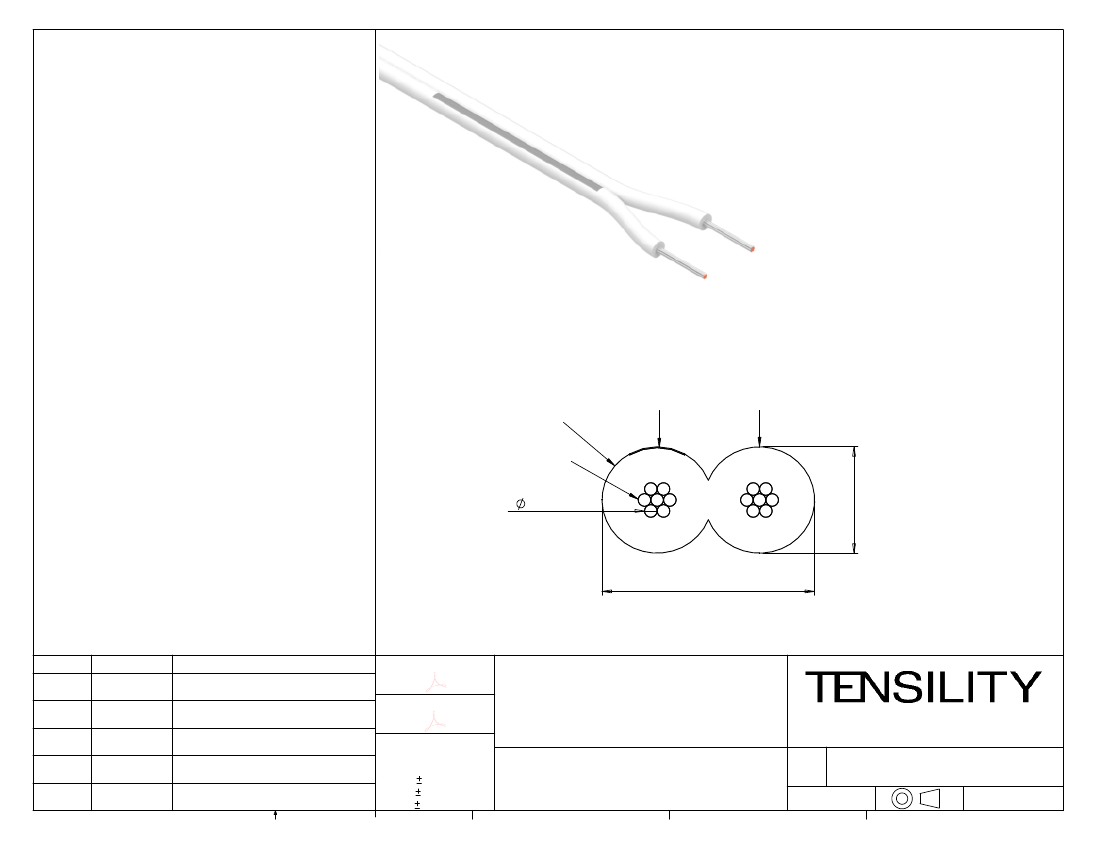

Wire marking:
E339579 UL AWM STYLE 2651 26 AWG 105°C
300V VW-1 - - - cUL AWM I A 105°C 300V FT1 TENSILITY
Jacket
Conductor
0.16 x 7
Stripe
Marking
2.7 ±0.20
Revision:
A
Date:
3/02/2017
Description:
Initial release
Prepared:
AG
Notes:
Digitally signed by AG
Date: 2017.10.20
11:49:49 -07'00'
RoHS and REACH compliant
Function test: no open, no short circuit, no
intermittent
Description:
Wire, 2C TS, 26 AWG, UL2651, 300V, 105C, 2.7 mm,
VW-1, PVC, 38P, white
3
2
tel
fax
Verified:
GL
Digitally signed by GL
Date: 2017.10.23
16:44:44 -07'00'
Dimensions are in
millimeters.
Tolerances:
X:
0.5 mm
X.X:
0.3 mm
X.XX: 0.05 mm
5
4
1.541.323.3228
1.541.323.4202
Part number:
1.35 ±0.10
800
web
877.670.7118
tensility.com
Size:
A
Scale:
30-00806
20:1
1
Sheet 1 of 1
