LW1148L-K: DescriptionSingle Color LED, White, Pale Yellow, 2.17 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC, LCC-2; Categoryphotoelectric; File Size235KB，13 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric View All

LW1148L-K Overview

Single Color LED, White, Pale Yellow, 2.17 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC, LCC-2

LW1148L-K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stanley Electric Co
package instruction	2.17 X 1.40 MM, 1.30 MM HEIGHT, ROHS COMPLIANT, PLASTIC, LCC-2
Reach Compliance Code	compliant
Is Samacsys	N
color	WHITE
Configuration	SINGLE
Maximum forward current	0.01 A
Lens type	PALE YELLOW
Nominal luminous intensity	12.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.235 mm
method of packing	TAPE AND REEL
shape	RECTANGULAR
surface mount	YES
Terminal pitch	2 mm
perspective	100 deg
Base Number Matches	1

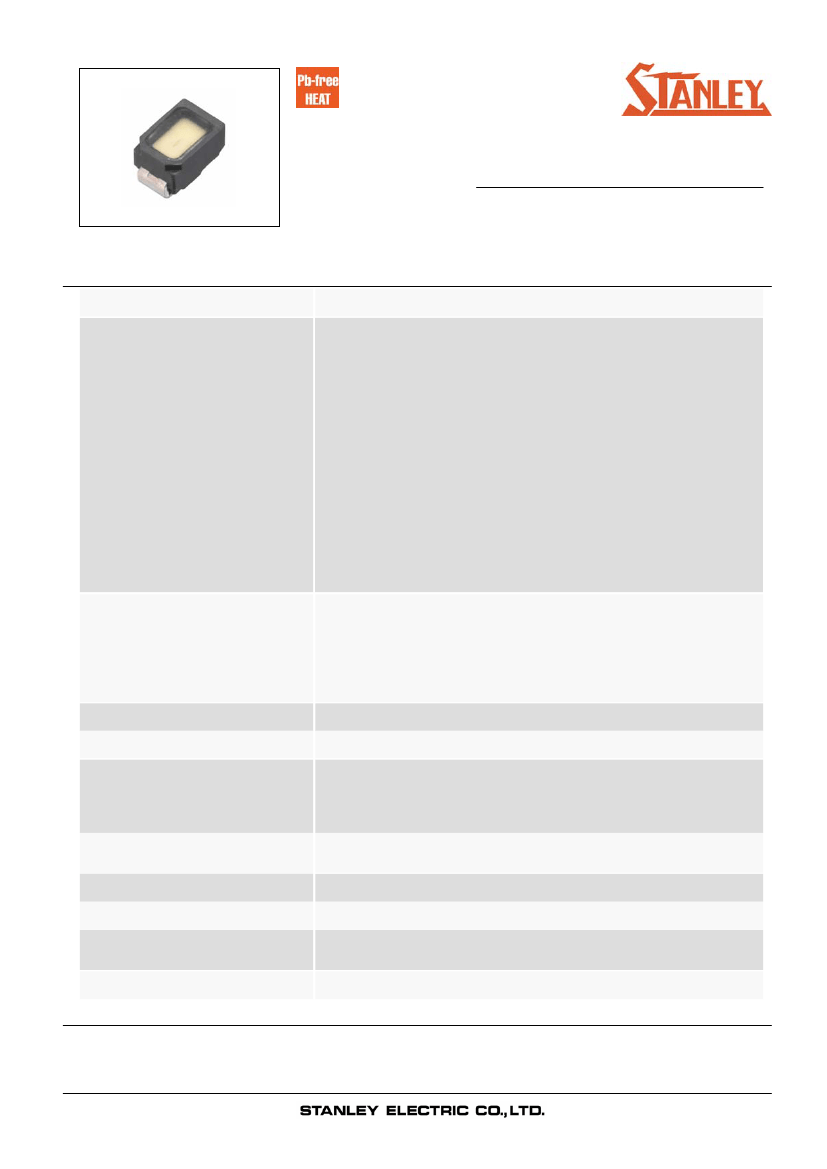

Preview

Download Datasheet

View All

LW1148L-K

PLCC-2 Type White LED

Features

Package

Product features

PLCC-2 Type, Diffused pale yellow resin

・Outer

Dimension 2.17 x 1.4 x 1.3mm ( L x W x H )

・Temperature

range

Storage Temperature : -40℃½110℃

Operating Temperature : -40℃½100℃

・No

lead package

・Lead–free

soldering compatible

・RoHS

compliant

Chromaticity coordinates

x = 0.31TYP., y = 0.32TYP.

(Condition : I

= 2mA)

Spatial distribution

Die materials

Optical efficiency

θx

= 110 deg.,

θy

= 100 deg.

InGaN

3.4 lm/W

Rank grouping parameter

Assembly method

Soldering methods

Taping and reel

ESD

Sorted by luminous intensity and chromaticity per rank taping

Auto pick & place machine (Auto Mounter)

Reflow soldering, TTW (Through The Wave) soldering and manual soldering

3,000pcs per reel in a 8mm width tape. (Standard)

Reel diameter:φ180mm

1kV (HBM)

Recommended Applications

SW lighting for car indicators, meter panel, car audio and heater control, etc…

2005.8.30

Page 1
