BHAA-POL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > accessories> BHAA-POL

BHAA-POL: DescriptionHOLDER BATT AA POLAR PROTECTION; Categoryaccessories; File Size250KB，1 Pages; ManufacturerMPD (Memory Protection Devices); Environmental Compliance

Download Datasheet Parametric Compare View All

BHAA-POL Overview

HOLDER BATT AA POLAR PROTECTION

BHAA-POL Parametric

Parameter Name	Attribute value
Battery type, function	cylindrical, seat
style	Seat (opening)
Battery size	AA
Number of batteries	1
Battery series	-
Installation type	PCB, through hole
Terminal type	PC pin
board height	0.781"（19.84mm）
Operating temperature	-

Preview

Download Datasheet

View All

10/17/14

12/29/17

UPDATED TO ROHS 2

COMPLIANT

MILLISECONDS WAS MICRO

SECONDS

T.B.

B.S.

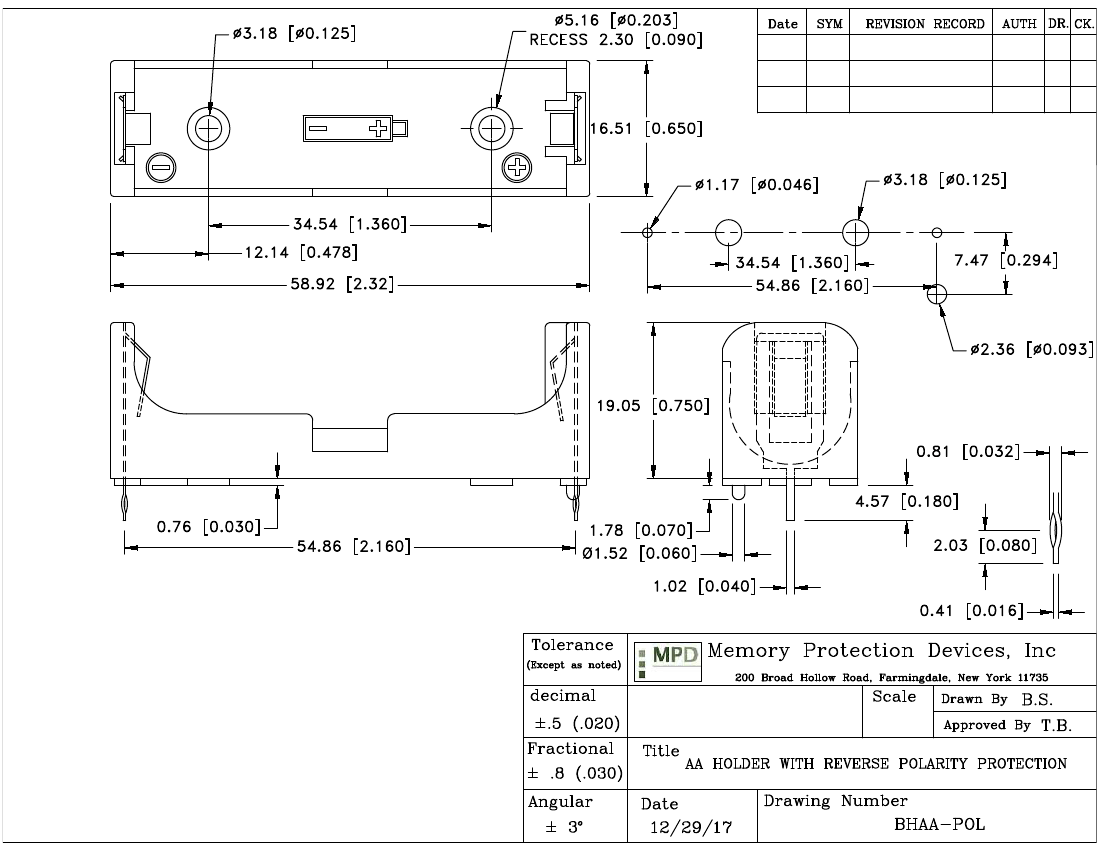

PCB LAYOUT

CONTACT DETAIL

SPECIFICATIONS:

Holder Material: Black PBT, Flammability Rating: UL94V-0, FILE #E53829

Contacts: 301 Spring temper stainless steel, nickel plated overall

Dielectric strength: 560 Volts/mil at 25°C for 5 Sec.

Temperature Range: -55°C to +180°C

Vibration Test: 10-50-10 Hz sweeped in 60 seconds

X,Y,Z direction: 1 hour each direction, No dislodgement

of the cell or damage, No discontinuity over 10 micro-seconds

Shock Test: Half sine wave acceleration 150g. 6 milliseconds, 1

shock pulses each direction per axis, total of 6 pulses, No

evidence of physical damage

NOTES: Eyelet Stimpson style #A1883 0.110" OD x 0.190" Flange

Flange Recess Ø0.203" x 0.090" Deep

Accepts Standard 2-56 Machine Screws

Accessories: BI-UM-3-4, Insulator

ROHS 2 COMPLIANT

BHAA-POL Related Products

	BHAA-POL	BHAA-POL-G
Description	HOLDER BATT AA POLAR PROTECTION	HOLDER BATT AA POLAR PROT GOLD
Battery type, function	cylindrical, seat	cylindrical, seat
style	Seat (opening)	Seat (opening)
Battery size	AA	AA
Number of batteries	1	1
Installation type	PCB, through hole	PCB, through hole
Terminal type	PC pin	PC pin
board height	0.781"（19.84mm）	0.781"（19.84mm）
