ARJM11C7-517-AD-CW2 datasheet, PDF

Datasheet> All Categories > The connector> ARJM11C7-517-AD-CW2

ARJM11C7-517-AD-CW2: DescriptionCONN MAGJACK 1PORT 1000 BASE-T; CategoryThe connector; File Size2MB，11 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ARJM11C7-517-AD-CW2 Overview

CONN MAGJACK 1PORT 1000 BASE-T

ARJM11C7-517-AD-CW2 Parametric

Parameter Name	Attribute value
Connector type	RJ45
Number of ports	1
Number of rows	1
application	10/100/1000 Base-T，AutoMDIX
Installation type	Through hole
towards	90° angle (right angle)
Termination	welding
board height	0.543"（13.80mm）
LED color	green-orange
Number of cores per jack	8
shield	Shielded, EMI refers
characteristic	plate lock
tab direction	superior
Contact material	-
Contact plating	gold
Operating temperature	0°C ~ 70°C
Contact plating thickness	6.00µin（0.152µm）
shielding material	-
Shell material	-

Preview

Download Datasheet

View All

RJ45 SINGLE PORT 100/1000/2.5G/5G BASE-T MAGNETICS

ARJM11

SERIES DESCRIPTION

21.30 x 15.90 x 13.60mm

21.30 x 15.90 x 13.80mm

MSL = 1

RoHS/RoHS II Compliant

The ARJM11 series of RJ45 jacks with internal magnetics supports a wide range of configurations in 10/100Base-T, 1000Base-T,

2.5GBase-T and 5GBase-T applications. This series offers the ability to mix and match physical orientation of the tab, pin layouts,

EMI fingers, LED colors and plating options while providing PoE and PoE+ options for 10/100Base-T rates. All configurations in the

product series support paste in hole (PIH), a technology that allows through-hole components to be compatible with surface mount reflow

assembly processes. All devices are rated to 0°C to 70°C or -40°C to 85°C operating temperature range.

FEATURES

•

10/100Base-T, 1000Base-T, 2.5GBase-T or 5GBase-T

Supports PoE and PoE+ (10/100Base-T)

Compatible with surface mount with Paste in hole (PIH)

technology

-40°C to 85°C or 0°C to 70°C operating temperature range

Combinations of green, yellow, orange, and red LED

•

APPLICATIONS

Internet of Things (Ethernet)

IP cameras, surveillance, and phone

Access points

Industrial computers

Network interface cards (NIC)

Industrial process control

Networking and communications

Broadcast video

Storage

Set top box and video

Power over Ethernet (PoE)

Test and Measurement

Multifunction Printers (MFP)

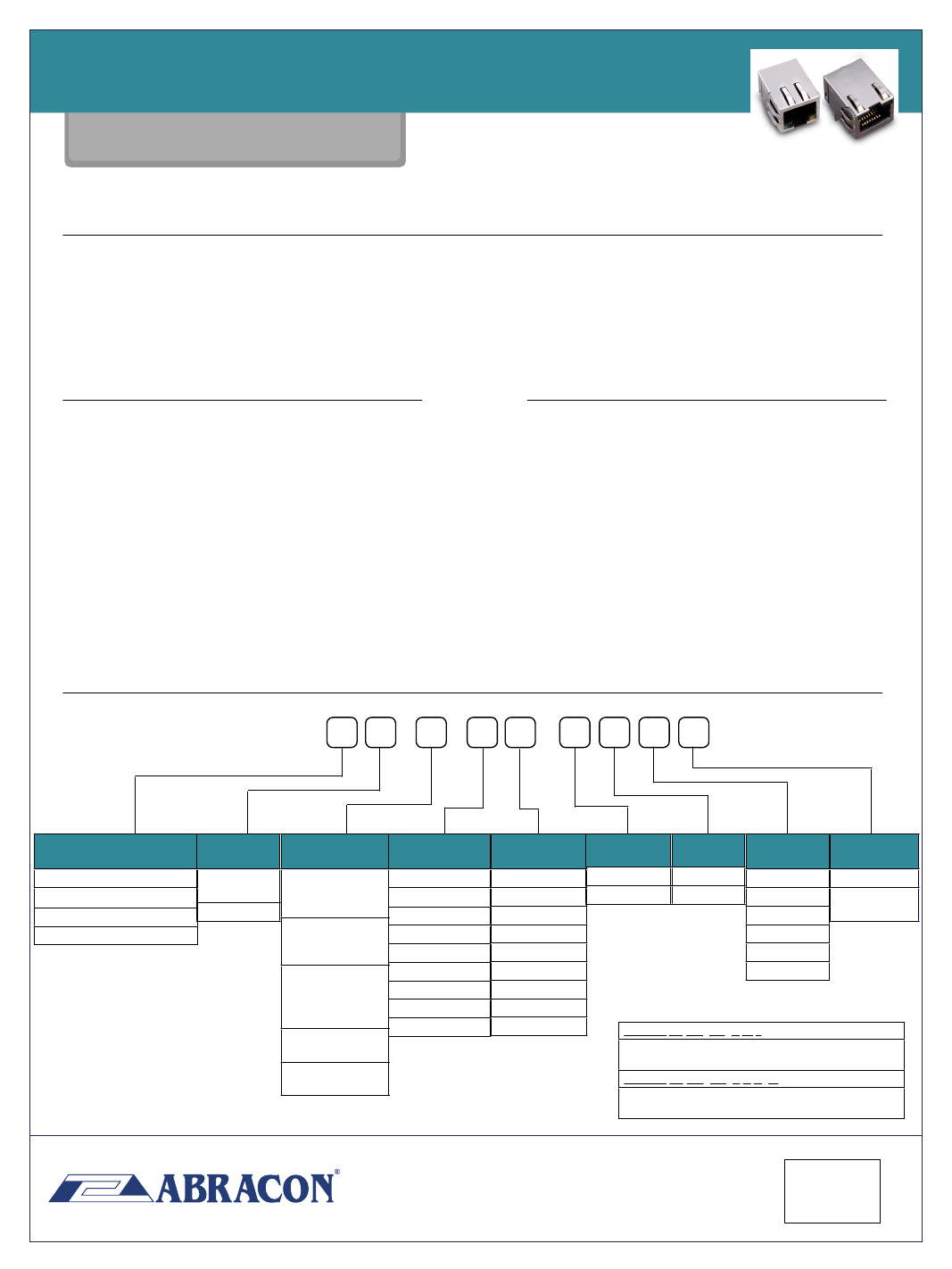

OPTIONS AND PART IDENTIFICATION

*NRE may apply to some configurations.

ARJM11

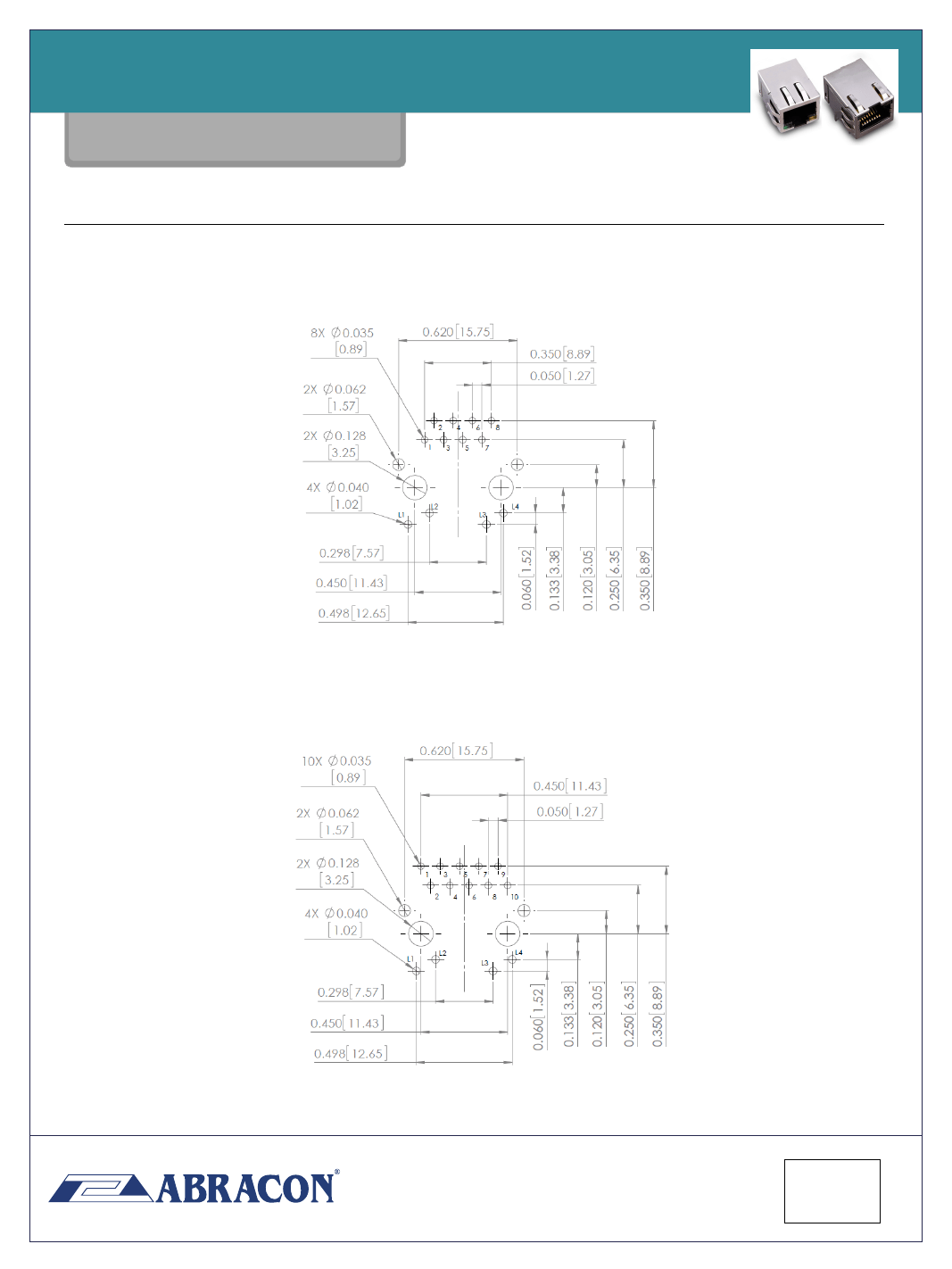

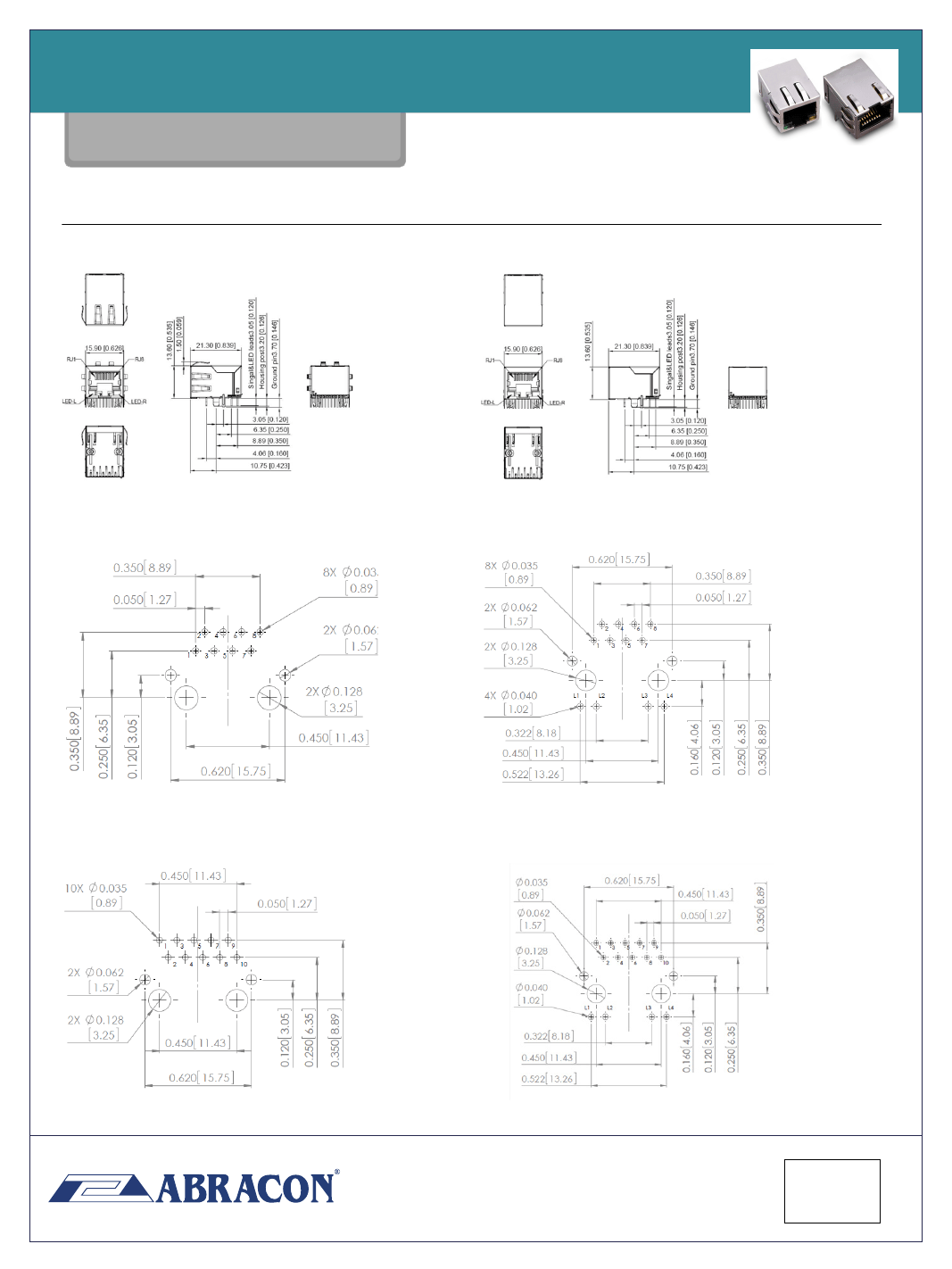

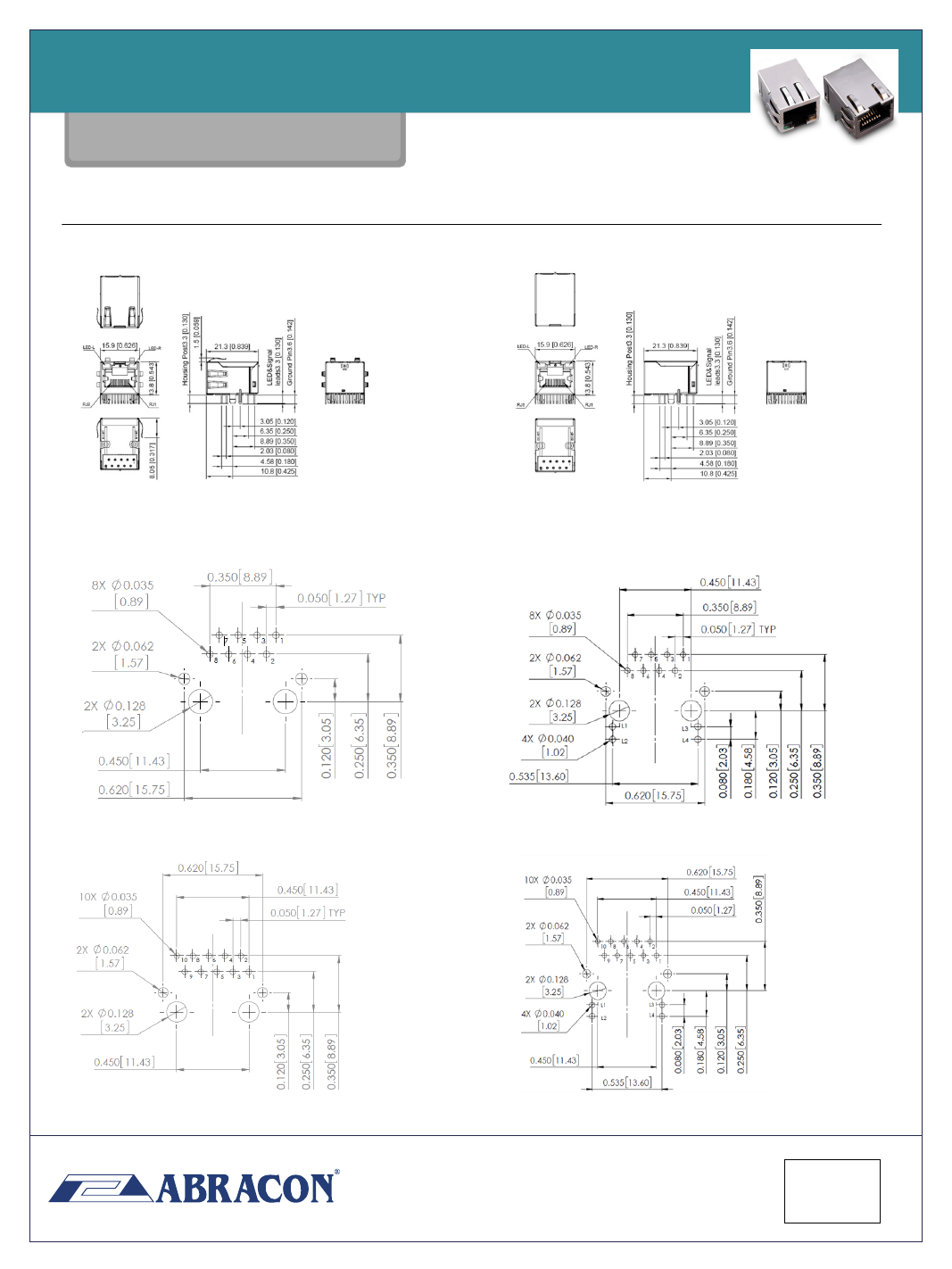

Mechanical

A: Tab down, w/ EMI Finger

B: Tab down, w/o EMI Finger

C: Tab up, w/ EMI Finger

D: Tab up, w/o EMI Finger

*(Please See Mechanical Section)

Pin Layout

1: for A and B

3: for A and B

7: for C and D

Schematics

100 Base-T:

009,

001, 007, 008, 010

100 Base-T &

PoE:

104, 114, 116, 130

1000 Base-T:

502,

504, 516, 517, 559,

576, 577, 628, 634

2.5G Base-T:

805, 809

5G Base-T:

811

Left LED color

N: No LED

A: Green

B: Yellow

C: Red

D: Orange

J: Green/Yellow

K: Green/Orange

L: Green/Red

M: Red/Yellow

Right LED

color

N: No LED

A: Green

B: Yellow

C: Red

D: Orange

J: Green/Yellow

K: Green/Orange

L: Green/Red

M: Red/Yellow

Operating

Temperature

C: 0 ~ 70 °C

E: -40 ~ 85 °C

Soldering

Method

: Wave

R: Reflow

Gold Plating

0: Gold Flash

1: 3u”

2: 6u”

3: 15u”

4: 30u”

5: 50u”

Packaging

Blank: Bulk

: Tape&Reel

**Wave solderable product is only available in bulk/tray packaging

Example Configurations

ARJM11 A1-001 -AB- C W 2

(Tab down, w/ EMI, 100Base-T, w/LED G/Y, commercial

grade, 6µ” Gold, Tray Packaging)

ARJM11 D7-502 -NN- E R 4 - T

(Tab up, w/o EMI, 1000Base-T, no LED, industrial grade,

reflow soldering, 30µ” Gold, Tape & Reel)

*(Please See Schematics Section)

LLC

5101 Hidden Creek Lane Spicewood TX 78751

Phone: 512.371.6159 | email: abinfo@abracon.com

For terms and conditions of sales visit:

www.abracon.com

REVISED:

12.05.2018

ABRACON IS

ISO9001-2015

CERTIFIED
